Locks

Door lock

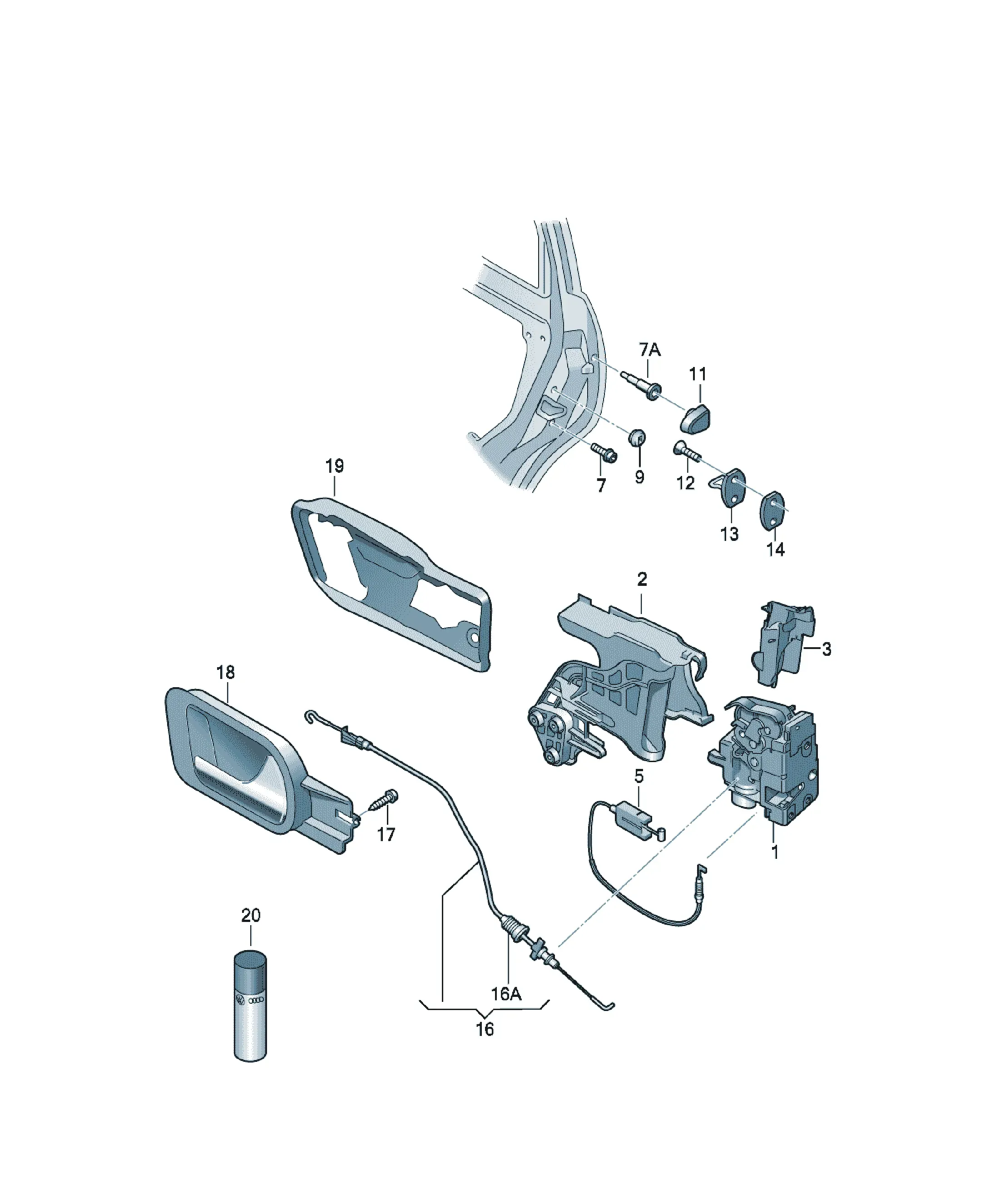

Assembly diagrams

4 diagrams

Parts

63 parts
  • 3C1837016A Offers

    [Name] [Note] [Model info] [QTY]

    Door lock right lhd PR:4K3

    D >> - 04.01.2009 1

    mating connector

    1J0973715 Flat contact housing 10 pin 1

    Possible single wire: 000 979 131 1,0 X

    000 979 131 A 1,0 X

  • 5N2837016A Offers

    [Name] [Note] [Model info] [QTY]

    Door lock right rhd PR:4K3,4F2

    D - 05.01.2009>> - 07.03.2010 1

    Replacements: 5N2837016C

  • 5N2837015D Offers

    [Name] [Note] [Model info] [QTY]

    Door lock left rhd PR:4I2,4I3

    D - 05.01.2009>> 1

    additionally to be used items: 3 1

    Replacements: 5N2837015F; 5K0837349A

  • 3C1837015A Offers

    [Name] [Note] [Model info] [QTY]

    Door lock left lhd PR:4K3

    D >> - 04.01.2009 1

    mating connector

    1J0973715 Flat contact housing 10 pin 1

    Possible single wire: 000 979 131 1,0 X

    000 979 131 A 1,0 X

  • 5N1837015C Offers

    [Name] [Note] [Model info] [QTY]

    Door lock left lhd PR:4K3,4F2 1

    D - 05.01.2009>>

    additionally to be used items: 3 1

    Replacements: 5N1837015E; 5K0837349A

    mating connector

    1J0973715 Flat contact housing 10 pin 1

    Possible single wire: 000 979 131 1,0 X

    000 979 131 A 1,0 X

  • 5N2837016D Offers

    [Name] [Note] [Model info] [QTY]

    Door lock right rhd PR:4I2,4I3

    D - 08.03.2010>> 1

    additionally to be used items: 3 1

    Replacements: 5N2837016F; 5K0837350A

  • 5N2837016B Offers

    [Name] [Note] [Model info] [QTY]

    Door lock right rhd PR:4I2,4I3

    D - 05.01.2009>> - 07.03.2010 1

    Replacements: 5N2837016D

  • 3C2837016B Offers

    [Name] [Note] [Model info] [QTY]

    Door lock right rhd PR:4I2

    D >> - 04.01.2009 1

  • 5N1837016D Offers

    [Name] [Note] [Model info] [QTY]

    Door lock right lhd PR:4K0,4I2,

    D - 08.03.2010>> 4F6,4I3 1

    additionally to be used items: 3 1

    Replacements: 5N1837016F; 5K0837350A

    mating connector

    1J0973715 Flat contact housing 10 pin 1

    Possible single wire: 000 979 131 1,0 X

    000 979 131 A 1,0 X

  • 5N2837015C Offers

    [Name] [Note] [Model info] [QTY]

    Door lock left rhd PR:4K3,4F2

    D - 05.01.2009>> 1

    additionally to be used items: 3 1

    Replacements: 5N2837015E; 5K0837349A

    mating connector

    1J0973715 Flat contact housing 10 pin 1

    Possible single wire: 000 979 131 1,0 X

    000 979 131 A 1,0 X

  • 3C2837015A Offers

    [Name] [Note] [Model info] [QTY]

    Door lock left rhd PR:4K3

    D >> - 04.01.2009 1

    mating connector

    1J0973715 Flat contact housing 10 pin 1

    Possible single wire: 000 979 131 1,0 X

    000 979 131 A 1,0 X

  • 5N2837016C Offers

    [Name] [Note] [Model info] [QTY]

    Door lock right rhd PR:4K3,4F2

    D - 08.03.2010>> 1

    additionally to be used items: 3 1

    Replacements: 5N2837016E; 5K0837350A

    mating connector

    1J0973715 Flat contact housing 10 pin 1

    Possible single wire: 000 979 131 1,0 X

    000 979 131 A 1,0 X

  • 3C2837015B Offers

    [Name] [Note] [Model info] [QTY]

    Door lock left rhd PR:4I2

    D >> - 04.01.2009 1

  • 3C2837016A Offers

    [Name] [Note] [Model info] [QTY]

    Door lock right rhd PR:4K3

    D >> - 05.01.2009 1

    mating connector

    1J0973715 Flat contact housing 10 pin 1

    Possible single wire: 000 979 131 1,0 X

    000 979 131 A 1,0 X

  • 5N1837016B Offers

    [Name] [Note] [Model info] [QTY]

    Door lock right lhd PR:4K0,4I2,

    D - 05.01.2009>> - 07.03.2010 4F6,4I3 1

    Replacements: 5N1837016D

    mating connector

    1J0973715 Flat contact housing 10 pin 1

    Possible single wire: 000 979 131 1,0 X

    000 979 131 A 1,0 X

  • 3C1837016B Offers

    [Name] [Note] [Model info] [QTY]

    Door lock right lhd PR:4K0,4I2

    D >> - 04.01.2009 1

  • 5N1837015D Offers

    [Name] [Note] [Model info] [QTY]

    Door lock left lhd PR:4K0,4I2,

    D - 08.03.2010>> 4F6,4I3 1

    additionally to be used items: 3 1

    Replacements: 5N1837015F; 5K0837349A

    mating connector

    1J0973715 Flat contact housing 10 pin 1

    Possible single wire: 000 979 131 1,0 X

    000 979 131 A 1,0 X

  • 5N1837015B Offers

    [Name] [Note] [Model info] [QTY]

    Door lock left lhd PR:4K0,4I2,

    D - 05.01.2009>> - 07.03.2010 4F6,4I3 1

    Replacements: 5N1837015D

    mating connector

    1J0973715 Flat contact housing 10 pin 1

    Possible single wire: 000 979 131 1,0 X

    000 979 131 A 1,0 X

  • 3C1837015B Offers

    [Name] [Note] [Model info] [QTY]

    Door lock left lhd PR:4K0,4I2

    D >> - 04.01.2009 1

  • 5N1837016C Offers

    [Name] [Note] [Model info] [QTY]

    Door lock right lhd PR:4K3,4F2 1

    D - 05.01.2009>>

    additionally to be used items: 3 1

    Replacements: 5N1837016E; 5K0837350A

    mating connector

    1J0973715 Flat contact housing 10 pin 1

    Possible single wire: 000 979 131 1,0 X

    000 979 131 A 1,0 X

  • 5N08371119B9 Offers

    [Name]

    Satin black

  • 5N0837111 Offers

    [Name] [Note] [QTY]

    Cover cap 16 2

  • N91017401 Offers

    [Name] [Note] [QTY]

    countersunk multi-point socket head bolt M8X22 4

  • 3C0837767A Offers

    [Name] [Note] [QTY]

    Striker 2

    contains additional positions: 14

  • 3C0837279A Offers

    [Name] [QTY]

    Underlay 2

    Striker

  • 5N0837085E Offers

    [Name] [Note] [QTY]

    Bowden cable inner 2

    D - 05.01.2009>>

  • 5N0837085B Offers

    [Name] [Note] [QTY]

    Bowden cable inner 2

    D >> - 30.11.2008

    Replacements: 5N0837085C

  • 5N0837085D Offers

    [Name] [Note] [QTY]

    Bowden cable inner 2

    D - 05.01.2009>>

    Replacements: 5N0837085E

  • 5N0837085C Offers

    [Name] [Note] [QTY]

    Bowden cable inner 2

    D - 01.12.2008>> - 04.01.2009

  • 3B0837861A Offers

    [Name] [QTY]

    Bellows 2

  • N90918701 Offers

    [Name] [Note] [QTY]

    Hexagon socket head panel bolt 4X12-Q 4

  • 5N1837114D Offers

    [Name] [Note] [Model info] [QTY]

    Inner actuator right lhd PR:QQ0+4K3, 1

    4F2,4I2,4I3

  • 5N2837113E Offers

    [Name] [Note] [Model info] [QTY]

    Inner actuator left rhd PR:QQ0 1

  • 5N1837114E Offers

    [Name] [Note] [Model info] [QTY]

    Inner actuator right lhd PR:QQ3+4K3, 1

    for models with surround lighting 4F2,4I2,4I3

  • 5N2837114G Offers

    [Name] [Note] [Model info] [QTY]

    Inner actuator right lhd PR:QQ3+4K0, 1

    for models with surround lighting 4F6

  • 5N1837114EUAQ Offers

    [Name]

    Alu/titanium black

  • 5N1837113FUAQ Offers

    [Name]

    Alu/titanium black

  • 5N1837113F Offers

    [Name] [Note] [Model info] [QTY]

    Inner actuator left lhd PR:Q03 1

    for models with surround lighting

  • 5N2837114F Offers

    [Name] [Note] [Model info] [QTY]

    Inner actuator right lhd PR:QQ0+4K0+ 1

    4F6

  • 5N1837114DUAQ Offers

    [Name]

    Alu/titanium black

  • 5N1837113EUAQ Offers

    [Name]

    Alu/titanium black

  • 5N1837113E Offers

    [Name] [Note] [Model info] [QTY]

    Inner actuator left lhd PR:QQ0 1

  • 5N2837114GUAQ Offers

    [Name]

    Alu/titanium black

  • 5N2837114G Offers

    [Name] [Note] [Model info] [QTY]

    Inner actuator right rhd PR:QQ3 1

    for models with surround lighting

  • 5N2837113FUAQ Offers

    [Name]

    Alu/titanium black

  • 5N2837113F Offers

    [Name] [Note] [Model info] [QTY]

    Inner actuator left rhd PR:QQ3 1

    for models with surround lighting

  • 5N2837114FUAQ Offers

    [Name]

    Alu/titanium black

  • 5N2837114F Offers

    [Name] [Note] [Model info] [QTY]

    Inner actuator right rhd PR:QQ0 1

  • 5N2837113EUAQ Offers

    [Name]

    Alu/titanium black

  • 5N0837198 Offers

    [Name] [Note] [QTY]

    clamping piece right 1

  • 5N0837197 Offers

    [Name] [Note] [QTY]

    clamping piece left 1

  • 5N0837868A Offers

    [Name] [Note] [QTY]

    Retaining bracket right

    D >> - 04.01.2009 1

  • 5N0837867A Offers

    [Name] [Note] [QTY]

    Retaining bracket left

    D >> - 04.01.2009 1

  • 5N0837868B Offers

    [Name] [Note] [QTY]

    Retaining bracket right

    D - 05.01.2009>> 1

  • 5N0837867B Offers

    [Name] [Note] [QTY]

    Retaining bracket left

    D - 05.01.2009>> 1

  • G052778A2 Offers

    [Name] [Note] [QTY]

    Lock cylinder grease spray 50ML 1

  • 5K0837350B Offers

    [Name] [QTY]

    Cover cap 1

    Door lock

    D - 05.01.2009>>

  • 5K0837349B Offers

    [Name] [QTY]

    Cover cap 1

    Door lock

    D - 05.01.2009>>

  • 5N0837017D Offers

    [Name] [Note] [QTY]

    Bowden cable outer 2

  • WHT000517 Offers

    [Name] [Note] [QTY]

    fillister head bolt (combi.) M8X16 X

    D >> - 04.01.2009

  • WHT005504 Offers

    [Name] [Note] [QTY]

    fillister head bolt (combi.) M8X16 X

    D - 05.01.2009>>

  • WHT003393 Offers

    [Name] [Note] [QTY]

    Hexagon socket oval head bolt (combi) M4X26 4

  • 1Y0837111 Offers

    [Name] [Note] [QTY]

    Bungs 16 2
