ანტენები

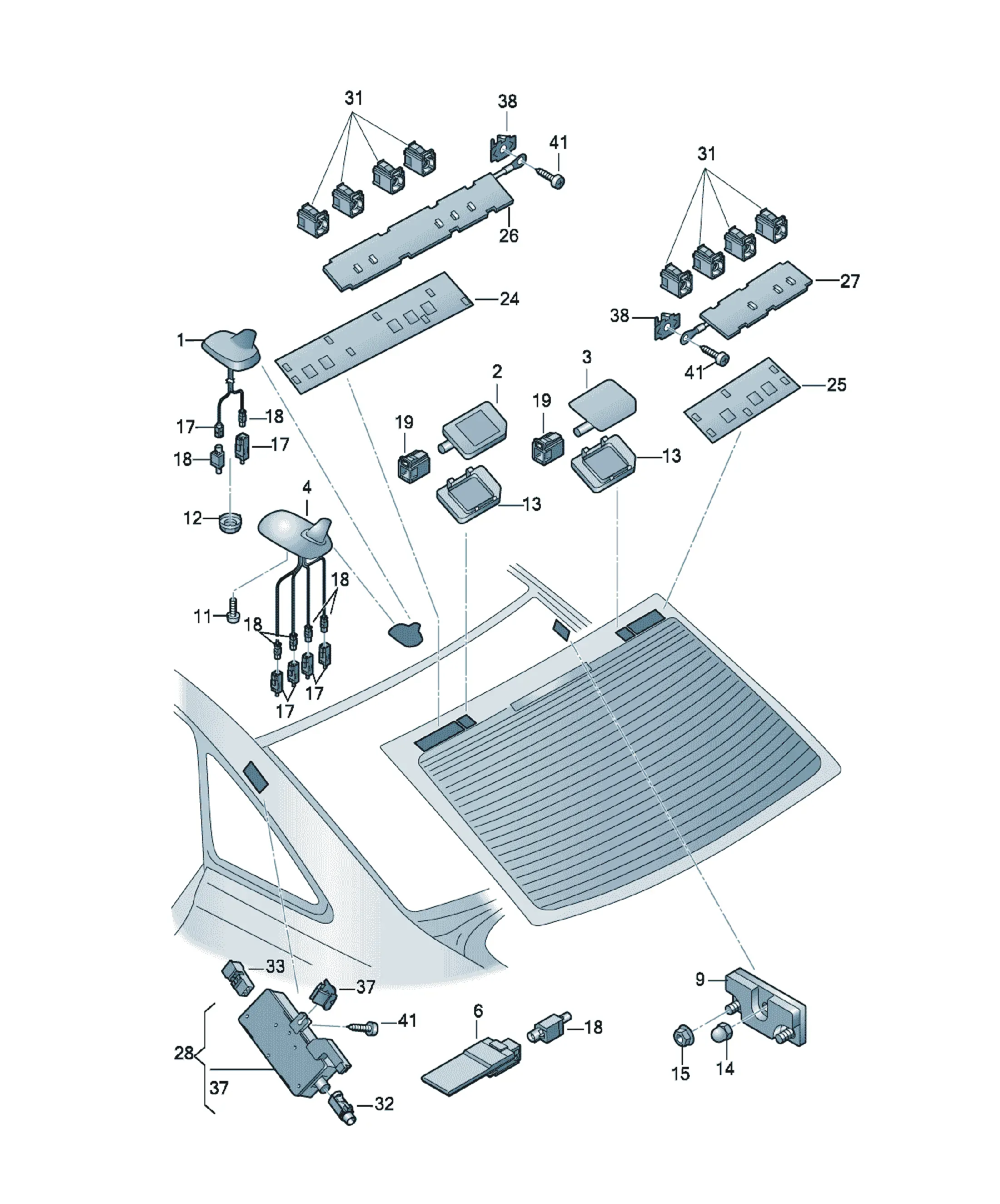

ანტენა

კვანძის სქემები

10 სქემა

ნაწილები

33 ნაწილი

4F5035503M შეთავაზებები

[Name] [Note] [QTY]
roof combination aerial 'GPS,GSM' 1
for vehicles with navigation system
and/or
telephone
4F5035503MGRU შეთავაზებები

[Name]
primed
4F5035503P შეთავაზებები

[Name] [QTY]
roof combination aerial 1
for vehicles with navigation system
and/or
telephone
4F5035503P1P9 შეთავაზებები

[Name] [Note]
Black
For exterior colour: black
1J0035437 შეთავაზებები

[Name] [Note] [QTY]
Hexagon nut M14X0,75 1
8E5919909 შეთავაზებები

[Name] [QTY]
Retainer for aerial X
N01508213 შეთავაზებები

[Name] [Note] [QTY]
Hexagon collar nut M6 1
Replacements: N 01508210
N90106304 შეთავაზებები

[Name] [Note] [QTY]
Hexagon collar nut M6 1
6Q0035576K შეთავაზებები

[Name] [Note] [QTY]
Removable housing for aerial female connector 1 point X
mating connector
6Q0035575K Removable housing for aerial pin connector 1 point X
water blue
only to be used for: all colours
use if required aerial wire adapter:
000 098 692 X
Possible single wire:
Remove if required: 6Q0.035.576.K 1
------------------------------
000098650 Aerial connection line 300MM X
000098651 Aerial connection line 500MM X
000098652 Aerial connection line 1000MM X
000098652A Aerial connection line 1500MM X
000098653 Aerial connection line 2000MM X
000098653A Aerial connection line 2500MM X
000098654 Aerial connection line 3000MM X
000098654A Aerial connection line 3500MM X
000098655 Aerial connection line 4000MM X
000098655A Aerial connection line 4500MM X
000098656 Aerial connection line 5000MM X
000098656A Aerial connection line 5500MM X
000098657 Aerial connection line 6000MM X
000098657A Aerial connection line 6500MM X
000098658 Aerial connection line 7000MM X
000098658A Aerial connection line 7500MM X
000098659 Aerial connection line 8000MM X
000098703 aerial intermediate wire with earthing clip 300MM X
000098703A adapter aerial wire 300MM 1
6Q0035575K შეთავაზებები

[Name] [Note] [QTY]
Removable housing for aerial pin connector 1 point X
mating connector
6Q0035576K Removable housing for aerial female connector 1 point X
only to be used for: all colours
use if required aerial wire adapter:
000 098 703
000 098 703 A
4E0035610K შეთავაზებები

[Name] [Note] [QTY]
Removable housing for aerial bracket female connector 1 point X
8E5919889 შეთავაზებები

[Name] [Note] [QTY]
Aerial 'GPS' 1
for vehicles with navigation system
4F5035535 შეთავაზებები

[Name] [Note] [QTY]
holder for aerial booster left 1
4F5035535A შეთავაზებები

[Name] [Note] [QTY]
holder for aerial booster right 1
4F5035225N შეთავაზებები

[Name] [Note] [Model info] [QTY]
Aerial amplifier left "J.." 1
for vehicles with tv reception
4F5035225L შეთავაზებები

[Name] [Note] [Model info] [QTY]
Aerial amplifier left PR:QV0,QV3 1
for models with heat protective glass
4F5035225T შეთავაზებები

[Name] [Note] [Model info] [QTY]
Aerial amplifier left PR:QV0,QV3 1
for vehicles with laminated insulated glass
4F5035225M შეთავაზებები

[Name] [Note] [Model info] [QTY]
Aerial amplifier left PR:QV1,QV5, 1
for models with heat protective glass QV9
4F5035225AA შეთავაზებები

[Name] [Note] [Model info] [QTY]
Aerial amplifier left PR:QV1,QV5, 1
for vehicles with laminated insulated glass QV9
4F5035225Q შეთავაზებები

[Name] [Note] [Model info] [QTY]
Aerial amplifier "J.."
for vehicles with tv reception
F >> 4F-8-068 000* right 1
4F5035225P შეთავაზებები

[Name] [Note] [QTY]
Aerial amplifier right 1
for models with radio remote control central locking system
4F5035225R შეთავაზებები

[Name] [Note] [QTY]
Aerial amplifier right 1
for vehicles with tv reception
4F5035225AB შეთავაზებები

[Name] [Note] [Model info] [QTY]
Aerial amplifier left sedan 1
for models with digital radio reception
4F5035225E შეთავაზებები

[Name] [QTY]
Aerial 1
for models with auxiliary heater with remote control
4E0035602K შეთავაზებები

[Name] [Note] [QTY]
Removable housing for aerial bracket female connector 1 point X
6Q0035576K შეთავაზებები

[Name] [Note] [QTY]
Removable housing for aerial female connector 1 point X
mating connector
6Q0035575K Removable housing for aerial pin connector 1 point X
water blue
only to be used for: all colours
use if required aerial wire adapter:
000 098 692 X
Possible single wire:
Remove if required: 6Q0.035.576.K 1
------------------------------
000098650 Aerial connection line 300MM X
000098651 Aerial connection line 500MM X
000098652 Aerial connection line 1000MM X
000098652A Aerial connection line 1500MM X
000098653 Aerial connection line 2000MM X
000098653A Aerial connection line 2500MM X
000098654 Aerial connection line 3000MM X
000098654A Aerial connection line 3500MM X
000098655 Aerial connection line 4000MM X
000098655A Aerial connection line 4500MM X
000098656 Aerial connection line 5000MM X
000098656A Aerial connection line 5500MM X
000098657 Aerial connection line 6000MM X
000098657A Aerial connection line 6500MM X
000098658 Aerial connection line 7000MM X
000098658A Aerial connection line 7500MM X
000098659 Aerial connection line 8000MM X
000098703 aerial intermediate wire with earthing clip 300MM X
000098703A adapter aerial wire 300MM 1
1C0973119B შეთავაზებები

[Name] [Note] [QTY]
Flat contact housing 3 pin 1
black
mating connector
1K0973333 Flat contact housing with contact locking mechanism 3 pin 1
black
3D0973332 Flat contact housing with contact locking mechanism 3 pin 1
black
Possible single wire:
000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
WHT000025 შეთავაზებები

[Name] [Note] [QTY]
expanding nut ST4.8X13X15 1
for sheet metal thickness: 0,7MM
WHT000011 შეთავაზებები

[Name] [Note] [QTY]
expanding nut 4,8X13X15 2
N10656901 შეთავაზებები

[Name] [Note] [QTY]
oval head panel screw 4,8X16 X
8P0035503M შეთავაზებები

[Name] [Note] [Model info] [QTY]
Aerial 'BLUETOOTH' PR:9ZJ 1
for vehicles with telephone
8P0035503M შეთავაზებები

[Name] [Note] [Model info] [QTY]
Aerial 'BLUETOOTH' PR:9ZF,9W5 1
For vehicles with cellphone preparation and hands-free
4E0035570 შეთავაზებები

[Name] [QTY]
Disturbance suppressor
F >> 4F-7-029 698* 1
Replacements: 4H0035570
