საკონტროლო ბლოკი

კლიმატკონტროლის მართვის პანელი

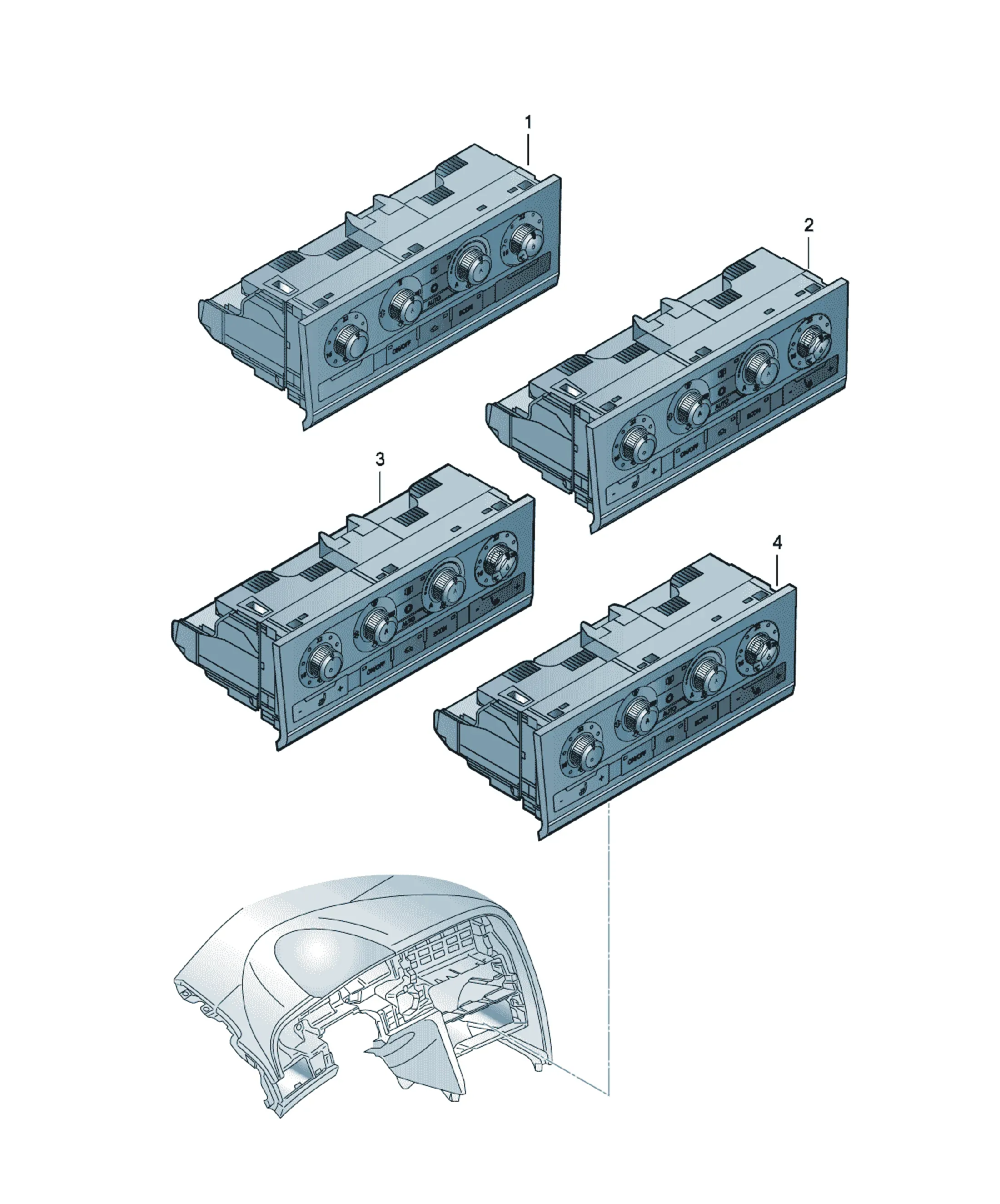

კვანძის სქემები

4 სქემა

ნაწილები

20 ნაწილი

4F1820043M შეთავაზებები

[Name] [Note] [Model info] [QTY]
Control and display panel for air-conditioning system Climatronic lhd PR:4A0 1
Temp. display in: 0---- C
4F2820043F1HA შეთავაზებები

[Name]
Pearl grey metallic
mating connector
8E0972112 Flat contact housing with contact locking mechanism 12 pin 1
black
8E0972420 Flat contact housing with contact locking mechanism 20 pin 1
red
8E0972416A Flat contact housing with contact locking mechanism 16 pin 1
brown
Cable outl.: vertical
4A0972883C Flat contact housing with contact locking mechanism 16 pin 1
1J0972753 Flat contact housing 3 pin 1
4F1820043M1HA შეთავაზებები

[Name]
Pearl grey metallic
mating connector
8E0972112 Flat contact housing with contact locking mechanism 12 pin 1
black
8E0972420 Flat contact housing with contact locking mechanism 20 pin 1
red
8E0972416A Flat contact housing with contact locking mechanism 16 pin 1
brown
Cable outl.: vertical
4A0972883C Flat contact housing with contact locking mechanism 16 pin 1
1J0972753 Flat contact housing 3 pin 1
4F2820043KH77 შეთავაზებები

[Name]
Nero (black)
mating connector
8E0972112 Flat contact housing with contact locking mechanism 12 pin 1
black
8E0972420 Flat contact housing with contact locking mechanism 20 pin 1
red
8E0972416A Flat contact housing with contact locking mechanism 16 pin 1
brown
Cable outl.: vertical
4A0972883C Flat contact housing with contact locking mechanism 16 pin 1
1J0972753 Flat contact housing 3 pin 1
4F2820043K შეთავაზებები

[Name] [Note] [Model info] [QTY]
Control and display panel for air-conditioning system Climatronic rhd PR:4A0 1
Temp. display in: 0---- C
4F2820043K შეთავაზებები

[Name] [Note] [Model info] [QTY]
Control and display panel for air-conditioning system Climatronic rhd S6+PR:4A0 1
Temp. display in: 0---- C
4F2820043F შეთავაზებები

[Name] [Note] [Model info] [QTY]
Control and display panel for air-conditioning system Climatronic rhd PR:4A0 1
Temp. display in: 0---- C
4F1820043TH77 შეთავაზებები

[Name]
Nero (black)
mating connector
8E0972112 Flat contact housing with contact locking mechanism 12 pin 1
black
8E0972420 Flat contact housing with contact locking mechanism 20 pin 1
red
8E0972416A Flat contact housing with contact locking mechanism 16 pin 1
brown
Cable outl.: vertical
4A0972883C Flat contact housing with contact locking mechanism 16 pin 1
1J0972753 Flat contact housing 3 pin 1
4F1820043T შეთავაზებები

[Name] [Note] [Model info] [QTY]
Control and display panel for air-conditioning system Climatronic lhd PR:4A0 1
Temp. display in: 0---- C
4F1820043T შეთავაზებები

[Name] [Note] [Model info] [QTY]
Control and display panel for air-conditioning system Climatronic lhd S6+PR:4A0 1
Temp. display in: 0---- C
4F2820043G შეთავაზებები

[Name] [Note] [Model info] [QTY]
Control and display panel for air-conditioning system Climatronic rhd PR:4A3,4A4 1
Temp. display in: 0---- C
4F2820043L შეთავაზებები

[Name] [Note] [Model info] [QTY]
Control and display panel for air-conditioning system Climatronic rhd PR:4A3,4A4 1
Temp. display in: O---- C
4F2820043LH77 შეთავაზებები

[Name]
Nero (black)
mating connector
8E0972112 Flat contact housing with contact locking mechanism 12 pin 1
black
8E0972420 Flat contact housing with contact locking mechanism 20 pin 1
red
8E0972416A Flat contact housing with contact locking mechanism 16 pin 1
brown
Cable outl.: vertical
4A0972883C Flat contact housing with contact locking mechanism 16 pin 1
1J0972753 Flat contact housing 3 pin 1
4F2820043L შეთავაზებები

[Name] [Note] [Model info] [QTY]
Control and display panel for air-conditioning system Climatronic rhd S6+ 1
PR:4A3,4A4
Temp. display in: O---- C
4F2820043G1HA შეთავაზებები

[Name]
Pearl grey metallic
mating connector
8E0972112 Flat contact housing with contact locking mechanism 12 pin 1
black
8E0972420 Flat contact housing with contact locking mechanism 20 pin 1
red
8E0972416A Flat contact housing with contact locking mechanism 16 pin 1
brown
Cable outl.: vertical
4A0972883C Flat contact housing with contact locking mechanism 16 pin 1
1J0972753 Flat contact housing 3 pin 1
4F1820043N შეთავაზებები

[Name] [Note] [Model info] [QTY]
Control and display panel for air-conditioning system Climatronic lhd PR:4A3,4A4 1
for models with seat heating
Temp. display in: 0---- C
4F1820043AAH77 შეთავაზებები

[Name]
Nero (black)
mating connector
8E0972112 Flat contact housing with contact locking mechanism 12 pin 1
black
8E0972420 Flat contact housing with contact locking mechanism 20 pin 1
red
8E0972416A Flat contact housing with contact locking mechanism 16 pin 1
brown
Cable outl.: vertical
4A0972883C Flat contact housing with contact locking mechanism 16 pin 1
1J0972753 Flat contact housing 3 pin 1
4F1820043AA შეთავაზებები

[Name] [Note] [Model info] [QTY]
Control and display panel for air-conditioning system Climatronic lhd PR:4A3,4A4 1
for models with seat heating
Temp. display in: 0---- C
4F1820043AA შეთავაზებები

[Name] [Note] [Model info] [QTY]
Control and display panel for air-conditioning system Climatronic lhd S6+ 1
PR:4A3,4A4
for models with seat heating
Temp. display in: 0---- C
4F1820043N1HA შეთავაზებები

[Name]
Pearl grey metallic
mating connector
8E0972112 Flat contact housing with contact locking mechanism 12 pin 1
black
8E0972420 Flat contact housing with contact locking mechanism 20 pin 1
red
8E0972416A Flat contact housing with contact locking mechanism 16 pin 1
brown
Cable outl.: vertical
4A0972883C Flat contact housing with contact locking mechanism 16 pin 1
1J0972753 Flat contact housing 3 pin 1
