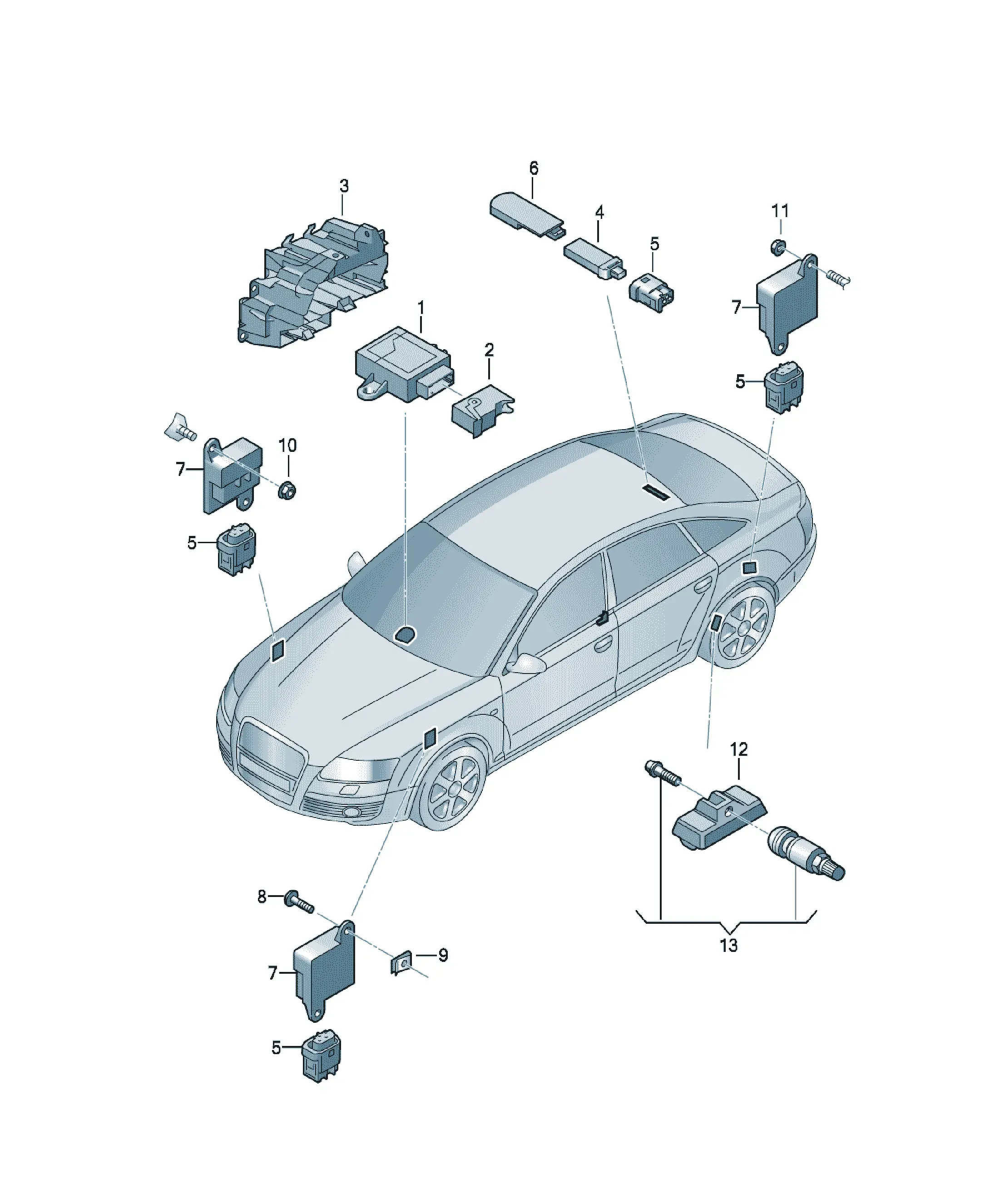

საბურავების წნევის კონტროლის სისტემა

[Name] [Note] [QTY]

Velcro 35X22MM 4

[Name] [Model info] [QTY]

Control unit with software for tyre pressure control PR:7K7,7K8 1

mating connector

1J0972977 flat contact housing with cap 32 pin 1

black

[Name] [Model info] [QTY]

Control unit with software for tyre pressure control PR:7K3,7K4 1

mating connector

1J0972977 flat contact housing with cap 32 pin 1

black

[Name] [Note] [Model info] [QTY]

Hexagon collar nut M6 PR:7K3,7K4 2

right front

[Name] [Note] [Model info] [QTY]

Hexagon collar nut A5 PR:7K3,7K4 4

rear

[Name] [Note] [Model info] [QTY]

Tyre pressure sensor PR:7K4,7K8 4

Associated item/items to be used as necessary:

13

[Name] [Note] [Model info] [QTY]

Tyre pressure sensor PR:7K3,7K7 4

Associated item/items to be used as necessary:

13

[Name] [Note]

Metal valve 19"

see illustration, item: 601-090,11

[Name] [Note]

Metal valve 16"

see illustration, item: 601-060,16

[Name] [Note]

Metal valve 17"

see illustration, item: 601-070,16

[Name] [Note]

Metal valve -PAX-

see illustration, item: 601-071,16

[Name] [Note]

Metal valve 18"

see illustration, item: 601-080,16

[Name] [Note] [QTY]

flat contact housing with cap 32 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979044EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note]

Retainer for control units

see illustration, item: 907-010,1

[Name] [Model info] [QTY]

Aerial PR:7K4,7K8 1

roof frame

mating connector

8E0971934 Flat contact housing with contact locking mechanism 4 pin 1

[Name] [Model info] [QTY]

Aerial PR:7K3,7K7 1

roof frame

mating connector

8E0971934 Flat contact housing with contact locking mechanism 4 pin 1

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin X

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 EA

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Retainer for aerial 1

roof frame

use if required: 4D0 863 437 A

Accompanying details: 4D0863437A

[Name] [Model info] [QTY]

Sender for tyre pressure monitoring system PR:7K3,7K4 4

mating connector

8E0971934 Flat contact housing with contact locking mechanism 4 pin 1

[Name] [Note] [Model info] [QTY]

oval head panel screw 4,8X16 PR:7K3,7K4 2

left front

[Name] [Note] [Model info] [QTY]

Speed nut 4,8X16,5X11 PR:7K3,7K4 2

left front
