ფუზების ყუთი

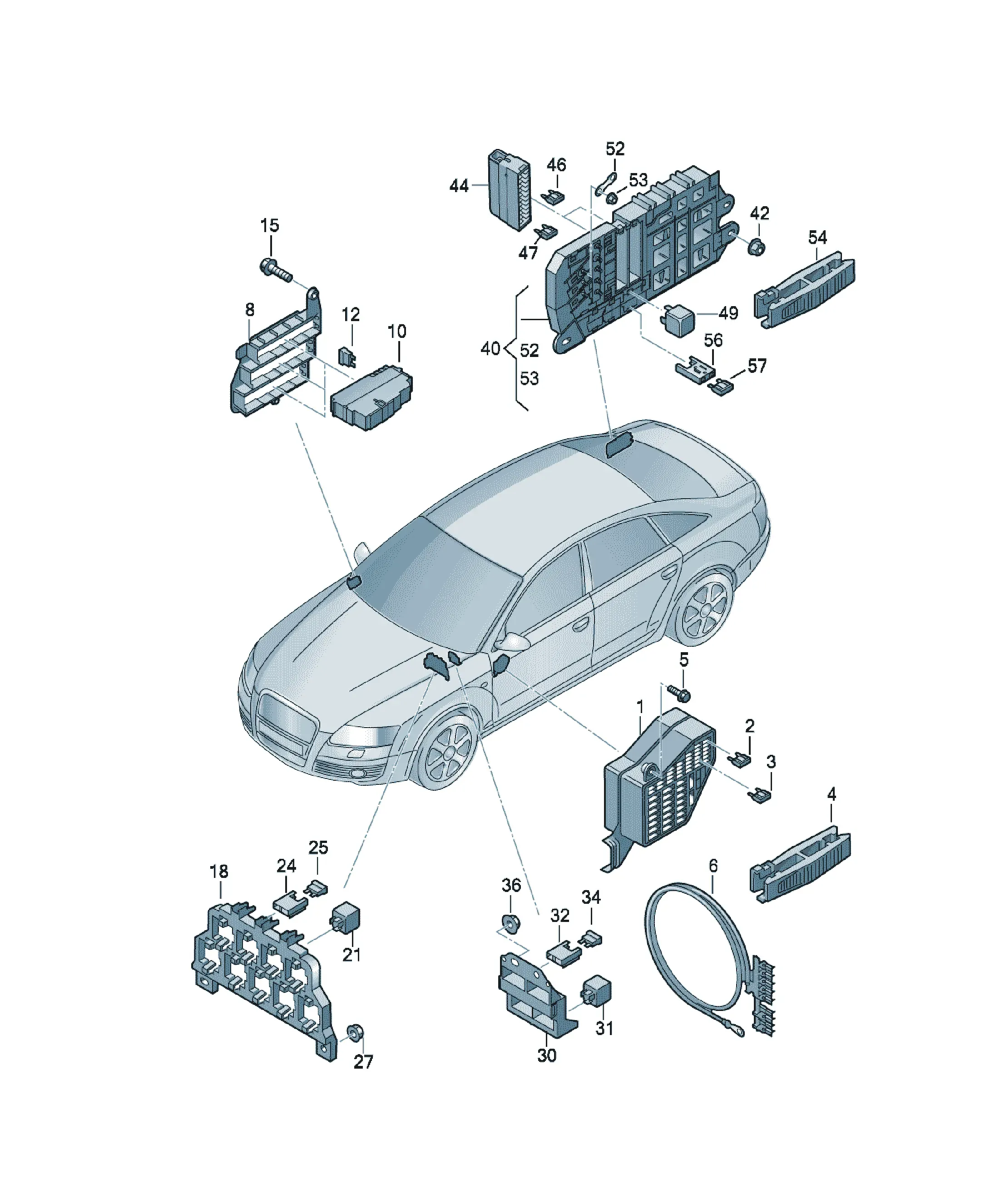

დამცველების ბლოკი

კვანძის სქემები

16 სქემა

ნაწილები

95 ნაწილი

8D1941824 შეთავაზებები

[Name] [Note] [QTY]
fuse holder lhd 1
Possible single wire:
1J1998824 1 set of contact bridges lhd 1
only for: 8D1 941 824
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0
flat contact 2,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 2,5
flat contact 2,8
000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0
flat contact with retaining lug 4,8
000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 2,5
flat contact with retaining lug 4,8
000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' X
-40C/+125C
with cable crosssection: 4,0
flat contact with retaining lug 4,8
8D2941824 შეთავაზებები

[Name] [Note] [QTY]
fuse holder rhd 1
Possible single wire:
1J2998824 1 set of contact bridges rhd 1
only for: 8D2 941 824
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0
flat contact 2,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 2,5
flat contact 2,8
000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0
flat contact with retaining lug 4,8
000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 2,5
flat contact with retaining lug 4,8
000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' X
-40C/+125C
with cable crosssection: 4,0
flat contact with retaining lug 4,8
4F1941824 შეთავაზებები

[Name] [Note] [QTY]
fuse holder 8-pin 1
contact bridge black
Possible single wire:
000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
Flat male connector with detent lug 0,5
4,8
000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat contact with retaining lug 1,0
4,8
000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat contact with retaining lug 2,5
4,8
000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat contact with retaining lug 2,5
4,8
000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' X
-40C/+125C
flat contact with retaining lug 4,0
4,8
000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' X
-40C/+125C
flat contact with retaining lug 6,0
4,8
8K0941824 შეთავაზებები

[Name] [Note] [QTY]
fuse holder 12 point 2
contact bridge black
Possible single wire:
000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
Flat male connector with detent lug 4,8
000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat contact with retaining lug 4,8
N01713119 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 1A -black- X
N01713117 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 3A -violet- X
N01713111 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 10A -red- X
N01713120 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 40A -orange- X
N01713112 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 15A -lt blue- X
N01713123 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 20A -yellow- X
Replacements: N 01713113
N01713114 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 25A -cl.glass- X
N01713124 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 30A-lt green- X
Replacements: N 01713125
N01713116 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 5A -lt brown- X
N01713118 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 7.5A -brown- X
N90468403 შეთავაზებები

[Name] [Note] [QTY]
hexagon head bolt (combi) M5X16 2
[Name] [Note]
relay plate
see illustration: 971-080
N01713111 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 10A -red- X
N01713112 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 15A -lt blue- X
N01713123 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 20A -yellow- X
Replacements: N 01713113
N01713114 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 25A -cl.glass- X
N01713124 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 30A-lt green- X
Replacements: N 01713125
N01713119 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 1A -black- X
N01713117 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 3A -violet- X
N01713118 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 7.5A -brown- X
N01713120 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 40A -orange- X
N01713116 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 5A -lt brown- X
7M0951253C შეთავაზებები

[Name] [Note] [QTY]
contact close relay KL.75X
relay location/code no.: 7.2/404
to be used for code no.: 395
F 4F-6-000 001>>* 1
Replacements: 4H0951253C
7M0951253A შეთავაზებები

[Name] [Note] [QTY]
contact close relay KL.15 1
relay location/code no.: 1/100
to be used for code no.: 370
Replacements: 4H0951253
8K0951253 შეთავაზებები

[Name] [Note] [QTY]
contact close relay 40A 1
for vehicles with headlight washer system
relay location/code no.: 2/643
to be used for code no.: 373
Replacements: 4H0951253A
8K0951253 შეთავაზებები

[Name] [Note] [QTY]
contact close relay 40A 1
for vehicles with additional electric air heater
relay location/code no.: 3/643
D - MJ 2006>>
Replacements: 4H0951253A
431951253G შეთავაზებები

[Name] [Note] [QTY]
Relay 12V/40A KL.50
relay location/code no.: 4/381
F >> 4F-6-250 000 1
7M0951253A შეთავაზებები

[Name] [Note] [QTY]
contact close relay 1
for vehicles with additional electric air heater
relay location/code no.: 5/100
D - MJ 2006>>
Replacements: 4H0951253
431951253G შეთავაზებები

[Name] [Note] [QTY]
Relay 12V/40A KL.50
relay location/code no.: 6/381
F >> 4F-6-250 000 1
7M0951253C შეთავაზებები

[Name] [Note] [QTY]
contact close relay 1
for horn
relay location/code no.: 7.1/404
to be used for code no.: 395
Replacements: 4H0951253C
8A0937530 შეთავაზებები

[Name] [Note] [QTY]
fuse holder 2 pin 1
flat fuse 29/2x8
Possible single wire:
000979406E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat contact 9,5
000979500R Single lead with 1 contact in the bag 1500MM X
-40C/+105C
with cable crosssection: 10QMM
Cable colour: yellow
N10251904 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 29/2x8 50A -red- 1
N10251905 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 29/2x8 80A -cl/glass- 1
N10251901 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 29/2x8 40A -orange- 1
N10251902 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 29/2x8 60A -lt blue- 1
N10251903 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 29/2x8 30A-lt green- 1
N90286703 შეთავაზებები

[Name] [Note] [QTY]
hex. nut, self-locking with washer M6 2
N10261508 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 10/2x2,8 20A -yellow- X
N10261501 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 10/2x2,8 5A -lt brown- X
N10261502 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 10/2x2,8 7.5A -brown- X
N10261507 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 10/2x2,8 15A -lt blue- X
N10261503 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 10/2x2,8 10A -red- X
[Name] [Note]
relay plate
see illustration: 971-080
8K0951253 შეთავაზებები

[Name] [Note] [QTY]
contact close relay 40A 1
heater
relay location/code no.: 1/643
to be used for code no.: 373
Replacements: 4H0951253A
7M0951253 შეთავაზებები

[Name] [Note] [Model info] [QTY]
Relay FAHRSCHULE 1
for automatic gearbox
relay location/code no.: 2/200
only to be used for: 200
7M0951253A შეთავაზებები

[Name] [Note] [QTY]
contact close relay 1
heater
relay location/code no.: 2/100
to be used for code no.: 370
Replacements: 4H0951253
1H0959142 შეთავაზებები

[Name] [Note] [Model info] [QTY]
Relay FAHRSCHULE 1
for air conditioner
for automatic gearbox
relay location/code no.: 1/147
8A0937530 შეთავაზებები

[Name] [Note] [QTY]
fuse holder 2 pin 1
flat fuse 29/2x8
Possible single wire:
000979406E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat contact 9,5
000979500R Single lead with 1 contact in the bag 1500MM X
-40C/+105C
with cable crosssection: 10QMM
Cable colour: yellow
N10251905 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 29/2x8 80A -cl/glass- 1
N10251901 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 29/2x8 40A -orange- 1
N10251902 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 29/2x8 60A -lt blue- 1
N10251903 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 29/2x8 30A-lt green- 1
N10251904 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 29/2x8 50A -red- 1
N90286703 შეთავაზებები

[Name] [Note] [QTY]
hex. nut, self-locking with washer M6 2
8D0941802 შეთავაზებები

[Name] [QTY]
Assembly tool for blade fuse 1
[Name] [Note]
Main fuse socket
see illustration: 971-080
N90286703 შეთავაზებები

[Name] [Note] [QTY]
hex. nut, self-locking with washer M6 2
8K0941824 შეთავაზებები

[Name] [Note] [QTY]
fuse holder 12 point 2
black
Possible single wire:
000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
Flat male connector with detent lug 4,8
000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat contact with retaining lug 4,8
N01713118 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 7.5A -brown- X
N01713119 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 1A -black- X
N01713120 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 40A -orange- X
N01713111 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 10A -red- X
N01713112 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 15A -lt blue- X
N01713123 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 20A -yellow- X
Replacements: N 01713113
N01713114 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 25A -cl.glass- X
N01713124 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 30A-lt green- X
Replacements: N 01713125
N01713116 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 5A -lt brown- X
N01713117 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 3A -violet- X
N10261507 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 10/2x2,8 15A -lt blue- X
N10261501 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 10/2x2,8 5A -lt brown- X
N10261502 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 10/2x2,8 7.5A -brown- X
N10261508 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 10/2x2,8 20A -yellow- X
N10261503 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 10/2x2,8 10A -red- X
8E0951253 შეთავაზებები

[Name] [Note] [Model info] [QTY]
contact close relay Petr. engine 1
for vehicles with auxiliary heater
relay location/code no.: 3/614
Replacements: 4H0951253
7M0951253C შეთავაზებები

[Name] [Note] [Model info] [QTY]
contact close relay diesel eng. 1
for vehicles with auxiliary heater
relay location/code no.: 3/404
to be used for code no.: 395
Replacements: 4H0951253C
8E0951253 შეთავაზებები

[Name] [Note] [Model info] [QTY]
contact close relay diesel eng. 1
for vehicles with auxiliary heater
relay location/code no.: 3/614
Replacements: 4H0951253
8K0951253 შეთავაზებები

[Name] [Note] [QTY]
contact close relay 40A 1
Heated rear window
relay location/code no.: 1/643
to be used for code no.: 373
Replacements: 4H0951253A
7M0951253C შეთავაზებები

[Name] [Note] [Model info] [QTY]
contact close relay Petr. engine 1
for vehicles with auxiliary heater
relay location/code no.: 2/404
to be used for code no.: 395
Replacements: 4H0951253C
N90468403 შეთავაზებები

[Name] [Note] [QTY]
hexagon head bolt (combi) M5X16 2
N10424902 შეთავაზებები

[Name] [Note] [QTY]
Strip fuse 40A 1
N10424904 შეთავაზებები

[Name] [Note] [QTY]
Strip fuse 80A 1
N10424906 შეთავაზებები

[Name] [Note] [QTY]
Strip fuse 150A 1
N90175205 შეთავაზებები

[Name] [Note] [QTY]
Hexagon collar nut M6 1
8D0941802 შეთავაზებები

[Name] [QTY]
Assembly tool for blade fuse 1
8A0937530 შეთავაზებები

[Name] [Note] [QTY]
fuse holder 2 pin 1
flat fuse 29/2x8
Possible single wire:
000979406E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat contact 9,5
000979500R Single lead with 1 contact in the bag 1500MM X
-40C/+105C
with cable crosssection: 10QMM
Cable colour: yellow
N10251901 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 29/2x8 40A -orange- 1
Heated rear window
N01713112 შეთავაზებები

[Name] [Note] [Model info] [QTY]
flat fuse 19/2x5 15A -lt blue- spec. prot. vehicle X
danger alarm system
N01713114 შეთავაზებები

[Name] [Note] [Model info] [QTY]
flat fuse 19/2x5 25A -cl.glass- spec. prot. vehicle X
1J2998824 შეთავაზებები

[Name] [Note] [QTY]
1 set of contact bridges rhd 1
only for: 8D2 941 824
repair set
contact bridge 4 pin 1
contact bridge 5 pin 1
contact bridge 9 pin 1
1J1998824 შეთავაზებები

[Name] [Note] [QTY]
1 set of contact bridges lhd 1
only for: 8D1 941 824
repair set
contact bridge 4 pin 1
contact bridge 5 pin 1
contact bridge 9 pin 1
[Name] [Note]
Bracket
fuse holder
see illustration: 971-080

დამცველების ბლოკი

კვანძის სქემები

ნაწილები

კატალოგი

მეტი

დაგვიკავშირდით
