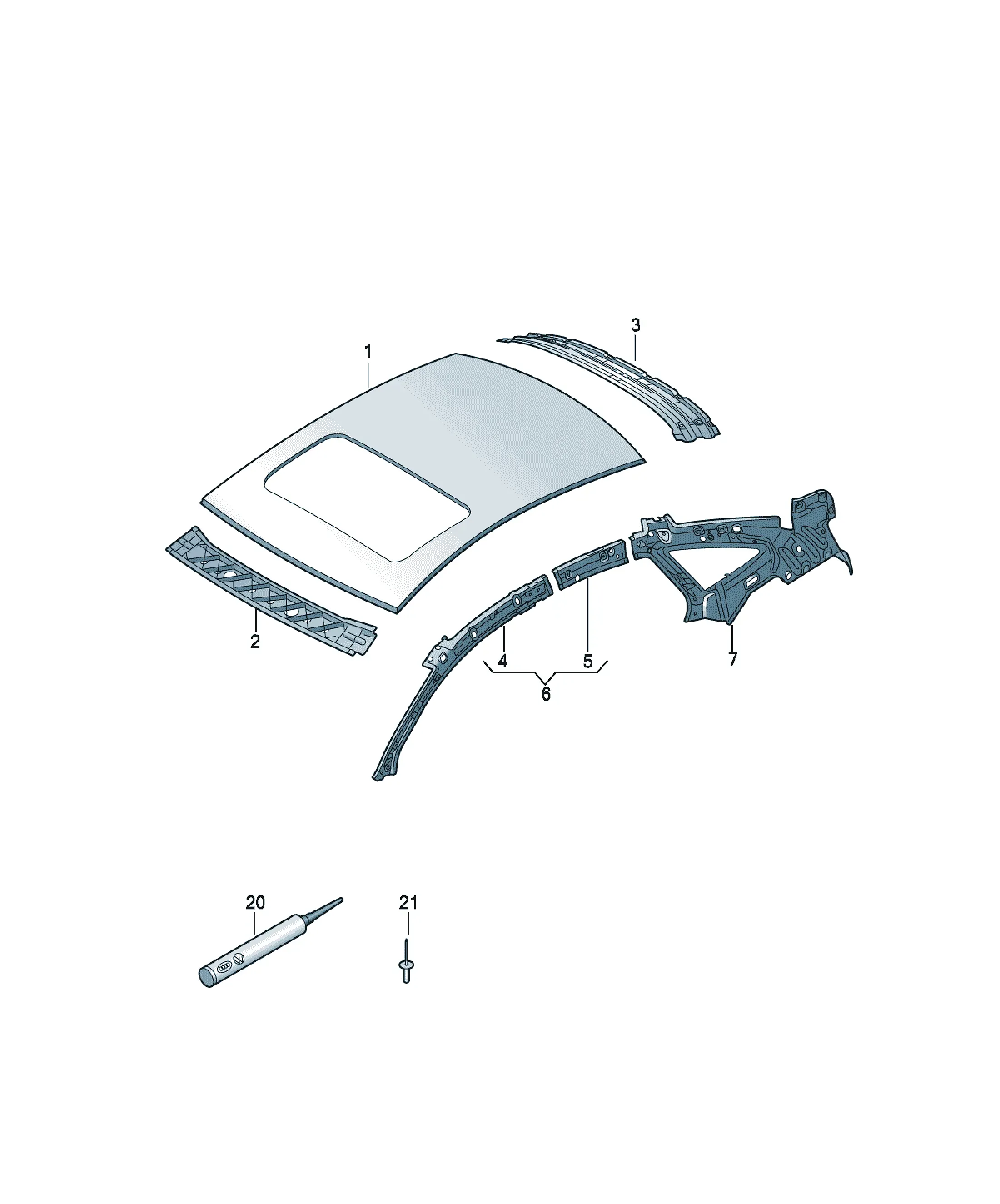

სახურავის კონსტრუქცია

[Name] [Note] [QTY]

Pop rivet 4,8X16,3 X

[Name] [Note] [QTY]

roof frame upper rear 1

[Name] [Note] [QTY]

Cover left a. right 4

[Name] [QTY]

Roof 1

Replacements: 4F5817111D; DA 180A00A2; 000809937

[Name] [QTY]

Roof 1

for vehicles with sliding roof

Replacements: 4F5817017B; DA 180A00A2; 000809937

Items supplied

4F5817111E Roof 1

for vehicles with sliding roof

4F5817401B Reinforcement 1

for roof frame

4F5817421 Retaining bracket left front 1

4F5817422 Retaining bracket right front 1

4F5817771 Retaining bracket centre left 1

4F5817772 Retaining bracket centre right 1

4F5817905 Retaining bracket left rear 1

4F5817906 Retaining bracket right rear 1

[Name] [QTY]

Roof 1

for vehicles with sliding roof

Replacements: 4F9817017; DA 180A00A2; 000809937

Items supplied

4F9817111A Roof 1

for vehicles with sliding roof

4F9817401B Reinforcement 1

for roof frame

4F9817193 Retaining bracket left front 1

4F9817194 Retaining bracket right front 1

4F9817193A Retaining bracket centre left 1

front

4F9817194A Retaining bracket centre right 1

front

4F9817194C Retaining bracket centre right 1

rear

4F9817193C Retaining bracket centre left 1

rear

4F9817193B Retaining bracket left rear 1

4F9817194B Retaining bracket right rear 1

[Name] [QTY]

Roof 1

Replacements: 4F9817111; DA 180A00A2; 000809937

Items supplied

4F9817111 Roof 1

4F9817193 Retaining bracket left front 1

4F9817194 Retaining bracket right front 1

4F9817193A Retaining bracket centre left 1

front

4F9817194A Retaining bracket centre right 1

front

4F9817194C Retaining bracket centre right 1

rear

4F9817193C Retaining bracket centre left 1

rear

4F9817193B Retaining bracket left rear 1

4F9817194B Retaining bracket right rear 1

Retaining bracket centre left 1

front

[Name] [Note] [QTY]

roof frame upper front 1

[Name]

2-pack epoxy adhesive

See workshop manual

[Name] [Note] [QTY]

2-pack epoxy adhesive 400ML 2

adhesives and sealing compound

[Name] [Note] [QTY]

1-pack adhesive 310ML 1

[Name] [Note] [QTY]

2 pack body adhesive high-strength 1

2X120ML

Replacements: D 180003M2

[Name] [Note] [QTY]

Pop rivet 4,8X11,3 8

rear

[Name] [Note] [QTY]

Pop rivet 4,8X14,3 16

front center

[Name] [Note] [QTY]

roof frame rear, inner 1

[Name] [Note] [QTY]

roof frame lower rear 1

[Name] [Note]

Included in position: 6

[Name] [Note]

Included in position: 6

[Name] [Note] [QTY]

a-pillar, inner left 1

[Name] [Note] [QTY]

a-pillar, inner right 1

[Name] [Note] [QTY]

a-pillar, inner right upper 1

[Name] [Note] [QTY]

a-pillar, inner left upper 1

[Name] [Note]

Side part

see illustration: 809-040

[Name] [Note]

Side part

see illustration: 809-030
