მართვის ხელსაწყოები

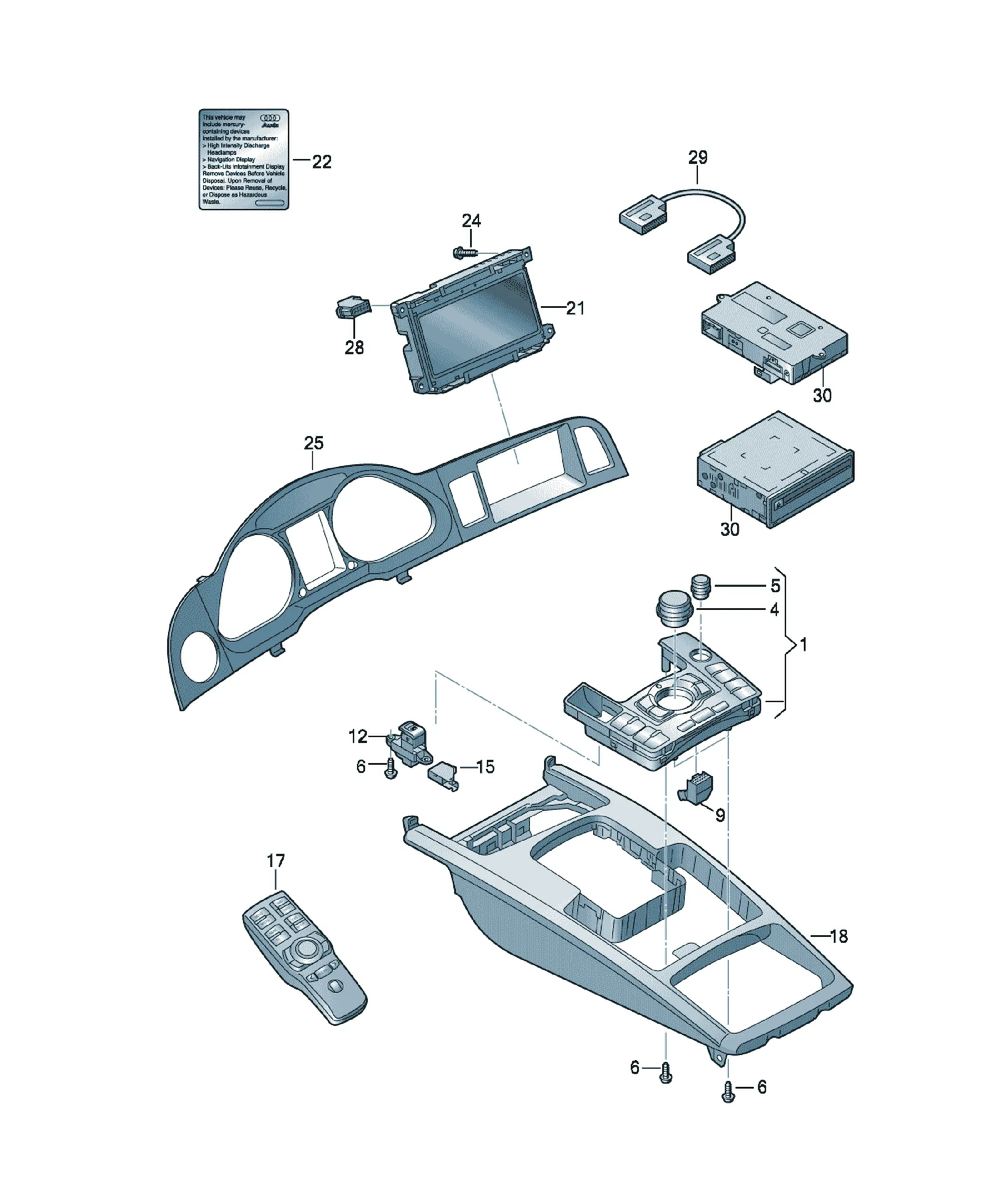

მულტიმედიის მართვის პანელი

კვანძის სქემები

9 სქემა

ნაწილები

32 ნაწილი

repair set
8K0998068 შეთავაზებები

[Name] [Note] [QTY]
repair set 2-part 1
for vehicles with joystick
Replacements: 8K0998068A
repair set
disc 'HIGHGLOSS' 1
for vehicles with joystick
disc 'SOUL SCHWARZ' 1
for vehicles with joystick
seal ring 1
4F2919610Q შეთავაზებები

[Name] [Note] [QTY]
Operating unit for multi- media system -MMI- rhd
8 buttons
F >> 4F-6-250 000 1
4F2919611H შეთავაზებები

[Name] [Note] [QTY]
Operating unit for multi- media system -MMI- rhd 1
8 buttons
4F2919611HH77 შეთავაზებები

[Name]
Nero (black)
4F2919611K შეთავაზებები

[Name] [Note] [Model info] [QTY]
Operating unit for multi- media system -MMI- rhd "IND" 1
8 buttons
433MHZ
4F2919611KH77 შეთავაზებები

[Name]
Nero (black)
4F1919610Q შეთავაზებები

[Name] [Note] [QTY]
Operating unit for multi- media system -MMI- lhd
8 buttons
F >> 4F-6-250 000 1
4F1919610Q შეთავაზებები

[Name] [Note] [QTY]
Operating unit for multi- media system -MMI- lhd
8 buttons
F >> 4F-6-250 000* 1
4F2919610T შეთავაზებები

[Name] [Note] [Model info] [QTY]
Operating unit for multi- media system -MMI- rhd
4 buttons
F >> 4F-6-250 000 PR:9W0 1
4F1919611M შეთავაზებები

[Name] [Note] [QTY]
Operating unit for multi- media system -MMI- lhd 1
8 buttons
4F1919611MH77 შეთავაზებები

[Name]
Nero (black)
4F1919611M შეთავაზებები

[Name] [Note] [QTY]
Operating unit for multi- media system -MMI- 8 buttons 1
4F1919610S შეთავაზებები

[Name] [Note] [QTY]
Operating unit for multimedia system -MMI- with joystick lhd
8 buttons
F >> 4F-6-250 000 1
4F2919610S შეთავაზებები

[Name] [Note] [QTY]
Operating unit for multimedia system -MMI- with joystick rhd
8 buttons
F >> 4F-6-250 000 1
4F1919610T შეთავაზებები

[Name] [Note] [Model info] [QTY]
Operating unit for multi- media system -MMI- lhd
4 buttons
F >> 4F-6-250 000 PR:9W0 1
4F2927225B შეთავაზებები

[Name] [Note] [QTY]
Switch for electromechanical parking brake -EPB- rhd 1
black
4F1927225B შეთავაზებები

[Name] [Note] [QTY]
Switch for electromechanical parking brake -EPB- lhd 1
black
8E0971980 შეთავაზებები

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 10 pin 1
mating connector
1K0971992 Flat connector housing with contact locking mechanism 10 pin 1
black
Possible single wire:
000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
counterpart to: 000 979 012 E
000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
4E0035207C შეთავაზებები

[Name] [Note] [Model info] [QTY]
Remote control 433MHZ "IND" 1
For multimedia interface 'MMI'
[Name] [Note]
centre console, upper part
see illustration: 863-050
4F0919603 შეთავაზებები

[Name] [Note] [QTY]
Display unit standard 1
For multimedia interface 'MMI'
use if required: 4E0 010 530
Accompanying details: 4E0010530
8T0919603C შეთავაზებები

[Name] [Note] [QTY]
Display unit 'HIGH' 1
For multimedia interface 'MMI'
use if required: 4E0 010 530
Accompanying details: 4E0010530
4E0010530 შეთავაზებები

[Name] [Note] [Model info] [QTY]
Notice 'Quicksilver' "MEX" 1
with lettering in: english
N90771702 შეთავაზებები

[Name] [Note] [QTY]
hex hd. panel screw, shoulder 4X16 4
[Name] [Note]
Trim for instruments
see illustration: 857-010
1J0972930A შეთავაზებები

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 10 pin 1
black
Possible single wire:
000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
counterpart to: 000 979 012 E
000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
[Name] [Note] [Model info]
Adapter cable loom
see illustration: 919-010 PR:8YQ
919-011 PR:8DZ,8UW,
8YF
[Name] [Note] [Model info]
Interface box
see illustration: 919-010 PR:8YQ,8DN,
8DP,7Q9
919-011 PR:8DZ,8UW,
8YF
4F0919069A შეთავაზებები

[Name] [Note] [QTY]
Rot. knob center 1
For vehicles without joystick
4F0919070 შეთავაზებები

[Name] [QTY]
Setting knob 1
for volume adjustment
N90918701 შეთავაზებები

[Name] [Note] [QTY]
Hexagon socket head panel bolt 4X12 X
8E0972416 შეთავაზებები

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 16 pin 1
brown
Replacements: 8W0972416
Possible single wire:
000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
counterpart to: 000 979 012 E
000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
counterpart to: 000 979 012 EA
000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
