გადაცემათა კოლოფის ქლაჩი

[Name] [QTY]

radial shaft seal 1

[Name] [Note]

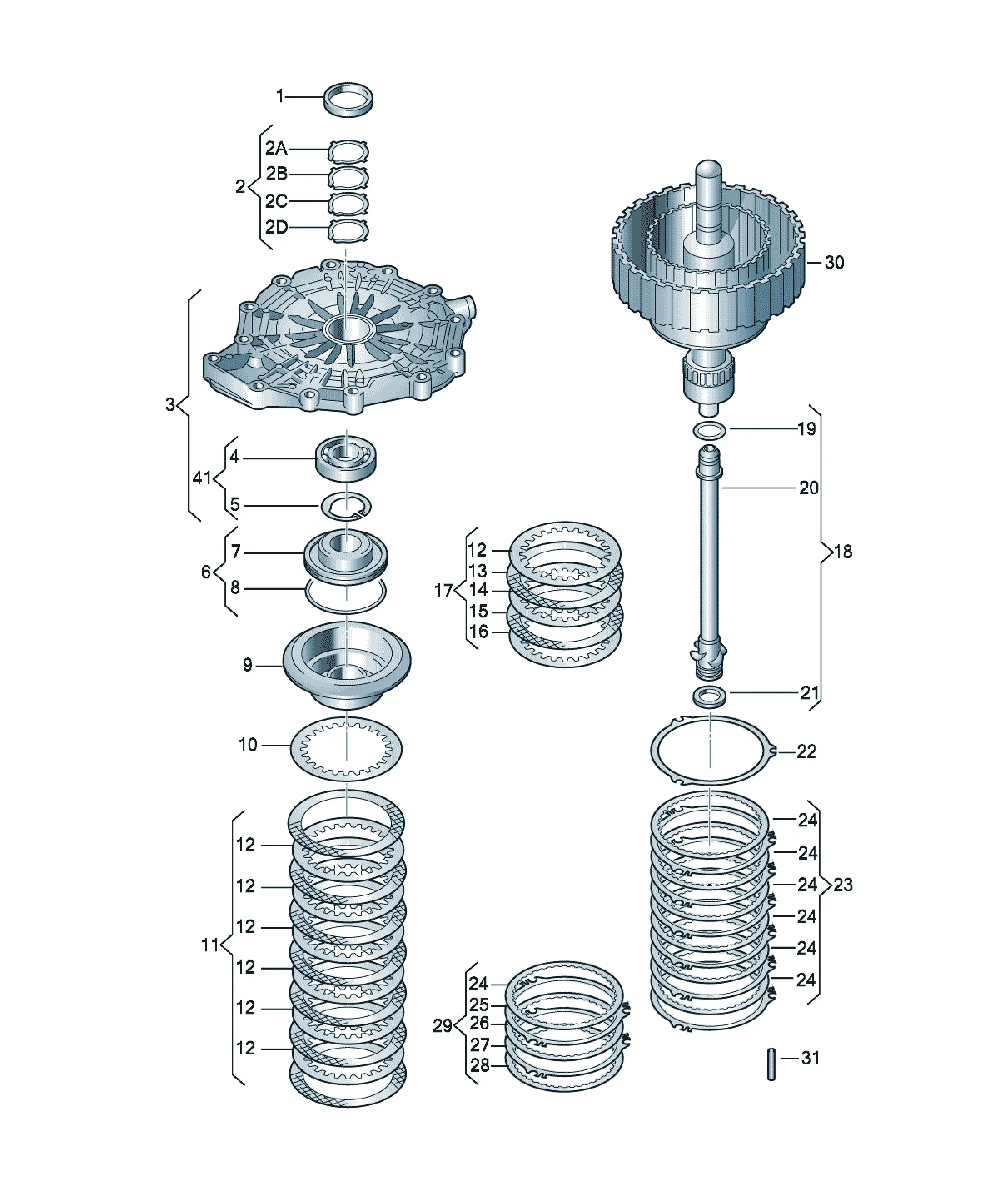

see illustration, item: 321-060,38

[Name] [Note] [QTY]

disc set 1

For vehicles with 7 plate clutch

also use: 01J 398 941

Accompanying details: 01J398941

repair set

01J323944S external disc 7

01J323941L Internal disc 1,90MM 6

[Name] [Note] [QTY]

disc set 1

For vehicles with 6 plate clutch

also use: 01J 398 941

Accompanying details: 01J398941

repair set

01J323944K external disc 6

01J323941L Internal disc 1,90MM 5

[Name] [Note] [QTY]

Internal disc 1,90MM 1

[Name] [Note] [QTY]

Internal disc 2,15MM 1

[Name] [Note] [QTY]

Internal disc 2,65MM 1

[Name] [Note] [QTY]

Internal disc 2,90MM 1

[Name] [Note] [QTY]

Internal disc 3,15MM 1

[Name] [QTY]

disc set 1

repair set

01J323941L Internal disc 1,90MM 2

01J323941B Internal disc 2,15MM 2

01J323941C Internal disc 2,65MM 2

01J323941D Internal disc 2,90MM 2

01J323941E Internal disc 3,15MM 2

[Name] [QTY]

oil pipe 1

[Name] [Note] [QTY]

O-ring 7,3X2,4 1

[Name] [QTY]

1 set circlips 1

repair set

N 90294115 Securing ring 24,9X1,63 1

N 90294116 Securing ring 24,9X1,72 1

N 90294117 Securing ring 24,9X1,81 1

N 90294118 Securing ring 24,9X1,9 1

[Name]

No replacement part

[Name]

No replacement part

[Name] [QTY]

Spring washer 1

[Name] [Note] [QTY]

disc set 1

reverse gear clutch

contains additional positions: 29

D - 01.11.2004>>

repair set

01J323241F Internal disc 6

01J323139C external disc 1,90MM 6

01J323139D external disc 2,15MM 2

01J323139F external disc 2,65MM 1

01J323139G external disc 2,90MM 2

01J323139H external disc 3,15MM 2

[Name] [Note] [QTY]

disc set 1

reverse gear clutch

also use: 01J 398 139

D >> - 01.11.2004

Accompanying details: 01J398139

Replacements: 01J398241B

repair set

01J323139C external disc 1,90MM 7

01J323241F Internal disc 6

[Name] [Note] [QTY]

external disc 1,90MM 1

[Name] [Note] [QTY]

external disc 2,15MM 1

[Name] [Note] [QTY]

external disc 2,65MM 1

[Name] [Note] [QTY]

external disc 2,90MM 1

[Name] [Note] [QTY]

external disc 3,15MM 1

[Name] [QTY]

disc set 1

reverse gear clutch

Replacements: 01J398241B

repair set

01J323139C external disc 1,90MM 2

01J323139D external disc 2,15MM 2

01J323139F external disc 2,65MM 2

01J323139G external disc 2,90MM 2

01J323139H external disc 3,15MM 2

[Name] [Note] [QTY]

Securing ring 24,9X1,63 1

[Name] [Note] [QTY]

Securing ring 24,9X1,72 1

[Name] [Note] [QTY]

Securing ring 24,9X1,81 1

[Name] [Note] [QTY]

Securing ring 24,9X1,9 1

[Name] [Note] [QTY]

Cover but with: 1

Pressure piston

[Name] [Note]

Included in illustration, position:

321-060,38

[Name] [Note]

Included in illustration, position:

321-061,38

[Name] [QTY]

Pin 1

[Name] [Note] [QTY]

grooved ball bearing 25X58X16 1

Replacements: 01J311445B

[Name] [QTY]

1 set securing rings with mounting 1

repair set

N 90819105 Securing ring 58X1,98 1

N 90819106 Securing ring 58X1,92 1

N 90819107 Securing ring 58X1,87 1

01J311445B grooved ball bearing 25X58X16 1

[Name] [Note] [QTY]

Securing ring 58X1,95 1

Replacements: N 90819105

[Name] [Note] [QTY]

Securing ring 58X1,89 1

Replacements: N 90819107

[Name] [Note] [QTY]

piston but with: 1

piston ring

[Name]

No replacement part

[Name]

No replacement part

[Name] [QTY]

Pressure plate 1
