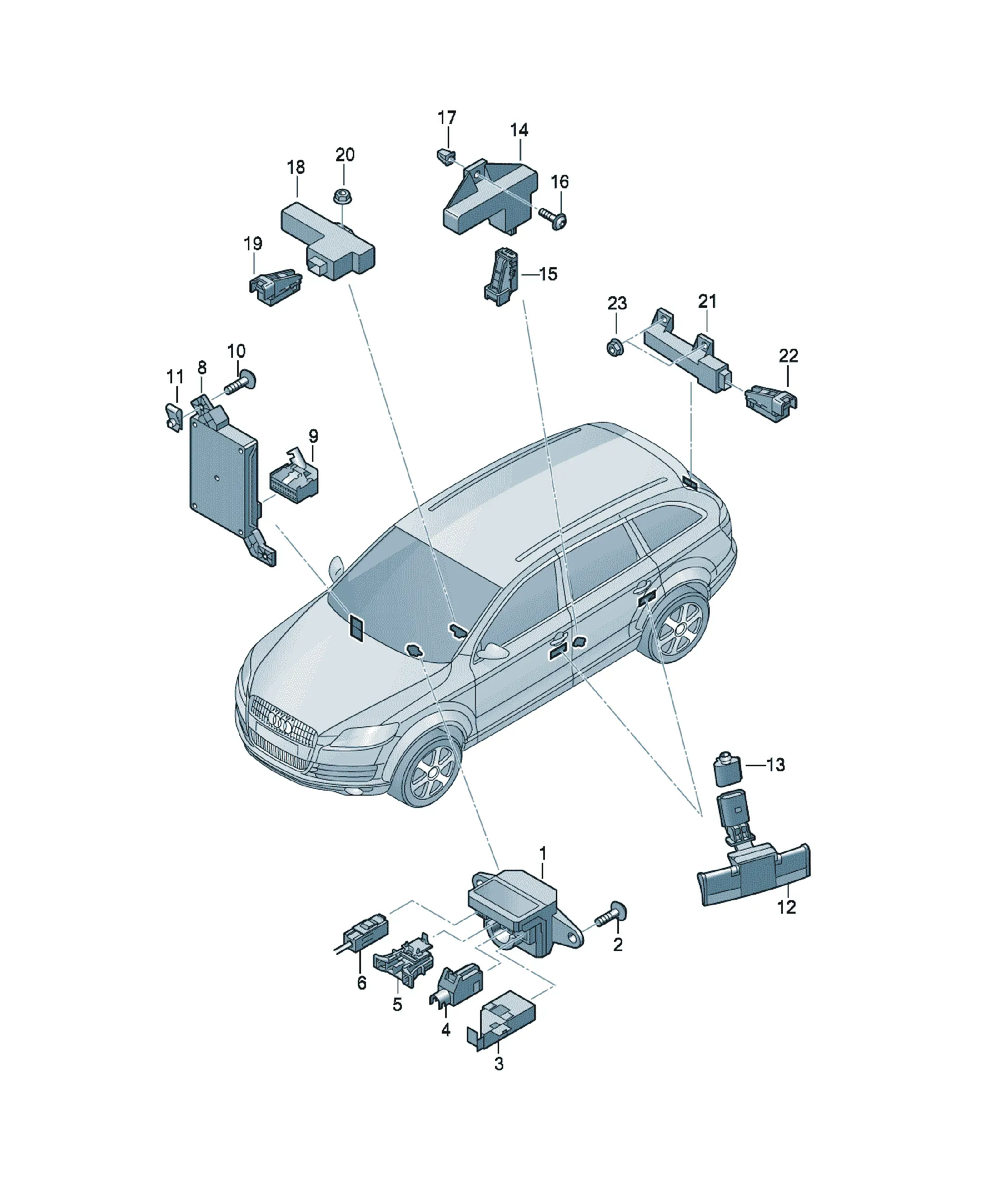

ანთების საკეტი

[Name] [Note] [Model info] [QTY]

insert nut 4,2X18 PR:4F2,4I3 2

[Name] [Model info] [QTY]

Ignition/starter switch PR:5D2 1

mating connector

8Z0972883 Flat contact housing 8 pin 1

black

4D0971636 Flat contact housing 6 pin 1

black

also to be used for: white

4B0971942 Flat contact housing with contact locking mechanism 2 pin 1

4E0035610K Removable housing for aerial bracket female connector 1 point X

light blue

cable output: lower

4E0035576K Removable housing for aerial female connector 1 point X

light blue

[Name] [Model info] [QTY]

Ignition/starter switch PR:5D1 1

mating connector

8Z0972883 Flat contact housing 8 pin 1

black

4D0971636 Flat contact housing 6 pin 1

black

also to be used for: white

4B0971942 Flat contact housing with contact locking mechanism 2 pin 1

4E0035610K Removable housing for aerial bracket female connector 1 point X

light blue

cable output: lower

4E0035576K Removable housing for aerial female connector 1 point X

light blue

[Name] [Model info] [QTY]

Ignition/starter switch PR:5D3,5D4 1

mating connector

8Z0972883 Flat contact housing 8 pin 1

black

4D0971636 Flat contact housing 6 pin 1

black

also to be used for: white

4B0971942 Flat contact housing with contact locking mechanism 2 pin 1

4E0035610K Removable housing for aerial bracket female connector 1 point X

light blue

cable output: lower

4E0035576K Removable housing for aerial female connector 1 point X

light blue

[Name] [Model info] [QTY]

Ignition/starter switch PR:5D7 1

mating connector

8Z0972883 Flat contact housing 8 pin 1

black

4D0971636 Flat contact housing 6 pin 1

black

also to be used for: white

4B0971942 Flat contact housing with contact locking mechanism 2 pin 1

4E0035610K Removable housing for aerial bracket female connector 1 point X

light blue

cable output: lower

4E0035576K Removable housing for aerial female connector 1 point X

light blue

[Name] [Note] [Model info]

Bracket PR:4F2,4I3

Control unit for access and start authorisation

see illustration, item: 907-010,1

[Name] [Note] [Model info]

Sensor for door handle rear PR:4F2,4I3

** not exchangeable **

Included in illustration, position:

839-000,1

[Name] [Note] [Model info]

Sensor for door handle front PR:4F2,4I3

** not exchangeable **

Included in illustration, position:

837-000,1

[Name] [Note] [Model info] [QTY]

Flat contact housing with contact locking mechanism 3 pin PR:4F2,4I3 4

black

Connection piece

Sensor for door handle

mating connector

1J0973803 Flat contact housing with contact locking mechanism 3 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [Model info] [QTY]

Aerial for access and start authorisation (KESSY) rear PR:4F2,4I3 2

mating connector

8W0971832 Flat contact housing 2 pin 1

Possible single wire: black

000 979 009

matching contact housing: 000 979 009 A

4E0 972 575

[Name] [Note] [Model info] [QTY]

Flat contact housing with contact locking mechanism 2 pin PR:4F2,4I3 2

black

mating connector

4E0972575 Flat connector housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979044EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [Model info] [QTY]

Hexagon socket head panel bolt 4X12 PR:4F2,4I3 4

[Name] [Model info] [QTY]

Aerial for access and start authorisation (KESSY) PR:4F2,4I3 1

mating connector

8W0971832 Flat contact housing 2 pin 1

Possible single wire: black

000 979 009

matching contact housing: 000 979 009 A

4E0 972 575

[Name] [Note] [Model info] [QTY]

Flat contact housing with contact locking mechanism 2 pin PR:4F2,4I3 2

black

mating connector

4E0972575 Flat connector housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979044EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Hexagon socket head panel bolt 4,2X16 2

[Name] [Note] [Model info] [QTY]

Hexagon socket head panel bolt 5X16 PR:4F2,4I3 2

[Name] [Model info] [QTY]

Aerial for access and start authorisation (KESSY) PR:4F2,4I3 1

mating connector

8W0971832 Flat contact housing 2 pin 1

Possible single wire: black

000 979 009

matching contact housing: 000 979 009 A

4E0 972 575

[Name] [Note] [Model info] [QTY]

Flat contact housing with contact locking mechanism 2 pin PR:4F2,4I3 2

black

mating connector

4E0972575 Flat connector housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979044EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [Model info] [QTY]

Hexagon socket head panel bolt 4,2X16 PR:4F2,4I3 2

[Name] [Note] [QTY]

Flat contact housing 8 pin 1

Possible single wire:

000979018E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat connector/sleeve with retaining lug 0,63

000979018EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing 6 pin 1

mating connector

8W0973736 Flat contact housing 6 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Removable housing for aerial female connector 1 point X

mating connector

4E0035575K Removable housing for aerial pin connector 1 point X

light blue

[Name] [Note] [QTY]

Removable housing for aerial bracket female connector 1 point X

angled

[Name] [Model info] [QTY]

Antenna reading unit for keyless access authorisation PR:4F2,4I3 1

mating connector

8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

red

also to be used for: blue

[Name] [Note] [Model info] [QTY]

Flat contact housing with contact locking mechanism 20 pin PR:4F2,4I3 1

red

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63
