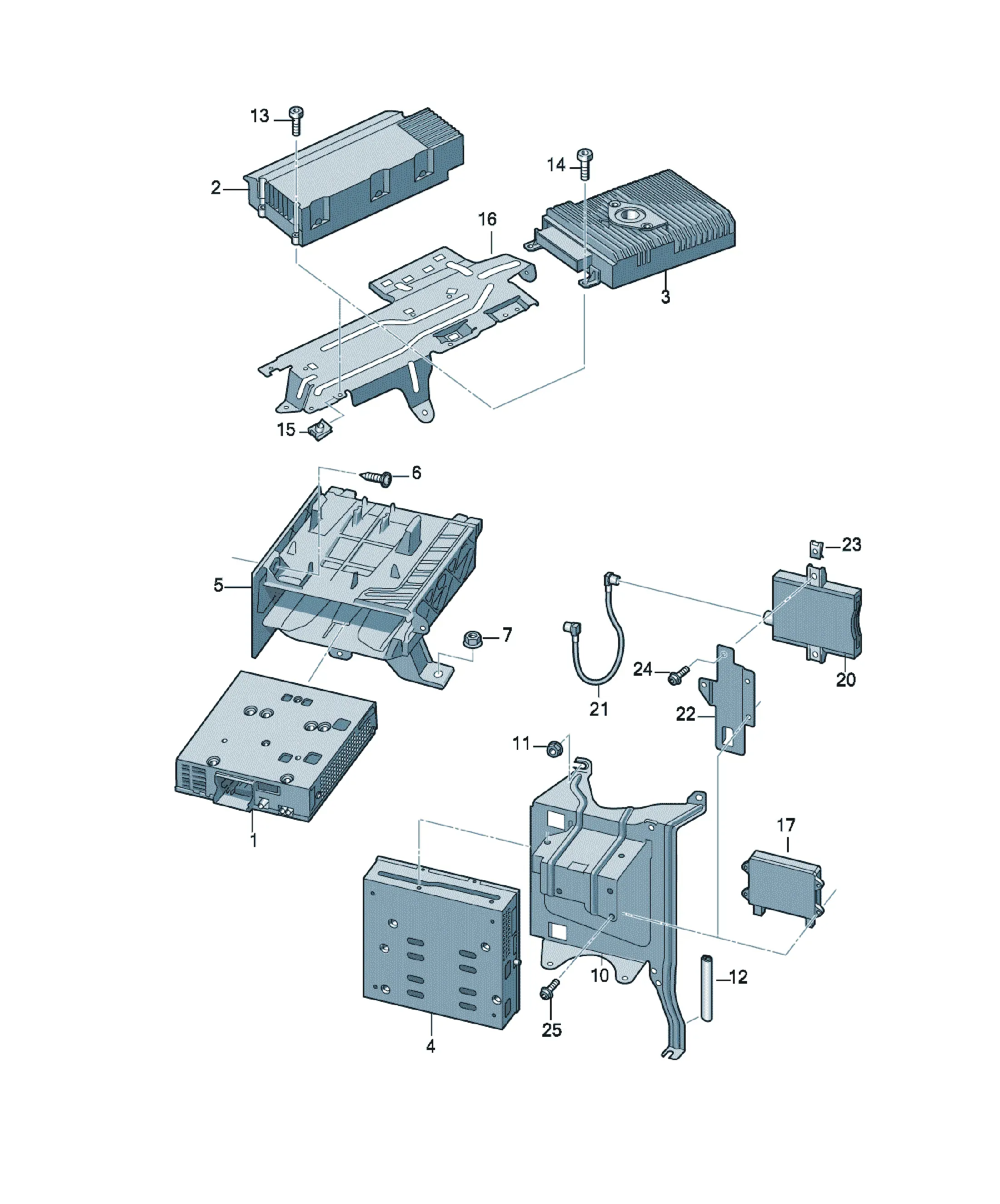

მულტიმედიური სისტემის ელექტრონული კომპონენტები

[Name]

*Only possible to determine *the fitted part number by *reading it using the *diagnostics tester.

------------------------------

[Name]

obligatory documentation part

When ordering, provide vehicle identification number.

------------------------------

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:9VD 1

for vehicle with active loudspeakers

only to be used for: 4F0 035 056.B

D >> - 31.05.2010

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:QU1,QV3 1

For vehicles with TV recept. and digital radio recept. Digital/analog

D - 08.11.2010>> - 30.05.2011

* Note technical * product information

Exchange program parts: 4G0035061FX

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8RX,8RY, 1

D - 02.11.2009>> - 31.05.2010 8RF

Exchange program parts: 4F0035053DX

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8RX,8RY, 1

D >> - 02.11.2009 8RF

Exchange program parts: 4F0035053B

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8RX,8RY, 1

D >> - 02.11.2009 8RF

Exchange program parts: 4F0035053BX

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:9VD 1

for vehicle with active loudspeakers

D - 27.05.2013>>

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035608K Removable housing for aerial female connector 2 point 1

light blue

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

only to be used for: all colours

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8RX,8RY, 1

D >> - 31.05.2010 8RF

Exchange program parts: 4F0035053B

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:9VD 1

for vehicle with active loudspeakers

D >> - 31.05.2010

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:9VD 1

for vehicle with active loudspeakers

only to be used for: 4G0 035 056 E

Exchange program parts: 4G0035056E

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8RF,9VK 1

D >> - 05.11.2012

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

radio

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

radio

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

counterpart to: 4E0 973 302

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8RF,9VK 1

D - 05.11.2012>> - 27.05.2013

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

radio

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

radio

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

counterpart to: 4E0 973 302

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8RF,9VK 1

D - 27.05.2013>>

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

radio

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

radio

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

counterpart to: 4E0 973 302

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:9VD 1

for vehicle with active loudspeakers

D >> - 05.11.2012

Exchange program parts: 4G0035056EX

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:9VD 1

for vehicle with active loudspeakers

only to be used for: 4G0 035 056 E

D >> - 05.11.2012

Exchange program parts: 4G0035056E

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:9VD 1

for vehicle with active loudspeakers

only to be used for: 4G0 035 056 C

D - 30.05.2011>> - 07.11.2011

Exchange program parts: 4G0035056C

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:9VD 1

for vehicle with active loudspeakers

D - 30.05.2011>> - 07.11.2011

Exchange program parts: 4G0035056CX

Replacements: 4G0035056CX

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:QU1,QU6, 1

For vehicles with TV recept. and digital radio recept. QV3

D - 04.11.2013>> - 03.11.2014

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035608K Removable housing for aerial female connector 2 point 1

light blue

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

only to be used for: all colours

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:QU1,QU6, 1

For vehicles with TV recept. and digital radio recept. QV3

D - 27.05.2013>> - 04.11.2013

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035608K Removable housing for aerial female connector 2 point 1

light blue

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

only to be used for: all colours

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:QU1,QU6, 1

For vehicles with TV recept. and digital radio recept. QV3

D - 05.11.2012>> - 27.05.2013

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035608K Removable housing for aerial female connector 2 point 1

light blue

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

only to be used for: all colours

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:QU1,QU6, 1

For vehicles with TV recept. and digital radio recept. QV3

D - 07.11.2011>> - 05.11.2012

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035608K Removable housing for aerial female connector 2 point 1

light blue

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

only to be used for: all colours

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:QU1,QU6, 1

For vehicles with TV recept. and digital radio recept. Digital/analog QV3

D - 30.09.2011>> - 07.11.2011

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035608K Removable housing for aerial female connector 2 point 1

light blue

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

only to be used for: all colours

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+QV3 1

for models with digital radio reception

D - 27.05.2013>> - 04.11.2013

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:QU1,QU6, 1

For vehicles with TV recept. and digital radio recept. Digital/analog QV3

D - 30.05.2011>> - 30.09.2011

* Note technical * product information

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035608K Removable housing for aerial female connector 2 point 1

light blue

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

only to be used for: all colours

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:QU1,QV3 1

For vehicles with TV recept. and digital radio recept. Digital/analog

only to be used for: 4G0 035 061 F

D - 08.11.2010>> - 30.05.2011

* Note technical * product information

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit left rear PR:QU1,QV3 1

for models with digital radio reception Digital/analog

only to be used for: 4F0 035 061.D

4F0 035 061.DX

4G0 035 061.D

4G0 035 061.DX

D - 02.11.2009>> - 08.11.2010

See parts bulletin: (0-329)

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit left rear PR:QU1,QV3 1

for models with digital radio reception

only to be used for: 4F0 035 061 B

4F0 035 061 BX

4G0 035 061 D

4G0 035 061 DX

D >> - 02.11.2009

See parts bulletin: (0-329)

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8RX,8RY, 1

D - 30.05.2011>> - 07.11.2011 8RF

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

radio

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

radio

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

counterpart to: 4E0 973 302

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:QU1,QU6, 1

For vehicles with TV recept. and digital radio recept. QV3

D - 03.11.2014>>

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035608K Removable housing for aerial female connector 2 point 1

water blue

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point 1

water blue

only to be used for: all colours

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+QV3 1

for models with digital radio reception

D - 04.11.2013>> - 03.11.2014

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+QV3 1

for models with digital radio reception

only to be used for: 4G0 035 061 H

D - 05.11.2012>> - 27.05.2013

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+QV3 1

for models with digital radio reception

only to be used for: 4G0 035 061 D

D - 07.11.2011>>

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+QV3 1

for models with digital radio reception

only to be used for: 4G0 035 061 F

D - 30.09.2011>> - 07.11.2011

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+QV3 1

for models with digital radio reception

D - 30.09.2011>> - 07.11.2011

Exchange program parts: 4G0035061FX

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+QV3 1

for models with digital radio reception

only to be used for: 4G0 035 061 F

D - 08.11.2010>> - 30.09.2011

* Note technical * product information

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit left rear PR:8DP+QV3 1

for models with digital radio reception Digital/analog

only to be used for: 4F0 035 061 D

4F0 035 061 DX

4G0 035 061 D

4G0 035 061 DX

D - 02.11.2009>> - 08.11.2010

See parts bulletin: (0-329)

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit left rear PR:8DP,QV3 1

for models with digital radio reception

only to be used for: 4F0 035 061 B

4F0 035 061 BX

4G0 035 061 D

4G0 035 061 DX

D >> - 02.11.2009

See parts bulletin: (0-329)

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+9VD 1

for vehicle with active loudspeakers

D - 27.05.2013>>

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+9VD 1

for vehicle with active loudspeakers

only to be used for: 4G0 035 056 F

D - 05.11.2012>> - 27.05.2013

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+9VD 1

for vehicle with active loudspeakers

D - 05.11.2012>> - 27.05.2013

Exchange program parts: 4G0035056FX

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+9VD 1

for vehicle with active loudspeakers

only to be used for: 4G0 035 056 D

D - 07.11.2011>> - 05.11.2012

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+9VD 1

for vehicle with active loudspeakers

only to be used for: 4G0 035 056.

D - 31.05.2010>> - 07.11.2011

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+9VD 1

for vehicle with active loudspeakers

only to be used for: 4F0 035 056.B

D >> - 31.05.2010

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+8RX, 1

D - 27.05.2013>> 8RY

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+8RX, 1

D - 05.11.2012>> - 27.05.2013 8RY

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+8RX, 1

D - 07.11.2011>> - 05.11.2012 8RY

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+8RX, 1

D - 30.05.2011>> - 07.11.2011 8RY

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+8RX, 1

only to be used for: 4F0 035 053.B 8RY

D >> - 31.05.2010

Exchange program parts: 4F0035053B

[Name] [Note] [Model info] [QTY]

Radio unit left rear PR:8DN 1

D - 27.05.2013>>

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit left rear PR:8DN 1

D - 05.11.2012>> - 27.05.2013

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit left rear PR:8DN 1

D - 07.11.2011>> - 05.11.2012

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DN 1

D - 30.05.2011>> - 07.11.2011

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DN 1

only to be used for: 4G0 035 053.

D - 31.05.2010>> - 30.05.2011

Exchange program parts: 4G0035053

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DN 1

only to be used for: 4F0 035 053.B

D >> - 31.05.2010

Exchange program parts: 4F0035053B

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+QV3 1

for models with digital radio reception

D - 03.11.2014>>

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

water blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

water blue

[Name] [Note] [Model info] [QTY]

Radio unit left rear PR:9VD 1

for vehicle with active loudspeakers

only to be used for: 4G0 035 056 E

D - 07.11.2011>> - 05.11.2012

Exchange program parts: 4G0035056E

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8RX,8RY, 1

only to be used for: 4F0 035 053.B 8RF

D >> - 31.05.2010

Exchange program parts: 4F0035053B

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DP+8RX, 1

only to be used for: 4G0 035 053. 8RY

D - 31.05.2010>> - 30.05.2011

Exchange program parts: 4G0035053

[Name] [Note] [QTY]

Radio unit right rear 1

only to be used for: 4F0 035 082.A

4G0 035 082 G

D >> - 31.05.2010

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

3B7035447B Flat contact housing with contact locking mechanism 12 pin 1

green

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

[Name] [Note] [QTY]

Radio unit right rear 1

only to be used for: 4G0 035 082.

D - 31.05.2010>> - 30.05.2011

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

3B7035447B Flat contact housing with contact locking mechanism 12 pin 1

green

[Name] [Note] [QTY]

Radio unit right rear 1

only to be used for: 4G0 035 082.B

D - 30.05.2011>> - 12.12.2011

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

3B7035447B Flat contact housing with contact locking mechanism 12 pin 1

green

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

[Name] [Note] [QTY]

Radio unit right rear 1

only to be used for: 4G0 035 082.C

D - 12.12.2011>> - 28.05.2012

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

3B7035447B Flat contact housing with contact locking mechanism 12 pin 1

green

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DY 1

only to be used for: 4G0 035 082.D

D - 28.05.2012>> - 05.11.2012

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

3B7035447B Flat contact housing with contact locking mechanism 12 pin 1

green

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DS 1

only to be used for: 4G0 035 082.D

D - 28.05.2012>> - 01.12.2014

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

3B7035447B Flat contact housing with contact locking mechanism 12 pin 1

green

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DY 1

only to be used for: 4G0 035 082.E

D - 05.11.2012>> - 27.05.2013

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

3B7035447B Flat contact housing with contact locking mechanism 12 pin 1

green

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DS 1

only to be used for: 4G0 035 082.G

D - 01.12.2014>>

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

3B7035447B Flat contact housing with contact locking mechanism 12 pin 1

green

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DY 1

only to be used for: 4G0 035 082.G

D - 27.05.2013>>

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

3B7035447B Flat contact housing with contact locking mechanism 12 pin 1

green

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DS+9VD 1

for vehicle with active loudspeakers

only to be used for: 4G0 035 056.

D - 31.05.2010>> - 28.05.2012

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:9VD 1

for vehicle with active loudspeakers

only to be used for: 4G0 035 056 G

D - 05.11.2012>> - 27.05.2013

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035608K Removable housing for aerial female connector 2 point 1

light blue

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

only to be used for: all colours

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DY+9VD 1

for vehicle with active loudspeakers

D - 05.11.2012>> - 27.05.2013

Exchange program parts: 4G0035056GX

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DY+9VD 1

for vehicle with active loudspeakers

only to be used for: 4G0 035 056 E

D - 28.05.2012>> - 05.11.2012

Exchange program parts: 4G0035056E

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DY+9VD 1

for vehicle with active loudspeakers

D - 28.05.2012>> - 05.11.2012

Exchange program parts: 4G0035056EX

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DY+9VD 1

for vehicle with active loudspeakers

only to be used for: 4G0 035 056 C

D - 30.05.2011>> - 28.05.2012

Exchange program parts: 4G0035056C

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DY+9VD 1

for vehicle with active loudspeakers

D - 30.05.2011>> - 28.05.2012

Exchange program parts: 4G0035056CX

Replacements: 4G0035056CX

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DS+9VD 1

for vehicle with active loudspeakers

D - 27.05.2013>>

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DS+9VD 1

for vehicle with active loudspeakers

only to be used for: 4G0 035 056 F

D - 05.11.2012>> - 27.05.2013

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DS+9VD 1

for vehicle with active loudspeakers

D - 05.11.2012>> - 27.05.2013

Exchange program parts: 4G0035056FX

[Name] [Note] [Model info] [QTY]

Radio unit left rear PR:8DS+9VD 1

for vehicle with active loudspeakers

only to be used for: 4G0 035 056 D

D - 28.05.2012>> - 05.11.2012

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:9VD 1

for vehicle with active loudspeakers

only to be used for: 4G0 035 056.

D - 31.05.2010>> - 30.05.2011

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8RY,8RF 1

only to be used for: 4F0 035 053.B

D >> - 31.05.2010

Exchange program parts: 4F0035053B

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DY+8RF, 1

D - 27.05.2013>> 8RY

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

radio

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

radio

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

counterpart to: 4E0 973 302

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DY+8RF, 1

D - 05.11.2012>> - 27.05.2013 8RY

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

radio

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

radio

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

counterpart to: 4E0 973 302

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DY+8RF, 1

D - 28.05.2012>> - 05.11.2012 8RY

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

radio

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

radio

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

counterpart to: 4E0 973 302

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DY+8RF, 1

D - 30.05.2011>> - 28.05.2012 8RY

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

radio

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

radio

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

counterpart to: 4E0 973 302

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DS+8RY 1

D - 27.05.2013>>

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DS+8RY 1

D - 05.11.2012>> - 27.05.2013

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DS+8RY 1

D - 28.05.2012>> - 05.11.2012

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DS+8RY 1

D - 30.05.2011>> - 28.05.2012

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8RY,8RF 1

only to be used for: 4G0 035 053.

D - 31.05.2010>> - 30.05.2011

Exchange program parts: 4G0035053

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8DY+9VD 1

for vehicle with active loudspeakers

D - 27.05.2013>>

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035608K Removable housing for aerial female connector 2 point 1

light blue

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

only to be used for: all colours

[Name] [Note] [QTY]

Radio unit right rear 1

D >> - 08.11.2010

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

[Name] [Note] [QTY]

Radio unit right rear 1

D - 08.11.2010>>

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:9VD 1

for vehicle with active loudspeakers

D - 05.11.2012>> - 27.05.2013

Exchange program parts: 4G0035056GX

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:9VD 1

for vehicle with active loudspeakers

only to be used for: 4G0 035 056 E

D - 07.11.2011>> - 05.11.2012

Exchange program parts: 4G0035056E

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:9VD 1

for vehicle with active loudspeakers

D - 07.11.2011>> - 05.11.2012

Exchange program parts: 4G0035056EX

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:9VD 1

for vehicle with active loudspeakers

D - 31.05.2010>> - 07.11.2011

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:9VD 1

for vehicle with active loudspeakers

D - 02.11.2009>> - 31.05.2010

Exchange program parts: 4F0035056DX

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:9VD 1

for vehicle with active loudspeakers

D >> - 02.11.2009

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8RX,8RY, 1

D - 05.11.2012>> - 27.05.2013 8RF

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

radio

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

radio

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

counterpart to: 4E0 973 302

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8RX,8RY, 1

D - 27.05.2013>> 8RF

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

radio

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

radio

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

counterpart to: 4E0 973 302

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8RX,8RY, 1

D - 07.11.2011>> - 05.11.2012 8RF

mating connector

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

radio

8X0035447A Flat contact housing with contact locking mechanism 12 pin 1

green

radio

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

counterpart to: 4E0 973 302

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8RX,8RY, 1

D - 30.05.2011>> - 07.11.2011 8RF

mating connector

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

8X0035447 Flat contact housing with contact locking mechanism 12 pin 1

blue

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8RX,8RY, 1

only to be used for: 4G0 035 053. 8RF

D - 31.05.2010>> - 30.05.2011

Exchange program parts: 4G0035053

[Name] [Note] [Model info] [QTY]

Radio unit right rear PR:8RX,8RY, 1

D - 31.05.2010>> - 30.05.2011 8RF

Exchange program parts: 4G0035053 X

[Name] [Note] [QTY]

mounting f.electr.contr.units right rear 1

also use: 535 853 879 A

Accompanying details: 535853879A

[Name] [Note] [QTY]

hexagon nut, self-locking M6 X

[Name] [Note] [QTY]

Edge protection 120MM 1

[Name] [Note] [Model info] [QTY]

round hd. screw M5X20 PR:8RY 3

[Name] [Note] [Model info] [QTY]

Oval hexagon socket head bolt M5X12 PR:8RF 3

[Name] [Note] [QTY]

Speed nut M5X13,6X11,5 3

[Name] [Note]

Holder for amplifier

see illustration: 035-035

[Name] [Note]

Amplifiers 'KOMPENSER'

see illustration: 035-055

[Name] [Model info] [QTY]

Amplifiers PR:8RY 1

for vehicles with bose sound system

D - 30.05.2011>> - 07.11.2011

mating connector

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

4E0971636 flat contact housing with cap 32 pin 1

black

5Q0972718A Flat contact housing with contact locking mechanism 18 pin 1

black

[Name] [Model info] [QTY]

Amplifiers PR:8RY 1

for vehicles with bose sound system

D - 31.05.2010>> - 30.05.2011

mating connector

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

4E0971636 flat contact housing with cap 32 pin 1

black

5Q0972718A Flat contact housing with contact locking mechanism 18 pin 1

[Name] [Model info] [QTY]

Amplifiers PR:8RY 1

for vehicles with bose sound system

D >> - 31.05.2010

mating connector

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

4E0971636 flat contact housing with cap 32 pin 1

black

5Q0972718A Flat contact housing with contact locking mechanism 18 pin 1

[Name] [Model info] [QTY]

Amplifiers PR:8RY 1

for vehicles with bose sound system

D - 28.05.2012>>

mating connector

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

4E0971636 flat contact housing with cap 32 pin 1

black

5Q0972718A Flat contact housing with contact locking mechanism 18 pin 1

black

[Name] [Model info] [QTY]

Amplifiers PR:8RY+8DZ, 1

for vehicles with bose sound system 8UV,8YF

D - 07.11.2011>> - 28.05.2012

mating connector

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

4E0971636 flat contact housing with cap 32 pin 1

black

5Q0972718A Flat contact housing with contact locking mechanism 18 pin 1

black

[Name] [Model info] [QTY]

Amplifiers PR:8RY+8DY, 1

for vehicles with bose sound system 8DS

D - 07.11.2011>> - 28.05.2012

mating connector

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

4E0971636 flat contact housing with cap 32 pin 1

black

5Q0972718A Flat contact housing with contact locking mechanism 18 pin 1

black

[Name] [Note] [Model info]

Amplifier for digital sound system -DSP- PR:8RF

see illustration: 035-035

[Name] [Model info] [QTY]

Amplifiers PR:8RY 1

for vehicles with bose sound system

D - 07.11.2011>>

mating connector

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

4E0971636 flat contact housing with cap 32 pin 1

black

5Q0972718A Flat contact housing with contact locking mechanism 18 pin 1

black

[Name] [Model info] [QTY]

Chip-card reader for TV system PR:QV2 1

D >> - 28.05.2012

[Name] [Note] [Model info] [QTY]

Wiring set for TV-receiver (tuner) 4 pin PR:QV2 1

260MM

D >> - 28.05.2012

[Name] [Model info] [QTY]

Bracket for chip-card reader PR:QV2 1

D >> - 28.05.2012

[Name] [Note] [Model info] [QTY]

Speed nut M5X13,6X11,5 PR:QV2 1

D >> - 28.05.2012

[Name] [Note] [Model info] [QTY]

Oval hexagon socket head bolt M5X10 PR:QV2 1

D >> - 28.05.2012

[Name] [Note] [QTY]

TV tuner digital 1

D >> - 05.11.2012

mating connector

8E0972420B Flat contact housing with contact locking mechanism 20 pin 1

red

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point 1

light blue

[Name] [Note] [QTY]

Digital TV tuner (DVB-T) digital 1

D - 05.11.2012>>

mating connector

8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

black

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035608K Removable housing for aerial female connector 2 point 1

light blue

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point 2

light blue

only to be used for: all colours

[Name] [Note] [QTY]

TV tuner digital 1

D - 05.11.2012>>

mating connector

8E0972420B Flat contact housing with contact locking mechanism 20 pin 1

red

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point 1

light blue

[Name] [Note] [QTY]

Digital TV tuner (DVB-T) digital 1

D >> - 05.11.2012

mating connector

8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

black

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035608K Removable housing for aerial female connector 2 point 1

light blue

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point 2

light blue

only to be used for: all colours

[Name] [Note] [Model info] [QTY]

Amplifiers BANG & OLUFSEN PR:8RF 1

For vehicles with High End loudspeaker system

mating connector

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

4E0972977 flat contact housing with cap 32 pin 1

black

4E0971636 flat contact housing with cap 32 pin 1

black

[Name] [Note] [Model info] [QTY]

Amplifiers 'MASTER' PR:8RF 1

For vehicles with High End loudspeaker system

mating connector

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

4E0972977 flat contact housing with cap 32 pin 1

black

4E0971636 flat contact housing with cap 32 pin 1

black

[Name] [Note] [QTY]

TV tuner digital 1

D >> - 07.11.2011

mating connector

8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

black

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035608K Removable housing for aerial female connector 2 point 1

light blue

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point 2

light blue

only to be used for: all colours

[Name] [Note] [QTY]

Digital TV tuner (DVB-T) digital 1

D - 05.11.2012>>

mating connector

8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

black

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035608K Removable housing for aerial female connector 2 point 1

light blue

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point 2

light blue

only to be used for: all colours

[Name] [Note] [QTY]

TV tuner digital 1

mating connector

8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

black

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035608K Removable housing for aerial female connector 2 point 1

light blue

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point 2

light blue

only to be used for: all colours

[Name] [Note] [QTY]

TV tuner Digital/analog 1

D - 07.11.2011>>

mating connector

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point 2

light blue

[Name] [Note] [QTY]

TV tuner Digital/analog 1

D - 30.05.2011>> - 07.11.2011

mating connector

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point 2

light blue

[Name] [Note] [QTY]

TV tuner Digital/analog 1

D - 02.11.2009>> - 31.05.2010

mating connector

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point 2

light blue

[Name] [Note] [QTY]

TV tuner Digital/analog 1

D >> - 02.11.2009

mating connector

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point 1

4E0035672K Removable housing for aerial bracket female connector 2 point 2

light blue

[Name] [Note] [QTY]

TV tuner digital 1

D - 07.11.2011>>

mating connector

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

red

also to be used for: blue

8E0972420B Flat contact housing with contact locking mechanism 20 pin 1

red

cable output: upper

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

cable output: side

4E0035608K Removable housing for aerial female connector 2 point X

light blue

20X13X27,5

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

4E0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035602K Removable housing for aerial bracket female connector 1 point X

light blue

Angle socket housing, swivel

12,7X13X9,3

4E0035610K Removable housing for aerial bracket female connector 1 point X

light blue

cable output: lower

4E0035674K Removable housing for aerial bracket female connector 1 point X

light blue

cable output: right

4E0035675K Removable housing for aerial bracket female connector 1 pin X

blue

cable output: left

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point X

only to be used for: all colours

[Name] [Note] [QTY]

TV tuner digital 1

D >> - 31.05.2010

mating connector

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

red

also to be used for: blue

8E0972420B Flat contact housing with contact locking mechanism 20 pin 1

red

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

4E0035608K Removable housing for aerial female connector 2 point X

light blue

20X13X27,5

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

4E0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035602K Removable housing for aerial bracket female connector 1 point X

light blue

Angle socket housing, swivel

12,7X13X9,3

4E0035610K Removable housing for aerial bracket female connector 1 point X

light blue

cable output: lower

4E0035674K Removable housing for aerial bracket female connector 1 point X

light blue

cable output: right

4E0035675K Removable housing for aerial bracket female connector 1 pin X

blue

cable output: left

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point X

only to be used for: all colours

[Name] [Note] [QTY]

TV tuner digital 1

D - 31.05.2010>> - 08.11.2010

mating connector

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

red

also to be used for: blue

8E0972420B Flat contact housing with contact locking mechanism 20 pin 1

red

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

4E0035608K Removable housing for aerial female connector 2 point X

light blue

20X13X27,5

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

4E0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035602K Removable housing for aerial bracket female connector 1 point X

light blue

Angle socket housing, swivel

12,7X13X9,3

4E0035610K Removable housing for aerial bracket female connector 1 point X

light blue

cable output: lower

4E0035674K Removable housing for aerial bracket female connector 1 point X

light blue

cable output: right

4E0035675K Removable housing for aerial bracket female connector 1 pin X

blue

cable output: left

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point X

only to be used for: all colours

[Name] [Note] [QTY]

TV tuner digital 1

D - 07.11.2011>> - 05.11.2012

mating connector

8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

black

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035608K Removable housing for aerial female connector 2 point 1

light blue

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point 2

light blue

only to be used for: all colours

[Name] [Note] [QTY]

TV tuner Digital/analog 1

D >> - 31.05.2010

mating connector

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point 2

light blue

[Name] [Note] [QTY]

TV tuner Digital/analog 1

D - 31.05.2010>> - 30.05.2011

mating connector

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point 2

light blue

[Name] [Note] [QTY]

TV tuner Digital/analog 1

D - 30.05.2011>> - 28.05.2012

mating connector

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point 2

light blue

[Name] [Note] [QTY]

TV tuner Digital/analog 1

D - 28.05.2012>>

mating connector

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

4E0035672K Removable housing for aerial bracket female connector 2 point 2

light blue

[Name] [Note] [QTY]

TV tuner digital 1

D - 08.11.2010>> - 07.11.2011

mating connector

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

red

also to be used for: blue

8E0972420B Flat contact housing with contact locking mechanism 20 pin 1

red

cable output: upper

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

cable output: side

4E0035608K Removable housing for aerial female connector 2 point X

light blue

20X13X27,5

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

4E0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035602K Removable housing for aerial bracket female connector 1 point X

light blue

Angle socket housing, swivel

12,7X13X9,3

4E0035610K Removable housing for aerial bracket female connector 1 point X

light blue

cable output: lower

4E0035674K Removable housing for aerial bracket female connector 1 point X

light blue

cable output: right

4E0035675K Removable housing for aerial bracket female connector 1 pin X

blue

cable output: left

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point X

only to be used for: all colours

[Name] [Note] [QTY]

TV tuner digital 1

D >> - 02.11.2009

mating connector

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

red

also to be used for: blue

8E0972420B Flat contact housing with contact locking mechanism 20 pin 1

red

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

4E0035608K Removable housing for aerial female connector 2 point X

light blue

20X13X27,5

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

4E0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035602K Removable housing for aerial bracket female connector 1 point X

light blue

Angle socket housing, swivel

12,7X13X9,3

4E0035610K Removable housing for aerial bracket female connector 1 point X

light blue

cable output: lower

4E0035674K Removable housing for aerial bracket female connector 1 point X

light blue

cable output: right

4E0035675K Removable housing for aerial bracket female connector 1 pin X

blue

cable output: left

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point X

only to be used for: all colours

[Name] [Note] [QTY]

TV tuner digital 1

D - 02.11.2009>> - 08.11.2010

mating connector

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

red

also to be used for: blue

8E0972420B Flat contact housing with contact locking mechanism 20 pin 1

red

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

4E0035608K Removable housing for aerial female connector 2 point X

light blue

20X13X27,5

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

4E0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035602K Removable housing for aerial bracket female connector 1 point X

light blue

Angle socket housing, swivel

12,7X13X9,3

4E0035610K Removable housing for aerial bracket female connector 1 point X

light blue

cable output: lower

4E0035674K Removable housing for aerial bracket female connector 1 point X

light blue

cable output: right

4E0035675K Removable housing for aerial bracket female connector 1 pin X

blue

cable output: left

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point X

only to be used for: all colours

[Name] [Note] [QTY]

TV tuner digital 1

D - 08.11.2010>> - 07.11.2011

mating connector

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

red

also to be used for: blue

8E0972420B Flat contact housing with contact locking mechanism 20 pin 1

red

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

4E0035608K Removable housing for aerial female connector 2 point X

light blue

20X13X27,5

4E0035672K Removable housing for aerial bracket female connector 2 point X

light blue

cable output: lower

4E0035576K Removable housing for aerial female connector 1 point X

light blue

4E0035602K Removable housing for aerial bracket female connector 1 point X

light blue

Angle socket housing, swivel

12,7X13X9,3

4E0035610K Removable housing for aerial bracket female connector 1 point X

light blue

cable output: lower

4E0035674K Removable housing for aerial bracket female connector 1 point X

light blue

cable output: right

4E0035675K Removable housing for aerial bracket female connector 1 pin X

blue

cable output: left

only to be used for: all colours

6Q0035576K Removable housing for aerial female connector 1 point X

only to be used for: all colours

[Name] [Note] [QTY]

TV tuner digital 1

D - 07.11.2011>> - 28.05.2012

mating connector

8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

black

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point 2

light blue

only to be used for: all colours

6Q0035608K Removable housing for aerial female connector 2 point 1

light blue

only to be used for: all colours

[Name] [Note] [QTY]

TV tuner digital 1

D - 28.05.2012>> - 05.11.2012

mating connector

8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

black

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point 2

light blue

only to be used for: all colours

6Q0035608K Removable housing for aerial female connector 2 point 1

light blue

only to be used for: all colours

[Name] [Note] [QTY]

TV tuner digital 1

D - 05.11.2012>>

mating connector

8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

black

4E0973702 flat connector 2 pin 1

fibre optic wave conductor black

6Q0035576K Removable housing for aerial female connector 1 point 2

light blue

only to be used for: all colours

6Q0035608K Removable housing for aerial female connector 2 point 1

light blue

only to be used for: all colours

[Name] [Note] [QTY]

mounting f.electr.contr.units right rear 1

[Name] [Note] [QTY]

Hexagon socket oval head bolt (combi) 5X10 1

[Name] [Note] [QTY]

Hexagon collar nut M6 2
