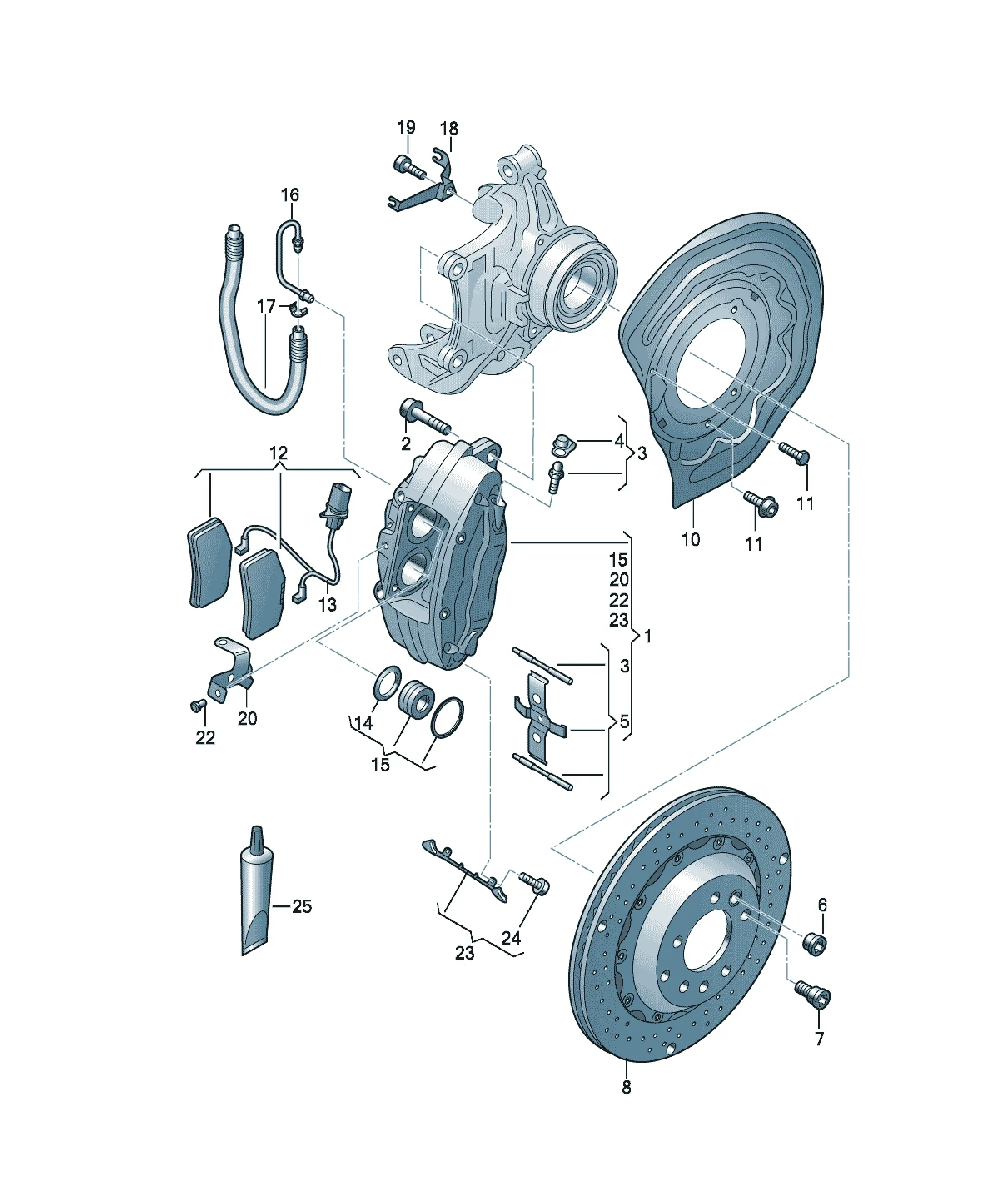

სამუხრუჭე სუპორტი

[Name] [Note] [QTY]

caliper without brake pads left 1

[Name] [Note] [QTY]

caliper without brake pads right 1

[Name] [Note]

back plate

see illustration: 609-030

[Name] [Note]

see illustration: 609-030

[Name] [Note] [QTY]

1 set of brake pads for disk brake 370X30MM 1

also use: 4L0 615 437 A 2

Accompanying details: 4L0615437A

Replacements: 4L0698451E

repair set

4L0615415C disc brake pad 4

For vehicles with ceramic brake disc

[Name] [QTY]

contacts 2

for vehicles with brake pad wear indicator

[Name] [QTY]

Gasket set for fixed calliper 2

Protective cap

repair set

Protective cap 28MM 4

Protective cap 32MM 4

[Name] [Note] [QTY]

Gasket set for fixed calliper 28/32 2

repair set

piston 28MM 2

piston 32MM 2

seal ring 28MM 2

seal ring 32MM 2

Protective cap 28MM 2

Protective cap 32MM 2

[Name] [Note] [QTY]

brake pipe from brake hose to piston housing left 1

[Name] [Note] [QTY]

brake pipe from brake hose to piston housing right 1

[Name] [Note]

see illustration: 611-030

[Name] [Note]

Cable holder

see illustration, item: 927-000,39

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M14X1,5X40 4

[Name] [Note] [QTY]

Bracket left 1

[Name] [Note] [QTY]

Bracket right 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 2

[Name] [QTY]

Cover 2

for brake pipe

repair set

Cover 1

N 10405604 Oval hexagon socket head bolt 2

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 2

[Name] [Note] [QTY]

Lithium lubricating grease 180G 1

[Name] [QTY]

1 set bleeder valves with dust cap 2

and

dust cap

Items supplied

80A615273 Breather valve 2

80A611483 dust cap 2

[Name] [QTY]

dust cap 4

[Name] [QTY]

1 set attachment parts 2

repair set

Cup expander spring 1

Locking pin 2

[Name] [Note] [QTY]

sealing plug M12X1,5 2

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M12X1,5X16X19 2

[Name] [Note] [QTY]

Ceramic brake disc (vented) 370X30MM 5/130 1

punched

D >> - 15.02.2010 right

Replacements: 4L0615602C

[Name] [Note] [QTY]

Ceramic brake disc (vented) 370X30MM 5/130 1

punched

D - 06.06.2011>> left

Replacements: 4L0615601D

[Name] [Note] [QTY]

Ceramic brake disc (vented) 370X30MM 5/130 1

punched

D - 06.06.2011>> right

Replacements: 4L0615602D

[Name] [Note] [QTY]

Ceramic brake disc (vented) 370X30MM 5/130 1

punched

D - 15.02.2010>> - 06.06.2011 left

Replacements: 4L0615601E

[Name] [Note] [QTY]

Ceramic brake disc (vented) 370X30MM 5/130 1

punched

D >> - 15.02.2010 left

Replacements: 4L0615601C

[Name] [Note] [QTY]

Ceramic brake disc (vented) 370X30MM 5/130 1

punched

D - 15.02.2010>> - 06.06.2011 right

Replacements: 4L0615602E
