ძრავა

[Name] [Note] [QTY]

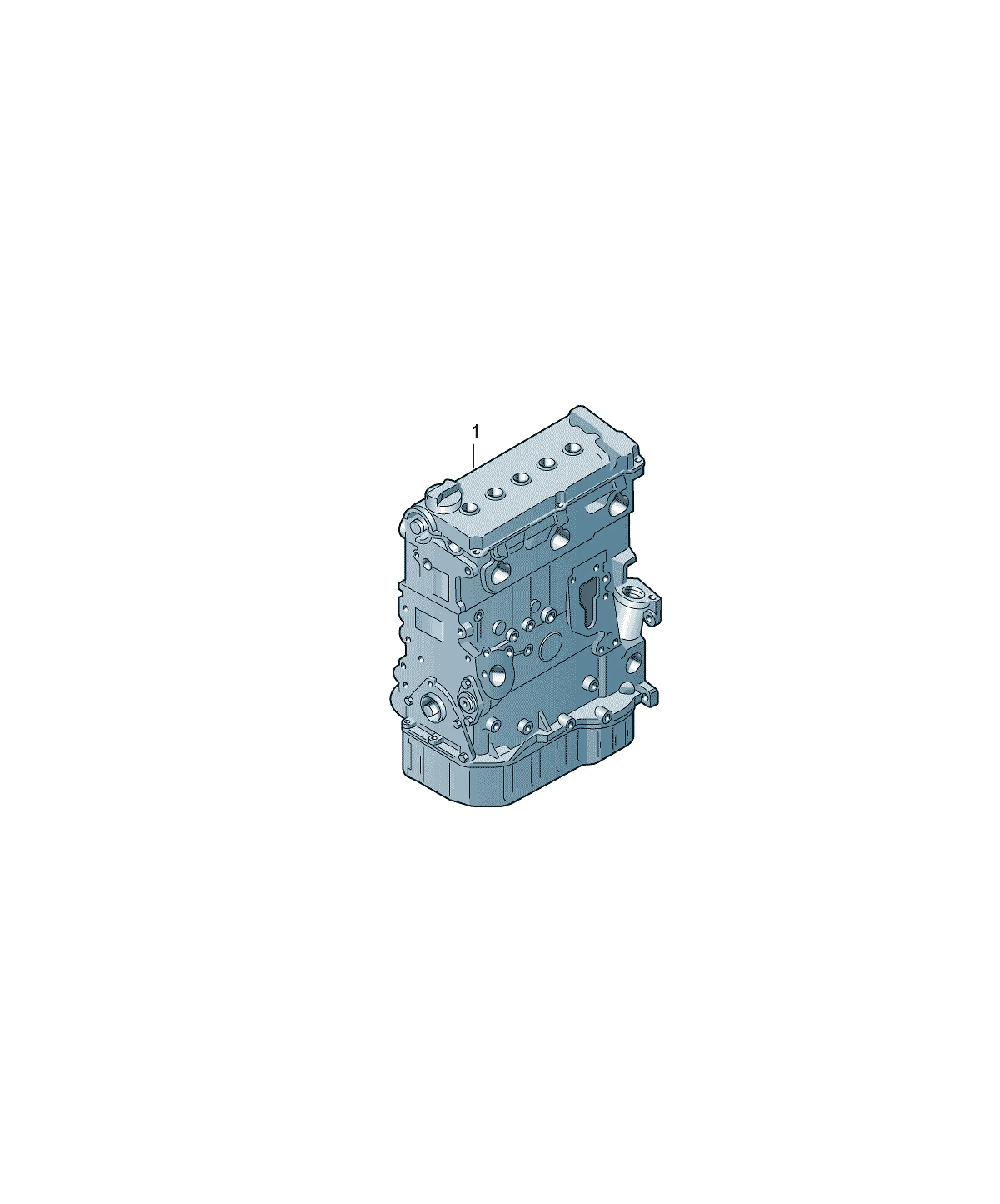

Base engine 3.6ltr. 1

206KW

Replacements: 03H100037CX

Items supplied

022105635 thrust washer 2

03H115251A suction line 1

021109471 Pin 2

066109511D Pin 1

071109515 Pin 10X29X40 1

03H109509A chain tensioner 1

022103151D Sealing flange front 1

03H103601K Engine oil sump with oil level sensor 1

101905622 spark plug 'longlife' 6

03H109296C Input shaft 1

03H109210B timing case 1

03H109087D camshaft adjuster unit Inlet 1

03H109088D camshaft adjuster unit Outlet 1

03H109122G Cover 1

03H103063E Complete cylinder head 1

03H103429D cylinder head cover 1

022957147A Engine speed sender 1

06B103485C End cap 1

[Name] [Note] [QTY]

Base engine 3.6ltr. 1

206KW

Items supplied

Crankcase 1

piston 6

Crankshaft 1

conrod 6

Sealing flange 1

oil pump 1

oil sump 1

Intermediate shaft 1

Cylinder head 1

cylinder head cover 1

timing chain 1

timing case 1

Old part

03H100037CX Base engine 1

Cylinder block cast no.:

03H 103 021 M/AA
