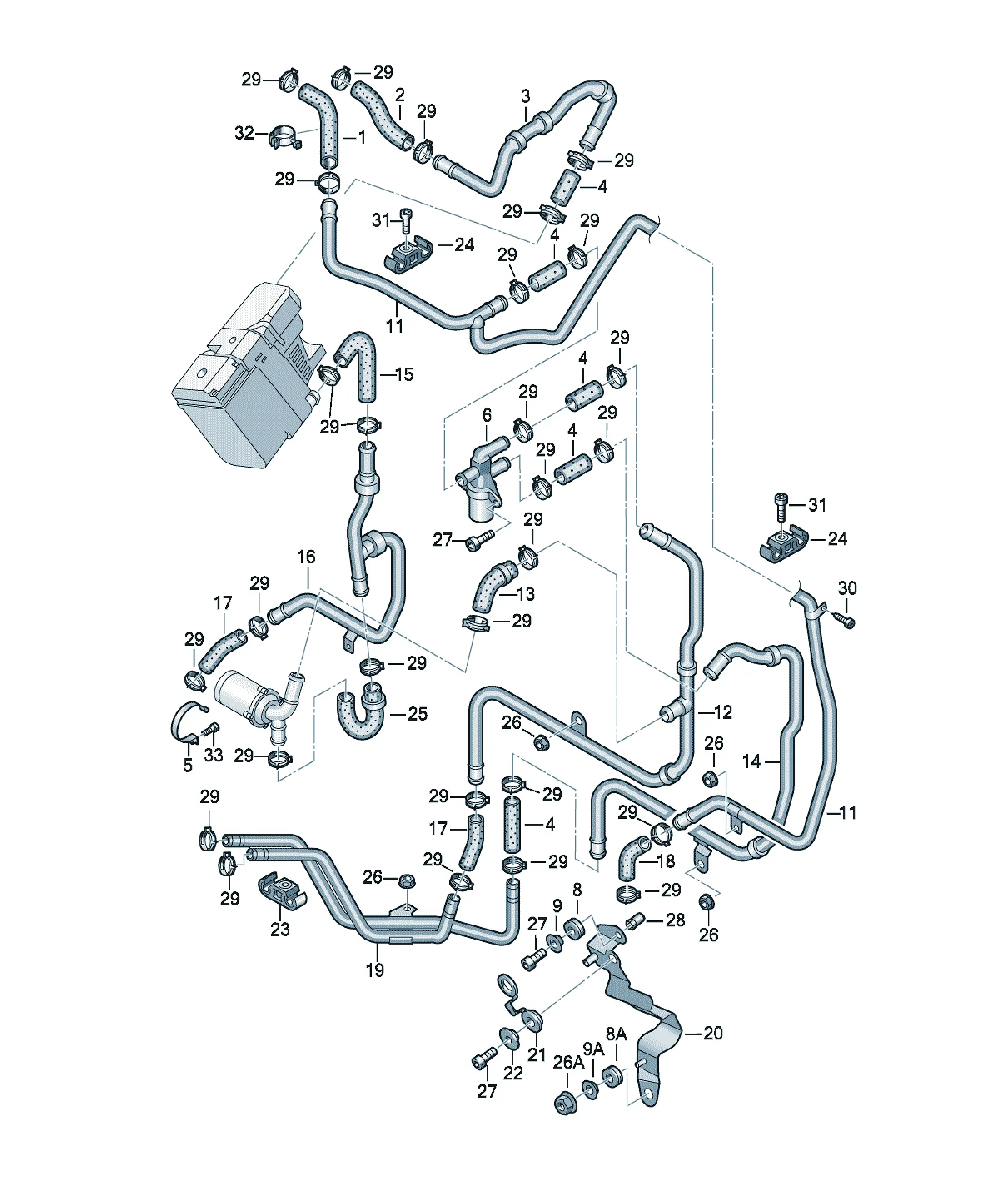

გათბობის სისტემა

[Name] [QTY]

Bracket 1

[Name] [Note] [QTY]

holder for vacuum hose 4,3X25 1

[Name] [Note]

Coolant pipe

see illustration, item: 819-015,11

[Name] [Note] [QTY]

Coolant hose return 1

use if required: N 104 227 01 1

Accompanying details: N 10422701

[Name] [QTY]

Coolant pipe 1

[Name] [QTY]

Coolant pipe 1

[Name] [QTY]

Coolant hose 3

[Name] [QTY]

Coolant pipe 1

[Name] [QTY]

Coolant hose 3

[Name] [QTY]

Coolant pipe 1

[Name] [QTY]

Coolant hose 3

[Name] [QTY]

Coolant hose 1

D - 28.10.2013>>

[Name] [QTY]

Coolant hose 1

D >> - 28.10.2013

Replacements: 4L0819374

[Name] [Note] [Model info] [QTY]

Coolant pipe feed/return PR:TA0,T8T 1

[Name] [Note] [Model info] [QTY]

Coolant pipe feed/return PR:TD5,TE1, 1

TE5,T41,TF1,

TH1

[Name] [Note] [QTY]

Coolant hose feed 1

[Name] [QTY]

Bracket 1

[Name] [QTY]

Clip 1

[Name] [QTY]

bush 1

Replacements: 7L0819137B

[Name] [QTY]

Clip 1

[Name] [QTY]

Clip 1

[Name] [QTY]

Coolant hose 3

[Name] [Note] [QTY]

Hexagon collar nut M6 6

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 4

[Name] [Note] [QTY]

rivetted cap nut M6/0,7-3 1

[Name] [Note] [QTY]

Spring band clamp 27X12 30

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

oval head panel screw 4,2X16 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X25 2

[Name] [Note] [QTY]

holder for vacuum hose 4,3X25 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M4X25 1

[Name] [QTY]

Coolant hose 3

[Name] [QTY]

Bracket for additional coolant pump 1

[Name] [QTY]

Solenoid valve 1

mating connector

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Grommet 2

[Name] [Model info] [QTY]

Clip AYH 1

[Name] [QTY]

Sleeve 2

[Name] [QTY]

bush 1

Replacements: 7L0819137B
