ფუზების ყუთი

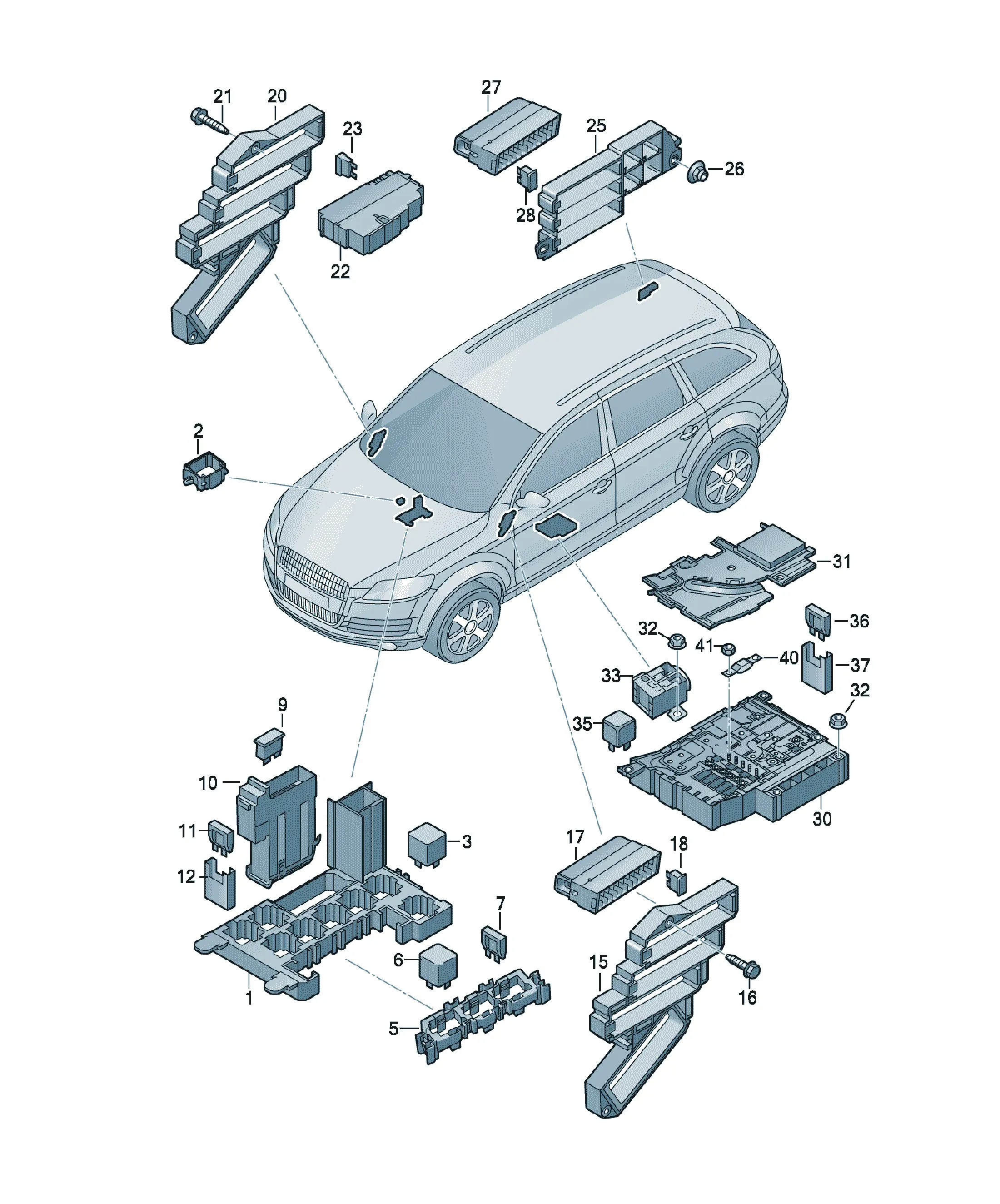

დამცველებისა და რელეს ბლოკი

კვანძის სქემები

9 სქემა

ნაწილები

64 ნაწილი

4L1937503 შეთავაზებები

[Name] [Note] [QTY]
relay plate 8-pin 1
4L0941824 შეთავაზებები

[Name] [Note] [QTY]
fuse holder 6-pin 1
Possible single wire:
000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
Flat male connector with detent lug 0,5
4,8
000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat contact with retaining lug 1,0
4,8
000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat contact with retaining lug 2,5
4,8
000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat contact with retaining lug 2,5
4,8
000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' X
-40C/+125C
flat contact with retaining lug 4,0
4,8
000979406E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' X
-40C/+125C
with cable crosssection: 6,0
flat contact 9,5
000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' X
-40C/+125C
flat contact with retaining lug 6,0
4,8
000979500R Single lead with 1 contact in the bag 1500MM X
-40C/+105C
with cable crosssection: 10QMM
Cable colour: yellow
N10251901 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 29/2x8 40A -orange- X
N01713112 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 15A -lt blue- X
8A0937530 შეთავაზებები

[Name] [Note] [QTY]
fuse holder 2 pin X
flat fuse 29/2x8
Possible single wire:
000979406E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat contact 9,5
000979500R Single lead with 1 contact in the bag 1500MM X
-40C/+105C
with cable crosssection: 10QMM
Cable colour: yellow
[Name] [Note]
Bracket
fuse holder
see illustration: 971-080
N90468403 შეთავაზებები

[Name] [Note] [QTY]
hexagon head bolt (combi) M5X16 2
8K0941824 შეთავაზებები

[Name] [Note] [QTY]
fuse holder 12 pin 3
Possible single wire:
000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
Flat male connector with detent lug 4,8
000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat contact with retaining lug 4,8
N01713113 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 20A -yellow- X
N01713112 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 15A -lt blue- X
N01713111 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 10A -red- X
N01713118 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 7.5A -brown- X
N01713125 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 30A -green- X
Replacements: N 01713138
N01713114 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 25A -cl.glass- X
N01713120 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 40A -orange- X
N01713116 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 5A -lt brown- X
N01713122 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 35A -blue/green- X
4L0937545A შეთავაზებები

[Name] [Note] [QTY]
bracket for connector housing 1 point 1
[Name] [Note]
Bracket
fuse holder
see illustration: 971-080
N90468403 შეთავაზებები

[Name] [Note] [QTY]
hexagon head bolt (combi) M5X16 2
8K0941824 შეთავაზებები

[Name] [Note] [QTY]
fuse holder 12 pin 3
Possible single wire:
000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
Flat male connector with detent lug 4,8
000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat contact with retaining lug 4,8
N01713113 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 20A -yellow- X
N01713114 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 25A -cl.glass- X
N01713125 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 30A -green- X
Replacements: N 01713138
N01713116 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 5A -lt brown- X
N01713118 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 7.5A -brown- X
N01713111 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 10A -red- X
N01713122 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 35A -blue/green- X
N01713120 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 40A -orange- X
N01713112 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 15A -lt blue- X
[Name] [Note]
Bracket
fuse holder
see illustration: 971-080
N90286703 შეთავაზებები

[Name] [Note] [QTY]
hex. nut, self-locking with washer M6 2
8K0941824 შეთავაზებები

[Name] [Note] [QTY]
fuse holder 12 pin 3
Possible single wire:
000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
Flat male connector with detent lug 4,8
000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat contact with retaining lug 4,8
4F1941824 შეთავაზებები

[Name] [QTY]
fuse holder 2
Possible single wire:
000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
Flat male connector with detent lug 0,5
4,8
000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat contact with retaining lug 1,0
4,8
000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat contact with retaining lug 2,5
4,8
000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat contact with retaining lug 2,5
4,8
000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' X
-40C/+125C
flat contact with retaining lug 4,0
4,8
000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' X
-40C/+125C
flat contact with retaining lug 6,0
4,8
N01713114 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 25A -cl.glass- X
N01713118 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 7.5A -brown- X
N01713111 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 10A -red- X
N01713112 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 15A -lt blue- X
N01713113 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 20A -yellow- X
N01713125 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 30A -green- X
Replacements: N 01713138
N01713116 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 19/2x5 5A -lt brown- X
4H0951253C შეთავაზებები

[Name] [Note] [QTY]
Relay KL.75X 1
relay location/code no.: 2.1/646
to be used for code no.: 404
mating connector
4H0937529 Double relay carrier 10 pin 1
black
4H0951253C შეთავაზებები

[Name] [Note] [QTY]
Relay 1
for horn
relay location/code no.: 2.2/646
to be used for code no.: 404
mating connector
4H0937529 Double relay carrier 10 pin 1
black
4H0951253A შეთავაზებები

[Name] [Note] [QTY]
Relay 40A 1
for vehicles with headlight washer system
relay location/code no.: 3/645
to be used for code no.: 643
4H0951253C შეთავაზებები

[Name] [Note] [QTY]
Relay 1
Additional coolant pump
relay location/code no.: 7.1/646
to be used for code no.: 404
mating connector
4H0937529 Double relay carrier 10 pin 1
black
4H0951253A შეთავაზებები

[Name] [Note] [QTY]
Relay 40A 1
Rear window
relay location/code no.: 6/645
to be used for code no.: 643
1J0927841 შეთავაზებები

[Name] [Note] [QTY]
contact close relay 1
For vehicles with electronic stabilisation program -ESP-
relay location/code no.: 4/444
4H0951253A შეთავაზებები

[Name] [Note] [QTY]
Relay 1
for models with air suspension
relay location/code no.: 1/645
to be used for code no.: 373,643
7L0937548C შეთავაზებები

[Name]
Main fuse socket
4L0937555A შეთავაზებები

[Name] [QTY]
Cover 1
N01508210 შეთავაზებები

[Name] [Note] [QTY]
Hexagon collar nut M6 3
[Name] [Note]
Battery master/ isolator switch
see illustration: 915-000
4H0951253 შეთავაზებები

[Name] [Note] [QTY]
Relay KL.15 1
relay location/code no.: 1/644
to be used for code no.: 370,100
N10251901 შეთავაზებები

[Name] [Note] [QTY]
flat fuse 29/2x8 40A -orange- X
8A0937530 შეთავაზებები

[Name] [Note] [QTY]
fuse holder 2 pin X
flat fuse 29/2x8
Possible single wire:
000979406E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat contact 9,5
000979500R Single lead with 1 contact in the bag 1500MM X
-40C/+105C
with cable crosssection: 10QMM
Cable colour: yellow
N10525507 შეთავაზებები

[Name] [Note] [QTY]
Strip fuse 125A -pink- X
flat fuse 29/2x8
N10525508 შეთავაზებები

[Name] [Note] [QTY]
Strip fuse 150A -grey- X
flat fuse 29/2x8
N10525503 შეთავაზებები

[Name] [Note] [QTY]
Strip fuse 60-yellow X
flat fuse 29/2x8
N10525502 შეთავაზებები

[Name] [Note] [QTY]
Strip fuse 50A -red- X
flat fuse 29/2x8
N10118104 შეთავაზებები

[Name] [Note] [QTY]
Hexagon nut M5 X
[Name]
relay plate
Not for this model
[Name]
Relay
Not for this model
[Name]
Flat fuse
Not for this model
443937105A შეთავაზებები

[Name] [Note] [QTY]
Thermal fuse 30A 1
