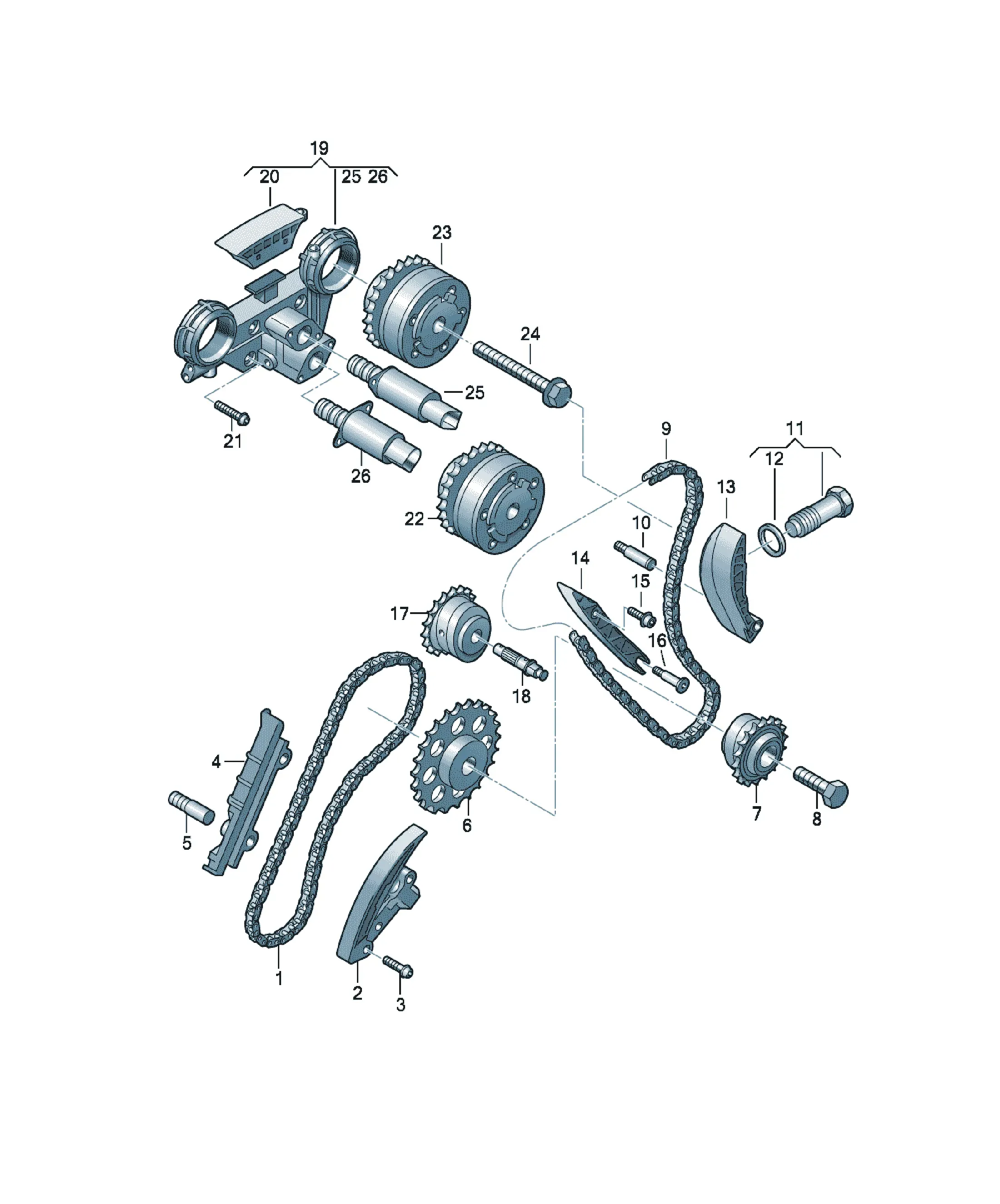

გაზგანაწილების მექანიზმის ჯაჭვი

[Name] [Note] [QTY]

fillister hd. bolt M4X10 4

control valve

[Name] [Note] [QTY]

timing chain IWIS 1

Replacements: 03H109465A

[Name] [QTY]

Pin 2

[Name] [QTY]

chain tensioner 1

[Name] [Note] [QTY]

seal ring 22X27 1

[Name] [QTY]

chain tensioner 1

[Name] [QTY]

slide rail 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head (Kombi) M8X45 1

[Name] [Note] [QTY]

Pin 10X29X40 1

Replacements: WHT008987

[Name] [Note] [QTY]

Chain sprocket Z=18 1

[Name] [QTY]

Input shaft 1

[Name] [QTY]

timing case 1

[Name] [Note] [QTY]

chain tensioner IWIS 1

[Name] [QTY]

slide rail 1

[Name] [Note] [QTY]

Hex socket head bolt (combi) M6X30 4

D >> - 24.05.2010

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X30 4

D - 24.05.2010>>

[Name] [Note] [QTY]

camshaft adjuster unit Inlet 1

[Name] [Note] [QTY]

camshaft adjuster unit Outlet 1

[Name] [Note] [QTY]

Hex collared bolt M12X1,50X85 2

[Name] [QTY]

control valve 1

Camshaft

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

control valve 1

Camshaft

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

fillister head bolt with multi-point socket head M6X24 2

[Name] [QTY]

slide rail 1

[Name] [QTY]

Pin 2

[Name] [Note] [QTY]

Chain sprocket Z=32 1

[Name] [Note] [QTY]

Chain sprocket Z=18 1

[Name] [Note] [QTY]

Hexagon bolt M10X40 1

[Name] [QTY]

timing chain 1

Replacements: 03H109503B
