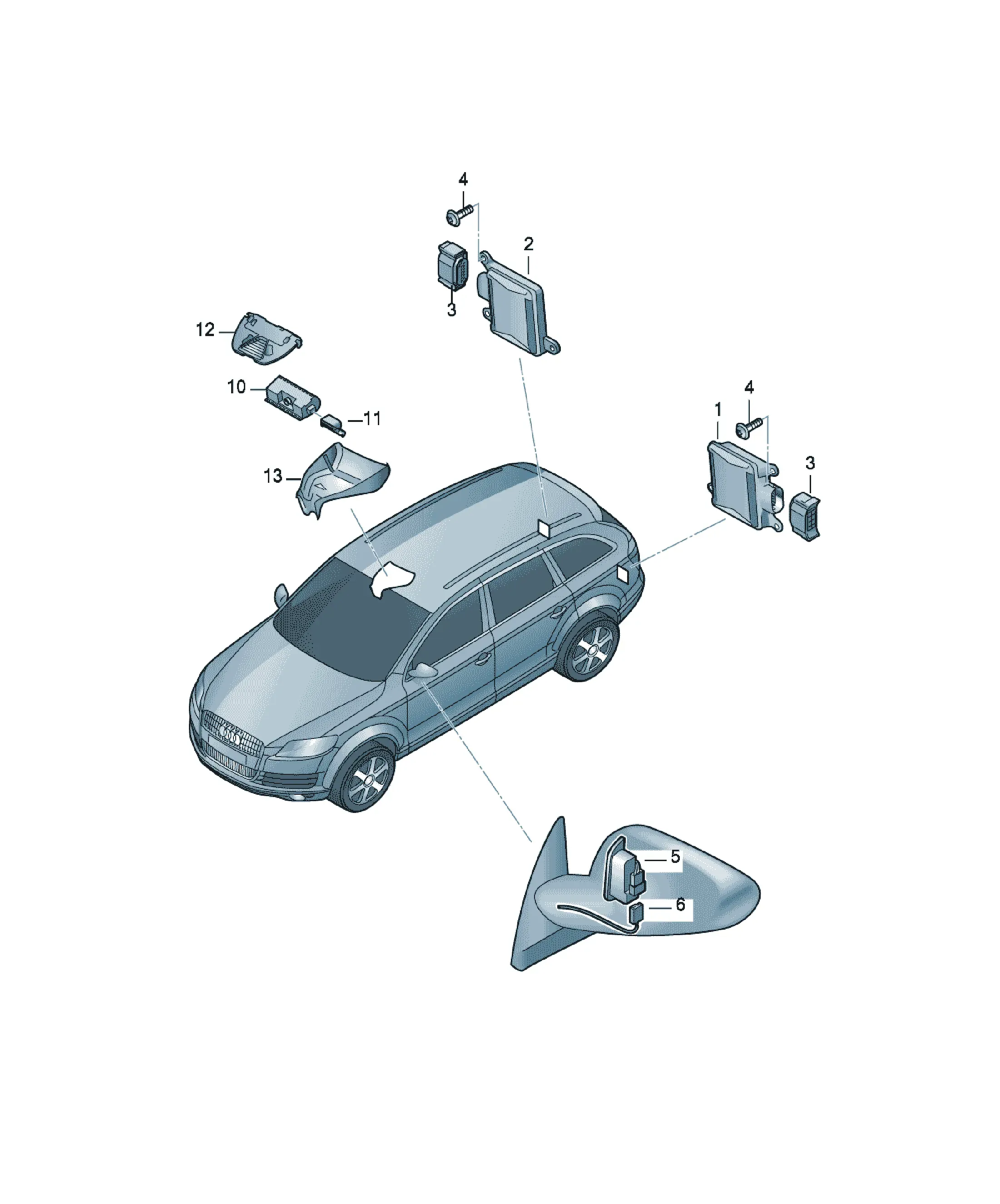

ზოლის შეცვლის დამხმარე სისტემის მართვის ბლოკი

[Name] [QTY]

Adapter cable loom 1

Windscreen heater for lane guard system

[Name] [Note] [Model info] [QTY]

Control unit with software for lane change assist left PR:2K1,2K2, 1

'SLAVE' 2K7,2K8,VJ0,

hardware: 4L0 907 568 B VJ1,VJ2,VJ3,

D - 04.11.2013>> VJ4,VJ5

mating connector

4E0972713 Flat contact housing with contact locking mechanism 12 pin 1

black

Possible single wire: 000 979 009

[Name] [Note] [Model info] [QTY]

Control unit with software for lane change assist left 12-cylinder 1

'SLAVE'

hardware: 4L0 907 568 B

D >> - 04.11.2013

mating connector

4E0972713 Flat contact housing with contact locking mechanism 12 pin 1

black

Possible single wire: 000 979 009

[Name] [Note] [Model info] [QTY]

Control unit with software for lane change assist left PR:2K6,2K9 1

'SLAVE'

hardware: 4L0 907 568 B

D - 04.11.2013>>

mating connector

4E0972713 Flat contact housing with contact locking mechanism 12 pin 1

black

Possible single wire: 000 979 009

[Name] [Note] [Model info] [QTY]

Control unit with software for lane change assist left 6-,8-cyl. 1

'SLAVE'

hardware: 4L0 907 568 B

D >> - 04.11.2013

mating connector

4E0972713 Flat contact housing with contact locking mechanism 12 pin 1

black

Possible single wire: 000 979 009

[Name] [Note] [QTY]

Control unit for lane guard system with camera 1

hardware: 4E0 907 217 C

mating connector

1J0972930A Flat contact housing with contact locking mechanism 10 pin 1

black

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 10 pin 1

mating connector

1K0971992 Flat connector housing with contact locking mechanism 10 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note]

Retaining plate

see illustration, item: 845-000,7

[Name] [Note]

Cover

see illustration, item: 845-000,12

[Name] [Note] [Model info] [QTY]

Control unit with software for lane change assist right 6-,8-cyl. 1

'MASTER'

hardware: 4L0 907 566 B

D >> - 04.11.2013

mating connector

4E0972713 Flat contact housing with contact locking mechanism 12 pin 1

black

Possible single wire: 000 979 009

[Name] [Note] [Model info] [QTY]

Control unit with software for lane change assist right PR:2K1,2K2, 1

'MASTER' 2K7,2K8,VJ0,

hardware: 4L0 907 566 B VJ1,VJ2,VJ3,

D - 04.11.2013>> VJ4,VJ5

mating connector

4E0972713 Flat contact housing with contact locking mechanism 12 pin 1

black

Possible single wire: 000 979 009

[Name] [Note] [Model info] [QTY]

Control unit with software for lane change assist right 12-cylinder 1

'MASTER'

hardware: 4L0 907 566 B

D >> - 04.11.2013

mating connector

4E0972713 Flat contact housing with contact locking mechanism 12 pin 1

black

Possible single wire: 000 979 009

[Name] [Note] [Model info] [QTY]

Control unit with software for lane change assist right PR:2K6,2K9 1

'MASTER'

hardware: 4L0 907 566 B

D - 04.11.2013>>

mating connector

4E0972713 Flat contact housing with contact locking mechanism 12 pin 1

black

Possible single wire: 000 979 009

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 12 pin 2

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Hexagon socket head panel bolt 5X16 X

[Name] [Note] [QTY]

Warning display for lane change assist left lhd 1

D >> - 08.09.2014

Replacements: 8R1949145A

mating connector

823971988 flat connector housing 2 pin 1

[Name] [Note] [QTY]

Warning display for lane change assist right rhd 1

D >> - 08.09.2014

Replacements: 8R2949146A

mating connector

823971988 flat connector housing 2 pin 1

[Name] [Note] [QTY]

Warning display for lane change assist right rhd 1

D - 08.09.2014>>

mating connector

823971988 flat connector housing 2 pin 1

[Name] [Note] [QTY]

Warning display for lane change assist right lhd 1

D - 08.09.2014>>

mating connector

823971988 flat connector housing 2 pin 1

[Name] [Note] [QTY]

Warning display for lane change assist right lhd 1

D >> - 08.09.2014

Replacements: 8R1949146A

mating connector

823971988 flat connector housing 2 pin 1

[Name] [Note] [QTY]

Warning display for lane change assist left rhd 1

D - 08.09.2014>>

mating connector

823971988 flat connector housing 2 pin 1

[Name] [Note] [QTY]

Warning display for lane change assist left rhd 1

D >> - 08.09.2014

Replacements: 8R2949145A

mating connector

823971988 flat connector housing 2 pin 1

[Name] [Note] [QTY]

Warning display for lane change assist left lhd 1

D - 08.09.2014>>

mating connector

823971988 flat connector housing 2 pin 1

[Name] [Note] [QTY]

Flat contact housing 2 pin 2

mating connector

823971988 flat connector housing 2 pin X

Possible single wire:

000979106E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

flat connector/sleeve 1,0

2,8
