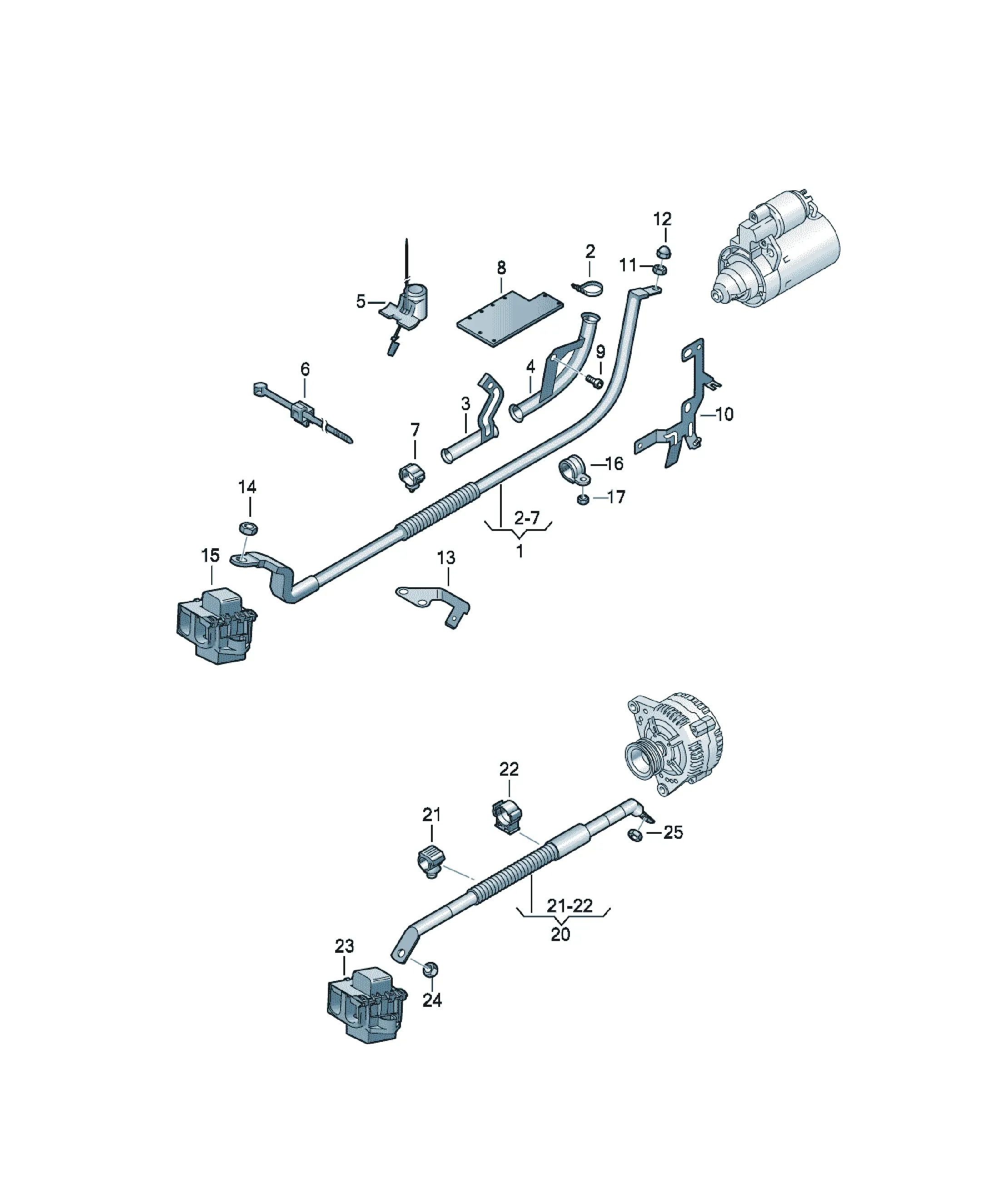

სტარტერისა და გენერატორის ელექტროგაყვანილობა

[Name] [Model info] [QTY]

Wiring set for starter BHK 1

[Name] [QTY]

holder for wiring harness 1

[Name] [Note] [QTY]

Hexagon nut M8 1

[Name] [Note] [QTY]

Cover cap 13X14 1

[Name] [QTY]

Bracket 1

[Name] [Note] [QTY]

Hexagon collar nut M8 1

[Name] [Note]

Slave start socket

see illustration: 972-000

[Name] [Note] [QTY]

Clamp 16X15 1

[Name] [Note] [QTY]

Hexagon nut M6 1

[Name]

* Corrug. tubes, T-pieces, * clips, holders, grommets, * cable ties, insulating * hose, wiring, * single wires and seals * see special catalogue: * ELECTRICAL * CONNECTING ELEMENTS

[Name] [Note] [Model info] [QTY]

Wiring set for three-phase alternator 190A PR:8GH 1

[Name] [Note] [Model info] [QTY]

Wiring set for three-phase alternator 180A PR:8GV 1

[Name] [Note] [QTY]

Cable ties with bracket 4,5X200 X

For hole/material thickness: 6,5/0,3-3MM

[Name] [Note] [QTY]

Corrugated tube clip

Discont. / replace: 3D0 971 838 N 1

[Name] [Note] [QTY]

bracket for corrugated pipe 13 1

[Name] [Note]

Slave start socket

see illustration: 972-000

[Name] [Note] [QTY]

Hexagon collar nut M8 1

[Name] [Note] [QTY]

Collar nut M8 1

[Name]

protective pipe

** not exchangeable **

[Name]

protective pipe

** not exchangeable **

[Name] [Note] [QTY]

Cable tie with holder for plastic pin: 5X200MM 1

5MM

[Name] [Note] [QTY]

cable tie with terminal socket 4,6X200MM X

With side cable guide

for bridge strength: 1-3MM

toothed quadrant outer

(Clamp base, rotating)

[Name] [Note] [QTY]

Cable ties with bracket 4,5X200 X

For hole/material thickness: 6,5/0,3-3MM

[Name] [Note] [QTY]

Corrugated tube clip

Discont. / replace: 3D0 971 838 N 1

[Name] [QTY]

Heat protection sleeve 1

Wiring set for starter

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X14 1
