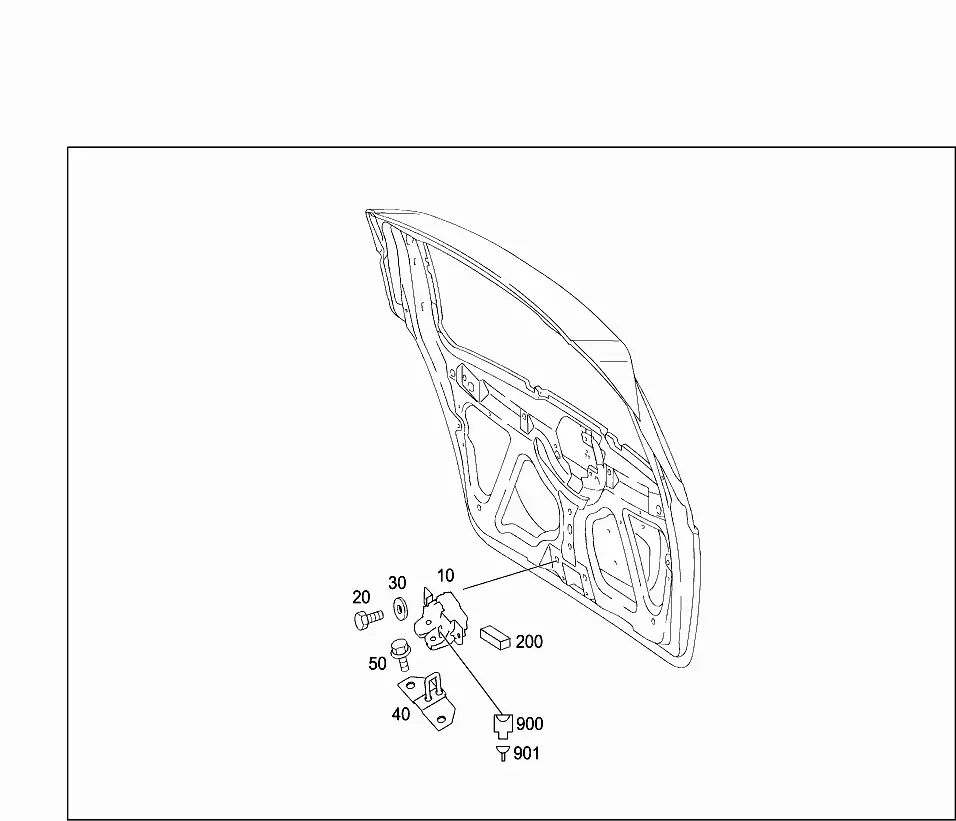

საკეტი

Replaced by A 1697400035

QTY: 001

Replaced by A 1697400135

QTY: 001

Replaced by A 1697400235

QTY: 001

QTY: 001

LATCH ON INNER REAR WALL PART

M6X25

QTY: 002

LATCH ON INNER REAR WALL PART

6 MM

QTY: 002

LATCH ON INNER REAR WALL PART

QTY: 001

LOCKING CLAMP TO REAR END CENTRAL PART

M6X14

QTY: 002

TRUNK LID ACTUATOR

3-PIN MQS;S49

QTY: 001

TRUNK LID ACTUATOR

0.25-0.5 MM2 MQS;S49

TRUNK LID ACTUATOR

0.75 MM2 MQS;S49

008: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.

008: SEE WIS FOR REPAIR INSTRUCTIONS.

008: =================================================================================================

008: SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:

008: A 001 546 99 41 GREEN 0.7 - 2.4 MM2

008: A 002 546 00 41 RED 2.0 - 4.0 MM2

008: A 002 546 01 41 BLUE 3.5 - 8.0 MM2

008: A 002 546 11 41 YELLOW 7.5 - 12.0 MM2

008: BUTT JOINT:

008: A 002 546 13 41 0.5 MM2

008: A 002 546 14 41 0.8 MM2

008: A 002 546 15 41 1.3 MM2

008: A 002 546 16 41 2.0 MM2

008: ===================================================================================================
