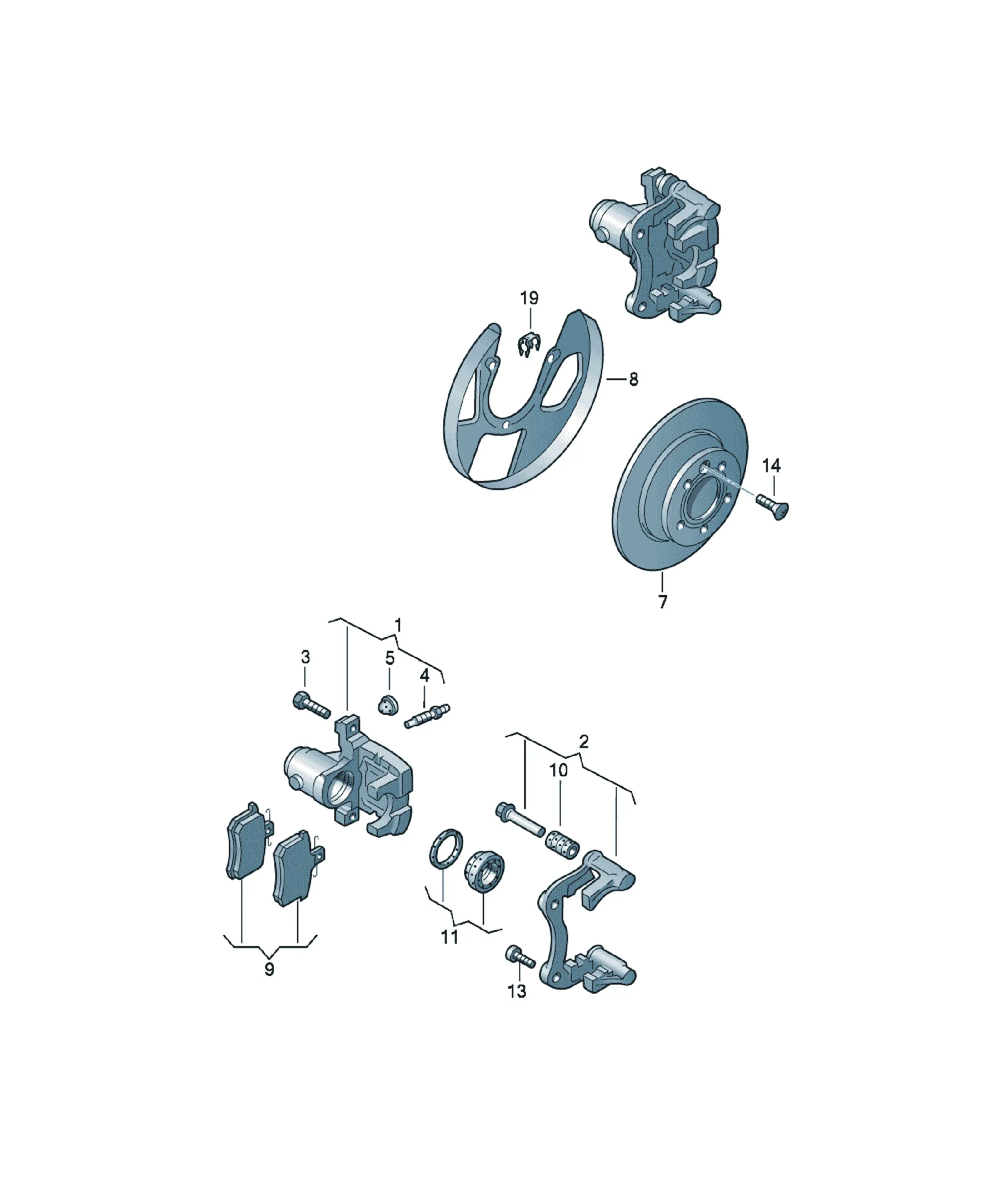

დისკური მუხრუჭი

[Name] [Note] [QTY]

Brake caliper housing right 1

[Name] [Note] [QTY]

Brake caliper housing left 1

[Name] [QTY]

1 set protective sleeves for guide pins 2

also use:

repair set

Protective sleeve 2

WHT003250 bolt, hex. hd. with shoulder, self-locking M8X22-MK 2

[Name] [QTY]

Set of gaskets for brake caliper housing 2

repair set

seal ring 2

Protective cap 2

assembly lubricant 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M10X1,25X30 4

[Name] [Note] [QTY]

Hex socket countersunk bolt M6X16 2

[Name]

Securing clip

Not for this model

[Name] [Note] [QTY]

brake carrier with pad retaining pin left 1

Items supplied

guide pin 2

Protective sleeve 2

[Name] [Note] [QTY]

brake carrier with pad retaining pin right 1

Items supplied

guide pin 2

Protective sleeve 2

[Name] [Note] [QTY]

bolt, hex. hd. with shoulder, self-locking M8X22-MK 4

[Name] [QTY]

Breather valve 2

[Name] [QTY]

dust cap 2

[Name] [Note] [QTY]

Brake disc 230X9 5/100 2

[Name] [QTY]

1 set brake discs with 'ECO' brake pads 2

Economy

repair set

1J0615601P Brake disc 230X9 5/100 2

JZW698451A 1 set of brake pads for disk brake 'ECO' 1

Economy

N 10648301 Hex socket countersunk bolt M6X16 2

[Name] [Note] [QTY]

Cover plate for brake disc left 1

D >> - 16.02.2015

[Name] [Note] [QTY]

Cover plate for brake disc right 1

D >> - 16.02.2015

[Name] [Note] [QTY]

Cover plate for brake disc left 1

D - 16.02.2015>>

[Name] [Note] [QTY]

Cover plate for brake disc right 1

D - 16.02.2015>>

[Name] [Note] [QTY]

1 set of brake pads for disk brake 'ECO' rear 1

Economy

repair set

JZW615415 disc brake pad 4

Economy

Hexagon bolt 4

Intermediate plate 4

fitting instructions 1

[Name] [Note] [QTY]

1 set of brake pads for disk brake rear 1

repair set

1J0615415P Brake lining 17MM 4

WHT003250 bolt, hex. hd. with shoulder, self-locking M8X22-MK 4

1J0615231 Intermediate plate rear 4
