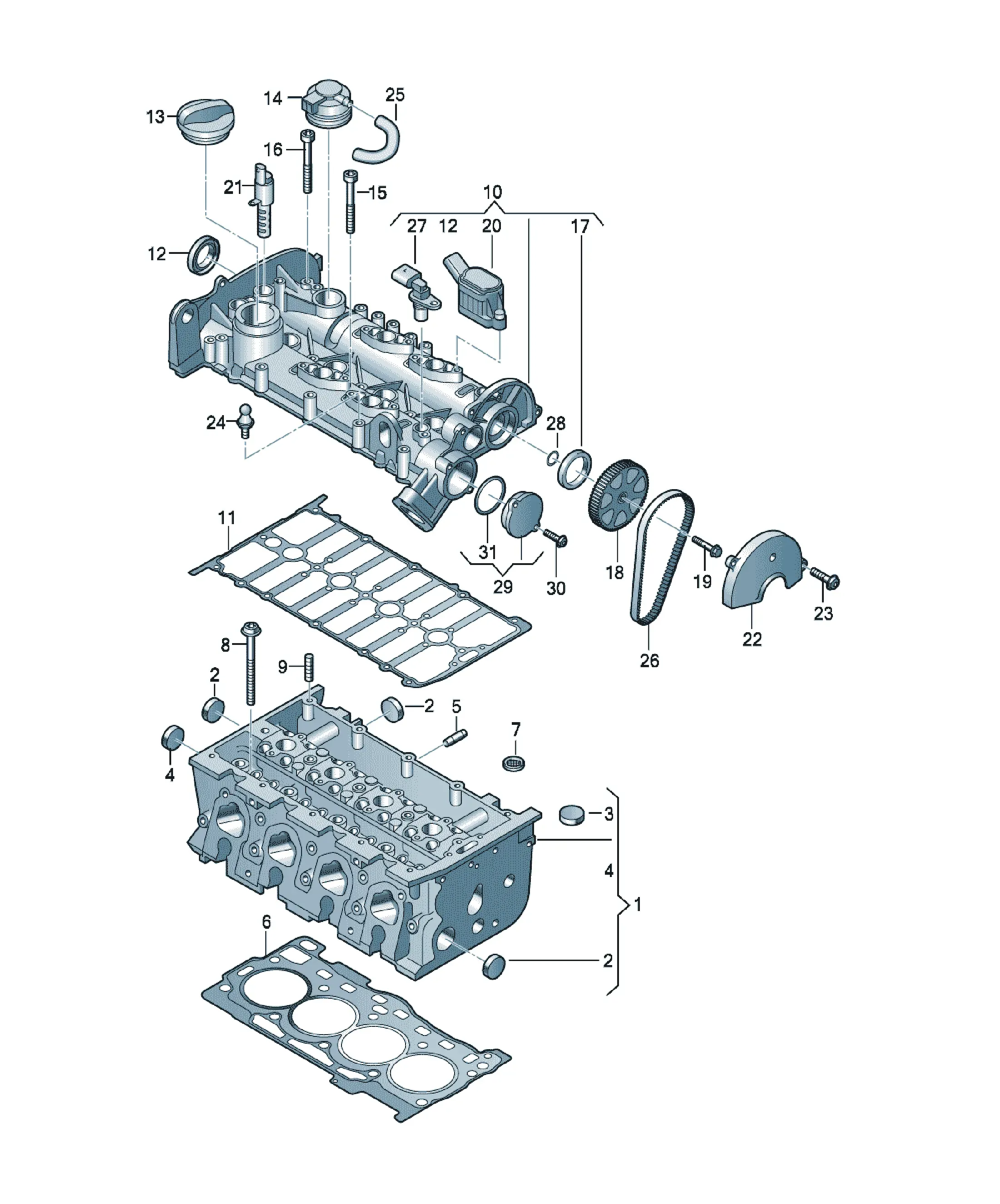

ცილინდრის თავაკი

[Name] [QTY]

cylinder head with valves 1

Items supplied

Cylinder head 1

Inlet valve 8

exhaust valve 8

Valve spring 16

[Name] [QTY]

cylinder head with valves 1

Exchange program parts: 04E103063TX

[Name] [QTY]

cylinder-head cover with camshaft 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Shaft oil seal 36X46X7 2

[Name] [QTY]

End cap 2

[Name] [QTY]

Non-return valve 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X52 4

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X65 11

[Name] [Note] [QTY]

Shaft oil seal 39X7X28 1

[Name] [QTY]

toothed belt pulley 1

[Name] [Note] [QTY]

multi-point socket head bolt with collar M8X35 1

[Name] [QTY]

End cap 2

[Name] [Note]

Switch

see illustration: 906-000,14

[Name] [Note]

operating valve

see illustration, item: 905-010,5

[Name] [Note] [QTY]

Toothed belt guard upper 1

[Name] [Note] [QTY]

round hd. screw M6X35 2

[Name] [QTY]

air hose 1

[Name] [Note]

toothed belt

see illustration, item: 109-027,17

[Name] [Note]

impulse sender

see illustration, item: 906-000,4

[Name] [Note] [QTY]

O-ring 14X1,78 1

[Name] [Note] [QTY]

End cap Outlet 1

[Name] [QTY]

End cap 2

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2

[Name] [Note] [QTY]

O-ring 45X3 1

[Name] [QTY]

End cap 2

[Name] [Note] [QTY]

Threaded pin M8X25 4

[Name] [QTY]

Cylinder head gasket 1

[Name] [QTY]

oil strainer 1

[Name] [QTY]

Socket head collared bolt with inner multipoint head 10

[Name] [Note] [QTY]

Cylinder pin M6X20 2
