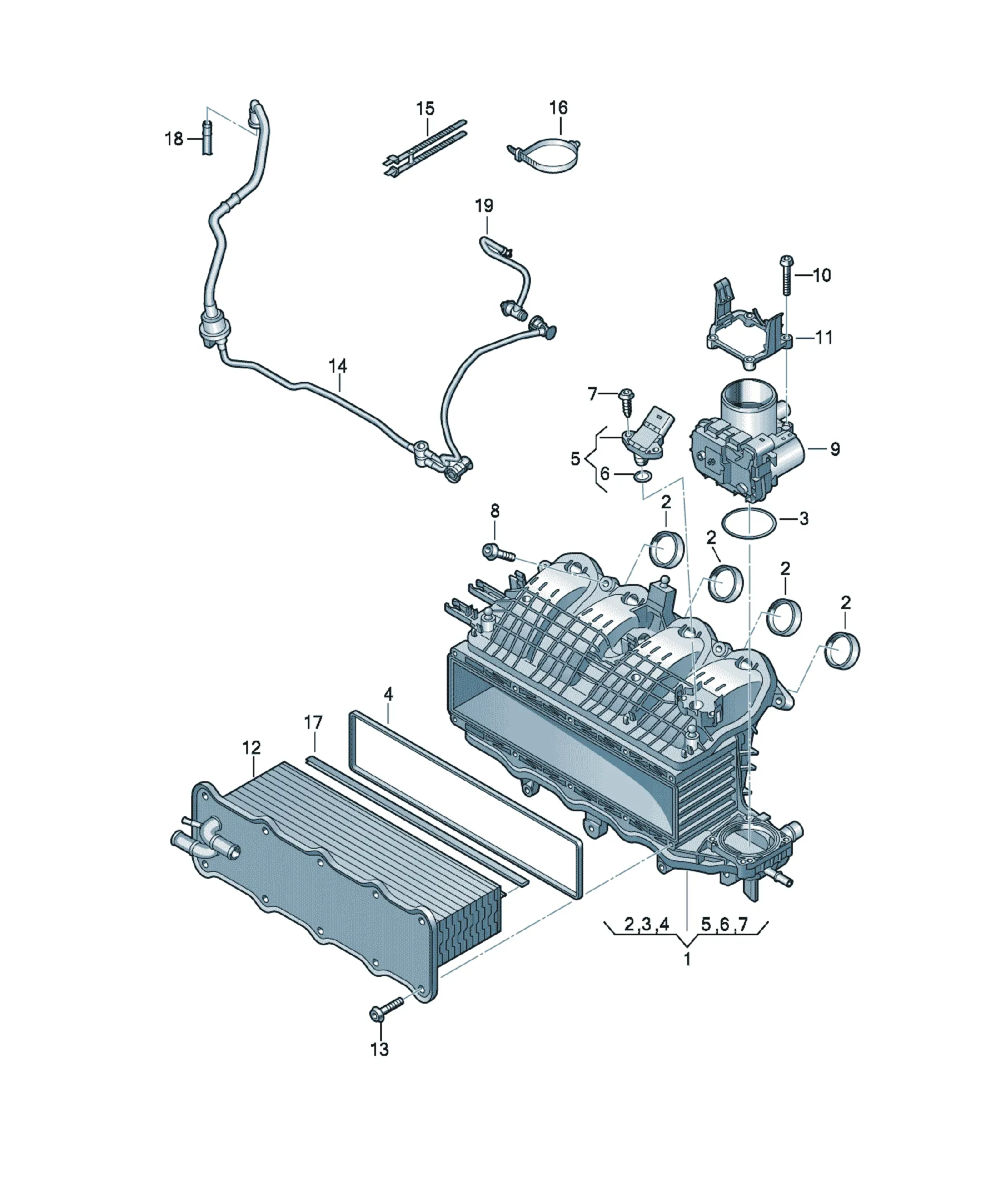

შემშვები სისტემა

[Name] [Note] [QTY]

Connecting hose 1

Note technical product information:

2042217

[Name] [QTY]

Intake connection 1

Items supplied

03G906051E Pressure sensor 1

03C133073A Seal 65,3X2,15X5,5 1

04E129717C Seal 1

036129717E Seal 45X2,3X4,9 4

(ASBESTFREI)

04E129711J Intake connection 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt 6X65X30 4

[Name] [QTY]

Retaining bar 1

[Name] [QTY]

Charge air cooler 1

[Name] [QTY]

Flat head bolt with hexagon socket head, thread forming 10

[Name] [QTY]

Connecting hose 1

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [Note] [QTY]

Cable ties with bracket 4,5X200 X

[Name] [Note] [QTY]

Seal L=280MM 1

[Name] [Note] [QTY]

Breather line 1

see illustration, item: 201-040,3

[Name] [Note] [QTY]

Vent hose 1

see illustration, item: 103-034,1

[Name] [Note] [QTY]

Seal 45X2,3X4,9 4

[Name] [Note] [QTY]

Seal 65,3X2,15X5,5 1

[Name] [QTY]

Seal 1

[Name] [QTY]

Pressure sensor 1

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

8K0973704 Flat contact housing with contact locking mechanism 4 pin 1

black

[Name] [Note] [QTY]

O-ring 7,59X2,62 1

[Name] [Note] [QTY]

fillister hd. bolt 5X20 2

[Name] [Note] [QTY]

round hd. screw M6X35 5

[Name] [QTY]

throttle valve adapter 1

mating connector

4H0973713 Flat contact housing with contact locking mechanism 6 pin 1

black
