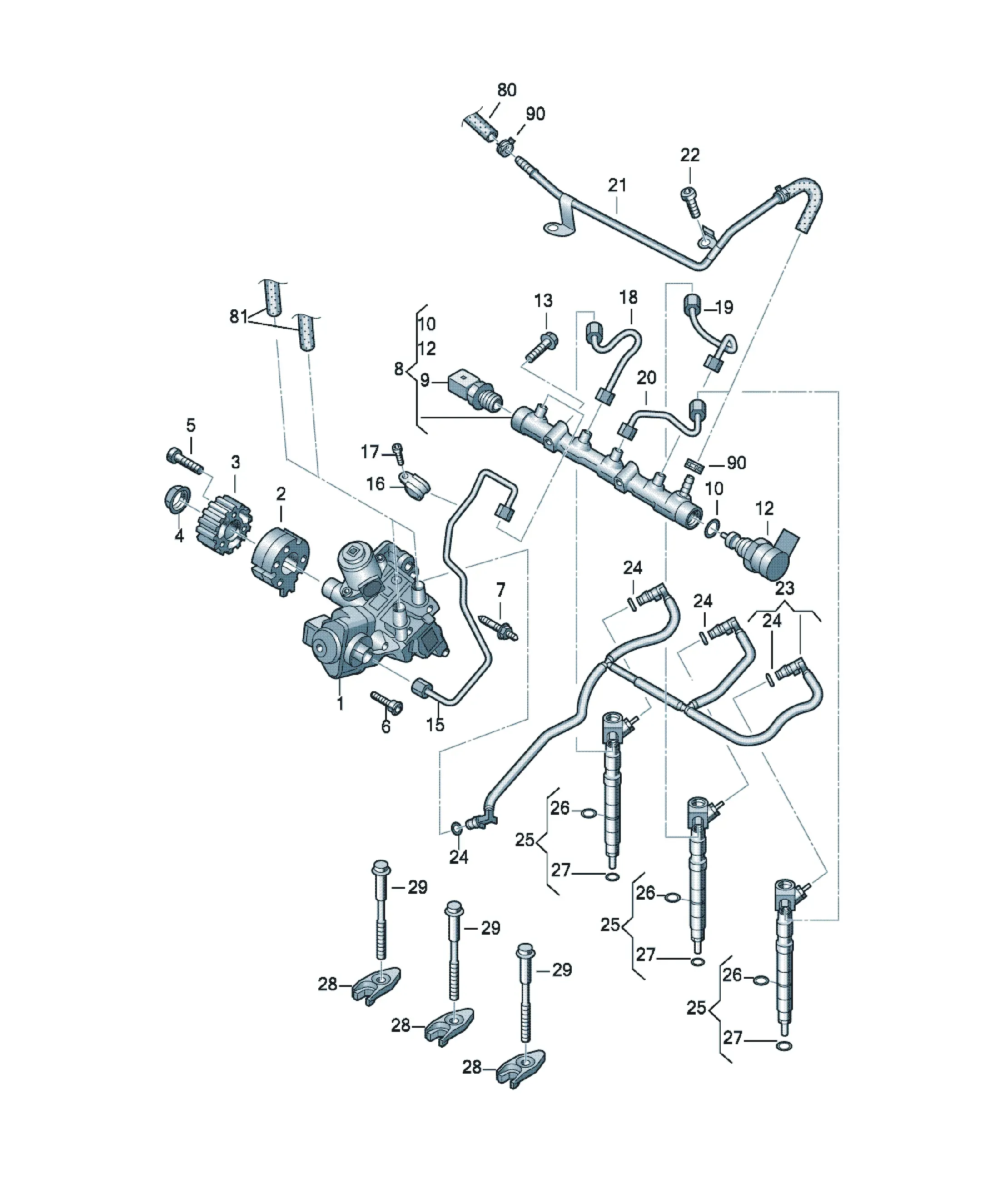

მაღალი წნევის საწვავის სისტემა

[Name] [QTY]

high pressure pump 1

[Name] [Note] [QTY]

O-ring 16X1,5 1

[Name] [QTY]

Pressure regulating valve 1

mating connector

4D0971992A Flat connector housing with contact locking mechanism 2 pin 1

black/blue

[Name] [Note] [QTY]

Oval head locating bolt with multi-point socket head M8X45 1

[Name] [QTY]

pressure pipe 1

high pressure pump

[Name] [Note] [QTY]

Clamp 1-6X15 2

[Name] [Note] [QTY]

round hd. screw M6X10 2

[Name] [QTY]

pressure pipe 1

[Name] [QTY]

pressure pipe 1

[Name] [QTY]

hub 1

[Name] [QTY]

pressure pipe 1

[Name] [QTY]

Fuel line 1

[Name] [Note] [QTY]

round hd. screw M6X10 2

[Name] [QTY]

return line 1

[Name] [Note] [QTY]

O-ring 3,5X1,25 1

[Name] [Note] [QTY]

Injector unit 3

also use: WHT004710

Accompanying details: WHT004710

mating connector

03P973702 Flat contact housing 2 pin 1

use if required: 03P 973 900 1

[Name] [Note] [QTY]

O-ring 16,2X1,5 3

[Name] [Note] [QTY]

seal ring 7,015X2,0 3

Injector unit

[Name] [QTY]

tensioning plate 3

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X105 3

[Name] [QTY]

toothed belt pulley 1

[Name] [Note] [QTY]

Hexagon collar nut M18X1,5 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head (Kombi) M8X35 1

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M8X28 1

[Name] [Note] [QTY]

double collared stud M8X90X41/M6X14 1

[Name] [QTY]

Fuel rail 1

mating connector

4D0971993 Flat connector housing with contact locking mechanism 3 pin 1

Possible single wire: 000 979 141 1,0 X

4D0971992A Flat connector housing with contact locking mechanism 2 pin 1

black/blue

[Name] [Note]

see illustration, item: 127-050,5

[Name] [Note]

see illustration, item: 127-050,9

[Name] [Note] [QTY]

Pressure sensor M18X1,5 1

Fuel rail 2000 BAR

mating connector

4D0971993 Flat connector housing with contact locking mechanism 3 pin 1

black

[Name] [Note] [QTY]

Spring band clamp 14,5X12 X
