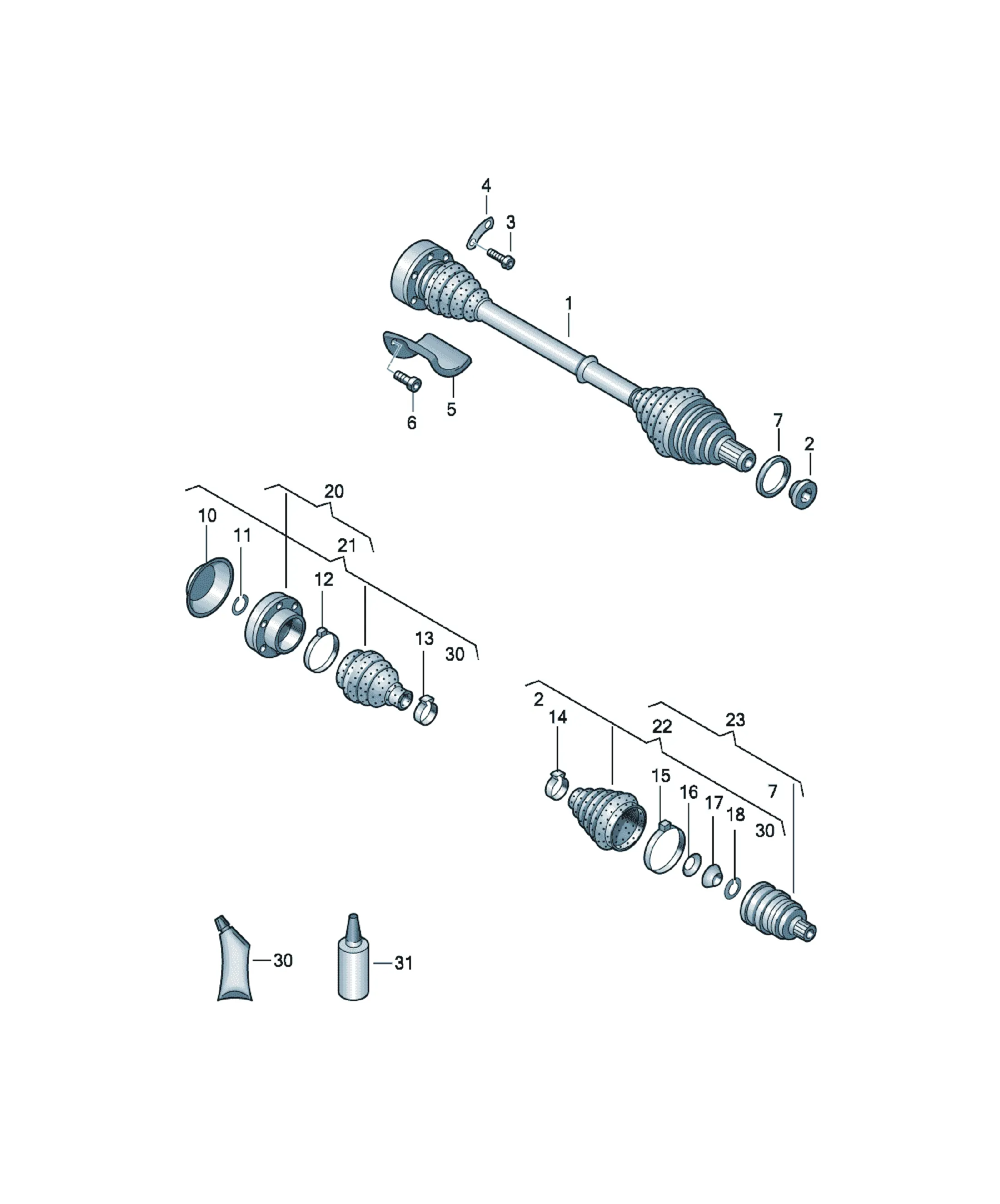

წამყვანი ლილვი

[Name] [Note] [QTY]

drive shaft with constant velocity joints left 1

Exchange program parts: 6R0407761FX

[Name] [Note] [QTY]

drive shaft with constant velocity joints left 1

[Name] [Note] [QTY]

drive shaft with constant velocity joints right 1

Exchange program parts: 6R0407764PX

[Name] [Note] [QTY]

drive shaft with constant velocity joints right 1

[Name] [Note] [QTY]

End cap inner 2

[Name] [Note] [QTY]

Securing ring 28X1,5 2

[Name] [Note] [QTY]

clamp 75X10X1 2

[Name] [Note] [QTY]

clamp 34,7X10X0,8 2

[Name] [Note] [QTY]

clamp 34,7X10X0,8 2

[Name] [Note] [QTY]

clamp 102,5X10X1 2

[Name] [QTY]

Belleville spring 2

[Name] [Note] [QTY]

thrust ring 29,7X12,5 2

[Name] [Note] [QTY]

Securing ring outer 2

[Name] [Note] [QTY]

Double hexagon nut M16X1,5 2

[Name] [Note] [QTY]

constant velocity joint with boot, attachment parts and grease inner 2

also use: 6Q0 407 396 B 1

Accompanying details: 6Q0407396B

Exchange program parts: 1K0498103AX

[Name] [Note] [QTY]

constant velocity joint with boot, attachment parts and grease inner 2

also use: 6Q0 407 396 B 1

Accompanying details: 6Q0407396B

repair set

1K0407331 constant velocity joint inner 1

1K0407283A joint boot inner 1

1J0407115H End cap inner 1

N 90947301 clamp 75X10X1 1

N 10609101 clamp 34,7X10X0,8 1

1K0407298A Securing ring 28X1,5 1

G 052133A2 high temperature grease 90G 2

[Name] [Note] [QTY]

joint protective boot with assembly items and grease inner 2

also use: 6Q0 407 396 B 1

Accompanying details: 6Q0407396B

repair set

1K0407283A joint boot inner 1

1J0407115H End cap inner 1

N 90947301 clamp 75X10X1 1

N 10609101 clamp 34,7X10X0,8 1

N 0123741 Securing ring 28X1,5 1

G 052133A2 high temperature grease 90G 2

[Name] [Note] [QTY]

joint protective boot with assembly items and grease outer 2

also use: 6Q0 407 396 B 1

Accompanying details: 6Q0407396B

repair set

1K0407285K joint boot outer 1

1J0407287 Belleville spring 39X29,6X1,5 1

1J0407295 thrust ring 29,7X12,5 1

1J0407297 Securing ring 30,6X1,8 1

N 90630701 clamp 102,5X10X1 1

N 10609101 clamp 34,7X10X0,8 1

G 052738A2 Grease for universal joint 120G 1

[Name] [QTY]

Outer joint with assembly parts 2

repair set

6R0407311B constant velocity joint Z=36 1

1K0407285K joint boot outer 1

1J0407287 Belleville spring 39X29,6X1,5 1

1J0407295 thrust ring 29,7X12,5 1

1J0407297 Securing ring 30,6X1,8 1

N 90630701 clamp 102,5X10X1 1

N 10609101 clamp 34,7X10X0,8 1

6Q0407623E Deflector ring 1

6Q0407396B Double hexagon nut M16X1,5 1

G 052738A2 Grease for universal joint 120G 1

[Name] [QTY]

Outer joint with assembly parts 2

Exchange program parts: 6R0498099AX

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M10X52 12

[Name] [Note] [QTY]

Grease for universal joint 120G X

outer

[Name] [Note] [QTY]

high temperature grease 140G X

inner

[Name] [Note] [QTY]

sealant 125G X

inner

[Name] [QTY]

Spacer 6

[Name] [Model info] [QTY]

Heat shield plate Frt.-wh.dr.+ 1

[Name] [Note] [QTY]

Hexagon bolt M10X20 2

[Name] [Note] [QTY]

Deflector ring 72MM 2
