ძრავის გაგრილების სისტემა

[Name] [QTY]

Air duct ring 1

[Name] [Note] [Model info] [QTY]

Cooler for coolant 649X340X26 PR:8Z4,8Z5, 1

8Z9+BTS,

CNKA

[Name] [Note] [Model info] [QTY]

Cooler for coolant 648X340X24 PR:8Z6,8Z9+ 1

BTS,CNKA

[Name] [Note] [QTY]

beading 410MM 1

[Name] [Note]

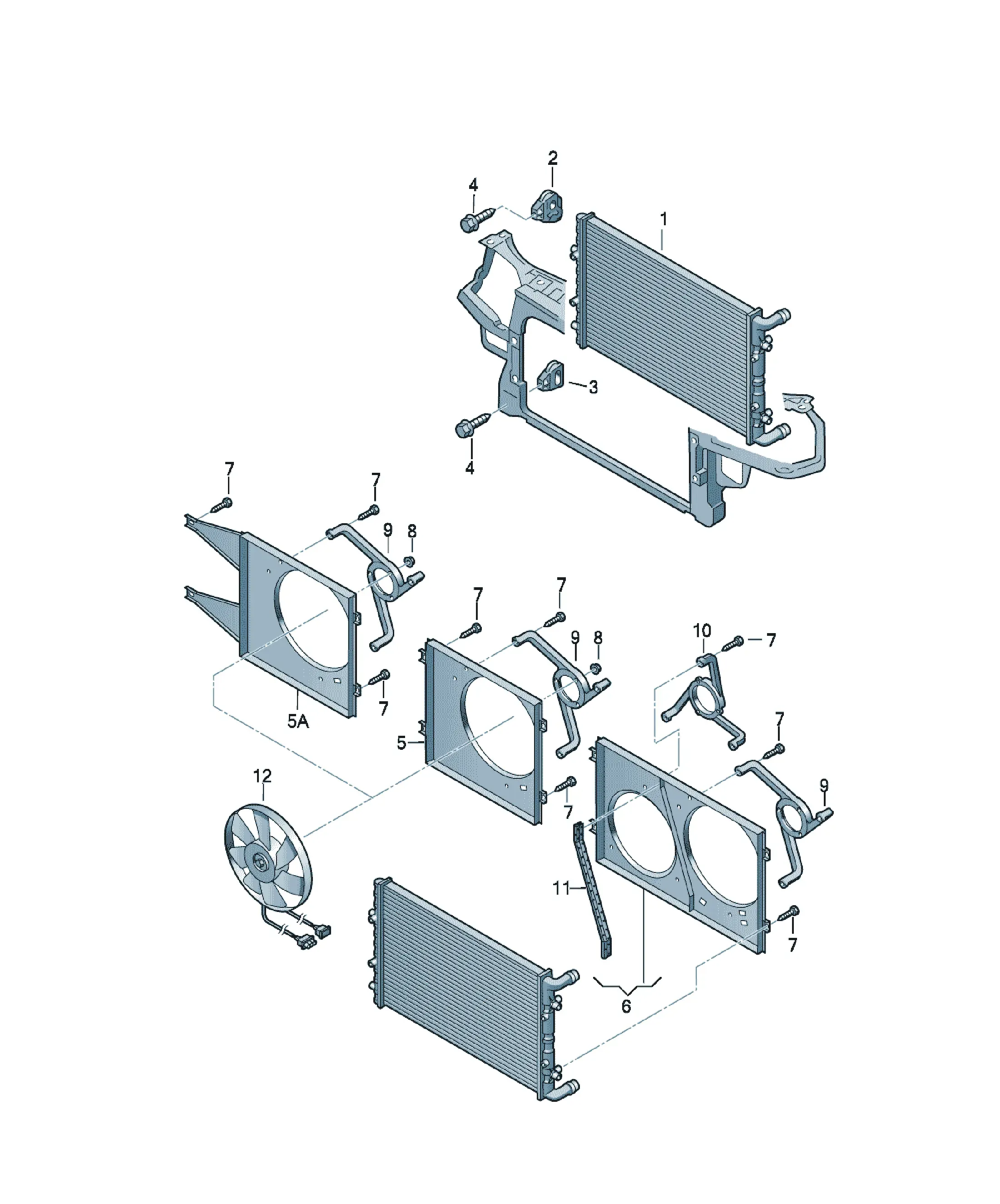

see illustration: 959-050

[Name] [QTY]

bush 3

[Name] [Note] [QTY]

dual thermo-switch 95-84C/102-91C X

mating connector

1J0973203 Flat contact housing with contact locking mechanism 3 pin 1

[Name] [Note] [QTY]

Bracket upper 2

for vehicles with air condit.

for coolant radiator: 6R0 121 253

6R0 121 253 A

[Name] [Note] [QTY]

bush lower 2

for coolant radiator: 6R0 121 253

6R0 121 253 A

[Name] [Note] [QTY]

Hexagon socket head panel bolt 6X17 4

for coolant regulator 6R0 121 253

6R0 121 253 A

[Name] [Model info] [QTY]

Fan ring PR:8Z6,8Z9+ 1

9AB,9AK

[Name] [Model info] [QTY]

Fan ring PR:8Z4,8Z5, 1

8Z7

[Name] [Model info] [QTY]

Fan ring PR:8Z6,8Z9+ 1

9AA

[Name] [Note] [QTY]

Hexagon socket head panel bolt 6X17 X

[Name] [Note] [QTY]

Hexagon collar nut M6 X

[Name] [Note] [QTY]

Bracket for radiator fan 441MM 1

for vehicles with air condit.
