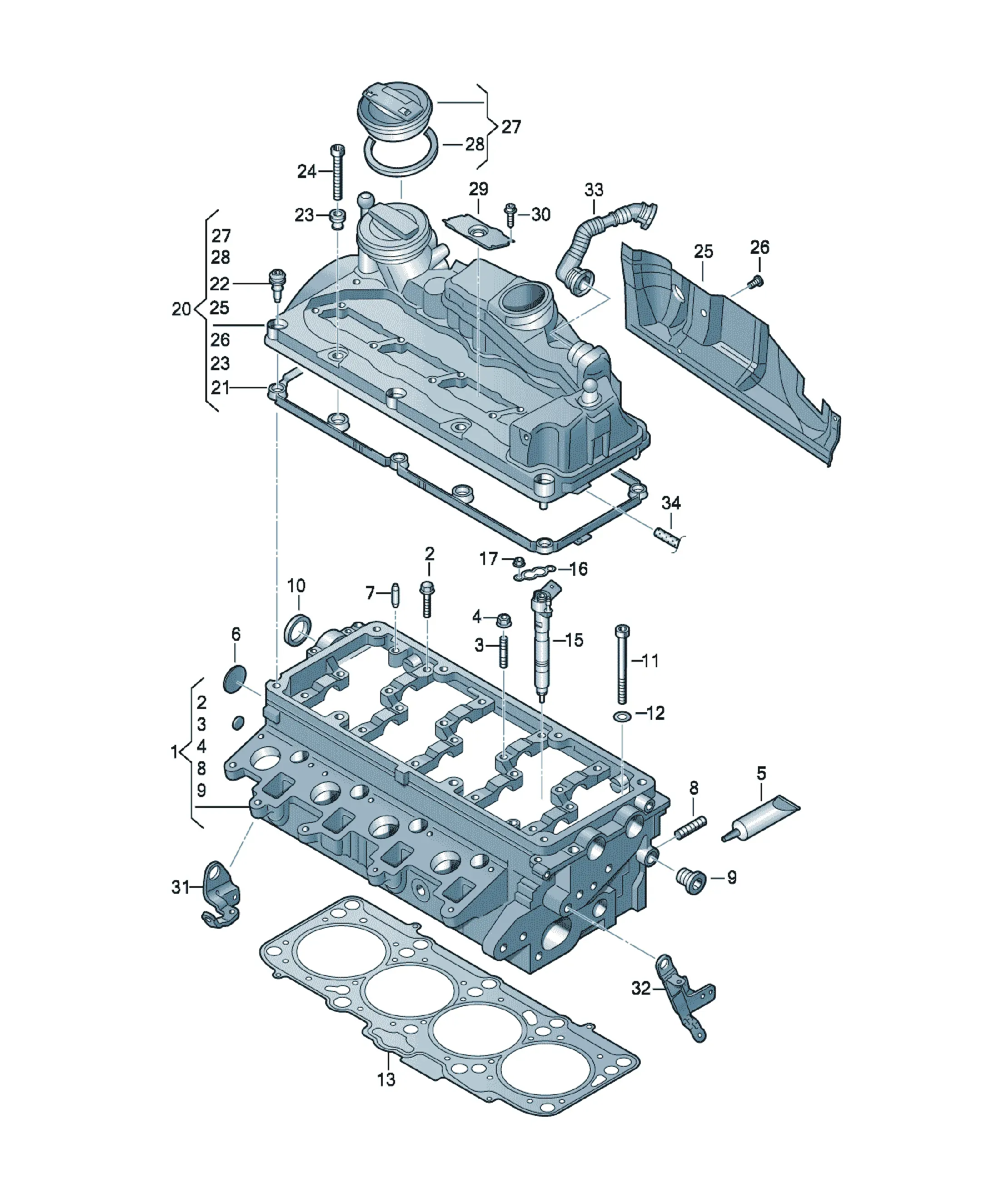

ცილინდრის თავაკი

[Name] [QTY]

Cylinder head 1

Items supplied

03L103353M Cylinder head 1

N 90188902 Threaded pin M8X35 8

N 90281802 Seal bolt (combination) M10X1X10 1

[Name] [QTY]

Cylinder head with valves and camshaft, without injector nozzles 1

Items supplied

Socket head bolt 10

Washer 10

Valve stem seal 16

Inlet valve 8

exhaust valve 8

Valve spring 16

spring disc 16

cotter, split 32

equalizing element, hydraulic 16

roller rocker arm 16

Threaded pin 8

Camshaft Inlet 1

Camshaft Outlet 1

radial shaft seal 1

Old part

03L103265 X Cylinder head with valves and camshaft, without injector nozzles 1

Cylinder head cast no.: 03L 103 373

Cylinder head cast no.: 03L 103 373 E

[Name] [Note] [QTY]

shaft oil seal (shaft rotation: to right) 47X10X32 1

D - 28.09.2009>>*

Replacements: 03L103085C

[Name] [Note] [QTY]

shaft oil seal (shaft rotation: to right) 47X10X32 1

D >> - 28.09.2009*

[Name] [Note] [QTY]

Socket head bolt M12X137 10

Replacements: WHT002131A

[Name] [Note] [QTY]

Washer 12,5X23X4,5 10

[Name] [Note] [QTY]

Cylinder head gasket 1,63MM X

2 holes

Replacements:

[Name] [Note] [QTY]

Cylinder head gasket 1,55MM X

1 hole

[Name] [Note] [QTY]

Cylinder head gasket 1,71MM X

3 holes

[Name] [Note]

Injector unit

see illustration: 130-040

[Name] [Note]

tensioning plate

see illustration: 130-040

[Name] [Note] [QTY]

Hexagon collar nut M6 8

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X32 16

[Name] [Note] [QTY]

cylinder head cover 1

also use: >>D06.04.2009

03L 130 235 S 1

Accompanying details: 03L130235S

[Name] [QTY]

Seal 1

[Name] [QTY]

Hexagon socket flat head bolt with guide sleeve 7

[Name] [QTY]

Decoupling element 2

[Name] [Note]

Socket head bolt with inner hex round head

see illustration: 130-040

[Name] [QTY]

Heat shield 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt 4X8 3

[Name] [QTY]

End cap 1

[Name] [QTY]

Seal 1

[Name] [QTY]

End cap 1

[Name] [Note] [QTY]

Threaded stud M6X50 8

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M5X12 16

[Name] [Note]

Bracket

see illustration: 103-080

[Name] [Note]

Suspension lug

see illustration: 103-080

[Name] [QTY]

Breather line 1

[Name] [Note]

Vacuum hose

see illustration: 131-040

[Name] [Note] [QTY]

Hexagon collar nut M6 8

[Name] [Note] [QTY]

Silicon sealant 50ml X

[Name] [QTY]

End cap 1

[Name] [QTY]

dowel pin 2

[Name] [Note] [QTY]

Threaded pin M8X35 8

[Name] [Note] [QTY]

Seal bolt (combination) M10X1X10 1
