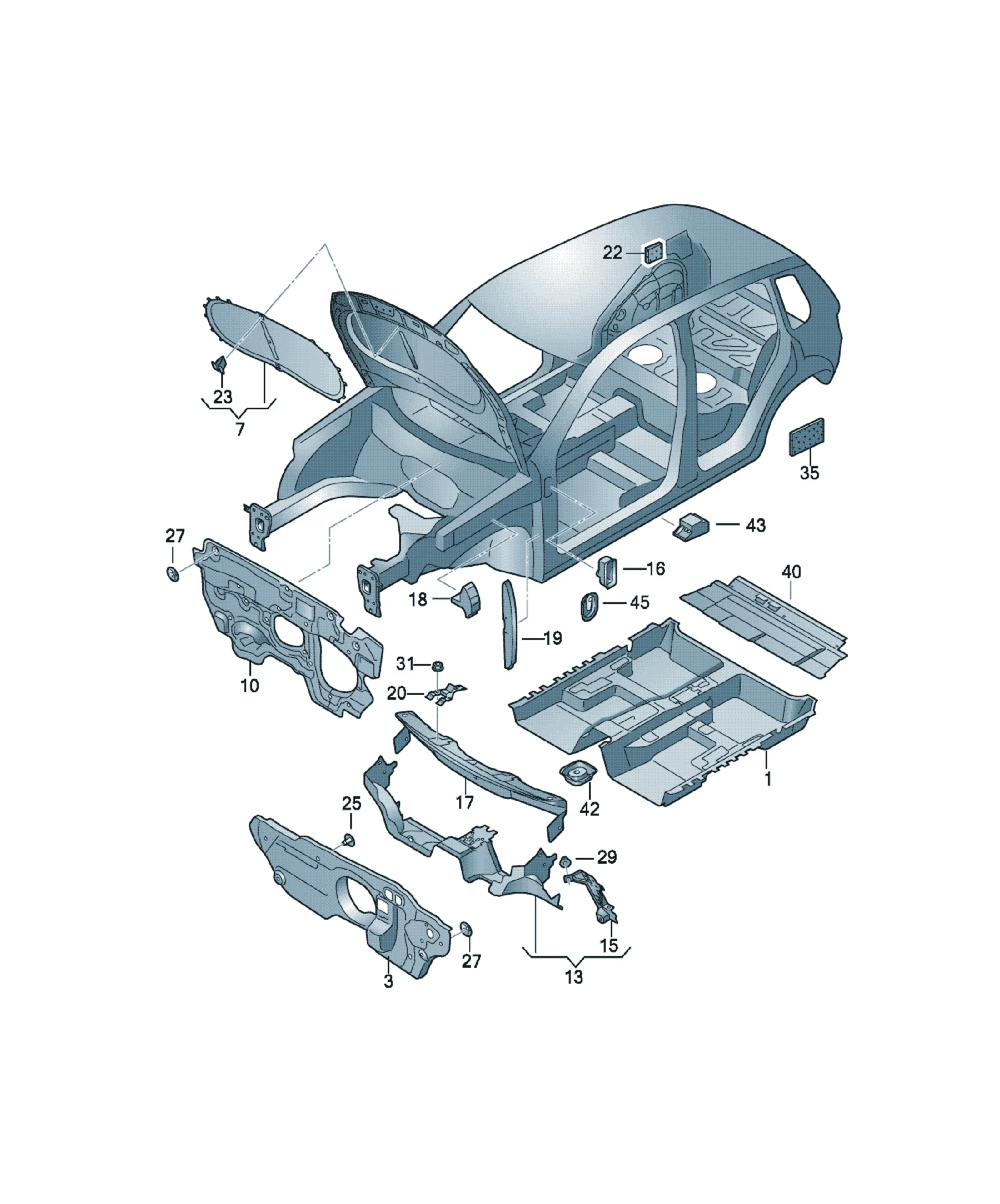

ხმის იზოლაცია

[Name] [QTY]

Insulation for floor 1

Replacements: 5N0863919B

[Name] [Note] [QTY]

Damping for bulkhead outer 1

Engine bay rhd

Replacements: 5N2863353C

[Name] [Note] [QTY]

Damping for bulkhead outer 1

Engine bay lhd

Replacements: 5N1863353D

[Name] [Note] [QTY]

sound absorber for cross panel and tunnel lower LHD 1

[Name] [Note] [QTY]

sound absorber for cross panel and tunnel lower RHD 1

Replacements: 5N2863925A

[Name]

Bracket for footrest

Not for this model

[Name] [QTY]

Damping 1

mounting for door components

[Name] [Note] [QTY]

Damping for bulkhead lhd 1

Replacements: 5N1863909A

[Name] [Note] [QTY]

Damping for bulkhead rhd 1

Replacements: 5N2863909A

[Name] [Note] [Model info] [QTY]

Insulation for wing left front automatic 1

Replacements: 5N0864237C

[Name] [Note] [Model info] [QTY]

Insulation for wing left front manual gearbox 1

Replacements: 5N0864237B

[Name] [Note] [QTY]

Noise insulation 2

Foam

Side member front

[Name] [Note] [Model info] [QTY]

Insulation for wing right front automatic, 1

manual gearbox

Replacements: 5N0864237B

[Name] [Note] [QTY]

Insulation for wing left 1

[Name] [Note] [QTY]

Insulation for wing right 1

[Name] [Note]

Clip

see illustration, item: 857-000,34

[Name] [Note]

sound absorber (self-adhesive)

To manufacture from item: 35

[Name]

Satin black

[Name] [QTY]

Retaining clip 4

Replacements: 1H5863849A 01C

[Name] [Note] [QTY]

press stud 9,5X12X30 X

Replacements: N 9006850101C

[Name] [Note]

Satin black 9,5X12X30

[Name] [Note] [QTY]

Clamping washer 5X30 X

Replacements: N 90335004

[Name] [Note] [QTY]

Hexagon collar nut 5 X

[Name] [Note] [QTY]

sound absorber for cross panel and tunnel rhd 1

Replacements: 5N2863248A

[Name] [Note] [QTY]

sound absorber for cross panel and tunnel lhd 1

Replacements: 5N1863248A

[Name] [Note] [QTY]

hexagon nut, self-locking M6 X

[Name] [Note] [QTY]

sound absorber (self-adhesive) 500X500X10 X

Rework if necessary fleece

** See photo **

Replacements: 000863890

[Name] [Note] [QTY]

sound absorber (self-adhesive) fleece 1

1210X355X10

rightangled

Replacements: 000863890

[Name] [Note] [QTY]

sound absorber (self-adhesive) 550X550X15 1

** See photo ** fleece

Replacements: 000863890A

[Name] [Note] [QTY]

sound absorber (self-adhesive) 500X500X30 X

Rework if necessary fleece

** See photo **

Replacements: 000863890A

[Name] [Note]

Filler piece for lugg.comp.fl.

see illustration, item: 863-080,20

[Name] [Note]

Damper for selector housing

see illustration, item: 863-050,10

[Name] [QTY]

Damping 1

Fuel line

[Name] [QTY]

Damping 1

a-pillar, inner

[Name] [QTY]

sound abs. for engine bonnet 1
