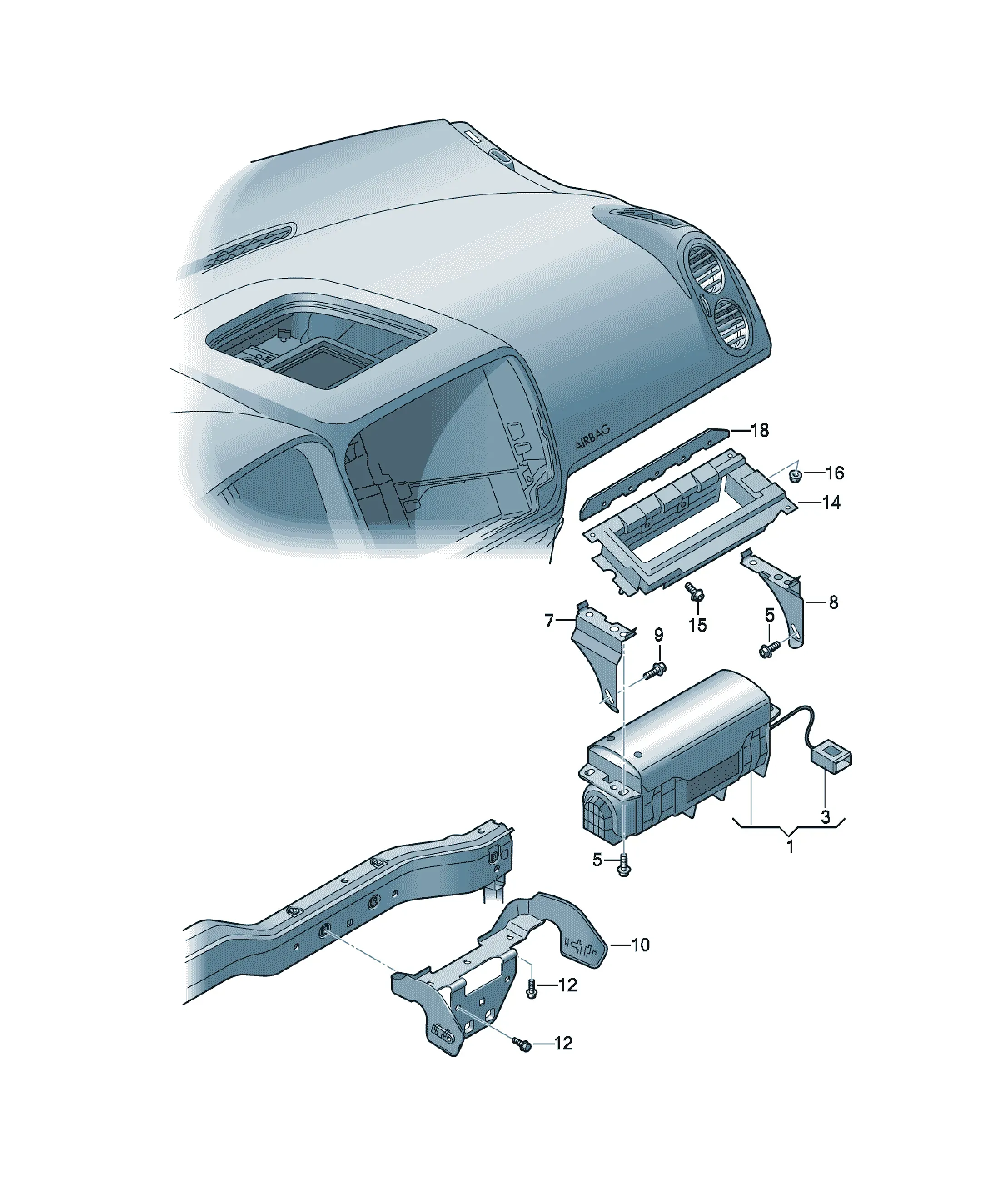

აირბაგის მოდული

[Name]

***** Caution Hazardous ******

see workshop manual

[Name] [Model info] [QTY]

Airbag unit PR:4UE,4UF 1

(passenger side)

** only order for ** ** immediate installation **

D >> - 24.05.2009*

[Name] [Model info] [QTY]

Airbag unit PR:4UE,4UF 1

(passenger side)

** only order for ** ** immediate installation **

D - 25.05.2009>>

[Name] [QTY]

Retaining frame 1

[Name] [Note] [QTY]

Hexagon collar bolt with socket head M6X20 4

[Name] [Note] [QTY]

Retaining frame for airbag rhd 1

D - 10.08.2009>>*

[Name] [Note] [QTY]

Retaining frame for airbag rhd 1

D >> - 09.08.2009*

Replacements: 5N2880215A

[Name] [Note] [QTY]

Retaining frame for airbag lhd 1

D - 10.08.2009>>*

[Name] [Note] [QTY]

Retaining frame for airbag lhd 1

D >> - 09.08.2009*

Replacements: 5N1880215A

[Name] [Note] [QTY]

Semi round bolt (combi) with hexagon socket head M5X16 4

[Name] [Note] [QTY]

Hexagon collar nut M5 12

[Name] [Note]

Retaining plate

No replacement part

see illustration, item: 857-000,50

[Name] [Note] [Model info] [QTY]

Flat contact housing 3 pin PR:4UE,4UF 1

Airbag unit yellow

Possible single wire: 000 979 015 EA X

counterpart to: 4E0 972 586

D >> - 24.05.2009*

mating connector

4E0972586 Flat contact housing 3 pin X

Side airbag unit yellow

Possible single wire:

000979015EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 0,63

000979015FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 0,63

(Copper wires galvanised)

[Name] [Note] [Model info]

Flat contact housing PR:4UE,4UF

see illustration, item: 972-025,4A

D - 25.05.2009>>*

[Name] [Note] [QTY]

Hexagon socket oval head bolt, self-locking M6X30 4

[Name] [Note] [QTY]

Bracket left 1

[Name] [Note] [QTY]

Bracket right 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2
