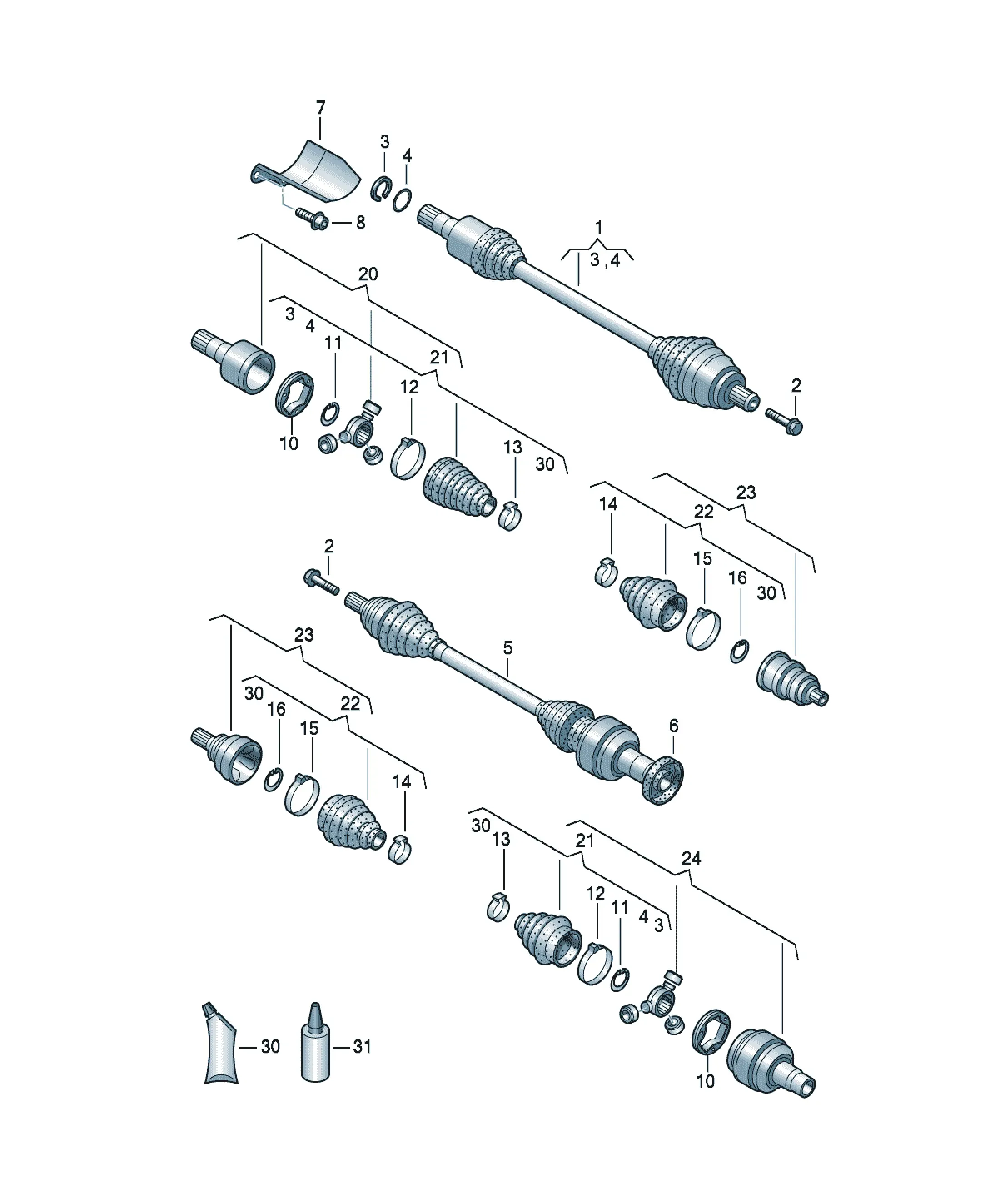

წამყვანი ლილვი

[Name] [Note] [QTY]

drive shaft with constant velocity joints left 1

Exchange program parts: 5N0407763FX

Replacements: 3Q0407271CC

[Name] [Note] [QTY]

drive shaft with constant velocity joints left 1

Replacements: 3Q0407271CC

[Name] [Note] [QTY]

Adapter inner 2

joint boot

[Name] [Note] [QTY]

Securing ring 25,4X1,2 2

[Name] [Note] [QTY]

clamp 94X10X1 2

[Name] [Note] [QTY]

clamp 34,7X10X0,8 2

[Name] [Note] [QTY]

clamp 34,7X10X0,8 2

[Name] [Note] [QTY]

clamp 104,5X10X1 2

[Name] [Note] [QTY]

snap ring 29,5 2

Replacements: 5N0407297A

[Name] [Note] [QTY]

dodecagonal head bolt M16X1,5X70 2

Replacements: WHT005437A

[Name] [Note] [QTY]

constant velocity joint with boot, attachment parts and grease left inner 1

also use: 1K0 407 413 A 1

Accompanying details: 1K0407413A

Replacements: 8V0498103 X

repair set

5N0407341B flange shaft for triple roller joint tripodic 1

1J0407363E trip.roll. spider with rollers 1

1K0407283D joint boot 1

7E0407297 Securing ring 1

N 10672101 clamp 94X10X1 1

N 10609101 clamp 34,7X10X0,8 1

N 90834501 Securing ring 25,4X1,2 1

G 052186A3 Grease for triple roller joint 140G 1

[Name] [Note] [QTY]

constant velocity joint with boot, attachment parts and grease left inner 1

also use: 1K0 407 413 A 1

Accompanying details: 1K0407413A

Exchange program parts: 5N0498103BX

Replacements: 8V0498103

[Name] [Note] [QTY]

joint protective boot with assembly items and grease inner 2

contains additional positions: 10

Replacements: 3Q0498201B; G 052186A3

repair set

1K0407283D joint boot 1

1K0407413A Adapter 1

joint boot

8N0407297 Securing ring 27X2,5 1

N 10672101 clamp 94X10X1 1

N 10609101 clamp 34,7X10X0,8 1

N 90834501 Securing ring 25,4X1,2 1

G 052186A3 Grease for triple roller joint 140G 1

[Name] [Note] [QTY]

joint protective boot with assembly items and grease outer 2

Replacements: 2Q0498203B; G 052181A4

repair set

4E0407285 joint boot 1

N 91023501 clamp 104,5X10X1 1

N 10609101 clamp 34,7X10X0,8 1

N 91092301 snap ring 27,1X2 1

G 052181A4 high temperature grease 140G 2

[Name] [QTY]

Outer joint with assembly parts 2

Exchange program parts: 5N0498099 X

Replacements: 5N0498099C

[Name] [QTY]

Outer joint with assembly parts 2

Replacements: 5N0498099CX

repair set

5N0407311B Outer joint outer 1

4E0407285 joint boot outer 1

N 91023501 clamp 104,5X10X1 1

N 10609101 clamp 34,7X10X0,8 1

N 91092301 snap ring 29,5 1

G 052738A4 Grease for universal joint 120G 1

[Name] [Note] [QTY]

constant velocity joint with boot, attachment parts and grease right inner 1

also use: 1K0 407 413 A 1

Accompanying details: 1K0407413A

Exchange program parts: 5N0498103AX

Replacements: 5N0498103C

[Name] [Note] [QTY]

constant velocity joint with boot, attachment parts and grease right inner 1

also use: 1K0 407 413 A 1

Accompanying details: 1K0407413A

Replacements: 5N0498103CX

repair set

3C0407279B flange shaft for triple roller joint right 1

1J0407363E trip.roll. spider with rollers right 1

1K0407283D joint boot inner 1

N 10672101 clamp 94X10X1 1

N 10609101 clamp 34,7X10X0,8 1

N 90834501 Securing ring 25,4X1,2 1

G 052186A3 Grease for triple roller joint 140G 1

[Name] [Note] [QTY]

Securing ring 31,2X1,8 1

left inner

[Name] [Note] [QTY]

Grease for triple roller joint 140G X

inner

[Name] [Note] [QTY]

high temperature grease 120G X

outer

Replacements: G 052181A4

[Name] [Note] [QTY]

universal grease 50G X

Stub shaft inner

[Name] [Note] [QTY]

Locking fluid 50ml X

[Name] [Note] [QTY]

O-ring 30X2,5 1

left inner

[Name] [Note] [QTY]

drive shaft with constant velocity joints right 1

Replacements: 5N0407766D

[Name] [Note] [QTY]

drive shaft with constant velocity joints right 1

Exchange program parts: 5N0407766DX

Replacements: 5WA407272R

[Name] [Note] [QTY]

Protective cap right inner 1

[Name] [Note] [QTY]

Heat shield plate right 1

[Name] [Note] [QTY]

hexagon socket head pipe nut M8X20X15 3
