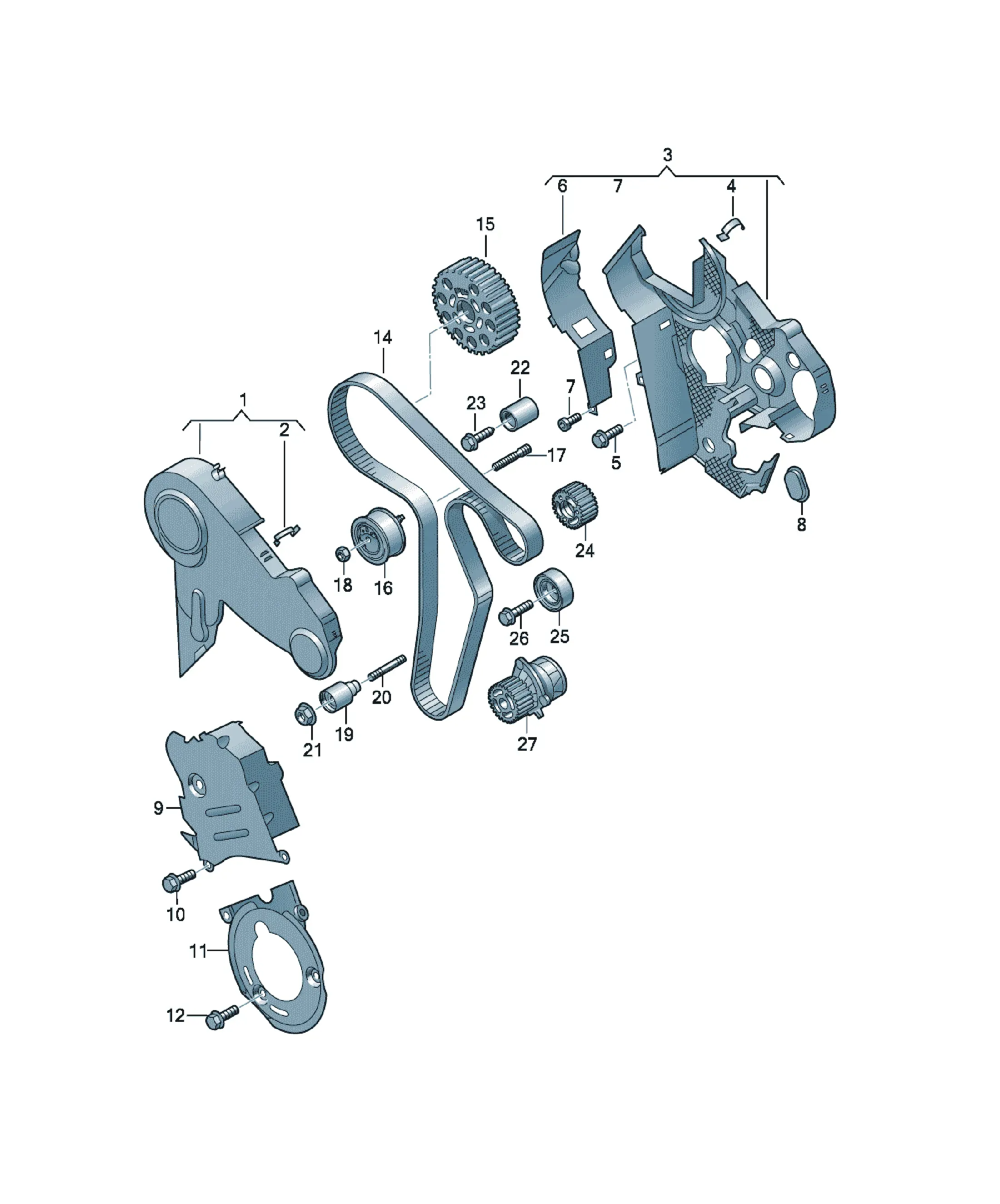

გაზგანაწილების მექანიზმის ამძრავი

[Name] [Note] [QTY]

Toothed belt guard upper 1

[Name] [Note] [QTY]

bolt, hex. hd. (combi.) self-locking M6X16 2

[Name] [Note] [QTY]

Toothed belt guard lower 1

[Name] [Note] [QTY]

bolt, hex. hd. (combi.) self-locking M6X16 2

[Name] [Note] [QTY]

toothed belt Z=160 1

[Name] [Note]

toothed belt pulley

see illustration: 109-030

[Name] [QTY]

Tensioning roller 1

[Name] [Note] [QTY]

Threaded pin M10XM8X73 1

[Name] [Note] [QTY]

Hexagon collar nut M8 1

[Name] [QTY]

idler pulley 1

Replacements: 038109244N

[Name] [QTY]

Spring clip 1

[Name] [Note] [QTY]

Threaded pin M8X55 1

[Name] [Note] [QTY]

Hexagon collar nut M8 1

[Name] [QTY]

idler pulley 1

[Name] [Note] [QTY]

Hex collared bolt M8X35 1

[Name] [Note]

toothed belt pulley

see illustration, item: 130-040,3

[Name] [QTY]

idler pulley 1

[Name] [Note] [QTY]

Hexagon bolt M10X45 1

[Name] [Note]

Coolant pump

see illustration, item: 121-003,1

[Name] [Note] [QTY]

Cover 1

also use: 03L 129 969 K 1

N 105 557 02 2

use if required: 038 971 904 X

Accompanying details: 03L129969K; N 10555702; 038971904

[Name] [QTY]

Spring clip 1

[Name] [Note] [QTY]

bolt, hex. hd. (combi.) self-locking M6X16 2

[Name] [QTY]

Heat shield 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt 4X8 2

[Name] [QTY]

Bungs X

[Name] [Note] [QTY]

Toothed belt guard center 1
