Антенны

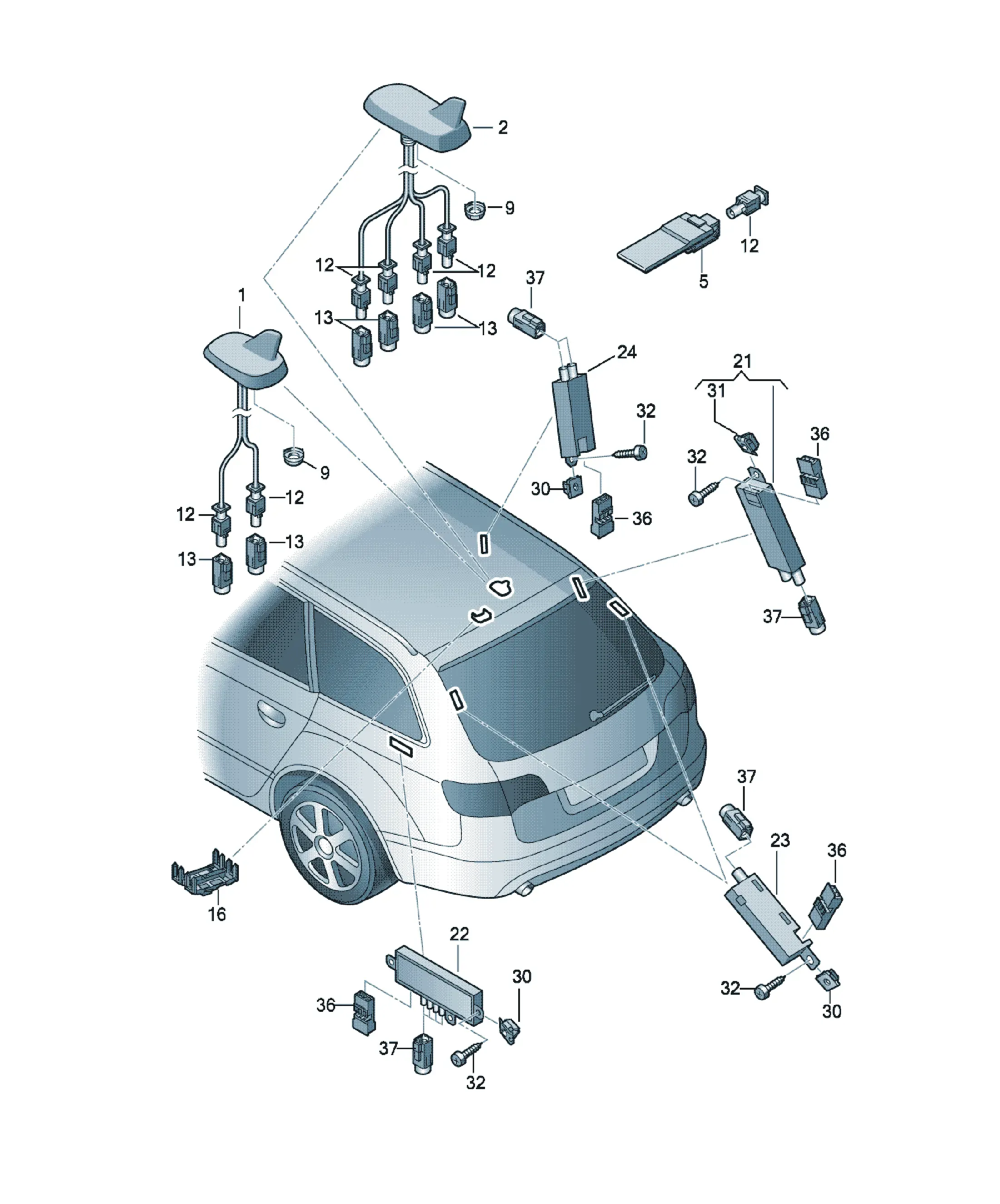

Антенна

Схемы узла

10 схем

Детали

30 деталей

4F9035503H Предложения

[Name] [QTY]
roof combination aerial 1
for vehicles with navigation system
and/or
telephone
4F9035503H1P9 Предложения

[Name] [Note]
Black
For exterior colour: black
4F9035503F Предложения

[Name] [QTY]
roof combination aerial 1
for vehicles with navigation system
and/or
telephone
4F9035503FGRU Предложения

[Name]
primed
6Q0035575K Предложения

[Name] [Note] [QTY]
Removable housing for aerial pin connector 1 point X
mating connector
6Q0035576K Removable housing for aerial female connector 1 point X
only to be used for: all colours
use if required aerial wire adapter:
000 098 703
000 098 703 A
6Q0035576K Предложения

[Name] [Note] [QTY]
Removable housing for aerial female connector 1 point X
mating connector
6Q0035575K Removable housing for aerial pin connector 1 point X
water blue
only to be used for: all colours
use if required aerial wire adapter:
000 098 692 X
Possible single wire:
Remove if required: 6Q0.035.576.K 1
------------------------------
000098650 Aerial connection line 300MM X
000098651 Aerial connection line 500MM X
000098652 Aerial connection line 1000MM X
000098652A Aerial connection line 1500MM X
000098653 Aerial connection line 2000MM X
000098653A Aerial connection line 2500MM X
000098654 Aerial connection line 3000MM X
000098654A Aerial connection line 3500MM X
000098655 Aerial connection line 4000MM X
000098655A Aerial connection line 4500MM X
000098656 Aerial connection line 5000MM X
000098656A Aerial connection line 5500MM X
000098657 Aerial connection line 6000MM X
000098657A Aerial connection line 6500MM X
000098658 Aerial connection line 7000MM X
000098658A Aerial connection line 7500MM X
000098659 Aerial connection line 8000MM X
000098703 aerial intermediate wire with earthing clip 300MM X
000098703A adapter aerial wire 300MM 1
4F9937545 Предложения

[Name] [Note] [QTY]
bracket for connector housing 2 point X
Aerial cable
4F9035225A Предложения

[Name] [Note] [Model info] [QTY]
Aerial amplifier right rear PR:QV0,QV3 1
Side window
4F9035225B Предложения

[Name] [Note] [Model info] [QTY]
Aerial amplifier right rear PR:QV1,QV5, 1
Side window QV9
4F9035225M Предложения

[Name] [Note] [Model info] [QTY]
Aerial amplifier right rear "J.." 1
for vehicles with tv reception
mating connector
1C0973119B Flat contact housing 3 pin X
black
6Q0035576K Removable housing for aerial female connector 1 point X
counterpart to: 6Q0 035 575 K
only to be used for: all colours
use if required aerial wire adapter:
4F9035225A Предложения

[Name] [Note] [QTY]
Aerial amplifier right rear 1
Side window
4F9035225F Предложения

[Name] [Note] [Model info] [QTY]
Aerial amplifier left rear PR:QV1,QV5, 1
Side window QV9
for vehicles with tv reception
4F9035225N Предложения

[Name] [Note] [Model info] [QTY]
Aerial amplifier left rear "J.." 1
for vehicles with tv reception
mating connector
1C0973119B Flat contact housing 3 pin X
black
6Q0035576K Removable housing for aerial female connector 1 point X
counterpart to: 6Q0 035 575 K
only to be used for: all colours
use if required aerial wire adapter:
4F9035225D Предложения

[Name] [Note] [QTY]
Aerial amplifier left rear 1
Side window
4F9035225D Предложения

[Name] [Note] [Model info] [QTY]
Aerial amplifier left rear PR:QV0,QV3 1
Side window
4F9035225H Предложения

[Name] [Note] [Model info] [QTY]
Aerial amplifier left PR:QV0,QV3 1
Rear lid
4F9035225P Предложения

[Name] [Note] [Model info] [QTY]
Aerial amplifier left "J.." 1
Rear lid
mating connector
1C0973119B Flat contact housing 3 pin X
black
6Q0035576K Removable housing for aerial female connector 1 point X
counterpart to: 6Q0 035 575 K
only to be used for: all colours
use if required aerial wire adapter:
4F9035225K Предложения

[Name] [Note] [Model info] [QTY]
Aerial amplifier right PR:QV1,QV5, 1
Rear lid QV9
4F9035225Q Предложения

[Name] [Note] [Model info] [QTY]
Aerial amplifier right "J.." 1
Rear lid
4F9035225J Предложения

[Name] [Note] [Model info] [QTY]
Aerial amplifier left PR:QV1,QV5, 1
Rear lid QV9
4F9035225H Предложения

[Name] [Note] [QTY]
Aerial amplifier left 1
Rear lid
4F9035225S Предложения

[Name] [Note] [QTY]
Aerial amplifier right rear 1
For digital radio/ TV reception
and
auxiliary heater with remote control
WHT000011 Предложения

[Name] [Note] [QTY]
expanding nut ST4.8X13X15 X
for sheet metal thickness: 1,0MM
WHT000748 Предложения

[Name] [Note] [QTY]
expanding nut ST4.8X13X15 X
for sheet metal thickness: 1,8MM
N10656901 Предложения

[Name] [Note] [QTY]
oval head panel screw 4,8X16 X
1C0973119B Предложения

[Name] [Note] [QTY]
Flat contact housing 3 pin X
black
mating connector
1K0973333 Flat contact housing with contact locking mechanism 3 pin 1
black
3D0973332 Flat contact housing with contact locking mechanism 3 pin 1
black
Possible single wire:
000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
6Q0035576K Предложения

[Name] [Note] [QTY]
Removable housing for aerial female connector 1 point X
only to be used for: all colours
mating connector
6Q0035575K Removable housing for aerial pin connector 1 point X
water blue
only to be used for: all colours
use if required aerial wire adapter:
000 098 692 X
Possible single wire:
Remove if required: 6Q0.035.576.K 1
------------------------------
000098650 Aerial connection line 300MM X
000098651 Aerial connection line 500MM X
000098652 Aerial connection line 1000MM X
000098652A Aerial connection line 1500MM X
000098653 Aerial connection line 2000MM X
000098653A Aerial connection line 2500MM X
000098654 Aerial connection line 3000MM X
000098654A Aerial connection line 3500MM X
000098655 Aerial connection line 4000MM X
000098655A Aerial connection line 4500MM X
000098656 Aerial connection line 5000MM X
000098656A Aerial connection line 5500MM X
000098657 Aerial connection line 6000MM X
000098657A Aerial connection line 6500MM X
000098658 Aerial connection line 7000MM X
000098658A Aerial connection line 7500MM X
000098659 Aerial connection line 8000MM X
000098703 aerial intermediate wire with earthing clip 300MM X
000098703A adapter aerial wire 300MM 1
8P0035503M Предложения

[Name] [Note] [Model info] [QTY]
Aerial 'BLUETOOTH' PR:9ZJ 1
for vehicles with telephone
8P0035503M Предложения

[Name] [Note] [Model info] [QTY]
Aerial 'BLUETOOTH' PR:9ZF 1
For vehicles with cellphone preparation and hands-free
1J0035437 Предложения

[Name] [Note] [QTY]
Hexagon nut M14X0,75 1
