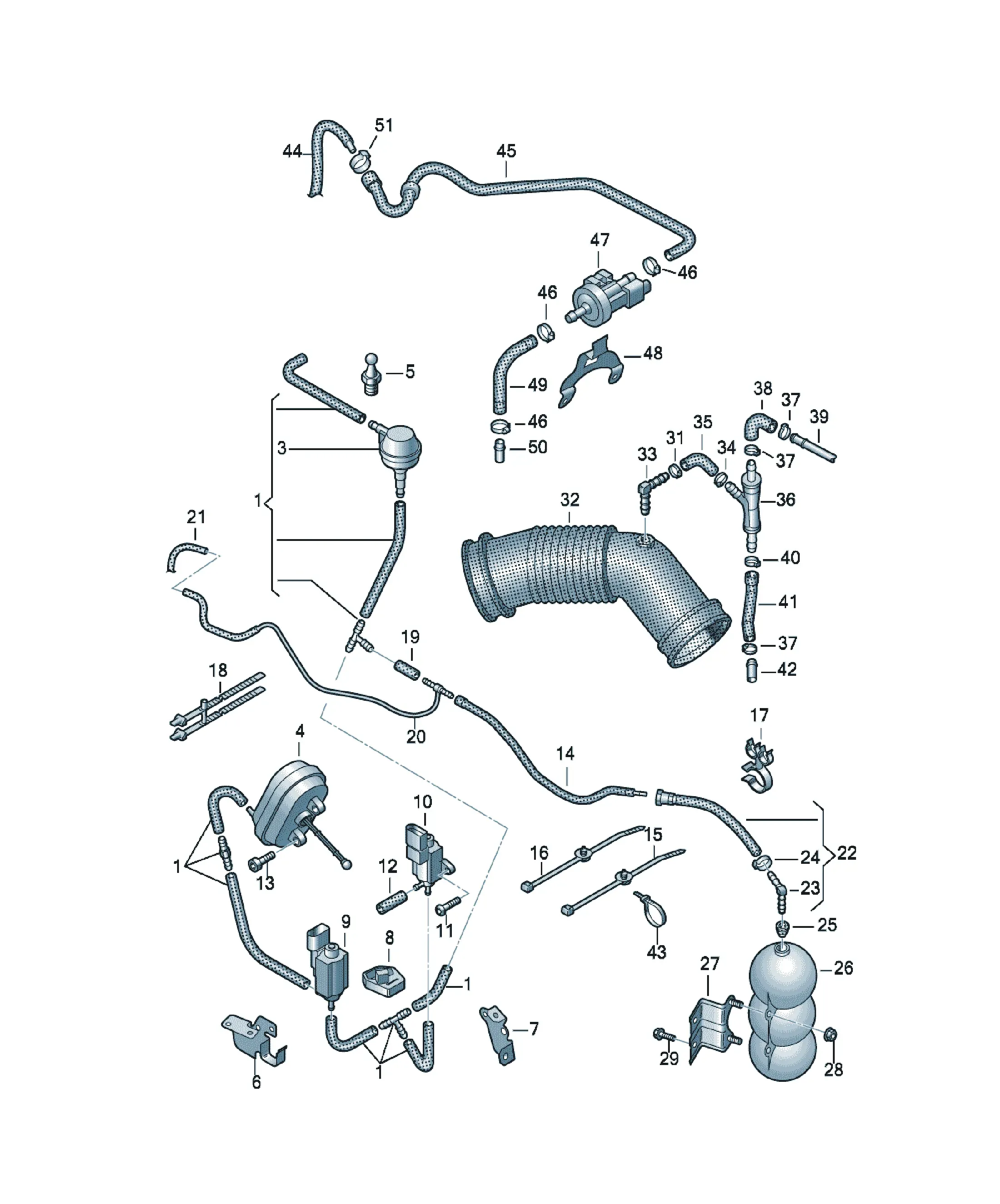

Вакуумная система

[Name] [Note] [QTY]

hose in coils of 5m 'order unit 5' 7,3X3,5 *

[Name] [QTY]

1 set of vacuum hoses 1

Non-return valve

[Name] [QTY]

Solenoid valve 1

Replacements: 079906283D

mating connector

6X0973722G Flat contact housing with contact locking mechanism 2 pin 1

black

also to be used for: Grey

Possible single wire: 000 979 133/A 1,0 X

000 979 225/A 2,5 X

[Name] [Note] [QTY]

Hexagon socket flat head bolt M5X16 2

[Name] [Note]

see illustration: 131-040

[Name] [Note] [QTY]

Hexagon socket head bolt M5X20 X

[Name] [QTY]

Pipe/hose line 1

[Name] [Note] [QTY]

Cable ties with bracket 4,5X200 X

For hole/material thickness: 6,5/0,3-3

[Name] [Note] [QTY]

Cable ties 4,6X210 X

For hole/material thickness: 5,0/0,6-3,0

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [Note] [QTY]

shorten to: 52MM 1

[Name] [QTY]

Pipe/hose line 1

[Name] [Note]

see illustration: 133-080

[Name] [QTY]

Vacuum hose 1

[Name] [Note] [QTY]

Angled connector 8/8 1

[Name] [Note] [QTY]

Clamp 14,8X7X0,60 1

[Name] [QTY]

Grommet 2

[Name] [QTY]

vacuum reservoir 2

[Name] [Note] [QTY]

Retainer for vacuum container left upper 1

[Name] [Note] [QTY]

Hexagon collar nut M5 2

[Name] [Note] [QTY]

hex.hd. thread cutting bolt M6X22 2

[Name] [QTY]

Non-return valve 1

[Name] [Note] [QTY]

clamp 15,7X7X0,60 1

[Name] [Note]

see illustration: 133-080

[Name] [Note] [QTY]

Angled connector 8/8 1

[Name] [Note] [QTY]

Clamp 18,5X7X0,60 2

[Name] [QTY]

angled hose 1

[Name] [QTY]

suction jet pump 1

[Name] [Note] [QTY]

clamp 21X7X0,60 3

[Name] [QTY]

angled hose 1

[Name] [Note]

see illustration: 611-070

[Name] [QTY]

repair set 1

repair set

079907327A throttle control element 1

connecting rod 1

Bearing cover 1

spring for operating lever 1

INNTITORX-HALBRUNDSCHRAUBE M5 2

repair set

Hexagon socket flat head bolt M6 2

Hexagon socket flat head bolt M5 1

O-ring 1

Shaft oil seal 1

Follower lever

[Name] [Note] [QTY]

clamp 23,5X7X0,6 1

[Name] [QTY]

angled hose 1

[Name] [Note]

see illustration: 133-081

[Name] [Note] [QTY]

Cable ties 3,6X246 X

Replacements: N 10647801

[Name] [Note]

see illustration: 201-090

[Name] [QTY]

Vent hose 1

[Name] [Note] [QTY]

Spring band clamp 14X12 3

[Name] [QTY]

Valve 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Bracket 1

[Name] [QTY]

Connecting hose 1

[Name] [Note]

see illustration: 103-060

[Name] [Note]

see illustration: 133-081

[Name] [Note] [QTY]

Spring band clamp 16X12 1

[Name]

No replacement part

[Name]

No replacement part

[Name] [QTY]

Bracket 1

[Name] [QTY]

Solenoid valve 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black
