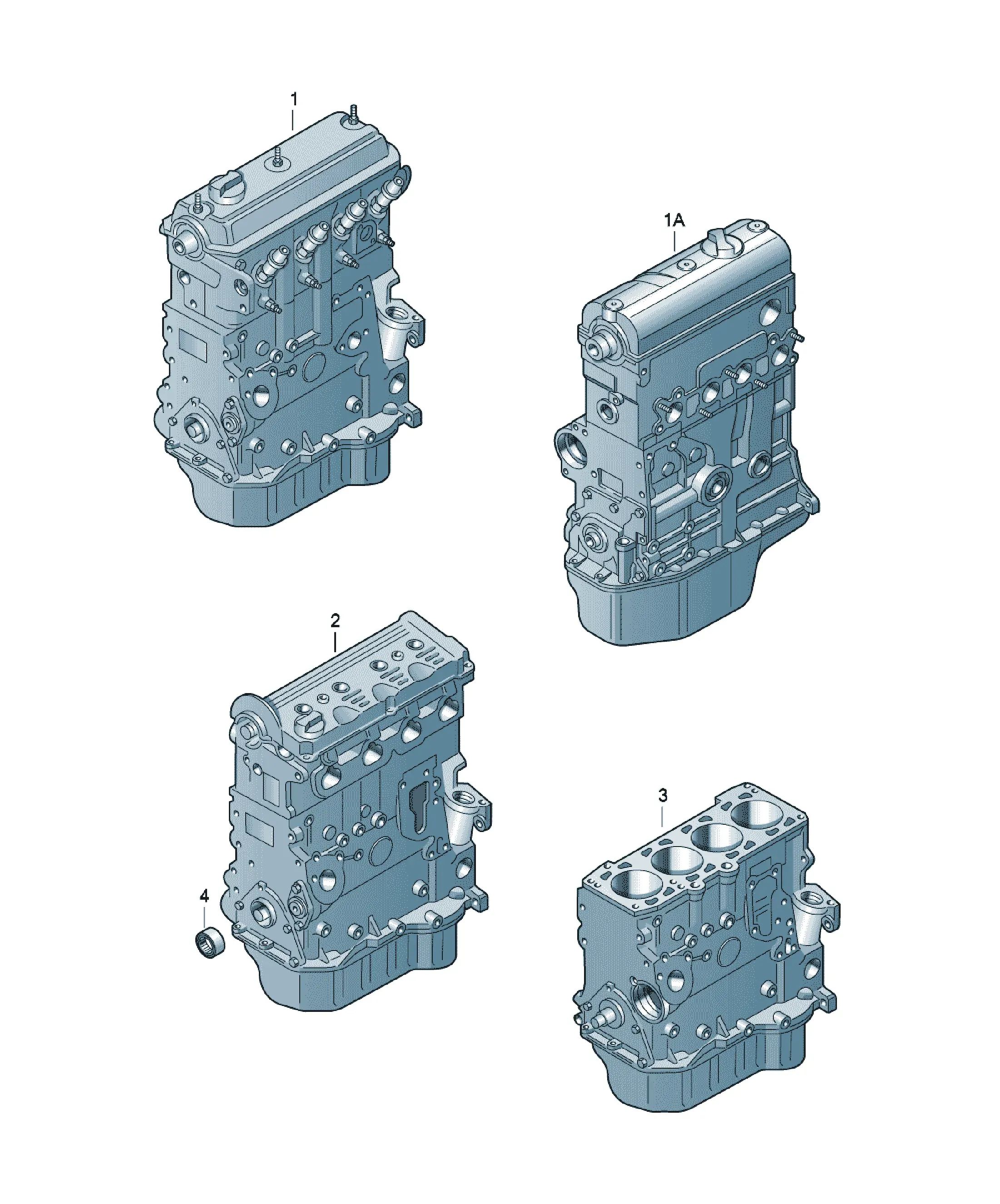

Двигатель в сборе

[Name] [Note] [Model info] [QTY]

Base engine 100/103KW BLB,BNA 1

2.0 Ltr.

Replacements: 03G100033TX

Items supplied

03G103011R Crankcase housing 1

038103157B oil spray jet M10 4

03L105021C Crankshaft 1

038105561AM crankshaft bearing shell upper 5

038103170B Sealing flange with sealing ring and trigger wheel rear 1

03G103151B Sealing flange 1

03G103603AH Engine oil sump with opening for oil level sensor 1

03G103063F Complete cylinder head 1

03G103383 Cylinder head gasket (metal) 1,55MM 1

1 hole

03G103384 Socket head bolt M12X149 10

03G109527A rocker arm shaft with rocker arm Unit inject. 1

03G130073G Pump injector unit 1

038103085D Shaft oil seal 1

03G103469K cylinder head cover 1

03G103295H Balancer shaft module with oil pump 1

03G103305A Drive wheel Z=33 1

[Name] [Note] [Model info] [QTY]

Short block 100/103KW BLB,BNA 1

2.0 Ltr.

Items supplied

comprising: 1

Crankcase 1

piston 4

conrod 4

Sealing flange 1

Crankshaft 1

timing gear - crankshaft 1

Balancer shaft module with oil pump 1

oil sump 1

Oil filter bracket 1

oil filter 1

Oil cooler 1

Cylinder head gasket 1

Old part

03G100103KX Short block 1

Oil pan with engine oil sensor

[Name] [Note] [Model info] [QTY]

Short block 89 - 103KW BRF,BRE, 1

2.0 Ltr. BVG

Items supplied

comprising: 1

Crankcase 1

piston 4

conrod 4

Sealing flange 1

Crankshaft 1

timing gear - crankshaft 1

Balancer shaft module with oil pump 1

oil sump 1

Oil filter bracket 1

oil filter 1

Oil cooler 1

Cylinder head gasket 1

Old part

03G100103LX Short block 1

Cylinder block cast no.:

03G 103 021 A / B / L /R / AC

Oil pan with engine oil sensor
