Электродвигатель вентилятора

Панель управления климатической установкой

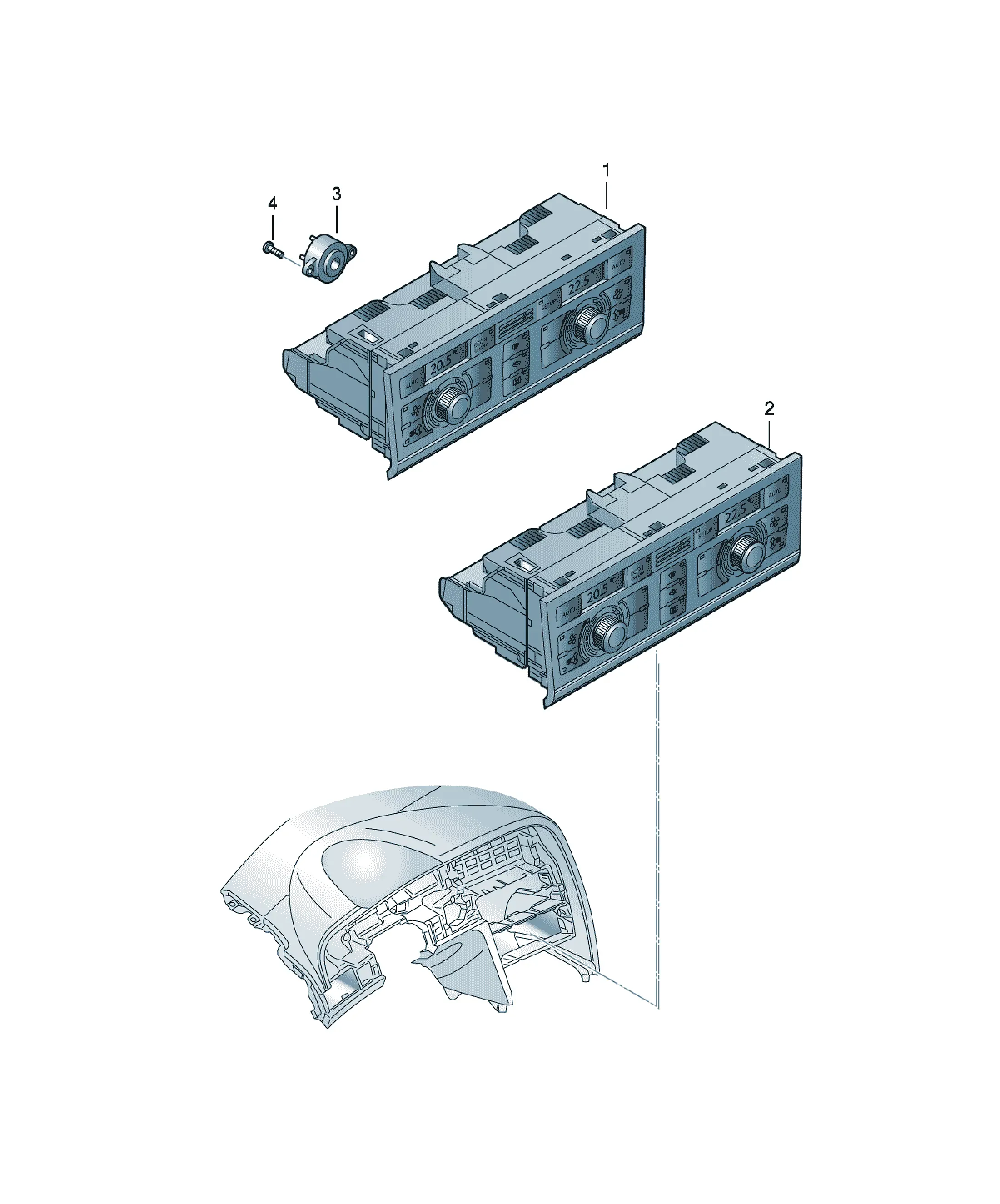

Схемы узла

3 схемы

Детали

22 детали
  • 4F1820043AH Предложения

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic lhd PR:4A0 1

  • 4F2820043R1HA Предложения

    [Name]

    Pearl grey metallic

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    8E0972416A Flat contact housing with contact locking mechanism 16 pin 1

    brown

    Cable outl.: vertical

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    1J0972753 Flat contact housing 3 pin 1

  • 4F1820043AH1HA Предложения

    [Name]

    Pearl grey metallic

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    8E0972416A Flat contact housing with contact locking mechanism 16 pin 1

    brown

    Cable outl.: vertical

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    1J0972753 Flat contact housing 3 pin 1

  • 4F2820043PH77 Предложения

    [Name]

    Nero (black)

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    8E0972416A Flat contact housing with contact locking mechanism 16 pin 1

    brown

    Cable outl.: vertical

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    1J0972753 Flat contact housing 3 pin 1

  • 4F2820043P Предложения

    [Name] [Note] [Model info] [QTY]

    Display and control panel with CU for electronically controlled air-conditioning rhd PR:4A0 1

  • 4F2820043P Предложения

    [Name] [Note] [Model info] [QTY]

    Display and control panel with CU for electronically controlled air-conditioning rhd S6+PR:4A0 1

  • 4F2820043R Предложения

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic rhd PR:4A0 1

  • 4F1820043AFH77 Предложения

    [Name]

    Nero (black)

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    8E0972416A Flat contact housing with contact locking mechanism 16 pin 1

    brown

    Cable outl.: vertical

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    1J0972753 Flat contact housing 3 pin 1

  • 4F1820043AF Предложения

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic lhd PR:4A0 1

  • 4F1820043AF Предложения

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic lhd S6+PR:4A0 1

  • 4F2820043S1HA Предложения

    [Name]

    Pearl grey metallic

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    8E0972416A Flat contact housing with contact locking mechanism 16 pin 1

    brown

    Cable outl.: vertical

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    1J0972753 Flat contact housing 3 pin 1

  • 4F2820043QH77 Предложения

    [Name]

    Nero (black)

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    8E0972416A Flat contact housing with contact locking mechanism 16 pin 1

    brown

    Cable outl.: vertical

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    1J0972753 Flat contact housing 3 pin 1

  • 4F2820043Q Предложения

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic rhd PR:4A3,4A4 1

    for models with seat heating

  • 4F2820043Q Предложения

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic rhd S6+PR:4A3, 1

    4A4

    for models with seat heating

  • 4F1820043AJ1HA Предложения

    [Name]

    Pearl grey metallic

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    8E0972416A Flat contact housing with contact locking mechanism 16 pin 1

    brown

    Cable outl.: vertical

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    1J0972753 Flat contact housing 3 pin 1

  • 4F2820043S Предложения

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic rhd PR:4A3,4A4 1

    for models with seat heating

  • 4F1820043AGH77 Предложения

    [Name]

    Nero (black)

    mating connector

    8E0972112 Flat contact housing with contact locking mechanism 12 pin 1

    black

    8E0972420 Flat contact housing with contact locking mechanism 20 pin 1

    red

    8E0972416A Flat contact housing with contact locking mechanism 16 pin 1

    brown

    Cable outl.: vertical

    4A0972883C Flat contact housing with contact locking mechanism 16 pin 1

    1J0972753 Flat contact housing 3 pin 1

  • 4F1820043AG Предложения

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic lhd PR:4A3,4A4 1

    for models with seat heating

  • 4F1820043AG Предложения

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic lhd S6+PR:4A3, 1

    4A4

    for models with seat heating

  • 4F1820043AJ Предложения

    [Name] [Note] [Model info] [QTY]

    Control and display panel for air-conditioning system Climatronic lhd PR:4A3,4A4 1

    for models with seat heating

  • 4B0820059A Предложения

    [Name] [Note] [QTY]

    Ventilation and exhaust motor 4 pin 1

    Included in position: 1,2

  • N90729002 Предложения

    [Name] [Note] [QTY]

    fillister head bolt (combi.) M5X16 2

    Included in position: 1,2
