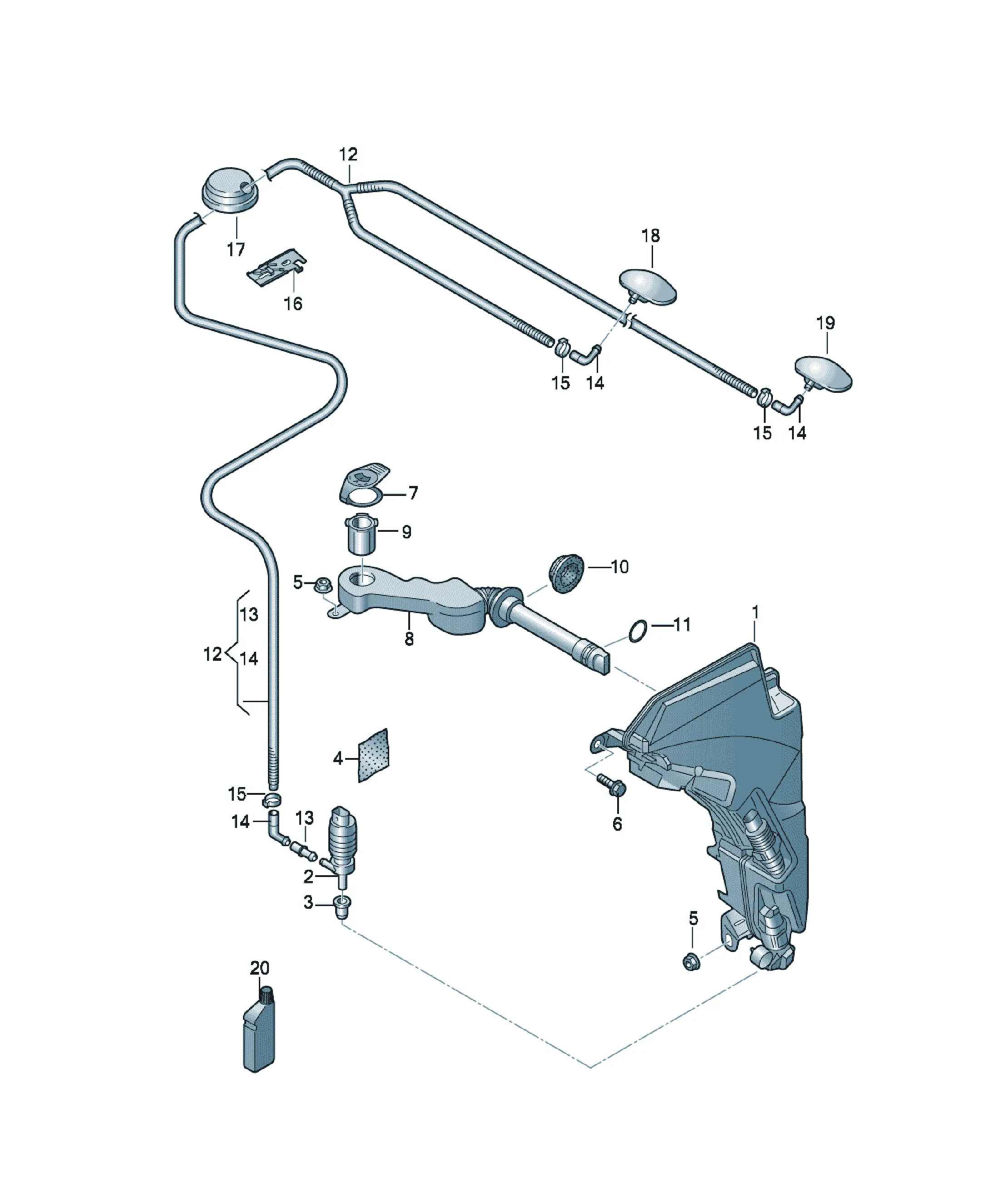

Система стеклоомывателя

[Name] [Note] [QTY]

Spray nozzle, heated right 1

(for modified vehicles) 3 point

mating connector

8E0973202 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Seal 1

[Name] [QTY]

Bungs 1

[Name] [QTY]

seal ring 1

[Name] [Model info] [QTY]

Bungs PR:9Q3 1

[Name] [Model info] [QTY]

Water level switch PR:9Q2,9Q4 1

mating connector

7M0973202 Flat contact housing with contact locking mechanism 2 pin 1

1J0973202 Flat contact housing with contact locking mechanism 2 pin 1

[Name] [Note] [QTY]

Spray nozzle, heated left 1

(for modified vehicles) 3 point

mating connector

8E0973202 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

Retrofit kit washer jets 3 point 1

repair set

8J0955987G Spray nozzle, heated left 1

8J0955988G Spray nozzle, heated right 1

8E0955431 Adapter 2

Water jet

For vehicles with bonnet steel

4F0955431 Adapter 2

Water jet

For vehicles with bonnet aluminium

4F0012381 fitting instructions 1

[Name] [Note] [QTY]

Adapter

Water jet

F >> 4F-7-113 950* 2

for serv. install. use: 8J0 955 987 G 1

8J0 955 988 G 1

Accompanying details: 8J0955987G; 8J0955988G

[Name] [Note] [QTY]

Wash water reservoir

use if required: 431 955 465 A

444 955 647

7M0 919 382

8E0 955 465 A

F 4F-5-095 001>>* 1

Accompanying details: 431955465A; 444955647; 7M0919382; 8E0955465A

[Name] [QTY]

Grommet

F 4F-5-095 001>>* 1

[Name] [QTY]

Seal

F 4F-5-095 001>>* 1

[Name] [QTY]

Connecting pipe 1

[Name] [QTY]

Connection piece 1

[Name] [QTY]

Elbow fitting 3

[Name] [Note] [QTY]

Cable ties 3,6X246 X

Replacements: N 10647801

[Name] [QTY]

Hose bracket 1

[Name] [QTY]

Grommet 1

[Name] [Note] [QTY]

Spray nozzle, heated right

F >> 4F-7-113 950* 2 point 1

[Name] [Note] [QTY]

Spray nozzle, heated left

F >> 4F-7-113 950* 2 point 1

[Name] [Model info] [QTY]

Windscreen washer system pump AVANT 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

8P0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Model info] [QTY]

Windscreen washer system pump sedan 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

8P0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

Seal 12X6,5 1

[Name] [Note] [QTY]

intermediate layer 130X165 *

modify in workshop

[Name] [Note] [QTY]

hex. nut with washer M6 4

[Name] [Note] [QTY]

Hex collared bolt M6X25 1

[Name] [QTY]

End cap 1

[Name] [Note] [QTY]

Fluid reservoir upper

F 4F-5-095 001>>* 1

[Name] [QTY]

strainer 1
