Генератор

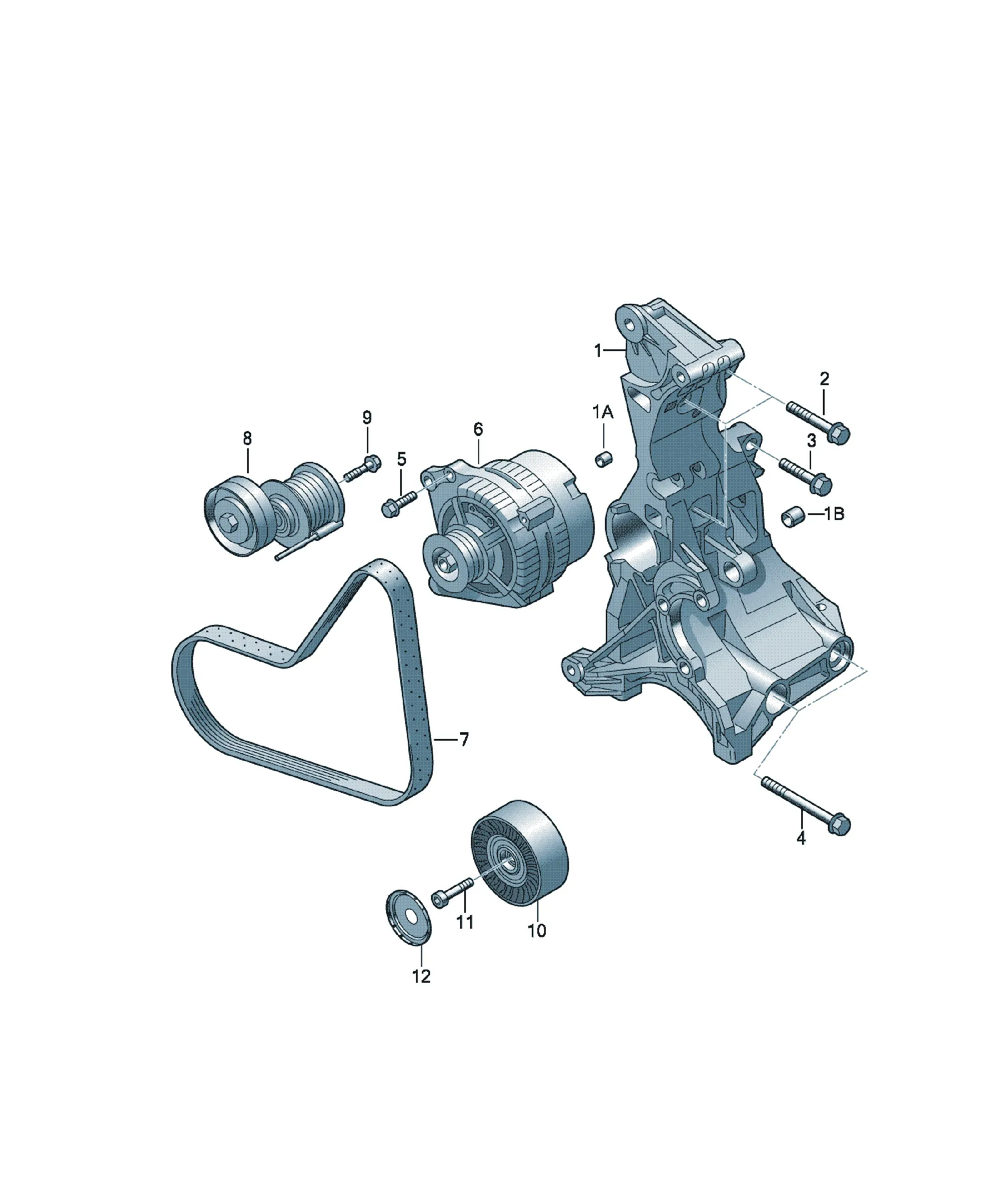

Привод генератора

Схемы узла

6 схем

13 деталей

03G903139D Предложения

[Name] [QTY]
bracket for alternator and refrigerant compressor 1
03G145276A Предложения

[Name] [QTY]
idler pulley 1
N10651701 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X45 1
038103139A Предложения

[Name] [Note] [QTY]
dowel sleeve 13,5X12,5 1
068903147H Предложения

[Name] [Note] [QTY]
bush 8,4X18X19,5 1
N10699601 Предложения

[Name] [Note] [QTY]
bolt,hex.hd.with shoul.(combi) M10X60 3
N10241605 Предложения

[Name] [Note] [QTY]
Hex collared bolt M10X45 1
N10763801 Предложения

[Name] [Note] [QTY]
Hex collared bolt M10X155X90 2
N10610001 Предложения

[Name] [Note] [QTY]
Hex collared bolt M8X90 2
[Name] [Note]
Alternator
see illustration, item: 903-000,1
03G903137E Предложения

[Name] [Note] [QTY]
Poly-V-belt 21,18X1613MM 1
038903315AN Предложения

[Name] [QTY]
tensioner 1
N0195433 Предложения

[Name] [Note] [QTY]
Hex collared bolt M8X50 1
