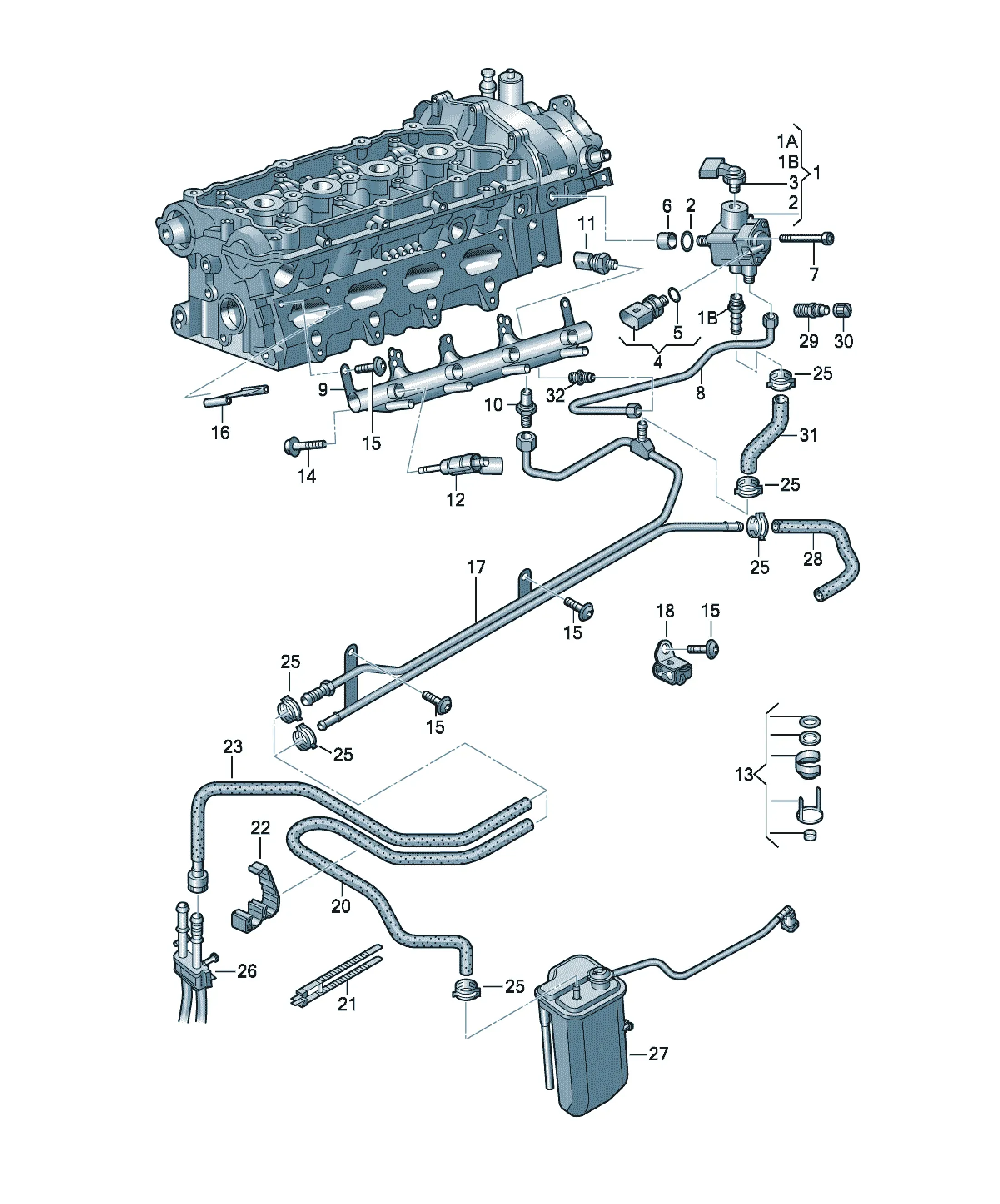

Топливная система высокого давления

[Name] [QTY]

Fuel pump 1

Replacements: 06F127025M

mating connector

4D0971992A Flat connector housing with contact locking mechanism 2 pin 1

black/blue

[Name] [Model info] [QTY]

Fuel pump "CN." 1

Replacements: 06F127025M

[Name] [QTY]

Pressure relief valve 1

[Name] [QTY]

Pressure sensor

F >> 4F-7-029 500* 1

Replacements: 06H906051A

mating connector

4D0971993 Flat connector housing with contact locking mechanism 3 pin 1

black

[Name] [Model info] [QTY]

Pressure sensor "ROK" 1

Replacements: 06J906051D

mating connector

4D0971993 Flat connector housing with contact locking mechanism 3 pin 1

black

[Name] [Note] [QTY]

Injection valve 4

use if required: 06D 998 907 X

Accompanying details: 06D998907

mating connector

4D0971992 Flat connector housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

repair kit for valve unit 4

repair set

06D133036D Support element 1

06E906189 Intermediate ring 1

06D998907A repair kit for valve unit 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X65 X

[Name] [Note] [QTY]

Flat head bolt with hexagon socket head, thread forming M6X16-R X

[Name] [Note]

see illustration: 103-045

Use item: 19

[Name] [QTY]

Fuel line 1

[Name] [QTY]

Retaining clip 1

[Name] [QTY]

Connector union 1

[Name] [Note] [QTY]

O-ring 31,5X2 1

Replacements: WHT005184

[Name] [QTY]

Activated charcoal container 1

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [Note] [QTY]

Retainer for fuel line 2 point 1

[Name] [Note] [QTY]

Fuel line feed 1

[Name] [Note] [QTY]

Spring band clamp 14,5X12 X

[Name] [Note]

see illustration: 201-035

Use item: 8

[Name] [Note]

see illustration: 201-090

Use item: 1

[Name] [Note]

see illustration: 133-022

Use item: 26

[Name] [QTY]

Breather valve 1

[Name]

No replacement part

[Name] [Note] [QTY]

Cap closure 8,9MM 1

[Name] [QTY]

Fuel hose 1

[Name] [QTY]

Adapter 1

[Name] [QTY]

Low-pressure sensor 1

mating connector

3B0973703G Flat contact housing with contact locking mechanism 3 pin 1

Grey

[Name] [Note] [QTY]

O-ring 8,2X1,5 1

[Name] [QTY]

Tappets 1

Replacements: 06D109309J

[Name] [Note] [QTY]

Socket head bolt M6X60 3

[Name] [QTY]

Fuel line 1

[Name] [QTY]

Fuel rail 1
