Кольцо синхронизатора

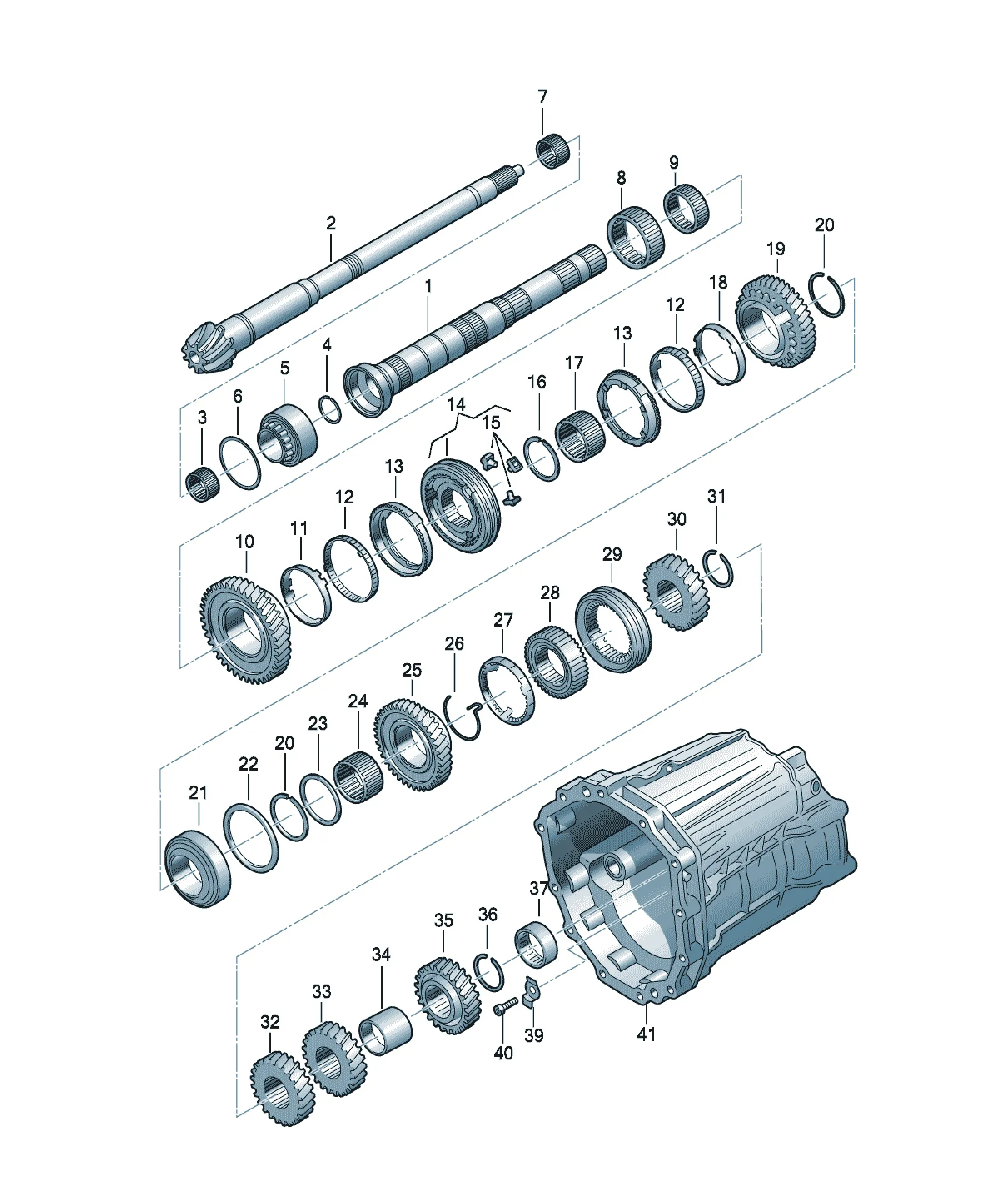

Выходной вал КПП

Схемы узла

6 схем

Детали

126 деталей

02X311925B Предложения

[Name] [QTY]
Hollow output shaft 1
02X311250G Предложения

[Name] [Note] [Model info] [QTY]
change gear 1.gear GMV 1
Z=33/10
02X311250F Предложения

[Name] [Note] [Model info] [QTY]
change gear 1.gear HGV 1
Z=33/9
01X311277G Предложения

[Name] [Note] [QTY]
inner ring 1.gear 1
01X311259G Предложения

[Name] [QTY]
Intermediate ring 2
01X311247P Предложения

[Name] [Note] [QTY]
synchronizer ring 1./2.gear 2
Replacements: 0B1311247B
01X311239B Предложения

[Name] [Note] [QTY]
synchronizing hub with locking collar 1./2.gear 1
Replacements: 01X311239C
01X311314B Предложения

[Name] [QTY]
thrust piece 3
01X311287H Предложения

[Name] [Note] [QTY]
Securing ring 47X2,14 X
01X311287C Предложения

[Name] [Note] [QTY]
Securing ring 47X1,99 X
01X311287F Предложения

[Name] [Note] [QTY]
Securing ring 47X2,08 X
01X311287G Предложения

[Name] [Note] [QTY]
Securing ring 47X2,11 X
01X311287 Предложения

[Name] [Note] [QTY]
Securing ring 47X1,9 X
01X311287A Предложения

[Name] [Note] [QTY]
Securing ring 47X1,93 X
01X311287B Предложения

[Name] [Note] [QTY]
Securing ring 47X1,96 X
01X311287D Предложения

[Name] [Note] [QTY]
Securing ring 47X2,02 X
01X311287E Предложения

[Name] [Note] [QTY]
Securing ring 47X2,05 X
01X311287J Предложения

[Name] [Note] [QTY]
Securing ring 47X2,17 X
01X311229 Предложения

[Name] [Note] [QTY]
needle bearing - 2.gear 1
47X52X29
01X311277B Предложения

[Name] [Note] [QTY]
inner ring 2.gear 1
Replacements: 0B1311277
01X311260D Предложения

[Name] [Note] [Model info] [QTY]
change gear 2.gear HGV 1
Z=39/19
Replacements: 01X311260E
012311260K Предложения

[Name] [Note] [Model info] [QTY]
change gear 2.gear GMV 1
Z=37/20
Replacements: 012311260N
[Name] [Note]
Output shaft
see illustration: 409-030
01X311321A Предложения

[Name] [Note] [QTY]
Securing ring 47X3,5 2
01X311211D Предложения

[Name] [Note] [QTY]
Taper roller bearing 46,97X85X28,5 1
01X311393AD Предложения

[Name] [Note] [QTY]
adjusting washer 1,29 X
01X311393P Предложения

[Name] [Note] [QTY]
adjusting washer 0,97 X
01X311393AA Предложения

[Name] [Note] [QTY]
adjusting washer 1,17 X
01X311393S Предложения

[Name] [Note] [QTY]
adjusting washer 1,09 X
01X311393R Предложения

[Name] [Note] [QTY]
adjusting washer 1,05 X
01X311393AB Предложения

[Name] [Note] [QTY]
adjusting washer 1,21 X
01X311393L Предложения

[Name] [Note] [QTY]
adjusting washer 0,85 X
01X311393K Предложения

[Name] [Note] [QTY]
adjusting washer 0,81 X
01X311393J Предложения

[Name] [Note] [QTY]
adjusting washer 0,77 X
01X311393H Предложения

[Name] [Note] [QTY]
adjusting washer 0,73 X
01X311393G Предложения

[Name] [Note] [QTY]
adjusting washer 0,69 X
01X311393T Предложения

[Name] [Note] [QTY]
adjusting washer 1,13 X
01X311393AC Предложения

[Name] [Note] [QTY]
adjusting washer 1,25 X
01X311393F Предложения

[Name] [Note] [QTY]
adjusting washer 0,65 X
01X311393E Предложения

[Name] [Note] [QTY]
adjusting washer 0,61 X
01X311393AS Предложения

[Name] [Note] [QTY]
adjusting washer 0,37 X
01X311393C Предложения

[Name] [Note] [QTY]
adjusting washer 0,53 X
01X311393B Предложения

[Name] [Note] [QTY]
adjusting washer 0,49 X
01X311393AR Предложения

[Name] [Note] [QTY]
adjusting washer 0,41 X
01X311393M Предложения

[Name] [Note] [QTY]
adjusting washer 0,89 X
01X311393AT Предложения

[Name] [Note] [QTY]
adjusting washer 0,33 X
01X311393D Предложения

[Name] [Note] [QTY]
adjusting washer 0,57 X
01X311393N Предложения

[Name] [Note] [QTY]
adjusting washer 0,93 X
01X311393A Предложения

[Name] [Note] [QTY]
adjusting washer 0,45 X
01X311393Q Предложения

[Name] [Note] [QTY]
adjusting washer 1,01 X
01X311393AJ Предложения

[Name] [Note] [QTY]
adjusting washer 1,49 X
01X311393AH Предложения

[Name] [Note] [QTY]
adjusting washer 1,45 X
01X311393AG Предложения

[Name] [Note] [QTY]
adjusting washer 1,41 X
01X311393AF Предложения

[Name] [Note] [QTY]
adjusting washer 1,37 X
01X311393AE Предложения

[Name] [Note] [QTY]
adjusting washer 1,33 X
WHT000064 Предложения

[Name] [Note] [QTY]
thrust washer 46,9X62X5 1
01X311116 Предложения

[Name] [Note] [QTY]
needle bearing - Reverse gear 1
46,8X51,8X26,6
01X311217 Предложения

[Name] [Note] [QTY]
sliding wheel for reverse gear Z=34 1
012311311D Предложения

[Name] [Note] [QTY]
Spring Reverse gear 1
01X311763E Предложения

[Name] [Note] [QTY]
synchronizer ring Reverse gear 1
Replacements: 01X311763F
01X311762C Предложения

[Name] [Note] [QTY]
synchronizing hub Reverse gear 1
01X311764B Предложения

[Name] [Note] [QTY]
Sliding sleeve Reverse gear 1
Replacements: 0B1311764A
01A311931 Предложения

[Name] [Note] [QTY]
needle bearing - 25X30X17 1
01X311285C Предложения

[Name] [Note] [Model info] [QTY]
gear 3.gear GMV 1
Z=36/28
01X311285A Предложения

[Name] [Note] [Model info] [QTY]
gear 3.gear HGV 1
Z=37/27
01X311317E Предложения

[Name] [Note] [QTY]
Securing ring 44,5X2,10 X
01X311317A Предложения

[Name] [Note] [QTY]
Securing ring 44,5X1,94 X
01X311317 Предложения

[Name] [Note] [QTY]
Securing ring 44,5X1,9 X
01X311317C Предложения

[Name] [Note] [QTY]
Securing ring 44,5X2,02 X
01X311317B Предложения

[Name] [Note] [QTY]
Securing ring 44,5X1,98 X
01X311317D Предложения

[Name] [Note] [QTY]
Securing ring 44,5X2,06 X
01X311351C Предложения

[Name] [Note] [Model info] [QTY]
gear 4-speed HGV 1
Z=32/31
01X311351G Предложения

[Name] [Note] [Model info] [QTY]
gear 4-speed GMV 1
Z=31/33
01X311361E Предложения

[Name] [Note] [Model info] [QTY]
gear 5-speed GMV 1
Z=27/36
01X311361A Предложения

[Name] [Note] [Model info] [QTY]
gear 5-speed HGV 1
Z=27/36
01X311230 Предложения

[Name] [QTY]
spacer bush 1
01X311389D Предложения

[Name] [Note] [Model info] [QTY]
gear 6th gear GMV 1
Z=25/39
01X311389A Предложения

[Name] [Note] [Model info] [QTY]
gear 6th gear HGV 1
Z=25/38
01X311344A Предложения

[Name] [Note] [QTY]
Securing ring 35,5X1,93 X
01X311344 Предложения

[Name] [Note] [QTY]
Securing ring 35,5X1,9 X
01X311344C Предложения

[Name] [Note] [QTY]
Securing ring 35,5X1,99 X
01X311344D Предложения

[Name] [Note] [QTY]
Securing ring 35,5X2,02 X
01X311344E Предложения

[Name] [Note] [QTY]
Securing ring 35,5X2,05 X
01X311344B Предложения

[Name] [Note] [QTY]
Securing ring 35,5X1,96 X
01X311344G Предложения

[Name] [Note] [QTY]
Securing ring 35,5X2,11 X
01X311344H Предложения

[Name] [Note] [QTY]
Securing ring 35,5X2,14 X
01X311344J Предложения

[Name] [Note] [QTY]
Securing ring 35,5X2,17 X
01X311344F Предложения

[Name] [Note] [QTY]
Securing ring 35,5X2,08 X
01X311344K Предложения

[Name] [Note] [QTY]
Securing ring 35,5X2,20 X
01X311429 Предложения

[Name] [Note] [QTY]
roller sleeve 35,5X50,5X17 1
[Name] [Note]
Retaining plate
see illustration: 301-070
01X311231A Предложения

[Name] [Note] [QTY]
Securing ring A36X2,03 X
01X311231C Предложения

[Name] [Note] [QTY]
Securing ring A36X2,09 X
01X311231B Предложения

[Name] [Note] [QTY]
Securing ring A36X2,06 X
01X311231 Предложения

[Name] [Note] [QTY]
Securing ring A36X2 X
01X311231E Предложения

[Name] [Note] [QTY]
Securing ring A36X2,15 X
01X311231D Предложения

[Name] [Note] [QTY]
Securing ring A36X2,12 X
[Name] [Note]
Hexagon socket head bolt
see illustration: 301-070
[Name] [Note]
Transmission housing cover
see illustration: 301-070
02X311220 Предложения

[Name] [Note] [QTY]
Taper roller bearing 36X90X35,5 1
01X311391E Предложения

[Name] [Note] [QTY]
adjusting washer 1,01 X
01X311391P Предложения

[Name] [Note] [QTY]
adjusting washer 1,37 X
01X311391N Предложения

[Name] [Note] [QTY]
adjusting washer 1,33 X
01X311391M Предложения

[Name] [Note] [QTY]
adjusting washer 1,29 X
01X311391G Предложения

[Name] [Note] [QTY]
adjusting washer 1,09 X
01X311391J Предложения

[Name] [Note] [QTY]
adjusting washer 1,17 X
01X311391Q Предложения

[Name] [Note] [QTY]
adjusting washer 1,41 X
01X311391AD Предложения

[Name] [Note] [QTY]
adjusting washer 0,73 X
01X311391AE Предложения

[Name] [Note] [QTY]
adjusting washer 0,69 X
01X311391AF Предложения

[Name] [Note] [QTY]
adjusting washer 0.65 X
01X311391AH Предложения

[Name] [Note] [QTY]
adjusting washer 0,57 X
01X311391AJ Предложения

[Name] [Note] [QTY]
adjusting washer 0,53 X
01X311391K Предложения

[Name] [Note] [QTY]
adjusting washer 1,21 X
01X311391L Предложения

[Name] [Note] [QTY]
adjusting washer 1,25 X
01X311391AC Предложения

[Name] [Note] [QTY]
adjusting washer 0,77 X
01X311391AB Предложения

[Name] [Note] [QTY]
adjusting washer 0,81 X
01X311391B Предложения

[Name] [Note] [QTY]
adjusting washer 0,89 X
01X311391C Предложения

[Name] [Note] [QTY]
adjusting washer 0,93 X
01X311391D Предложения

[Name] [Note] [QTY]
adjusting washer 0,97 X
01X311391A Предложения

[Name] [Note] [QTY]
adjusting washer 0.85 X
01X311391F Предложения

[Name] [Note] [QTY]
adjusting washer 1,05 X
01X311391H Предложения

[Name] [Note] [QTY]
adjusting washer 1,13 X
01X311391AG Предложения

[Name] [Note] [QTY]
adjusting washer 0,61 X
01T331229A Предложения

[Name] [Note] [QTY]
needle bearing - 22X26X12,8 1
01A311325A Предложения

[Name] [Note] [QTY]
needle bearing - 1.gear 1
75X80X14
01A311207C Предложения

[Name] [Note] [QTY]
needle bearing - 1.gear 1
48,5X53,5X14
