Компрессор

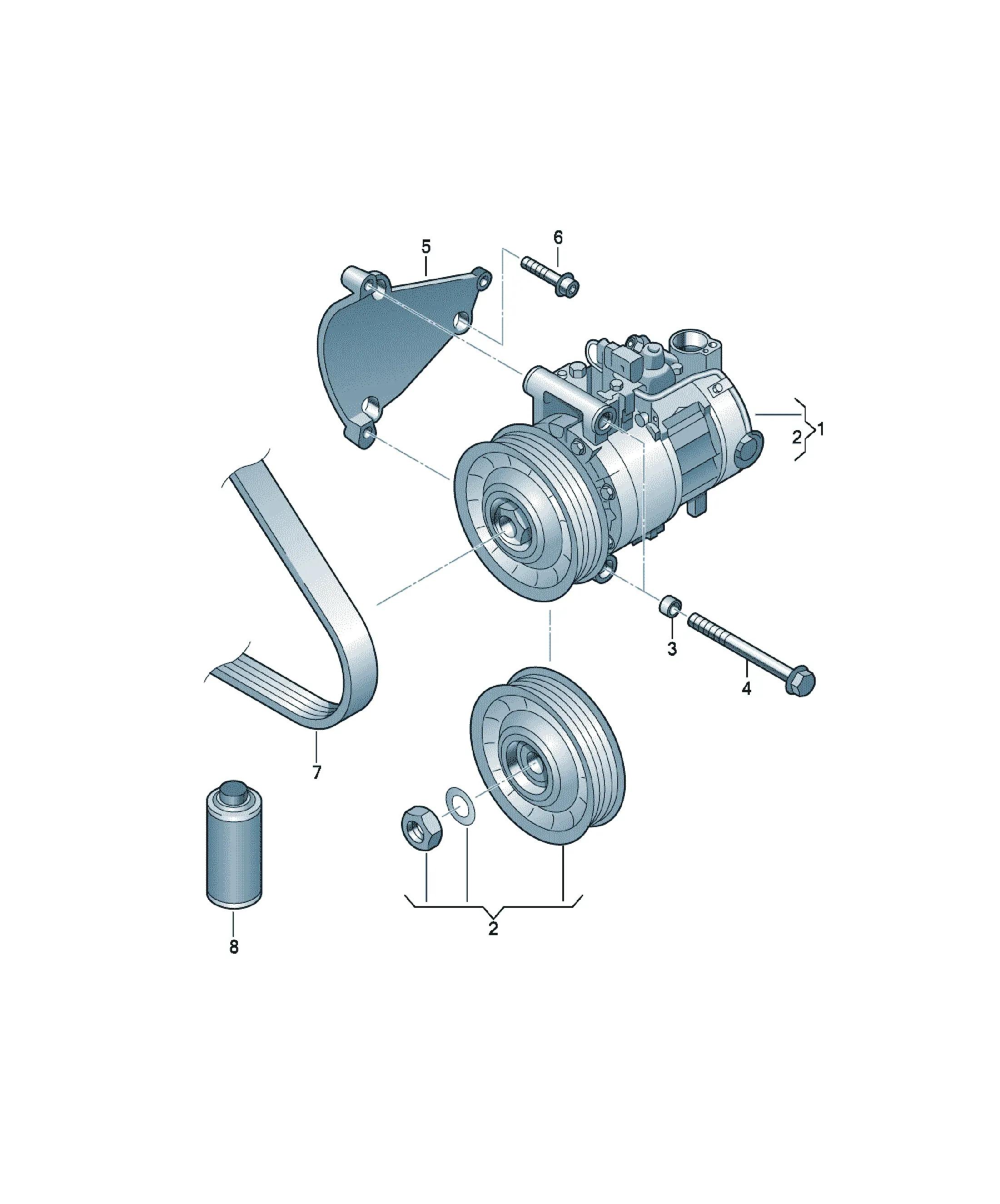

Компрессор кондиционера

Схемы узла

4 схемы

16 деталей

4F0260805AF Предложения

[Name] [Note] [QTY]
A/C compressor DENSO 1
4F0260805Q Предложения

[Name] [Note] [QTY]
A/C compressor DENSO 1
8E0260810A Предложения

[Name] [Note] [QTY]
pulley DENSO 1
4F0260810K Предложения

[Name] [Note] [QTY]
pulley DENSO 1
For A/C compressor
only to be used for: 4F0 260 805 K
8E0260810A Предложения

[Name] [Note] [QTY]
pulley DENSO 1
For A/C compressor
only to be used for: 4F0 260 805 AB
4F0 260 805 AF
4F0260810K Предложения

[Name] [Note] [QTY]
pulley DENSO 1
For A/C compressor
07K260817 Предложения

[Name] [Note] [QTY]
Centre sleeve 11,15X6,5 2
Replacements: 03L260817
N10636501 Предложения

[Name] [Note] [QTY]
bolt,hex.hd.with shoul.(combi) M8X90 3
06E260835C Предложения

[Name] [QTY]
Bracket for compressor 1
06C260835B Предложения

[Name] [QTY]
Bracket for compressor 1
N91084201 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head (Kombi) M8X25 4
N91026602 Предложения

[Name] [Note] [QTY]
Oval head locating bolt with multi-point socket head M8X35 3
N91084201 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head (Kombi) M8X25 1
[Name] [Note] [QTY]
v-belt
see illustration: 903-095 1
[Name] [Note] [QTY]
v-belt 1
see illustration: 903-095
G052300A2 Предложения

[Name] [Note] [QTY]
Coolant compressor oil 250ML 1
