Коробка предохранителей

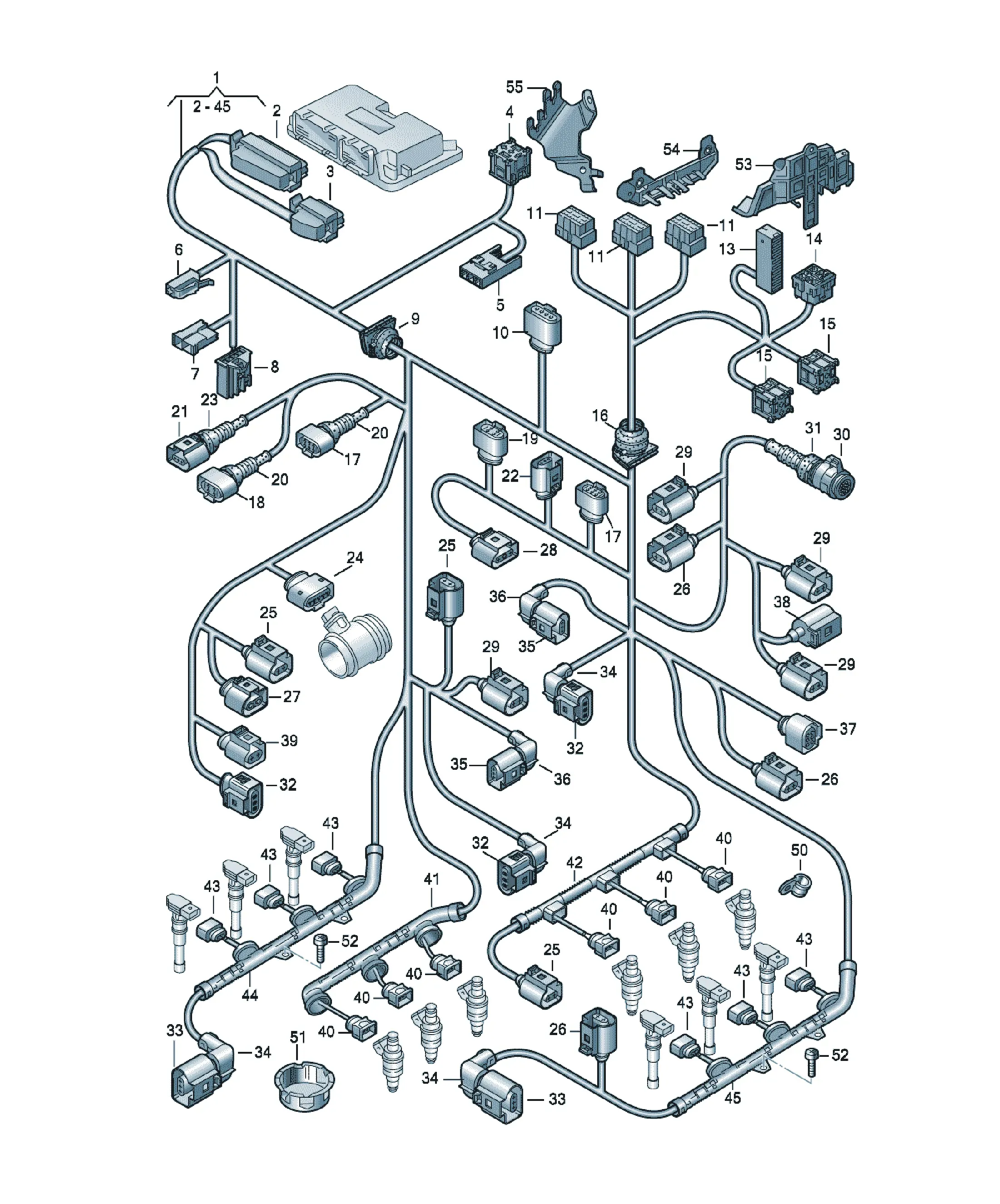

Жгут проводов моторного отсека

Схемы узла

16 схем

Детали

97 деталей

* Corrug. tubes, T-pieces, * clips, holders, grommets, * cable ties, insulating * hose, wiring, * single wires and seals * see special catalogue: * ELECTRICAL * CONNECTING ELEMENTS

[Name]
* Corrug. tubes, T-pieces, * clips, holders, grommets, * cable ties, insulating * hose, wiring, * single wires and seals * see special catalogue: * ELECTRICAL * CONNECTING ELEMENTS
------------------------------
Wiring duct
4F0971824H Предложения

[Name] [QTY]
Cable guide 1
water box
12-point socket head bolt (combi)
N91057302 Предложения

[Name] [Note] [QTY]
12-point socket head bolt (combi) M6X16/M6X10 1
Гайка пластиковая
171201969 Предложения

[Name] [Note] [QTY]
Hexagon collar nut 5 2
Cable holder
water box
4F1971072FJ Предложения

[Name] [Note] [Model info] [QTY]
harness for engine compartment lhd manual gearbox 1
4F1971072FK Предложения

[Name] [Note] [Model info] [QTY]
harness for engine compartment lhd Automatic infin. gears 1
4F2971072EM Предложения

[Name] [Note] [Model info] [QTY]
harness for engine compartment rhd manual gearbox 1
4F2971072EN Предложения

[Name] [Note] [Model info] [QTY]
harness for engine compartment rhd Automatic infin. gears 1
4F1971072AC Предложения

[Name] [Note] [Model info] [QTY]
harness for engine compartment lhd Automatic infin. gears 1
4F1971072AB Предложения

[Name] [Note] [Model info] [QTY]
harness for engine compartment lhd manual gearbox 1
4F2971072M Предложения

[Name] [Note] [Model info] [QTY]
harness for engine compartment rhd manual gearbox 1
4F2971072N Предложения

[Name] [Note] [Model info] [QTY]
harness for engine compartment rhd Automatic infin. gears 1
4F2971072BN Предложения

[Name] [Note] [Model info] [QTY]
harness for engine compartment rhd Automatic infin. gears 1
4F2971072BQ Предложения

[Name] [Note] [Model info] [QTY]
harness for engine compartment rhd automatic 1
4F1971072CD Предложения

[Name] [Note] [Model info] [QTY]
harness for engine compartment lhd Automatic infin. gears 1
4F1971072CF Предложения

[Name] [Note] [Model info] [QTY]
harness for engine compartment lhd automatic 1
1J0973704 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 4 pin 1
Connection piece
Pressure difference sender
Intake manifold
mating connector
1K0973804 Flat contact housing with contact locking mechanism 4 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
1J0973704 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 4 pin 1
Connection piece
sensor for brake servo
mating connector
1K0973804 Flat contact housing with contact locking mechanism 4 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
4F0972483 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 17-pin 2
black
also to be used for: white
Coupling element
wiring harness for interior
mating connector
4F0972575 Flat connector housing with contact locking mechanism 17-pin 1
black
also to be used for: white
dark brown
khaki grey
counterpart to: 4F0 972 483
4F0972575N Flat connector housing with contact locking mechanism 17-pin 1
Assoc. part -> -> -> -> -> -> khaki grey
Possible single wire:
000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 4,8-6,3MM
000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
flat contact with retaining lug 4,8-6,3MM
000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 2,8
000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 2,8
000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+105C
flat contact with retaining lug 4,8-6,3MM
000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X
-40C/+105C
flat contact with retaining lug 4,8-6,3MM
000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 2,8
000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact with retaining lug 4,8-6,3MM
000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X
-40C/+105C
flat contact with retaining lug 4,8-6,3MM
4F0972483B Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 17-pin 1
red
Coupling element
wiring harness for interior
mating connector
4F0972575B Flat connector housing with contact locking mechanism 17-pin 1
red
also to be used for: Grey
light-green
Possible single wire:
000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 4,8-6,3MM
000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
flat contact with retaining lug 4,8-6,3MM
000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 2,8
000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 2,8
000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+105C
flat contact with retaining lug 4,8-6,3MM
000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X
-40C/+105C
flat contact with retaining lug 4,8-6,3MM
000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 2,8
000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact with retaining lug 4,8-6,3MM
000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X
-40C/+105C
flat contact with retaining lug 4,8-6,3MM
4D0937501 Предложения

[Name] [Note] [QTY]
fuse holder 10 pin 1
Radiator fan
8E0937527 Предложения

[Name] [Note] [QTY]
Adapter 10 pin 1
dual small relay plate black
Additional coolant pump
Possible single wire:
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979144E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0
flat connector/sleeve with retaining lug 6,3
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
000979236E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat connector/sleeve with retaining lug 6,3
8E0937527 Предложения

[Name] [Note] [QTY]
Adapter 10 pin 1
dual small relay plate black
Additional coolant pump
Brake servo
Possible single wire:
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979144E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0
flat connector/sleeve with retaining lug 6,3
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
000979236E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat connector/sleeve with retaining lug 6,3
4B0937527 Предложения

[Name] [Note] [QTY]
relay plate 6 pin 2
Possible single wire:
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979144E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat connector/sleeve with retaining lug 1,0
6,3
000979236E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat connector/sleeve with retaining lug 6,3
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979405E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat connector/sleeve with retaining lug 6,3
000979411E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat contact 9,5
000979500AG Single lead with 1 contact in the bag 1500MM X
-40C/+105C
with cable crosssection: 10QMM
Cable colour: yellow
single wiring seal 3B0 972 744 A
000979500AH Single lead with 1 contact in the bag 1500MM X
-40C/+105C
with cable crosssection: 10QMM
Cable colour: yellow
000979500AJ Single lead with 1 silver- plated contact in the bag 1500MM X
-40C/+105C
with cable crosssection: 10QMM
Cable colour: yellow
single wiring seal 3B0 972 744 A
4B0937527 Предложения

[Name] [Note] [QTY]
relay plate 6 pin
F >> 4F-7-200 000 2
Possible single wire:
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979144E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat connector/sleeve with retaining lug 1,0
6,3
000979236E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat connector/sleeve with retaining lug 6,3
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979405E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat connector/sleeve with retaining lug 6,3
000979411E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat contact 9,5
000979500AG Single lead with 1 contact in the bag 1500MM X
-40C/+105C
with cable crosssection: 10QMM
Cable colour: yellow
single wiring seal 3B0 972 744 A
000979500AH Single lead with 1 contact in the bag 1500MM X
-40C/+105C
with cable crosssection: 10QMM
Cable colour: yellow
000979500AJ Single lead with 1 silver- plated contact in the bag 1500MM X
-40C/+105C
with cable crosssection: 10QMM
Cable colour: yellow
single wiring seal 3B0 972 744 A
4F0971871A Предложения

[Name] [Note] [QTY]
Grommet lhd 1
relay box
4F0971871B Предложения

[Name] [Note] [QTY]
Grommet rhd 1
relay box
1J0973733 Предложения

[Name] [Note] [QTY]
Flat contact housing 6 pin 2
Connection piece black
Lambda probe
(in front of catalyst)
mating connector
1J0973833 Flat contact housing 6 pin 1
black
Possible single wire:
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
1J0973713 Предложения

[Name] [Note] [QTY]
Flat contact housing 6 pin 2
Connection piece black
Lambda probe
(in front of catalyst)
mating connector
3B0973813 Flat connector housing with contact locking mechanism 6 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0973704 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 4 pin 1
green
Connection piece
Lambda probe
(behind catalyst)
mating connector
1K0973804 Flat contact housing with contact locking mechanism 4 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
3D0973724F Предложения

[Name] [Note] [QTY]
Flat contact housing 4 pin 1
Connection piece green
Lambda probe
(behind catalyst)
mating connector
3D0973824F Flat contact housing 4 pin 1
green
Possible single wire:
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
6Q0973704A Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 4 pin 1
brown
Connection piece
Lambda probe
(behind catalyst)
mating connector
1K0973804A Flat contact housing with contact locking mechanism 4 pin 1
dark brown
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0973724A Предложения

[Name] [Note] [QTY]
Flat contact housing 4 pin 1
Connection piece brown
Lambda probe
(behind catalyst)
mating connector
1J0973824A Flat contact housing 4 pin 1
brown
Possible single wire:
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
7L0906385A Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 94-pin 1
Connection piece
Engine control unit
Possible single wire:
000979030E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 0,63
000979166E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,75
flat contact with retaining lug 0,63
000979166EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,75
flat contact with retaining lug 0,63
000979246E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,5
flat contact 1,5
000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 2,8
000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 2,8
000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 2,8
7L0971904 Sealing pin 1,5 X
7L0971904A Sealing pin 0,63 X
8K0971904 Sealing pin 0,63 X
1J0906385C Предложения

[Name] [Note] [QTY]
flat contact housing with cap 81-pin 1
Connection piece
Engine control unit
Possible single wire:
000979018E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat connector/sleeve with retaining lug 0,63
000979018EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
000098670 adapter aerial wire 300MM 1
Control unit for central locking with remote control
3B7906102 Предложения

[Name] [QTY]
Grommet 2
Connection piece
Lambda probe
443906102G Предложения

[Name] [Note] [QTY]
Grommet 13,5X19 2
Connection piece
Lambda probe
1J0973703B Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 3 pin 1
black
Connection piece
Knock sensor cylinders 1-3
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
3B0973703G Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 3 pin 1
Grey
Connection piece
Knock sensor cylinders 4-6
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
3B0973703A Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 3 pin 1
brown
only to be used for: blue
Connection piece
Knock sensor cylinders 4-6
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
6N0906102 Предложения

[Name] [Note] [QTY]
Grommet 11,9X53 1
Connection piece
Knock sensor
1J0973705 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 5 pin 1
Connection piece
Air mass meter
mating connector
6N0973805 Flat contact housing 5 pin 1
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0973722 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin X
black
Connection piece
Valve for active charcoal canister 1
Valve 1
Intake manifold
mating connector
8D0973822 Flat connector housing with contact locking mechanism 2 pin 1
Possible single wire:
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
1J0973722 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin X
black
Connection piece
Valve
Intake manifold 1
Air flap adjuster 1
activated carbon filter system 1
mating connector
8D0973822 Flat connector housing with contact locking mechanism 2 pin 1
Possible single wire:
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
1J0973722 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin X
black
Connection piece
Secondary air valve 1
Engine speed sender 1
Pump 1
Brake servo
mating connector
8D0973822 Flat connector housing with contact locking mechanism 2 pin 1
Possible single wire:
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
1J0973722 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 1
black
Connection piece
Engine speed sender 1
mating connector
8D0973822 Flat connector housing with contact locking mechanism 2 pin 1
Possible single wire:
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
1J0973752 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 1
black
Connection piece
Secondary air pump
mating connector
1J0973852 Flat connector housing with contact locking mechanism 2 pin 1
black
Possible single wire:
000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
Flat male connector with detent lug 4,8
000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat contact with retaining lug 4,8
1J0973723 Предложения

[Name] [Note] [QTY]
flat contact housing with gasket 3 pin 1
black
Connection piece
Water level switch
Possible single wire:
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
1J0973702 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin X
black
Connection piece
Additional coolant pump 1
Temperature sensor 1
Coolant cooling system
regulating valve 1
A/C compressor
mating connector
1J0973802 Flat connector housing with contact locking mechanism 2 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0973702 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin X
black
Connection piece
Additional coolant pump 1
Temperature sensor 1
Coolant cooling system
regulating valve 1
A/C compressor
switch for reversing light 1
mating connector
1J0973802 Flat connector housing with contact locking mechanism 2 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
07Z906379A Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 60-pin 1
Connection piece
Engine control unit
Possible single wire:
000979030E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 0,63
000979166E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,75
flat contact with retaining lug 0,63
000979166EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,75
flat contact with retaining lug 0,63
000979246E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
7L0971904 Sealing pin 1,5 X
7L0971904A Sealing pin 0,63 X
8K0971904 Sealing pin 0,63 X
038906379B Предложения

[Name] [Note] [QTY]
flat contact housing with cap 40 pin 1
Connection piece
Engine control unit
Possible single wire:
000979018E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat connector/sleeve with retaining lug 0,63
000979018EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
1J0927320 Предложения

[Name] [Note] [QTY]
Round connector housing with contact locking mechanism 20 pin 1
Connection piece
Control unit for automatic transmission - infin. variable
Possible single wire:
000979033E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
Round insert sleeve 1,6
000979154E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+105C
Round insert sleeve 1,6
000979252E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
Round insert sleeve 1,6
1J0927320 Предложения

[Name] [Note] [QTY]
Round connector housing with contact locking mechanism 20 pin 1
Connection piece
Control unit for automatic gearbox
Possible single wire:
000979033E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
Round insert sleeve 1,6
000979154E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+105C
Round insert sleeve 1,6
000979252E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
Round insert sleeve 1,6
3D0973993 Предложения

[Name] [Note] [QTY]
round connector housing 16 pin 1
Connection piece
Control unit for 6-speed automatic gearbox
Possible single wire:
000979033E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
Round insert sleeve 1,6
000979154E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+105C
Round insert sleeve 1,6
000979252E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
Round insert sleeve 1,6
8D0972525 Предложения

[Name] [QTY]
Grommet 1
Connection piece
Control unit for automatic gearbox
3D0973703 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 3 pin
black
Connection piece
impulse sender
Camshaft
F >> 4F-6-250 000 2
mating connector
1J0973803 Flat contact housing with contact locking mechanism 3 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
3D0973703 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 3 pin X
black
Connection piece
oil level sensor 1
Potentiometer 1
Intake manifold
mating connector
1J0973803 Flat contact housing with contact locking mechanism 3 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
3D0973703 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 3 pin X
black
Connection piece
impulse sender 2
Camshaft Inlet
oil level sensor 1
mating connector
1J0973803 Flat contact housing with contact locking mechanism 3 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
8L0973703 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 3 pin 2
Connection piece
camshaft adjuster unit
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0973702 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 2
Connection piece
camshaft adjuster unit
mating connector
1J0973802 Flat connector housing with contact locking mechanism 2 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1C0971921A Предложения

[Name] [Note] [QTY]
Protective cap 3 pin X
Connection piece
camshaft adjuster unit 2
impulse sender 2
Camshaft Inlet
1C0971921A Предложения

[Name] [Note] [QTY]
Protective cap 3 pin X
Connection piece
camshaft adjuster unit 2
impulse sender 2
Camshaft
3B0973703G Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 3 pin 2
Grey
Connection piece
impulse sender
Camshaft Outlet
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
030971921 Предложения

[Name] [Note] [QTY]
Bracket protective cover 3 pin 1
Connection piece
impulse sender
Camshaft Outlet
1J0973713 Предложения

[Name] [Note] [QTY]
Flat contact housing 6 pin
Connection piece black
Throttle valve positioner
F >> 4F-6-250 000 1
mating connector
3B0973813 Flat connector housing with contact locking mechanism 6 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0973713 Предложения

[Name] [Note] [QTY]
Flat contact housing 6 pin 1
Connection piece black
Throttle valve positioner
mating connector
3B0973813 Flat connector housing with contact locking mechanism 6 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0973081 Предложения

[Name] [Note] [Model info] [QTY]
Flat contact housing with contact locking mechanism 1 pin 1
black
Connection piece
Oil pressure switch
F >> 4F-5-200 000* sedan
F >> 4F-6-020 000* AVANT
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0973081 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 1 pin 1
black
Connection piece
Oil pressure switch
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0973702 Предложения

[Name] [Note] [Model info] [QTY]
Flat contact housing with contact locking mechanism 2 pin 1
black
Connection piece
Oil pressure switch
F 4F-6-000 001>>* sedan
F 4F-6-020 001>>* AVANT
mating connector
1J0973802 Flat connector housing with contact locking mechanism 2 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
4D0971992B Предложения

[Name] [Note] [QTY]
Flat connector housing with contact locking mechanism 2 pin 1
black/orange
Coupling element
Alternator
Possible single wire:
000979016E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 2,8
000979141E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979237E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 2,5 X
-40C/+105C
flat contact 2,8
443937527 Предложения

[Name] [Note] [QTY]
relay plate 9 pin 1
Secondary air pump
Possible single wire:
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5
flat contact with retaining lug 4,8
000979114E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat connector/sleeve with retaining lug 1,0
6,3
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact 2,8MM
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat contact 1,0
4,8
000979212E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat connector/sleeve with retaining lug 6,3
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat contact 2,5
4,8
000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat contact 2,5
4,8
000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' X
-40C/+125C
flat contact with retaining lug 4,0
4,8
000979405E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat connector/sleeve with retaining lug 6,3
000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat contact with retaining lug 4,8
06A973722 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 6
black
Connection piece
Injection valve
Possible single wire:
000979028E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 2,9
000979153E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+105C
flat contact with retaining lug 2,9
8E0973722 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 6
black
Connection piece
Injection valve
Possible single wire:
000979155E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat contact with retaining lug 1,0
2,9
GEGENSTUECK
8E0971824K Предложения

[Name] [Note] [QTY]
Cable guide cylinders 1-3 1
Injection valve
06E971821A Предложения

[Name] [Note] [QTY]
Cable guide cylinders 1-3 1
Injection valve
8E0971824L Предложения

[Name] [Note] [QTY]
Cable guide cylinders 4-6 1
Injection valve
06E971821A Предложения

[Name] [Note] [QTY]
Cable guide cylinders 4-6 1
Injection valve
4B0973724 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 4 pin 6
black
Connection piece
ignition coil with spark plug connector
Possible single wire:
000979016E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 2,8
000979141E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979237E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 2,5 X
-40C/+105C
flat contact 2,8
06E971822 Предложения

[Name] [Note] [QTY]
Cable guide cylinders 1-3 1
ignition coil with spark plug connector
8E0971824G Предложения

[Name] [Note] [QTY]
Cable guide cylinders 1-3 1
ignition coil with spark plug connector
8E0971824H Предложения

[Name] [Note] [QTY]
Cable guide cylinders 4-6 1
ignition coil with spark plug connector
06E971821 Предложения

[Name] [Note] [QTY]
Cable guide cylinders 4-6 1
ignition coil with spark plug connector
8A0937530 Предложения

[Name] [Note] [QTY]
fuse holder 2 pin 1
flat fuse 29/2x8
Possible single wire:
000979406E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat contact 9,5
000979500R Single lead with 1 contact in the bag 1500MM X
-40C/+105C
with cable crosssection: 10QMM
Cable colour: yellow
N0206406 Предложения

[Name] [Note] [QTY]
Clamp 18X15 2
[Name] [Note]
Anti-twist device
see illustration, item: 971-080,61
N10464802 Предложения

[Name] [Note] [QTY]
Oval hexagon socket head bolt 4X12 4
4F0971845D Предложения

[Name] [Note] [Model info] [QTY]
Cable holder
water box left front
F >> 4F-5-200 000 sedan 1
F >> 4F-6-020 000 AVANT 1
4F0971845K Предложения

[Name] [Note] [Model info] [QTY]
Cable holder
water box left front
F 4F-6-000 001>> 4F-6-250 000 sedan 1
F 4F-6-020 001>> 4F-6-250 000 AVANT 1
4F0971845D Предложения

[Name] [Note] [QTY]
Cable holder 1
water box left front
4F0971845M Предложения

[Name] [Note] [QTY]
Cable holder 1
water box right front
06E971497C Предложения

[Name] [QTY]
bracket for connector housing 1
Knock sensor
1K0973751 Предложения

[Name] [Note] [QTY]
flat contact housing with gasket 1 pin 1
Coupling element
Starter
Possible single wire:
000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 4,8-6,3MM
000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
flat contact with retaining lug 0,5
4,8-6,3MM
000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+105C
flat contact with retaining lug 4,8-6,3MM
000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X
-40C/+105C
flat contact with retaining lug 4,8-6,3MM
000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact with retaining lug 4,8-6,3MM
000979243EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 2,5
flat contact with retaining lug 4,8-6,3MM
000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X
-40C/+105C
flat contact with retaining lug 4,8-6,3MM
000979308EC 1 set single wires each with 2 silver-plated contacts, in bag of 4 'Order qty. 4' X
-40C/+125C
with cable crosssection: 4,0
flat contact with retaining lug 4,8-6,3MM
000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+125C
with cable crosssection: 6,0
flat contact 4,8-6,3MM
000979425EC 1 set single wires each with 2 silver-plated contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+125C
with cable crosssection: 6,0
flat contact 4,8-6,3MM
191972701 Предложения

[Name] [Note] [QTY]
Flat contact housing 1 pin 1
Coupling element
Starter
mating connector
191972711 flat connector housing 1 pin 1
Possible single wire:
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
443971989 Предложения

[Name] [Note] [QTY]
Flat contact housing 2 pin 1
Connection piece
suppression condenser
Possible single wire:
000979106E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat connector/sleeve 1,0
2,8
000979212E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat connector/sleeve with retaining lug 6,3
000979405E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat connector/sleeve with retaining lug 6,3
6Q0972704 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 4 pin 1
black
Coupling element
wiring harness for electric fan
mating connector
8E0972714 flat connector housing 4 pin 1
black
Possible single wire:
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
4F0971871 Предложения

[Name] [QTY]
Grommet 1
housing for control units

Жгут проводов моторного отсека

Схемы узла

Детали

Каталог

Ещё

Свяжитесь с нами
