Механизм газораспределения

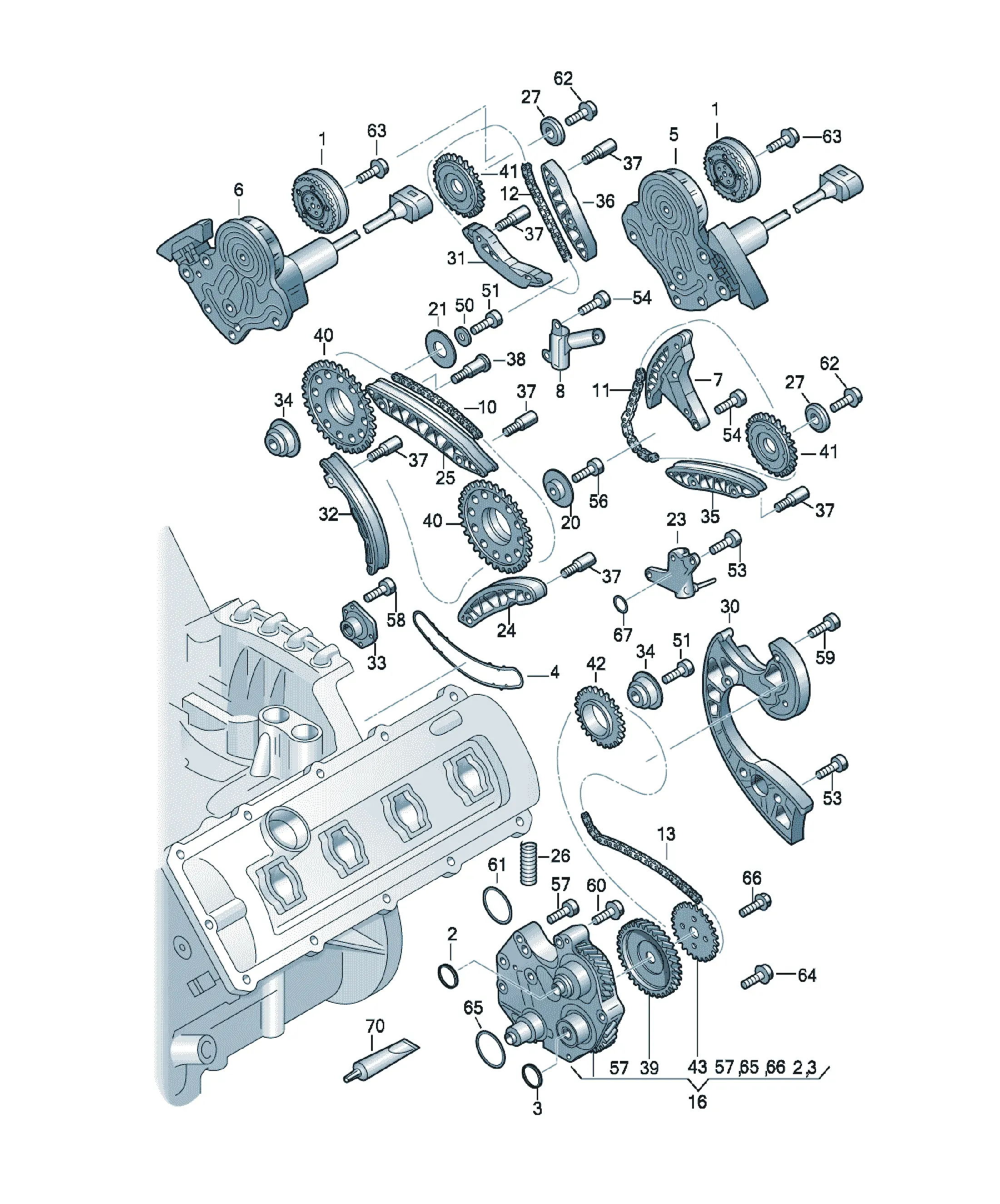

Цепь привода ГРМ

Схемы узла

10 схем

Детали

53 детали

[Name] [Note]
camshaft adjuster unit
see illustration: 109-050
Use item: 1
079109229 Предложения

[Name] [Note] [QTY]
timing chain upper centre 1
079109229K Предложения

[Name] [Note] [QTY]
timing chain left 1
079109229L Предложения

[Name] [Note] [QTY]
timing chain right 1
079109229D Предложения

[Name] [Note] [QTY]
timing chain lower centre 1
079109359AQ Предложения

[Name] [QTY]
plate 1
079103051E Предложения

[Name] [QTY]
Shaft oil seal 1
079109435G Предложения

[Name] [Note] [QTY]
thrust washer upper centre 1
WHT000124 Предложения

[Name] [Note] [QTY]
Washer 18X50X2,23 1
079109467AE Предложения

[Name] [QTY]
chain tensioner 1
079109469AA Предложения

[Name] [QTY]
Guide rail 1
079109469AD Предложения

[Name] [QTY]
Guide rail 1
059109481 Предложения

[Name] [QTY]
Pressure spring 1
079109497 Предложения

[Name] [Note] [QTY]
Washer 36X12,5X8,5 2
079103051J Предложения

[Name] [QTY]
Shaft oil seal 1
079109507G Предложения

[Name] [Note] [QTY]
chain tensioner 1
use if required: 079 109 139 A
Accompanying details: 079109139A
079109510E Предложения

[Name] [Note] [QTY]
Guide rail right 1
079109510M Предложения

[Name] [Note] [QTY]
Guide rail upper centre 1
057109224B Предложения

[Name] [Note] [QTY]
bearing pin left 1
057109224D Предложения

[Name] [Note] [QTY]
bearing pin right 1
079109512E Предложения

[Name] [Note] [QTY]
bearing pin center 1
079109513C Предложения

[Name] [QTY]
Guide rail 1
079109514B Предложения

[Name] [QTY]
Guide rail 1
WHT000265 Предложения

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head (combination) M6X35 9
WHT000265 Предложения

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head (combination) M6X35 9
079109505N Предложения

[Name] [Note] [QTY]
bearing pin Z=45 1
079109139A Предложения

[Name] [Note] [QTY]
Seal lower centre 1
Replacements: 079109139M
059109077E Предложения

[Name] [Note] [QTY]
Chain sprocket Z=19 1
079109570AN Предложения

[Name] [Note] [QTY]
Chain sprocket Z=25 2
079109570AD Предложения

[Name] [Note] [QTY]
Chain sprocket Z=25 2
079109570AP Предложения

[Name] [Note] [QTY]
Chain sprocket Z=25 2
[Name] [Note]
see illustration: 109-050
Use item: 11
N0447068 Предложения

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head M10X40
F >> 4F-6-153 656 1
N10660901 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M10X40
F 4F-6-153 657>> 1
N0147296 Предложения

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head M10X45 1
N10124306 Предложения

[Name] [Note] [QTY]
Hexagon socket flat head bolt M6X20 4
N10156205 Предложения

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X30 4
N10451409 Предложения

[Name] [Note] [QTY]
Hexagon socket flat head bolt, self-locking M6X16 1
N10505404 Предложения

[Name] [Note] [QTY]
Countersunk oval bolt with hexagon socket head M6X20 3
N10554005 Предложения

[Name] [Note] [QTY]
round hd. screw M6X35 2
[Name] [Note]
see illustration: 109-050
Use item: 12
N90212703 Предложения

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head (combination) AM8X47-S4-S
F >> 4F-6-153 656 5
N91119601 Предложения

[Name] [Note] [QTY]
Socket head collared bolt with inner multipoint head M8X45
F 4F-6-153 657>> 5
N90322804 Предложения

[Name] [Note] [QTY]
O-ring 42X2,5 1
N90981001 Предложения

[Name] [Note] [QTY]
Hex socket head collared bolt M12X1.25X100 2
[Name] [Note]
see illustration: 109-050
Use item: 54
N10248804 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M6X30 1
N90740801 Предложения

[Name] [Note] [QTY]
O-ring 7,65X1,78 1
N90893202 Предложения

[Name] [Note] [QTY]
fitted bolt, hexagon head M10X20 1
N90638402 Предложения

[Name] [Note] [QTY]
O-ring 5X1,5 1
079109217J Предложения

[Name] [QTY]
chain tensioner 1
D176501A1 Предложения

[Name] [Note] [QTY]
Silicon sealant 50ML 1
adhesives and sealing compound
079109218D Предложения

[Name] [QTY]
chain tensioner 1
