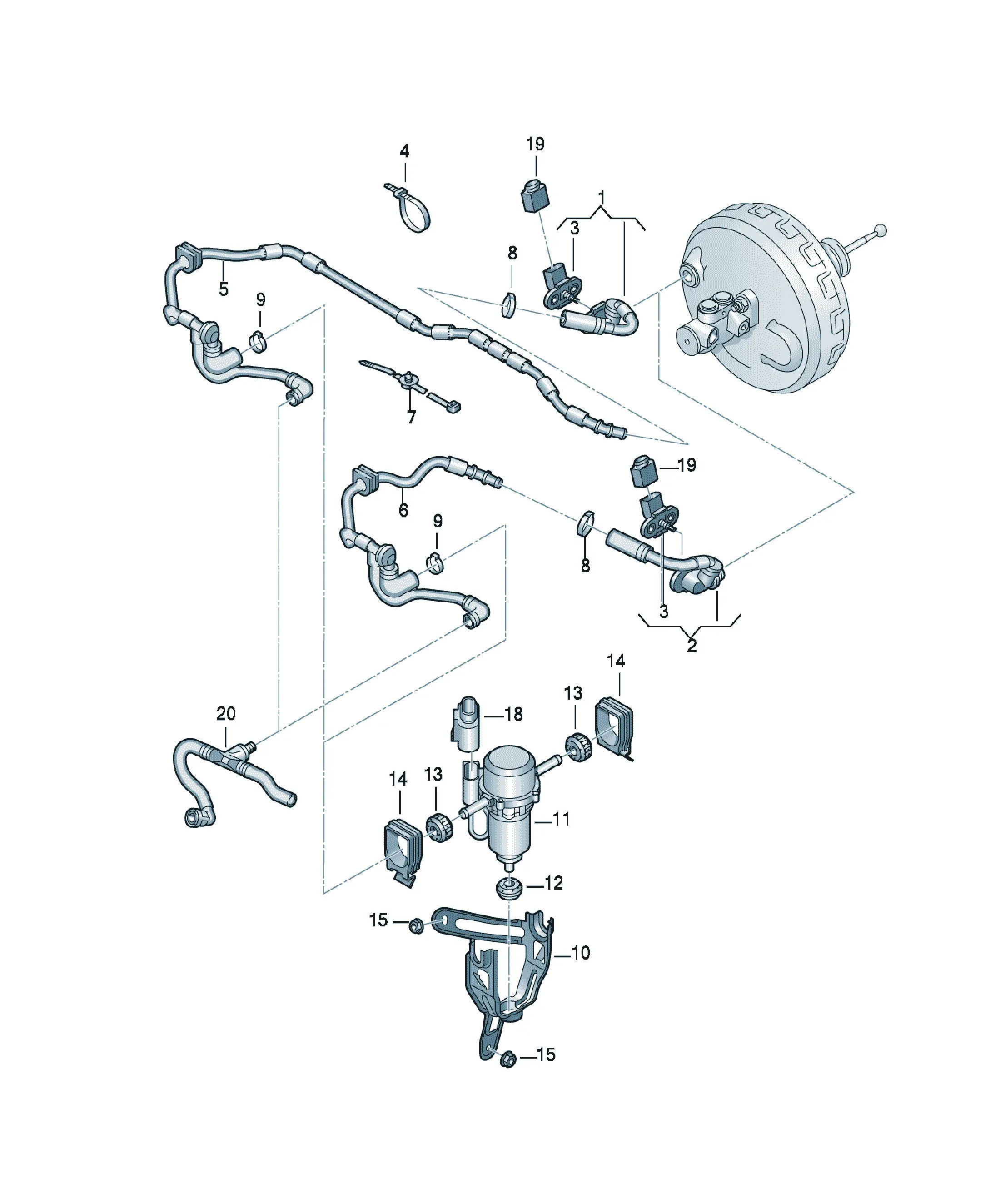

Вакуумная магистраль тормозной системы

[Name] [Note] [QTY]

Vacuum pipe with non-return valve lhd 1

[Name] [QTY]

Bracket 1

for models with electric vacuum pump

[Name] [QTY]

Electric vacuum pump for brake 1

Replacements: 8E0927317F

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Stop buffer 1

[Name] [QTY]

Stop buffer 1

[Name] [QTY]

Clip 2

[Name] [Note] [QTY]

hex. nut with washer M6 2

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

black

mating connector

8D0973822 Flat connector housing with contact locking mechanism 2 pin 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin 1

mating connector

1K0973804 Flat contact housing with contact locking mechanism 4 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

[Name] [Note] [QTY]

Vacuum pipe with non-return valve rhd 1

[Name] [Note]

suction jet pump

see illustration: 133-091

[Name] [QTY]

Pressure sensor 1

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

optional:

8K0973704 Flat contact housing with contact locking mechanism 4 pin 1

black

[Name] [Note] [QTY]

Cable ties 3,6X246 1

lhd

Replacements: N 10647801

[Name] [Note] [QTY]

Vacuum pipe with non-return valve lhd 1

[Name] [Note] [QTY]

Vacuum pipe with non-return valve rhd 1

[Name] [Note] [QTY]

cable tie with terminal socket 4,6X200 1

[Name] [Note] [QTY]

clamp 21X7X0,60 1

[Name] [Note] [QTY]

Clamp 12-22X9X0,4 1
