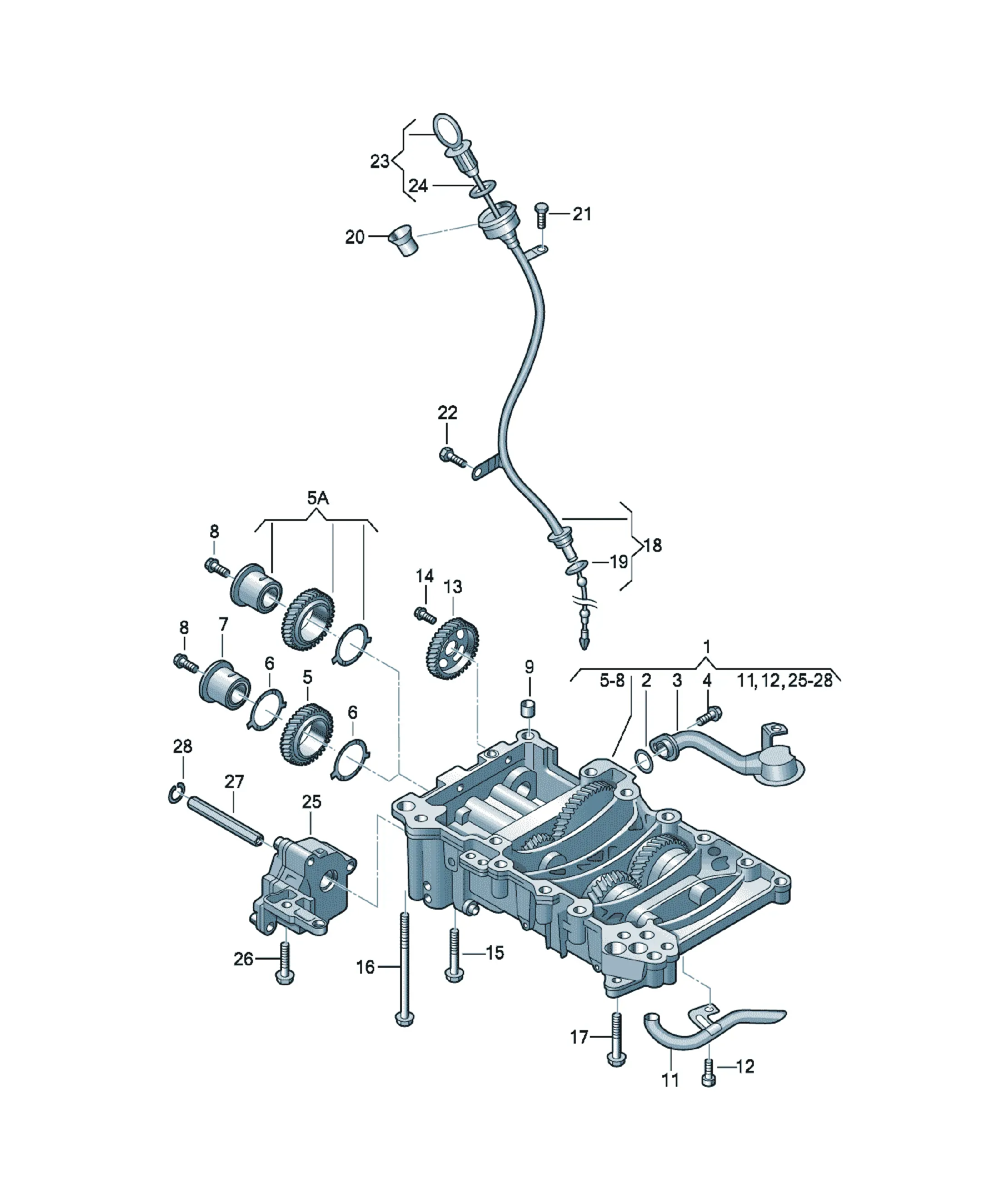

Масляный насос

[Name] [QTY]

Balancer shaft module with oil pump 1

Replacements: 03G103295AL; 03G103603AH

[Name] [QTY]

guide tube 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X20 1

[Name] [Note] [QTY]

Drive wheel Z=33 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M7X18 4

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M8X70 5

[Name] [Note] [QTY]

multi-point socket head bolt with collar M7X105X39 1

[Name] [Note] [QTY]

multi-point socket head bolt with collar M7X105X39 2

[Name] [Note] [QTY]

Hex collared bolt M7X85X70 2

[Name] [Note] [QTY]

Hex collared bolt M7X85X70 1

[Name] [Note] [QTY]

Hex collared bolt M8X40 1

[Name] [QTY]

tube for oil dipstick 1

[Name] [Note] [QTY]

O-ring 10X2 1

[Name] [Note] [QTY]

O-ring 21X2 1

[Name] [Note] [QTY]

Hex collared bolt M6X16 1

[Name] [Note] [QTY]

Hex collared bolt M6X16 1

Replacements: N 10338903

[Name] [Note] [QTY]

Hex collared bolt M6X16 1

Replacements: N 10338903

[Name] [Note] [QTY]

Hex collared bolt M6X16 1

[Name] [QTY]

Oil dipstick 1

[Name] [QTY]

oil pump 1

Replacements: 03G115105G

[Name] [Note] [QTY]

round hd. screw M6X30 2

[Name] [Note] [QTY]

Follower 77MM 1

Replacements: 03G115281F

[Name] [Note] [QTY]

Securing ring 8X0,8 1

[Name] [QTY]

suction line 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X20 1

[Name] [Note] [QTY]

intermediate wheel Z=32 1

Replacements: 03L198488

[Name]

Intermediate gear with hub

repair set

WHT002430 thrust washer 1

03G103580H hub 1

03G103488N intermediate wheel Z=32 1

[Name]

thrust washer

Replacements: 03L198488

[Name] [QTY]

thrust washer 2

Replacements: 03L198488

[Name] [QTY]

Intermediate gear with hub 2

repair set

WHT002430 thrust washer 1

03G103580H hub 1

03G103488N intermediate wheel Z=32 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M12X1,5X30 1

[Name] [Note] [QTY]

dowel sleeve 11X11 2
