Регулировка угла наклона фар

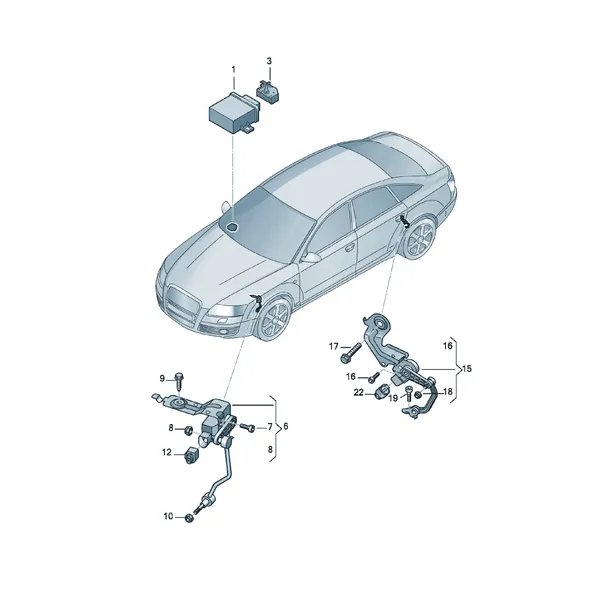

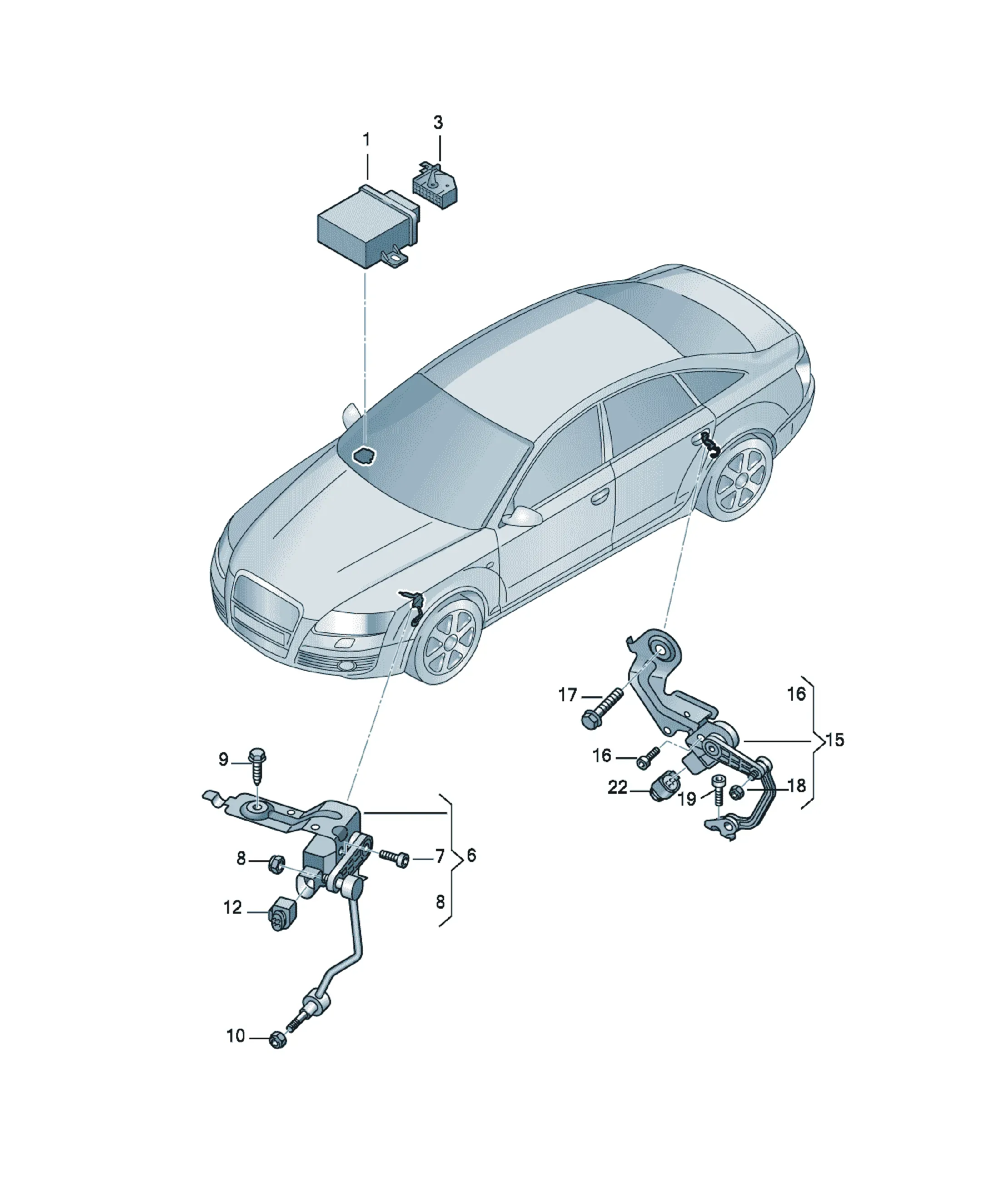

Блок управления корректором фар

Схемы узла

3 схемы

Детали

25 деталей

Заклёпка с внутренней резьбой
N10618501 Предложения

[Name] [Note] [QTY]
rivetted cap nut M6/0,5-3
F 4F-6-148 601>>* 1
4L0907357 Предложения

[Name] [Note] [Model info] [QTY]
Control unit for cornering light and headlight range ctrl PR:8Q5 1
For vehicles with automatic, dynamic h/light range control and cornering light control
software: 4L0 910 357
Replacements: 4L0907357B
mating connector
7M3972726A flat contact housing with cap 26 pin 1
black
8P0907357J Предложения

[Name] [Model info] [QTY]
Control unit for cornering light and headlight range ctrl PR:8Q3 1
Replacements: 8P0907357L
mating connector
4E0972726 flat contact housing with cap 26 pin 1
black
N01118312 Предложения

[Name] [Note] [QTY]
hexagon nut, self-locking M6 2
4B0973712 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 4 pin 1
mating connector
4B0973812 Flat connector housing with contact locking mechanism 4 pin X
7L0973812 Flat connector housing with contact locking mechanism 4 pin X
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
4B0973712A Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 4 pin 1
for models with air suspension
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
4F0616572D Предложения

[Name] [Note] [QTY]
Level sensor with poles right rear 1
for models with air suspension
4F0616571J Предложения

[Name] [Note] [QTY]
Level sensor with poles left rear 1
for models with air suspension
4F0616571K Предложения

[Name] [Note] [QTY]
Level sensor with poles left rear 1
N10434301 Предложения

[Name] [Note] [QTY]
Socket head bolt M5X10 2
N10421304 Предложения

[Name] [Note] [QTY]
hexagon head bolt (combi) M12X1,5X80 1
N01118312 Предложения

[Name] [Note] [QTY]
hexagon nut, self-locking M6 2
N10226103 Предложения

[Name] [Note] [QTY]
Socket head bolt M6X16
F 4F-6-176 501>>* 1
N10451405 Предложения

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X16
F >> 4F-6-176 500* 1
4B0973712A Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 4 pin 1
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
4B0973712 Предложения

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 4 pin 1
mating connector
4B0973812 Flat connector housing with contact locking mechanism 4 pin X
7L0973812 Flat connector housing with contact locking mechanism 4 pin X
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
4E0972726 Предложения

[Name] [Note] [Model info] [QTY]
flat contact housing with cap 26 pin PR:8Q3 1
black
Possible single wire:
000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
7M3972726A Предложения

[Name] [Note] [Model info] [QTY]
flat contact housing with cap blue PR:8Q5 1
Possible single wire:
000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
counterpart to: 000 979 012 E
000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
4F0941286B Предложения

[Name] [Note] [QTY]
Level sensor with poles right front 1
for models with air suspension
4F0941285B Предложения

[Name] [Note] [QTY]
Level sensor with poles left front 1
for models with air suspension
4F0941285F Предложения

[Name] [Note] [QTY]
Level sensor with poles left front 1
N10434301 Предложения

[Name] [Note] [QTY]
Socket head bolt M5X10 2
N01118312 Предложения

[Name] [Note] [QTY]
hexagon nut, self-locking M6 2
N10158605 Предложения

[Name] [Note] [QTY]
bolt,hex.hd.with shoul.(combi) M6X20
F 4F-6-148 601>>* 1
N10171105 Предложения

[Name] [Note] [QTY]
Hex collared bolt M6X16
F >> 4F-6-148 600* 1
