Ремень приводной

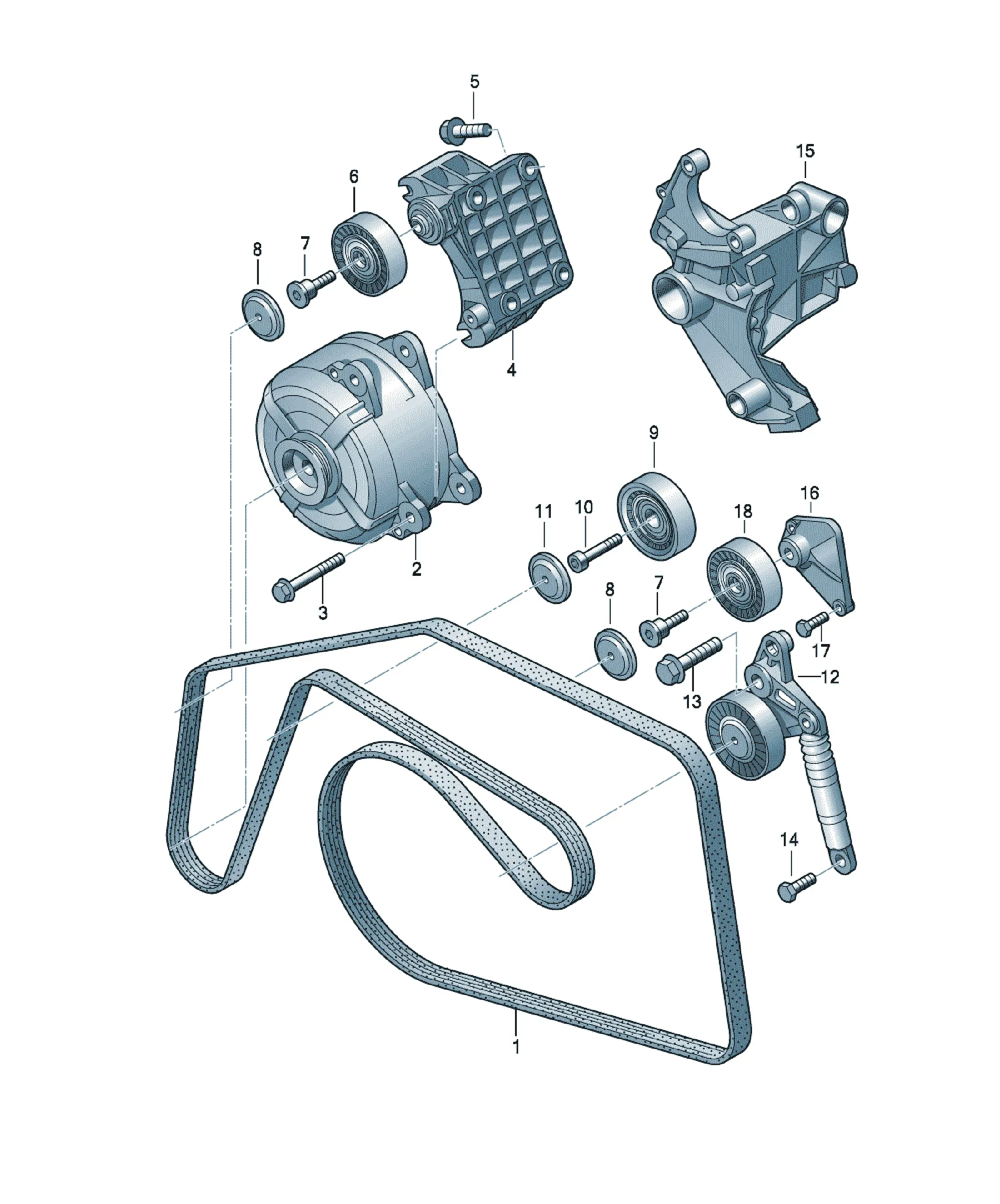

Кронштейн и привод генератора

Схемы узла

8 схем

Детали

59 деталей

059903137P Предложения

[Name] [Note] [Model info] [QTY]
Poly-V-belt 21,18X2460MM
F 4F-6-172 454>>*4F-7-029 698* manual gearbox 1
* Note technical * product information
059903137AB Предложения

[Name] [Note] [Model info] [QTY]
Poly-V-belt 21,36X2460MM
F >> 4F-5-124 000* sedan 1
F >> 4F-6-017 400* AVANT 1
059903137P Предложения

[Name] [Note] [QTY]
Poly-V-belt 21,18X2460MM
F >> 4F-6-100 000* 1
* Note technical * product information
059903137T Предложения

[Name] [Note] [QTY]
Poly-V-belt 21,36X2490MM
F 4F-6-100 001>>*4F-6-172 453* 1
059903137T Предложения

[Name] [Note] [Model info] [QTY]
Poly-V-belt 21,36X2490MM
F 4F-6-172 454>>*4F-7-029 698* automatic 1
059903137AB Предложения

[Name] [Note] [Model info] [QTY]
Poly-V-belt 21,36X2460MM "IND"
F >> 4F-8Y000 280* 1
059903137AB Предложения

[Name] [Note] [Model info] [QTY]
Poly-V-belt 21,36X2460MM
F >> 4F-7-029 698* Automatic infin. gears 1
059903137AB Предложения

[Name] [Note] [Model info] [QTY]
Poly-V-belt 21,36X2460MM
F 4F-6-172 454>>*4F-7-029 698* manual gearbox 1
059903137T Предложения

[Name] [Note] [Model info] [QTY]
Poly-V-belt 21,36X2490MM
F 4F-5-124 001>>*4F-6-172 453* Saloon+ 1
Manual gearbox
automatic
F 4F-6-017 401>>*4F-6-172 453* AVANT+ 1
Manual gearbox
automatic
N10618601 Предложения

[Name] [Note] [Model info] [QTY]
Socket head bolt with inner multipoint head M8X65
F >> 4F-5-124 000* sedan 1
F >> 4F-6-017 400* AVANT 1
N91124101 Предложения

[Name] [Note] [Model info] [QTY]
Cylinder fitting screw with inner multipoint head M8X16,9X65
F 4F-5-124 001>>* sedan 1
F 4F-6-017 401>>* AVANT 1
03G145291 Предложения

[Name] [Model info] [QTY]
Protective cap
F >> 4F-5-124 000* sedan 1
F >> 4F-6-017 400* AVANT 1
059903310B Предложения

[Name] [Model info] [QTY]
dust cap
F 4F-5-124 001>>* sedan 1
F 4F-6-017 401>>* AVANT 1
059145201F Предложения

[Name] [Model info] [QTY]
Belt tensioner damper
F 4F-6-172 454>>*4F-7-029 698* manual gearbox 1
059145201F Предложения

[Name] [Model info] [QTY]
Belt tensioner damper
F >> 4F-7-029 698* Automatic infin. gears 1
059145201E Предложения

[Name] [Model info] [QTY]
Belt tensioner damper
F 4F-5-124 001>>*4F-6-172 453* Saloon+ 1
Manual gearbox
automatic
F 4F-6-017 476>>*4F-6-172 453* AVANT+ 1
Manual gearbox
automatic
059145201F Предложения

[Name] [Model info] [QTY]
Belt tensioner damper
F >> 4F-5-124 000* sedan 1
F >> 4F-6-017 475* AVANT 1
059145201F Предложения

[Name] [QTY]
Belt tensioner damper
F >> 4F-6-100 000* 1
059145201E Предложения

[Name] [Model info] [QTY]
Belt tensioner damper
F 4F-6-172 454>>*4F-7-029 698* automatic 1
059145201H Предложения

[Name] [Note] [QTY]
Belt tensioner damper 1
(for modified vehicles)
See item: 13
059145201E Предложения

[Name] [QTY]
Belt tensioner damper
F 4F-6-100 001>>*4F-6-172 453* 1
N10579702 Предложения

[Name] [Note] [QTY]
Hex collared bolt M10X76 1
only to be used for: 059 145 201 E
059 145 201 F
N10579702 Предложения

[Name] [Note] [QTY]
Hex collared bolt M10X76 1
WHT004920 Предложения

[Name] [Note] [QTY]
Hex collared bolt M11X72 1
only to be used for: 059 145 201 H
N90440003 Предложения

[Name] [Note] [QTY]
hexagon head bolt (combi) M8X35 1
[Name] [Note]
Retainer for vane pump
see illustration, item: 145-075,3
059145174A Предложения

[Name] [Model info] [QTY]
BRACKET FOR idler pulley
F 4F-5-124 001>>*4F-6-172 453* Saloon+ 1
Manual gearbox
automatic
F 4F-6-017 401>>*4F-6-172 453* AVANT+ 1
Manual gearbox
automatic
059145174A Предложения

[Name] [QTY]
BRACKET FOR idler pulley
F 4F-6-100 001>>*4F-6-172 453* 1
059145174A Предложения

[Name] [Model info] [QTY]
BRACKET FOR idler pulley
F 4F-6N172 454>>*4F-7N029 698* automatic 1
059145174A Предложения

[Name] [Model info] [QTY]
BRACKET FOR idler pulley
F 4F-6-172 454>>*4F-7-029 698* automatic 1
N10545402 Предложения

[Name] [Note] [Model info] [QTY]
hexagon head bolt (combi) M8X25
BRACKET FOR idler pulley
F 4F-6N172 454>>*4F-7N029 698* automatic 3
N10545402 Предложения

[Name] [Note] [QTY]
hexagon head bolt (combi) M8X25
BRACKET FOR idler pulley
F 4F-6-100 001>>*4F-6-172 453* 3
N10545402 Предложения

[Name] [Note] [Model info] [QTY]
hexagon head bolt (combi) M8X25
BRACKET FOR idler pulley
F 4F-6-172 454>>*4F-7-029 698* automatic 3
N10545402 Предложения

[Name] [Note] [Model info] [QTY]
hexagon head bolt (combi) M8X25
BRACKET FOR idler pulley
F 4F-5-124 001>>*4F-6-172 453* Saloon+ 3
Manual gearbox
automatic
F 4F-6-017 401>>*4F-6-172 453* AVANT+ 3
Manual gearbox
automatic
059903341H Предложения

[Name] [Model info] [QTY]
idler pulley
BRACKET FOR idler pulley
F 4F-6-172 454>>*4F-7-029 698* automatic 1
059903341H Предложения

[Name] [QTY]
idler pulley
BRACKET FOR idler pulley
F >> 4F-7N029 698* 1
059903341H Предложения

[Name] [Model info] [QTY]
idler pulley
BRACKET FOR idler pulley
F 4F-5-124 001>>*4F-6-172 453* Saloon+ 1
Manual gearbox
automatic
F 4F-6-017 401>>*4F-6-172 453* AVANT+ 1
Manual gearbox
automatic
[Name] [Note]
Alternator
see illustration, item: 903-000,1
N10610001 Предложения

[Name] [Note] [QTY]
Hex collared bolt M8X90 2
059903143K Предложения

[Name] [QTY]
bracket for alternator 1
N91026402 Предложения

[Name] [Note] [QTY]
Socket head collared bolt with inner multipoint head M10X35 4
bracket for alternator
059903341J Предложения

[Name] [QTY]
idler pulley 1
bracket for alternator
N90766302 Предложения

[Name] [Note] [Model info] [QTY]
Locating bolt M8X10X25
F >> 4F-7-029 698* Automatic infin. gears 1
N90766302 Предложения

[Name] [Note] [Model info] [QTY]
Locating bolt M8X10X25
F 4F-5-140 001>>*4F-6-172 453* Saloon+ 2
Manual gearbox
automatic
F 4F-6-017 401>>*4F-6-172 453* AVANT+ 2
Manual gearbox
automatic
N90766302 Предложения

[Name] [Note] [Model info] [QTY]
Locating bolt M8X10X25
F >> 4F-5-124 000* sedan 1
F >> 4F-6-017 400* AVANT 1
N90766302 Предложения

[Name] [Note] [Model info] [QTY]
Locating bolt M8X10X25
F 4F-6-172 454>>*4F-7-029 698* automatic 2
N90766302 Предложения

[Name] [Note] [Model info] [QTY]
Locating bolt M8X10X25
F 4F-6-172 454>>*4F-7-029 698* manual gearbox 1
N90766302 Предложения

[Name] [Note] [QTY]
Locating bolt M8X10X25
F 4F-6-100 001>>*4F-6-172 453* 2
N90766302 Предложения

[Name] [Note] [QTY]
Locating bolt M8X10X25
F >> 4F-6-100 000* 1
059903310B Предложения

[Name] [Model info] [QTY]
dust cap
F 4F-6-172 454>>*4F-7-029 698* automatic 2
059903310B Предложения

[Name] [QTY]
dust cap
F 4F-6-100 001>>*4F-6-172 453* 2
059903310B Предложения

[Name] [Model info] [QTY]
dust cap
F >> 4F-5-124 000* sedan 1
F >> 4F-6-017 400* AVANT 1
059903310B Предложения

[Name] [Model info] [QTY]
dust cap
F 4F-5-140 001>>*4F-6-172 453* Saloon+ 2
Manual gearbox
automatic
F 4F-6-017 401>>*4F-6-172 453* AVANT+ 2
Manual gearbox
automatic
059903310B Предложения

[Name] [Model info] [QTY]
dust cap
F >> 4F-7-029 698* Automatic infin. gears 1
059903310B Предложения

[Name] [QTY]
dust cap
F >> 4F-6-100 000* 1
059903310B Предложения

[Name] [Model info] [QTY]
dust cap
F 4F-6-172 454>>*4F-7-029 698* manual gearbox 1
059903341F Предложения

[Name] [Model info] [QTY]
idler pulley
Sealing flange
F >> 4F-5-124 000* sedan 1
F >> 4F-6-017 400* AVANT 1
059903341H Предложения

[Name] [Model info] [QTY]
idler pulley
Sealing flange
F 4F-5-124 001>>* sedan 1
F 5F-6-017 401>>* AVANT 1
059903341H Предложения

[Name] [Model info] [QTY]
idler pulley
Sealing flange
F 4F-5-124 001>>* sedan 1
F 4F-6-017 401>>* AVANT 1
