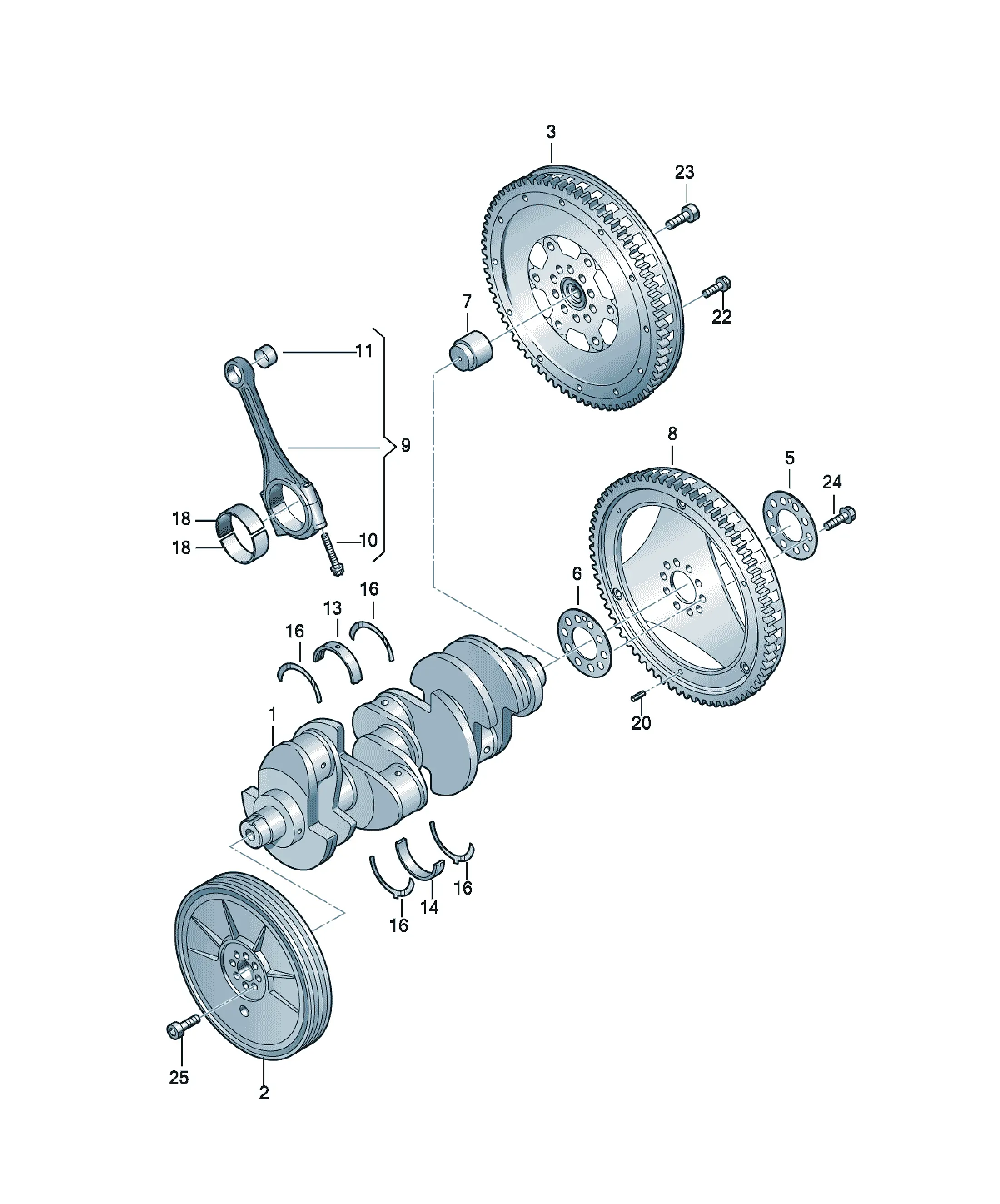

Коленчатый вал

[Name] [QTY]

Crankshaft 1

[Name] [QTY]

Crankshaft

F >> 4F-7-040 000* 1

Replacements: 079105101AN

[Name] [Note] [QTY]

bolt - connecting rod M8,5X1X48

F 4F-6-040 001>>* 16

[Name] [Note] [QTY]

bolt - connecting rod M8,5X1X50

F >> 4F-6-040 000* 16

[Name] [Note] [QTY]

bolt - connecting rod M9X1X49

F >> 4F-8-065 000* 16

Replacements: WHT002662

[Name] [QTY]

bush - connecting rod 8

Replacements: 06E105431B

[Name] [Note]

green 2,516-2,520

[Name] [Note]

red 2.504-2,508

[Name] [Note]

Black 2,508-2,512

[Name] [Note] [QTY]

bearing shell yellow 8

[Name] [Note] [QTY]

bearing shell red 8

[Name] [Note] [QTY]

bearing shell blue 8

[Name] [Note] [QTY]

bearing shell upper 5

only to be used for: Crankcase

marked with: 079 103 011 BC

079 103 011 BD

079 103 011 BM

079 103 011 CT

079 103 011 BP

079 103 011 CK

079 103 011 DE

079 103 011 DT

079 103 011 EF

[Name] [Note] [QTY]

bearing shell upper 4

only to be used for: Crankcase

marked with: 079 103 011 FL

[Name] [Note] [QTY]

bearing shell 1

only to be used for: Crankcase

marked with: 079 103 011 FL

[Name] [Note]

blue 2,520-2,524

[Name] [Note]

yellow 2,512-2,516

[Name] [Note] [QTY]

bearing shell lower 5

only to be used for: Crankcase

marked with: 079 103 011 BC

079 103 011 BD

079 103 011 BM

079 103 011 CT

079 103 011 BP

079 103 011 CK

079 103 011 DE

079 103 011 DT

079 103 011 EF

[Name] [Note]

green 2,516-2,520

[Name] [Note]

Black 2,508-2,512

[Name] [Note]

red 2.504-2,508

[Name] [Note]

yellow 2,512-2,516

[Name] [Note]

blue 2,520-2,524

[Name] [Note] [QTY]

bearing shell red 8

[Name] [Note] [QTY]

bearing shell 1

only to be used for: Crankcase

marked with: 079 103 011 FL

[Name] [Note] [QTY]

bearing shell lower 4

only to be used for: Crankcase

marked with: 079 103 011 FL

[Name] [Note] [QTY]

bearing shell yellow 8

[Name] [Note] [QTY]

bearing shell blue 8

[Name] [QTY]

1 set of thrust washers 1

repair set

077105635A thrust washer lower 2

077105637A thrust washer upper 2

[Name]

yellow

[Name]

yellow

[Name] [QTY]

connecting rod bearing shell 16

Replacements: 079105701D GLB

[Name] [QTY]

connecting rod bearing shell 16

Replacements: 079105701G GLB

[Name] [QTY]

vibration damper 1

[Name] [Note] [QTY]

Centre sleeve 6,15X18 3

[Name] [Note] [QTY]

Hexagon bolt M10X1X26 8

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M10X1X27 10

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X25 8

[Name] [Note] [QTY]

compensation washer 1,25MM 1

[Name] [Note] [QTY]

compensation washer 10,8MM 1

[Name] [QTY]

Clutch plate 1

Replacements: 079105323P

[Name] [QTY]

Clutch plate 1

[Name] [QTY]

1 set: connecting rods 1

Replacements: 079198401F

repair set

079105401AH conrod 8

[Name] [QTY]

1 set: connecting rods 1

repair set

079105401G conrod 8
