Шланги, трубки тормозной системы

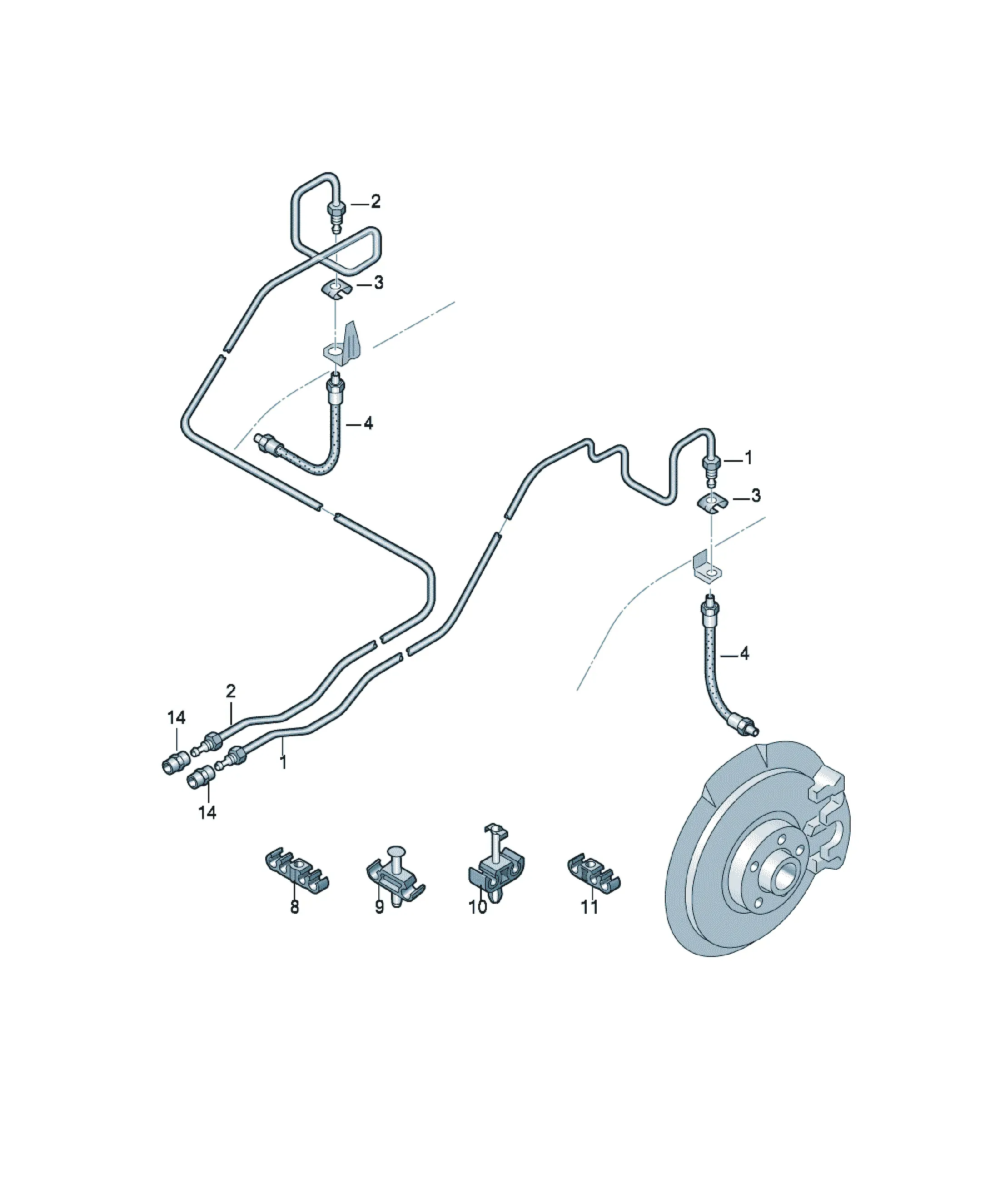

Тормозная магистраль

Схемы узла

3 схемы

10 деталей

Проставка
8E0611853B Предложения

[Name] [Note] [Model info] [QTY]
Distance piece 10,5X4,8X30MM quattro X
Replacements: 4G0611853
4F0614741H Предложения

[Name] [Note] [Model info] [QTY]
Brake pipe left 1
use if required: 8E0 611 853 B quattro X
Accompanying details: 8E0611853B
8Z0611797 Предложения

[Name] [Note] [QTY]
Brake line bracket 2 point 3
1K0611797A Предложения

[Name] [Note] [QTY]
Brake line bracket 3 point 1
Replacements: 8K0611797A
[Name] [Note]
Connecting piece
see illustration: 611-020
4F0614742K Предложения

[Name] [Note] [Model info] [QTY]
Brake pipe right 1
use if required: 8E0 611 853 B quattro X
Accompanying details: 8E0611853B
4D0611715B Предложения

[Name] [QTY]
retaining spring 2
4F0611775D Предложения

[Name] [Note] [QTY]
Brake hose M10X1X320MM 2
8D0201449R Предложения

[Name] [QTY]
Retaining clip 5
4F0611797 Предложения

[Name] [Note] [QTY]
Bracket 2 point 6
