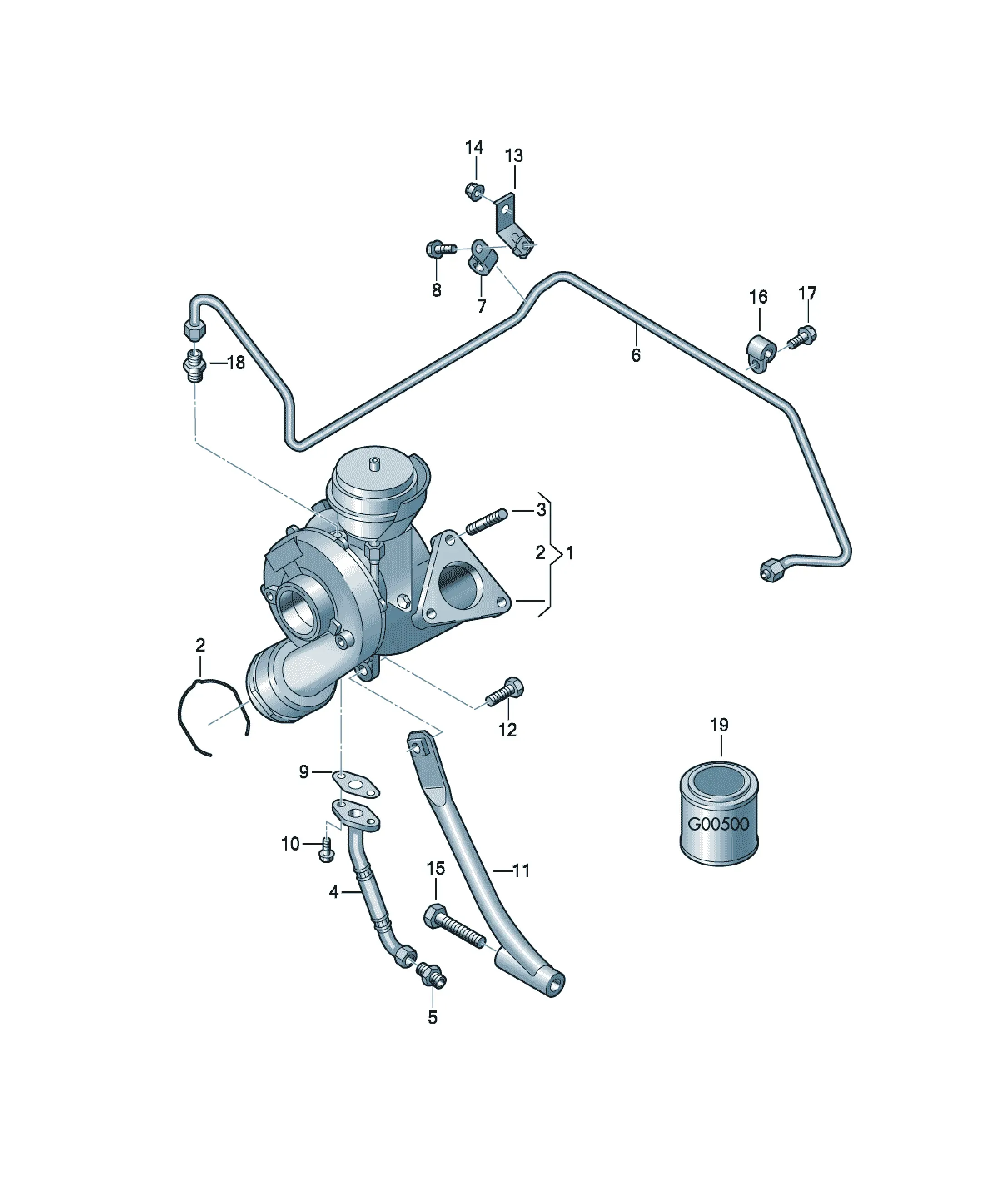

Турбокомпрессор

[Name] [Note] [QTY]

sealing plug M14X1,5 1

For vehicles without:

Exhaust gas temperature sender

[Name] [Model info] [QTY]

Exhaust gas turbocharger BRE,BRF, 1

BVG

Exchange program parts: 03G145702K

[Name] [Note] [Model info] [QTY]

Exhaust gas turbocharger GARRETT BLB,BNA 1

contains additional positions: 18

Replacements: 038145702N

Old part

038145702E Exhaust gas turbocharger 1

Labelled with part number

038145702G Exhaust gas turbocharger 1

Labelled with part number

038145702J Exhaust gas turbocharger 1

Labelled with part number

038145702N Exhaust gas turbocharger 1

Labelled with part number

[Name] [Note] [Model info] [QTY]

Exhaust gas turbocharger GARRETT BLB,BNA 1

[Name] [Model info] [QTY]

Exhaust gas turbocharger BRE,BRF, 1

BVG

[Name] [Note] [QTY]

bolt, hex. hd. with shoulder, self-locking M6X16 2

[Name] [QTY]

Support 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X35 1

[Name] [QTY]

Bracket 1

[Name] [Note] [QTY]

Hexagon collar nut M6 1

Replacements: N 01508210

[Name] [Note] [QTY]

Hexagon bolt M10X70 1

[Name] [Note] [QTY]

Clamp 1-8X15 1

[Name] [Note] [QTY]

bolt, hex. hd. (combi.) self-locking M6X16 1

[Name] [Note] [QTY]

threaded union with seal M10X1/M14X1,5 1

Included in position: 1

[Name] [Note] [QTY]

hot-bolt-paste 170G X

[Name] [QTY]

Retaining clip X

[Name] [Note] [QTY]

Threaded pin M8X22 1

[Name] [Note] [QTY]

Oil return line M10X1/M14X1,5 1

[Name] [Note] [QTY]

threaded union 12/M18X1,5 1

[Name] [Note] [QTY]

oil pipe feed 1

[Name] [Note] [QTY]

Clamp 1-8X15 1

[Name] [Note] [QTY]

Hex collared bolt M6X12 1

[Name] [QTY]

Seal 1
