Замки

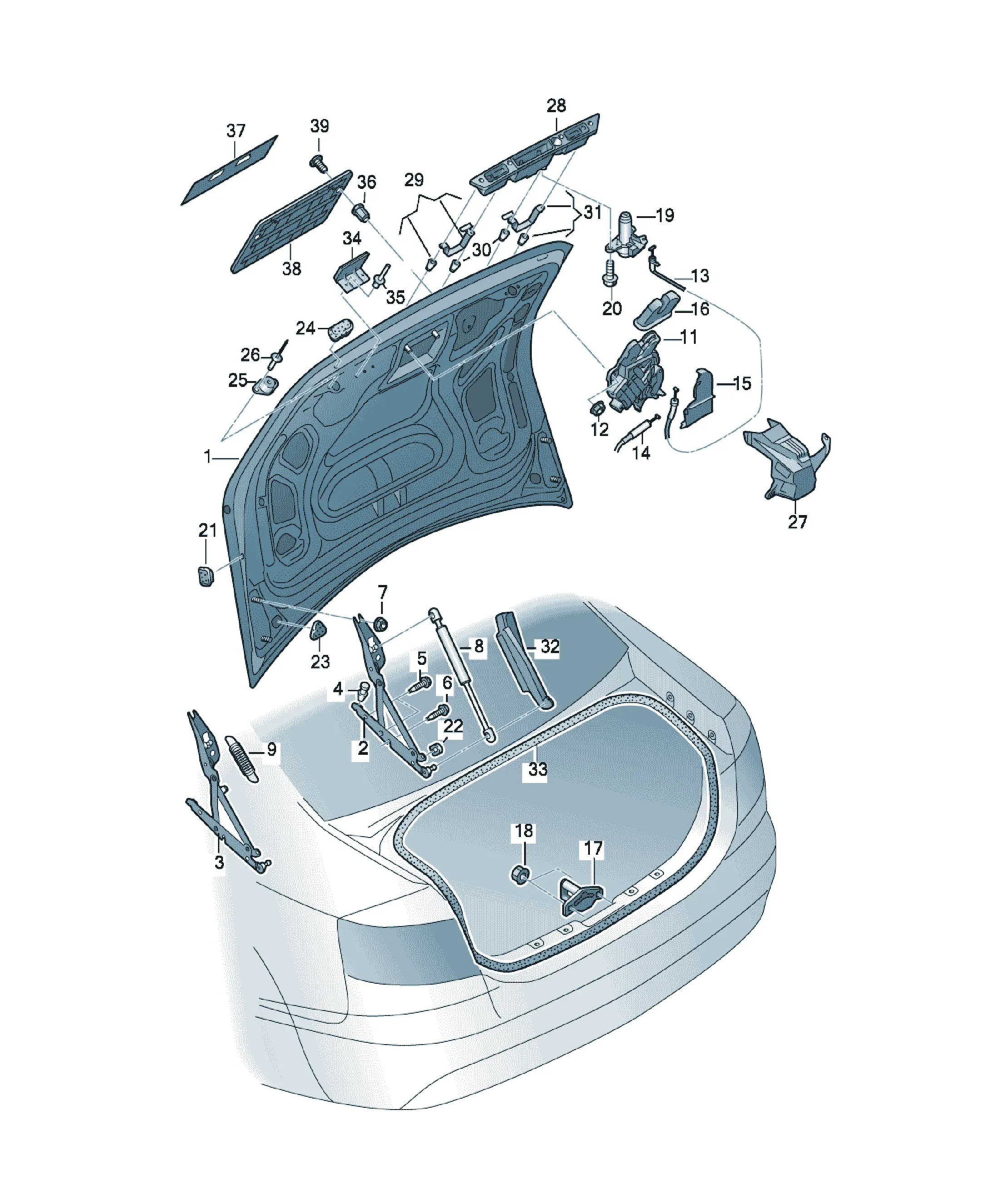

Крышка багажника

Схемы узла

5 схем

Детали

69 деталей

oval head panel screw
N01397520 Предложения

[Name] [Note] [Model info] [QTY]
oval head panel screw 4,8X19 PR:6V3 4
Крепёжный палец
8E0827654A Предложения

[Name] [Note] [QTY]
Securing pin 5X33 1
Распорная вставка
N10507301 Предложения

[Name] [Note] [Model info] [QTY]
expanding nut 5X15,3 PR:6V3 4
Упор
4F5827797A Предложения

[Name] [Note] [QTY]
Stop left a. right 2
Washer
N90663102 Предложения

[Name] [Note] [Model info] [QTY]
Washer 5X18,4X3 PR:6V3 4
Подкладная шайба
N0116929 Предложения

[Name] [Note] [Model info] [QTY]
Washer 5,1X15X1 PR:6V3 4
4F5827023F Предложения

[Name] [Model info] [QTY]
Rear lid PR:6V1 1
D >> - 24.04.2006
4F5827023H Предложения

[Name] [Model info] [QTY]
Rear lid PR:6V1+5J1, 1
5J2
4F5827023B Предложения

[Name] [Model info] [QTY]
Rear lid PR:6V3+5J0 1
Replacements: 4F5827023F; 4D0260749B; 8R0827199; N 0162023
4F5827023K Предложения

[Name] [Model info] [QTY]
Rear lid PR:6V3+5J1, 1
5J2
Replacements: 4F5827023H; 4D0260749B; 8R0827199; N 0162023
4F5827023J Предложения

[Name] [Model info] [QTY]
Rear lid PR:6V2+5J1, 1
5J2
4F5827023G Предложения

[Name] [Model info] [QTY]
Rear lid PR:6V2 1
D >> - 24.04.2006
4F5827023G Предложения

[Name] [Model info] [QTY]
Rear lid PR:6V2,6V6+ 1
5J0
D - 24.04.2006>>
4F5827023F Предложения

[Name] [Model info] [QTY]
Rear lid PR:6V1+5J0 1
D - 24.04.2006>>
4F5827505D Предложения

[Name] [Note] [QTY]
Lid lock inner 1
also use: >>4F-6-066300
4E0 827 520 B
(01C)
Accompanying details: 4E0827520B 01C
mating connector
893971633 Flat contact housing 3 pin 1
N90106304 Предложения

[Name] [Note] [QTY]
Hexagon collar nut M6 2
4F5827531 Предложения

[Name] [Note] [QTY]
Lid lock cable rear 1
4E0827645A Предложения

[Name] [QTY]
Protective cap 1
4E0827520 Предложения

[Name] [QTY]
cover - lock 1
4E082752001C Предложения

[Name]
Satin black
4E0827520B Предложения

[Name] [QTY]
cover - lock 1
4E0827520B01C Предложения

[Name]
Satin black
4F5827507B Предложения

[Name] [QTY]
Lock striker 1
N90570802 Предложения

[Name] [Note] [QTY]
hex. nut with washer M6 2
[Name] [Note]
Lock cylinders
see illustration: 837-010
4F5827302D Предложения

[Name] [Note] [Model info] [QTY]
Lid hinge right PR:4E0,4E2 1
4F5827301D Предложения

[Name] [Note] [Model info] [QTY]
Lid hinge left PR:4E0,4E2 1
N90533005 Предложения

[Name] [Note] [QTY]
hexagon head bolt (combi) M6X20 1
4F5827373A Предложения

[Name] [QTY]
Stop 2
Replacements:
8E5827378 Предложения

[Name] [QTY]
Stop 2
8E5827976 Предложения

[Name] [QTY]
Grommet 1
8P4827951 Предложения

[Name] [QTY]
Bungs 2
Replacements: 8P4827951A
8E5827249B Предложения

[Name] [Model info] [QTY]
stop buffer, adjustable
F 4F-5-040 001>>*4F-6-130 150 PR:4E5 2
8E5827249 Предложения

[Name] [Model info] [QTY]
stop buffer, adjustable
F 4F-5-040 000>>*4F-6-130 150 PR:4E0,4E2 2
4F5827249A Предложения

[Name] [Model info] [QTY]
stop buffer, adjustable
F 4F-6-130 151>> PR:4E0,4E2 2
4F5827249B Предложения

[Name] [Model info] [QTY]
stop buffer, adjustable
F 4F-6-130 151>> PR:4E5 2
N0162023 Предложения

[Name] [Note] [QTY]
cup rivet 4X8 4
4F5827597C Предложения

[Name] [QTY]
Cover cap for flap lock 1
4L0827574 Предложения

[Name] [Model info] [QTY]
grip molding PR:7X7,7X8, 1
7X9
8E0827574C Предложения

[Name] [Note] [Model info] [QTY]
grip molding plastic PR:3ND+7X0, 1
7X1,7X4
8E0827574C3FZ Предложения

[Name]
Black
Items supplied
8E0807430A Licence plate light 2
Contains:
fillister hd. bolt M3X10 2
8E0827574C Предложения

[Name] [Note] [QTY]
grip molding plastic 1
4L08275743FZ Предложения

[Name]
Black
8P48275743FZ Предложения

[Name]
Black
mating connector
8E0971832 Flat contact housing with contact locking mechanism 4 pin 1
black
also to be used for: red
blue
Grey
8P4827574 Предложения

[Name] [Model info] [QTY]
grip molding PR:3NZ+7X0, 1
7X1,7X4
8E0827657D Предложения

[Name] [Note] [QTY]
securing muff left outer 1
Replacements: 8E0827657G
4F5827302E Предложения

[Name] [Note] [Model info] [QTY]
Lid hinge right PR:4E5 1
4F5827301E Предложения

[Name] [Note] [Model info] [QTY]
Lid hinge left PR:4E5 1
8E0827657E Предложения

[Name] [Note] [QTY]
securing muff right outer 1
Replacements: 8E0827657H
[Name] [Note]
Cable guide
see illustration: 971-080
4F5827705C Предложения

[Name] [Note] [QTY]
gasket for flap rear 1
Replacements: 4F5827705F
4F5827523 Предложения

[Name] [Note] [QTY]
Grab handle left a. right 2
N0162023 Предложения

[Name] [Note] [QTY]
cup rivet 4X8 4
N90648102 Предложения

[Name] [Note] [QTY]
rivetted cap nut M6X0,8-3 2
8D0853419D Предложения

[Name] [Note] [Model info] [QTY]
packing, adhesive 2,5MM PR:6V1 1
Shorten if necessary
4F5827113B Предложения

[Name] [Model info] [QTY]
trim for licence plate PR:A8U,6V2 1
4F5827113B Предложения

[Name] [Model info] [QTY]
trim for licence plate PR:6V6 1
4F5827113C Предложения

[Name] [Model info] [QTY]
trim for licence plate PR:A8S+6V2 1
4F5827113C01C Предложения

[Name]
Satin black
4F5827113B01C Предложения

[Name]
Satin black
N90646201 Предложения

[Name] [Note] [QTY]
Hexagon socket flat head bolt M6X12 2
8D5827499 Предложения

[Name] [QTY]
Stop 2
N90630903 Предложения

[Name] [Note] [QTY]
bolt,hex.hd.with shoul.(combi) M8X20 4
8E0827409 Предложения

[Name] [Note] [QTY]
Locating bolt M8X20 2
N90610701 Предложения

[Name] [Note] [QTY]
Hexagon collar nut M8
F >> 4F-6-171 606 4
Replacements: N 90610702
N90610702 Предложения

[Name] [Note] [QTY]
Hexagon collar nut M8
F 4F-6-171 607>> 4
4F5827552 Предложения

[Name] [Note] [Model info] [QTY]
Gas filled strut left a. right PR:4E0,4E2 2
4F5827552B Предложения

[Name] [Note] [Model info] [QTY]
Gas filled strut left a. right PR:4E5 2
4F5827665A Предложения

[Name] [Model info] [QTY]
Spring PR:4E5 2
