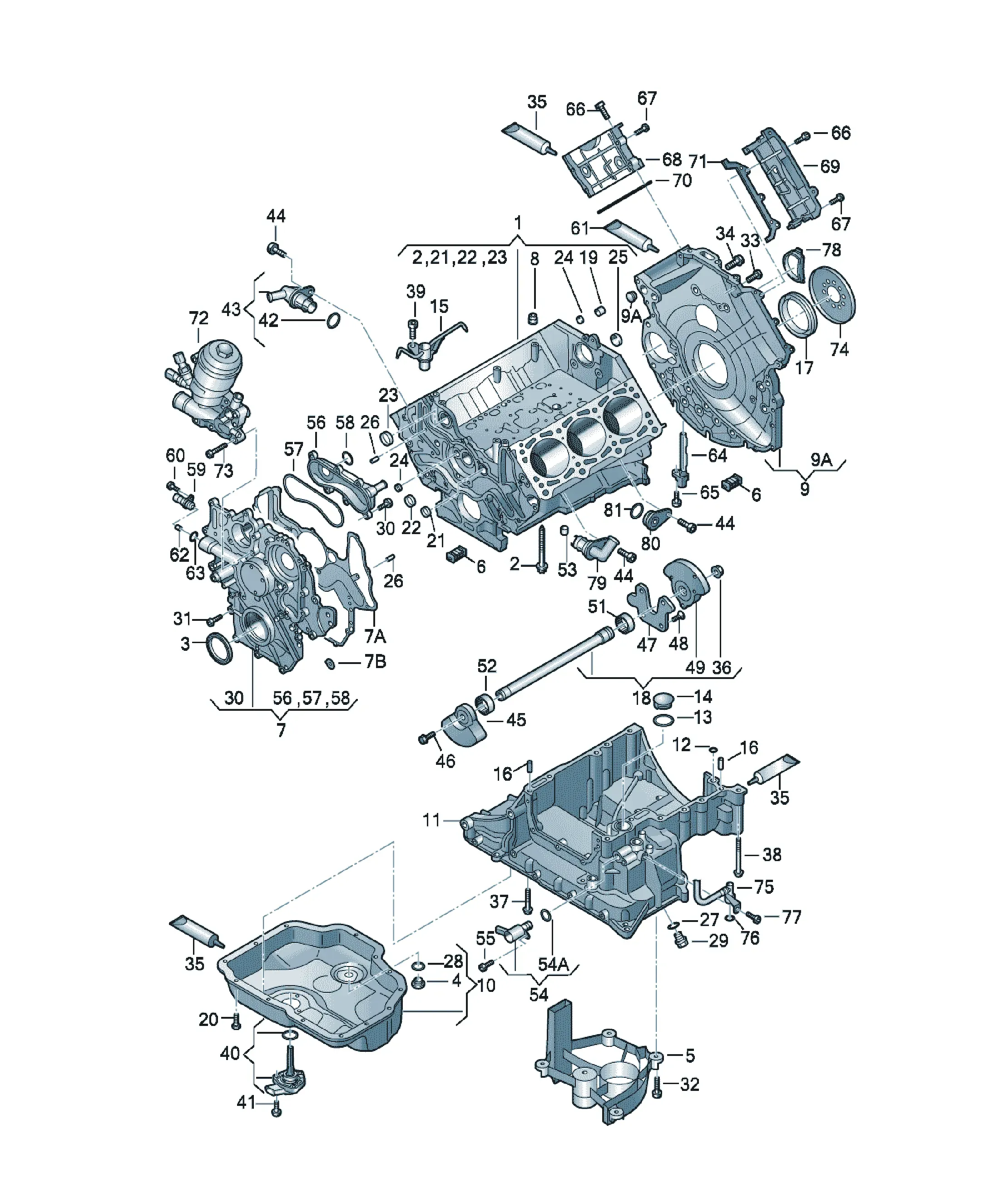

Блок цилиндров

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X20 2

[Name] [Note] [QTY]

Suspension lug left front 1

use if required: N 106 190 01

[Name] [Note] [QTY]

Hex socket head locating bolt M6X6X12 4

[Name] [Note] [QTY]

Washer 74X67X3,5 1

[Name] [Note] [QTY]

Suspension lug right rear 1

use if required: N 106 190 01

[Name] [Note] [QTY]

Suspension lug left rear 1

use if required: N 106 190 01

[Name] [Note] [QTY]

Suspension lug right front 1

use if required: N 106 190 01

[Name] [Note] [QTY]

Crankcase housing 1

also use: 059 107 065 JE 6

Accompanying details: 059107065JE

[Name] [QTY]

Engine oil sump lower part 1

[Name] [Note] [QTY]

Engine oil sump upper 1

D - 07.10.2010>>

Replacements: 059103601CM

[Name] [Note] [QTY]

Engine oil sump upper 1

D >> - 07.10.2010

Replacements: 059103601BN

[Name] [QTY]

Seal 4

[Name] [QTY]

Seal 4

[Name] [QTY]

Non-return valve 1

[Name] [QTY]

jet 3

[Name] [Note] [QTY]

spring pin 6,2X22 2

[Name] [QTY]

Shaft oil seal 1

Replacements: 059103051K

[Name] [QTY]

balancer shaft 1

Replacements: 059103273AS

[Name] [Note] [QTY]

dowel sleeve 16X13,5 2

[Name] [Note] [Model info] [QTY]

Hexagon head bolt M11X1,5X107 CLZB 16

[Name] [Note] [QTY]

Hexagon head bolt M11X1,5X107 16

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X20 16

[Name] [Note] [QTY]

End cap 16 2

[Name] [Note] [QTY]

End cap 8 3

[Name] [Note] [QTY]

End cap 24 2

[Name] [Note] [QTY]

Cylinder pin 6X16 2

[Name] [Note] [QTY]

seal ring 18X22 1

[Name] [Note] [QTY]

seal ring 14X20 1

[Name] [Note] [QTY]

sealing plug M18X1,50 1

[Name] [QTY]

Shaft oil seal 1

Replacements: 059103051J

[Name] [Note] [QTY]

Hexagon socket head bolt M6X22 6

[Name] [Note] [QTY]

Hexagon socket head bolt M6X22 6

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X20 16

[Name] [Note] [QTY]

Hexagon socket head bolt M6X22 18

D - 26.08.2010>>

[Name] [Note] [QTY]

Hexalobular flange screw M6X22 18

D >> - 26.08.2010

[Name] [Note] [QTY]

Oval hexagon socket head bolt M8X30 6

[Name] [Note] [QTY]

Silicon sealant 50ml X

adhesives and sealing compound

[Name] [Note]

for this use: POS.18

[Name] [Note] [QTY]

fillister head bolt with multi-point socket head M7X40 9

[Name] [Note] [QTY]

fillister head bolt with multi-point socket head M7X105X39 3

[Name] [Note] [QTY]

Hex socket head locating bolt M6X6X12 4

[Name] [Note] [QTY]

sealing plug M14X1,50 1

[Name] [Note]

oil level sensor

see illustration: 919-062

[Name] [Note]

Hexagon collar nut

see illustration: 919-062

[Name] [Note]

for this use: POS.43

[Name] [QTY]

Cover 1

Items supplied

housing 1

Threaded bush 1

bush 1

disc 1

ball 15MM 1

seal ring 23,0X2,5 1

seal ring 21,5X2,0 1

[Name] [QTY]

Cover 1

D - 28.05.2012>>

Items supplied

housing 1

Threaded bush 1

bush 1

disc 1

ball 15MM 1

seal ring 23,0X2,5 1

seal ring 21,5X2,0 1

[Name] [QTY]

Cover 1

With water connections

D >> - 28.05.2012

[Name] [Note] [QTY]

round hd. screw M6X10 1

[Name] [Note] [QTY]

Balancer weight front 1

[Name] [Note] [QTY]

fitted bolt, hexagon head M10X20 1

[Name] [QTY]

End cap 1

D - 26.09.2011>>

[Name] [QTY]

End cap 1

D >> - 26.09.2011

Replacements: 059103407L

[Name] [Note] [QTY]

Hexagon socket head bolt, self-locking M6X12 4

[Name] [Note]

for this use: POS.18

[Name] [QTY]

Insert 1

[Name] [Note] [Model info] [QTY]

needle bearing - 25X33X20 CLZB 1

[Name] [Note] [QTY]

needle bearing - 25X33X20 1

D - 14.07.2011>>

[Name] [Note] [QTY]

needle bearing - 25X32X20 1

D >> - 14.07.2011

[Name] [Note] [QTY]

needle bearing - D=22 MM 1

[Name] [QTY]

dowel sleeve 2

[Name] [QTY]

control valve 1

with:

O-ring

Replacements: 06E115243H

mating connector

4H0973702A Flat contact housing 2 pin 1

Connection piece black

thermostat

Possible single wire:

[Name] [Note] [QTY]

O-ring 12X2 1

to be used for item: 54

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X18 1

[Name] [Note] [QTY]

Cover 1

contains additional positions: 57,58

Items supplied

059103161AD Seal 1

N 90465004 O-ring 23X2,6 1

SIEHE ZEICHNUNG

[Name] [QTY]

Seal 1

D - 23.02.2012>>

[Name] [QTY]

Seal 1

D >> - 23.02.2012

Replacements: 059103161AD

[Name] [Note] [QTY]

O-ring 23X2,6 1

Cover

[Name] [Note]

Sensor for radiator identification/temperature

see illustration, item: 919-062,4

[Name] [QTY]

Seal 4

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 1

[Name] [Note] [QTY]

Silicon sealant 50ml 1

black

[Name] [QTY]

adapter sleeve 1

D - 23.05.2013>>

[Name] [QTY]

adapter sleeve 1

D >> - 23.05.2013

Replacements: 059103826B

[Name] [Note] [QTY]

O-ring 5,6X2N 1

Sensor for radiator identification/temperature

[Name] [Note] [QTY]

O-ring 14X1,78 1

[Name] [QTY]

impulse sender 1

Replacements: 059906433F

mating connector

4H0973703A Flat contact housing 3 pin 1

brown

Possible single wire: 0,5 X

0,5 X

0,5 X

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 1

[Name] [Note] [QTY]

oval head countersunk bolt with multi-point socket head M6X40 6

only to be used for: 059 109 129 AG

059 109 130 AG

D - 11.01.2012>>

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X30 6

only to be used for: 059 109 129 T

059 109 130 P

D >> - 11.01.2012

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X20 16

[Name] [Note] [QTY]

Cover cylinders 1-3 1

also use: D 176 501 A1 X

D >> - 11.01.2012

Accompanying details: D 176501A1

Replacements: 059109130AG; 059109092H; N 10582103

[Name] [Note] [QTY]

Cover cylinders 1-3 1

also use: D 176 501 A1 X

D - 11.01.2012>>

Accompanying details: D 176501A1

[Name] [Note] [QTY]

Cover cylinders 4-6 1

also use: D 176 501 A1 X

D - 11.01.2012>>

Accompanying details: D 176501A1

[Name] [Note] [QTY]

Cover cylinders 4-6 1

also use: D 176 501 A1 X

D >> - 11.01.2012

Accompanying details: D 176501A1

Replacements: 059109129AG; 059109091K; N 10582103

[Name] [Note] [Model info] [QTY]

Sealing flange front CNRB 1

D - 13.05.2013>> 1

also use: 079 103 051 D

059 103 161 AJ

WHT 005 400

Accompanying details: 079103051D; 059103161AJ; WHT005400

[Name] [Note] [Model info] [QTY]

Sealing flange front CNRB 1

also use: 059 103 051 G 1

D >> - 13.05.2013

Accompanying details: 059103051G

Replacements: 059103151BQ; 059103161AJ; WHT005400

[Name] [Note] [Model info] [QTY]

Sealing flange front CJGA,CJGC, 1

also use: 059 103 051 G CJMA,CJGD, 1

D >> - 03.03.2012 CRCA,CLZB

Accompanying details: 059103051G

Replacements: 059103151CD

[Name] [Note] [Model info] [QTY]

Sealing flange front CJGA,CJGC, 1

also use: 059 103 051 G CJMA,CJGD, 1

D - 03.03.2012>> - 13.05.2013 CRCA,CLZB

Accompanying details: 059103051G

Replacements: 059103151BQ; 059103161AJ; WHT005400

[Name] [Note] [Model info] [QTY]

Sealing flange front CJGA,CJGC, 1

also use: 059 103 051 G CJMA,CJGD, 1

WHT 005 400 CRCA,CLZB

D - 13.05.2013>>

Accompanying details: 059103051G; WHT005400

Replacements: 059103151CH

[Name] [Note] [QTY]

Seal cylinders 1-3 1

also use: D 176 501 A1 X

only to be used for: 059 109 130 P

D >> - 11.01.2012

Accompanying details: D 176501A1

[Name] [Note] [QTY]

Seal cylinders 1-3 1

also use: D 176 501 A1 X

only to be used for: 059 109 130 AG

D - 11.01.2012>>

Accompanying details: D 176501A1

[Name] [Note] [QTY]

Seal cylinders 4-6 1

also use: D 176 501 A1 X

only to be used for: 059 109 129 AG

D - 11.01.2012>>

Accompanying details: D 176501A1

[Name] [Note] [QTY]

Seal cylinders 4-6 1

also use: D 176 501 A1 X

only to be used for: 059 109 129 T

D >> - 11.01.2012

Accompanying details: D 176501A1

[Name] [Note]

oil filter

see illustration: 115-057

[Name]

Hexagon socket head bolt

see illustration:

[Name] [Note]

stop washer

see illustration: 105-056

[Name] [QTY]

impulse rotor 1

Replacements: 059105189M

[Name] [Note]

Vacuum hose

see illustration: 131-013

[Name] [Note]

seal ring

see illustration: 131-013

[Name]

Hexagon socket head bolt

see illustration:

[Name] [QTY]

Cover 1

[Name] [QTY]

Cover 1

Items supplied

housing 1

bush 1

disc 1

ball 15MM 1

seal ring 23,0X2,5 1

seal ring 21,5X2,0 1

[Name] [Note] [QTY]

Seal front 1

D - 13.05.2013>>

only to be used for: 059 103 151 BQ

059 103 151 BN

059 103 151 CH

[Name] [Note] [QTY]

Seal front 1

D >> - 13.05.2013

only to be used for: 059 103 151 BJ

059 103 151 CD

059 103 151 CE

[Name] [QTY]

Not for this model 1

[Name]

Non-return valve

No replacement part

[Name] [QTY]

Cover 1

Replacements: 059121155BK

[Name] [Note] [QTY]

O-ring 13,1X1,6 1

[Name] [Note] [QTY]

Sealing flange rear 1

also use: 057 103 147 A 2

D 176 501 A1 1

D - 27.04.2015>>

Accompanying details: 057103147A; D 176501A1

[Name] [Note] [QTY]

Sealing flange rear 1

also use: 057 103 147 A 2

D 176 501 A1 1

D >> - 27.04.2015

Accompanying details: 057103147A; D 176501A1

Replacements: 059103171DD

[Name] [QTY]

Not for this model 1
