Датчики

Система охлаждения наддувочного воздуха

Схемы узла

4 схемы

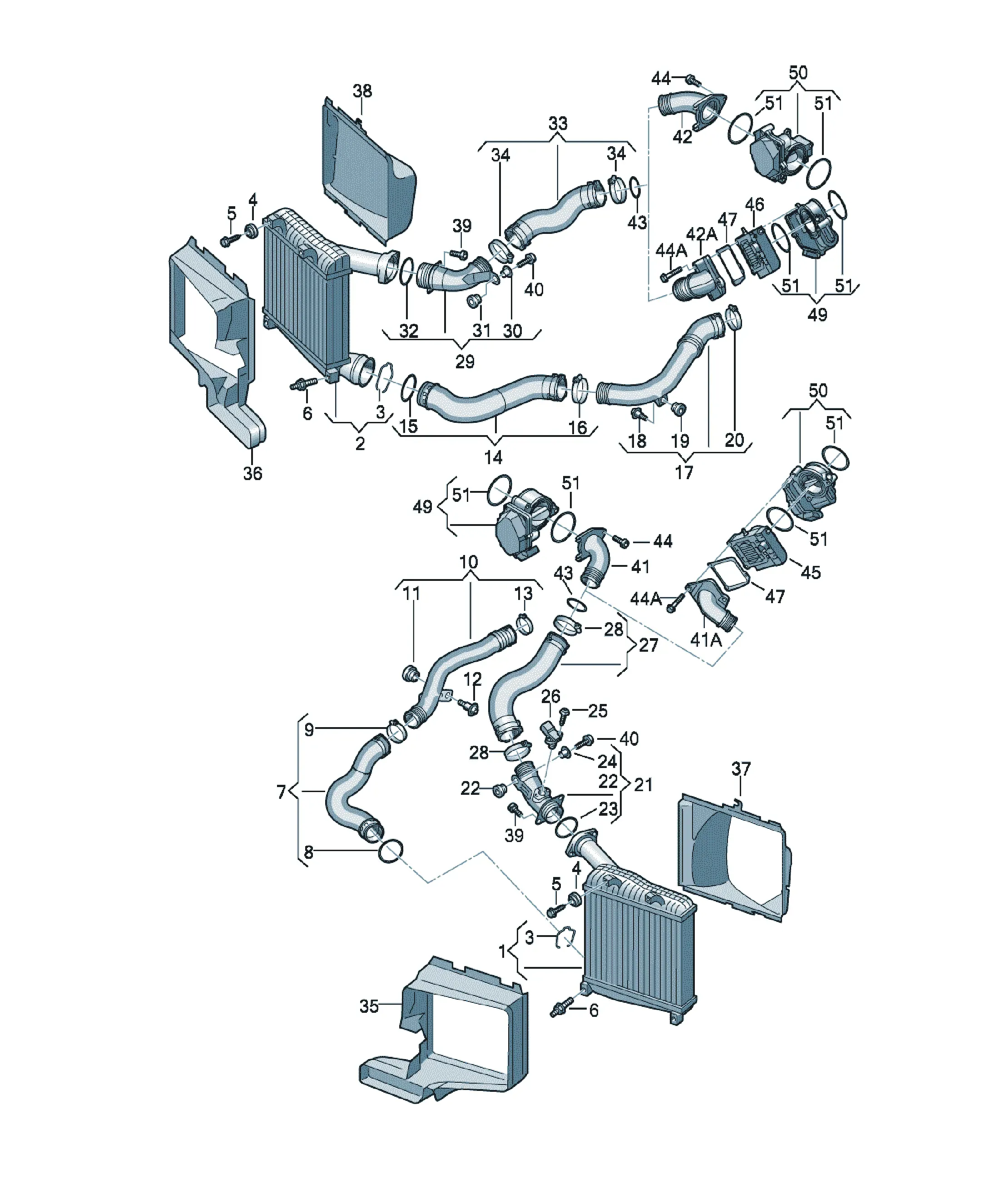

Схема «Система охлаждения наддувочного воздуха»

Детали

65 деталей

Уплотнительное кольцо
036906149D Предложения

[Name] [Note] [QTY]
O-ring 7,59X2,62 1
Included in position: 26
7L6145803D Предложения

[Name] [Note] [QTY]
Charge air cooler left 1
Replacements: 7L6145803F
7L8145941 Предложения

[Name] [Note] [QTY]
charge air tube left lower 1
D >> - 07.10.2013
Replacements: 4L0145941
4L0145941 Предложения

[Name] [Note] [QTY]
charge air tube left lower 1
D - 07.10.2013>>
867129669 Предложения

[Name] [QTY]
Grommet 1
3C0145830 Предложения

[Name] [QTY]
Spacer sleeve with cylinder collar bolt 1
N10619701 Предложения

[Name] [Note] [QTY]
Clamp 35-55X12 1
7L8145968A Предложения

[Name] [Note] [QTY]
Pressure hose right lower 1
3C0145117F Предложения

[Name] [Note] [QTY]
seal ring 57,85MM 1
N10518801 Предложения

[Name] [Note] [QTY]
Hose clamp 40-60X12 1
4L0145942A Предложения

[Name] [Note] [QTY]
pressure pipe right lower 1
D - 07.10.2013>>
7L8145942A Предложения

[Name] [Note] [QTY]
pressure pipe right lower 1
D >> - 07.10.2013
Replacements: 4L0145942A
3C0145830 Предложения

[Name] [QTY]
Spacer sleeve with cylinder collar bolt 1
867129669 Предложения

[Name] [QTY]
Grommet 1
7P6145804A Предложения

[Name] [Note] [QTY]
Charge air cooler right 1
Replacements: 7P6145804F
N10619701 Предложения

[Name] [Note] [QTY]
Clamp 35-55X12 1
7L8145955 Предложения

[Name] [Note] [QTY]
Pipe left upper 1
867129669 Предложения

[Name] [QTY]
Grommet 1
WHT003156 Предложения

[Name] [Note] [QTY]
O-ring 57X3,5 1
1K0129734B Предложения

[Name] [Note] [QTY]
bush 7,5MM 3
N90288606 Предложения

[Name] [Note] [QTY]
fillister hd. bolt 5X17 1
D - 12.07.2010>>
N90172004 Предложения

[Name] [Note] [QTY]
oval head panel screw 5X22 1
D >> - 12.07.2010
038906051C Предложения

[Name] [QTY]
Pressure sensor 1
D >> - 12.07.2010
Replacements: 03G906051M
mating connector
1J0973704 Flat contact housing with contact locking mechanism 4 pin 1
optional: X
8K0973704 Flat contact housing with contact locking mechanism 4 pin 1
black
03G906051E Предложения

[Name] [QTY]
Pressure sensor 1
D - 12.07.2010>>
Replacements: 03G906051M
mating connector
1J0973704 Flat contact housing with contact locking mechanism 4 pin 1
8K0973704 Flat contact housing with contact locking mechanism 4 pin 1
black
7L8145979 Предложения

[Name] [Note] [QTY]
Pressure hose left upper 1
D >> - 12.07.2010
4L0145979C Предложения

[Name] [Note] [QTY]
Pressure hose left upper 1
D - 12.07.2010>>
N10518801 Предложения

[Name] [Note] [QTY]
Hose clamp 40-60X12 1
7L8145956A Предложения

[Name] [Note] [Model info] [QTY]
charge air tube right upper PR:1D2,1D6, 1
1D8,1D9
7L8145956 Предложения

[Name] [Note] [Model info] [QTY]
charge air tube right upper PR:1D0 1
1J0145769G Предложения

[Name] [Note] [QTY]
Retaining clip SCA52 2
1K0129734B Предложения

[Name] [Note] [QTY]
bush 7,5MM 3
867129669 Предложения

[Name] [QTY]
Grommet 1
WHT003156 Предложения

[Name] [Note] [QTY]
O-ring 57X3,5 1
7L8145980 Предложения

[Name] [Note] [QTY]
Pressure hose right upper 1
D >> - 12.07.2010
4L0145980C Предложения

[Name] [Note] [QTY]
Pressure hose right upper 1
D - 12.07.2010>>
N10734801 Предложения

[Name] [Note] [QTY]
Hose clamp 40-60X12 1
D - 12.07.2010>>
Replacements: N 10518801
N10735501 Предложения

[Name] [Note] [QTY]
Hose clamp 40-60X12 1
D - 12.07.2010>>
N10518801 Предложения

[Name] [Note] [QTY]
Hose clamp 40-60X12 2
D >> - 12.07.2010
4L0117335G Предложения

[Name] [Note] [Model info] [QTY]
Air guide left PR:2K6 1
4L0117335F Предложения

[Name] [Note] [Model info] [QTY]
Air guide left PR:2K1,2K2, 1
2K7,2K8,VJ1,
VJ2,VJ5
4L0117336G Предложения

[Name] [Note] [Model info] [QTY]
Air guide right PR:2K6 1
4L0117336F Предложения

[Name] [Note] [Model info] [QTY]
Air guide right PR:2K1,2K2, 1
2K7,2K8,VJ1,
VJ2,VJ5
7L0117339 Предложения

[Name] [Note] [QTY]
Air guide for charge air cooler left 1
7L0117340 Предложения

[Name] [Note] [QTY]
Air guide for charge air cooler right 1
N10124408 Предложения

[Name] [Note] [QTY]
Hexagon socket head bolt (combi) M6X20 4
7L0145830A Предложения

[Name] [QTY]
bush 6
N90731503 Предложения

[Name] [Note] [QTY]
Hexagon socket head panel bolt 6X25 2
057145957N Предложения

[Name] [Note] [QTY]
pressure pipe left upper 1
D >> - 17.05.2010
057145957T Предложения

[Name] [Note] [QTY]
pressure pipe left upper 1
D - 17.05.2010>>
057145958N Предложения

[Name] [Note] [QTY]
pressure pipe right upper 1
D >> - 17.05.2010
057145958T Предложения

[Name] [Note] [QTY]
pressure pipe right upper 1
D - 17.05.2010>>
N90978701 Предложения

[Name] [Note] [QTY]
O-ring 55X2,5 2
N10127005 Предложения

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head (combination) M6X55 6
D >> - 17.05.2010
N10739401 Предложения

[Name] [Note] [QTY]
bolt,hex.hd.with shoul.(combi) M6X90X70 6
D - 17.05.2010>>
057129501D Предложения

[Name] [Note] [QTY]
pre-heater left 1
057129502D Предложения

[Name] [Note] [QTY]
pre-heater right 1
D - 17.05.2010>>
057145723B Предложения

[Name] [QTY]
Seal 2
057128063E Предложения

[Name] [QTY]
Throttle valve control element 2
Replacements: 057128063H
mating connector
1J0973705 Flat contact housing with contact locking mechanism 5 pin 1
N91053801 Предложения

[Name] [Note] [QTY]
Hexagon bolt M6X20 4
057128063E Предложения

[Name] [QTY]
Throttle valve control element 2
Replacements: 057128063H
mating connector
1J0973705 Flat contact housing with contact locking mechanism 5 pin 1
N90521604 Предложения

[Name] [Note] [QTY]
O-ring 55X3 4
N91101201 Предложения

[Name] [Note] [QTY]
double stud with hexagon drive M6X20/M6X8 2
7L8145967A Предложения

[Name] [Note] [QTY]
Pressure hose left lower 1
3C0145117F Предложения

[Name] [Note] [QTY]
seal ring 57,85MM 1
N10518801 Предложения

[Name] [Note] [QTY]
Hose clamp 40-60X12 1
